DVI-D KVM connection
Carries DVI-D single-link video, USB keyboard-and-mouse data and analogue audio.

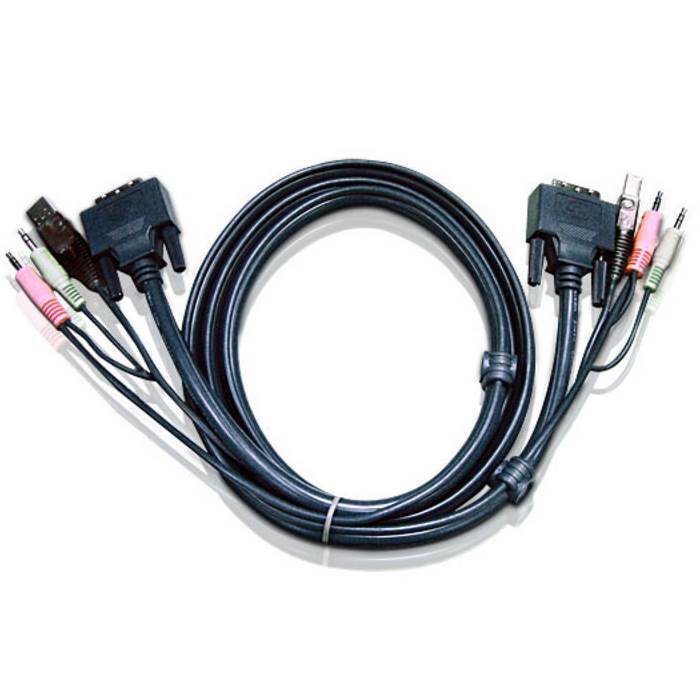

ATEN 2L-7D03U USB DVI-D Single Link KVM Cable with Audio - 3.0m
Model # 2L-7D03U
-
SKU: 2L-7D03U
- Pick Up Available
- Australian Warranty
- Checkout Securely
ATEN SKU 2L-7D03U
ATEN 2L-7D03U 3m USB DVI-D KVM Cable with Audio
The ATEN 2L-7D03U is a 3-metre USB DVI-D single-link KVM cable with audio for compatible ATEN KVM switches, extenders and related equipment.
The supplied connector specification lists DVI-D single-link, USB and two audio plugs at each end, using USB Type-A on the computer side and USB Type-B on the KVM side.
3-metre cableDVI-D single-linkUSB Type-A and Type-BAnalogue audioDeviceDeal authorised ATEN reseller
Product overview
Three-metre reach
The structured specification lists 9.8 feet / 3.0 metres.
Two USB connector types
The computer side uses USB Type-A male and the KVM side uses USB Type-B male.
Source review: The supplied plain-text description and structured specification contain different compatibility lists. Both are preserved separately below; confirm the exact target model before publication or purchase.
Frequently asked questions
How long is the ATEN 2L-7D03U cable?
The supplied specification lists 9.8 feet / 3.0 metres.
Which video connector is supplied?
The source lists a DVI-D male single-link connector at each end.
Why are two compatibility lists shown?
The plain-text and structured source fields contain different model lists, so both are retained for review.
What warranty is supplied?
The source lists a 12-month limited ATEN manufacturer warranty.
(2L-7D03U)
Features
ATEN 2L-7D03U 3m USB DVI-D KVM Cable with Audio
KVM functions
- DVI-D single-link video
- USB keyboard and mouse connection
- Two audio plugs at each end
- Length: 9.8ft / 3.0m
Computer / source side
- 1 x DVI-D male single-link
- 1 x USB Type-A male
- 2 x audio plugs
KVM switch side
- 1 x DVI-D male single-link
- 1 x USB Type-B male
- 2 x audio plugs
- Compatibility-list difference requires confirmation
Confirm compatibility carefully because the two supplied source fields do not contain identical ATEN model lists.
Technical specifications
ATEN 2L-7D03U 3m USB DVI-D KVM Cable with Audio
| Product details | |
|---|---|
| Brand | ATEN |
| Model / SKU | 2L-7D03U |
| Product type | USB DVI-D single-link KVM cable with audio |
| Length | 9.8ft / 3.0m |
| Connector 1 / computer side | |
| Video | 1 x DVI-D male single-link |
| USB | 1 x USB Type-A male |
| Audio | 2 x audio plugs |
| Connector 2 / KVM side | |
| Video | 1 x DVI-D male single-link |
| USB | 1 x USB Type-B male |
| Audio | 2 x audio plugs |
| Compatibility supplied in plain-text description | |
| ATEN models | CE600, CE602, CE604, CE610A, CE611, CE624, CE680, CE690, CL3800, CL6700, CL6700MW, CL6708MW, CN8600, CS1642A, CS1644A, CS1762A, CS1764A, CS1768, CS1782A, CS1784A, CS1788, CS261, CS261TK, KE6900, KE6900AR, KE6900AT, KE6900AiT, KE6900R, KE6900ST, KE6900T, KE6940, KE6940AR, KE6940AT, KE6940AiT, KE6940R, KE6940T, RCM101D, CE610, CM0264, CS1762, CS1764 |
| Compatibility supplied in structured specifications | |
| ATEN models | CE600, CE602, CE604, CE610, CE680, CE690, CL6700, CL6700MW, CM0264, CN8600, CS1642A, CS1644A, CS1762A, CS1764A, CS1768, CS1782A, CS1784A, CS1788, CS1762, CS1764 |
| SKU | 2L-7D03U |
| Barcode # | 672792124594 |
| Brand | Aten |
| Shipping Weight | 0.2300kg |
| Shipping Width | 0.010m |
| Shipping Height | 0.010m |
| Shipping Length | 3.000m |
| Shipping Cubic | 0.000300000m3 |
Warranty information
ATEN 2L-7D03U 3m USB DVI-D KVM Cable with Audio
12-Month Limited ATEN Manufacturer Warranty
DeviceDeal is an authorised ATEN reseller. This product is covered by a 12-month limited ATEN manufacturer warranty in Australia, as listed in the supplied product information.
