STARTECH DU1226-KVM-CABLE 1.8m DisplayPort and USB 5Gbps KVM Cable
Model# DU1226-KVM-CABLE
-
SKU: DU1226-KVM-CABLE
- Pick Up Available
- Australian Warranty
- Checkout Securely

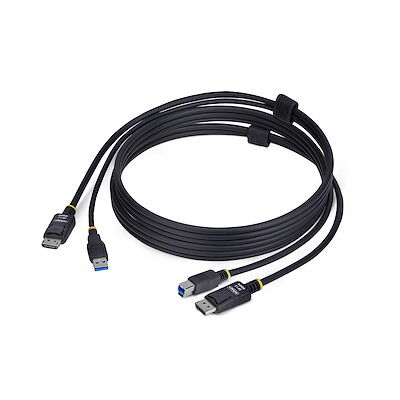

1.8m (6ft) DisplayPort and USB 5Gbps KVM Cable
Connect a computer to a compatible KVM switch with DisplayPort 1.2 video and USB 3.2 Gen 1 data combined in one 1.8m (6ft) cable assembly.
4K 60Hz DisplayPort
Carries DisplayPort 1.2 video up to 3840 × 2160 at 60Hz, including HDR10 and DisplayPort audio.
USB 5Gbps data
USB Type-A to Type-B supports USB 3.2 Gen 1 data transfer rates up to 5Gbps.
Tidy KVM cabling
Parallel video and USB leads create one organised 1.8m (6ft) host-to-KVM connection.
What to know
Confirm that the KVM uses one DisplayPort input and one USB Type-B host port per computer. Final resolution, refresh rate, HDR and USB speed depend on the KVM, computer, display and connected peripherals.
Frequently asked questions
What connections does the DU1226-KVM-CABLE combine?
It combines one DisplayPort video connection with one USB Type-A to Type-B data connection.
What video resolution does the DU1226-KVM-CABLE support?
It supports DisplayPort 1.2 video up to 3840 × 2160 at 60Hz with compatible equipment.
What USB speed does the DU1226-KVM-CABLE support?
Its USB 3.2 Gen 1 connection supports data transfer rates up to 5Gbps.
How long is the DU1226-KVM-CABLE?
The cable assembly is 1.8m (6ft) long.
Does the DU1226-KVM-CABLE support HDR and audio?
Yes. It supports HDR10 and DisplayPort audio when the host, KVM and display support them.
Which USB connectors are fitted to the DU1226-KVM-CABLE?
The computer end has USB Type-A and the KVM end has USB Type-B.
Does the DU1226-KVM-CABLE require drivers?
No. It is OS independent and does not require drivers or software.
What warranty applies to the DU1226-KVM-CABLE?
It is supplied by DeviceDeal as an Australian-market product and is backed by a 2-year StarTech.com manufacturer warranty in Australia.
Not sure this is the right product for your setup? Visit the DeviceDeal Buying Guides.
(DU1226-KVM-CABLE)
Features and highlights
- 1.8m (6ft) combination DisplayPort and USB KVM cable
- DisplayPort 1.2 video up to 3840 × 2160 at 60Hz
- HDR10 and DisplayPort audio support with compatible equipment
- USB 3.2 Gen 1 data transfer up to 5Gbps
- Computer end: DisplayPort plus USB Type-A
- KVM end: DisplayPort plus USB Type-B
- OS-independent cable requiring no drivers or software
- Compatible with Windows, macOS, ChromeOS and Linux systems
- Flexible TPE cable jacket with nickel-plated connectors
- 2-year StarTech.com manufacturer warranty
Specifications
| Product type | Combination DisplayPort and USB KVM cable |
|---|---|
| Computer-end connectors | 1 × DisplayPort; 1 × USB 3.2 Type-A, 9-pin |
| KVM-end connectors | 1 × DisplayPort; 1 × USB 3.2 Type-B, 9-pin |
| Cable length | 1.8m (6ft) |
| Video standard | DisplayPort 1.2 |
| Maximum digital resolution | 3840 × 2160 at 60Hz |
| Video features | HDR10 and DisplayPort audio with compatible equipment |
| USB standard | USB 3.2 Gen 1, up to 5Gbps |
| Software | No drivers or software required |
| OS compatibility | OS-independent; Windows, macOS, ChromeOS and Linux |
| Platform compatibility | Intel, AMD and Apple Silicon hosts with suitable ports |
| Jacket and plating | Black TPE jacket; nickel-plated connectors |
| Product dimensions | Approximately 16mm high × 20.5mm wide |
| Product weight | approximately 154g |
| Warranty | 2-year StarTech.com manufacturer warranty |
| SKU | DU1226-KVM-CABLE |
| Barcode # | 65030912822 |
| Brand | STARTECH |
| Shipping Weight | 0.2000kg |
| Shipping Width | 0.003m |
| Shipping Height | 0.025m |
| Shipping Length | 0.021m |
