Dual-display KVM connection
Two DisplayPort links carry video from one computer to a compatible dual-monitor DisplayPort KVM.
STARTECH DDU1226-KVM-CABLE 1.8m Dual-DisplayPort and USB KVM Cable
Model# DDU1226-KVM-CABLE
-
SKU: DDU1226-KVM-CABLE
- Pick Up Available
- Australian Warranty
- Checkout Securely
StarTech.com · DDU1226-KVM-CABLE
StarTech 1.8m Dual-DisplayPort USB 5Gbps KVM Cable
Connect one computer to a compatible dual-monitor DisplayPort KVM using a single 1.8m bundle containing two DisplayPort links and one USB 5Gbps host link.
1.8m bundle2 x DisplayPortUSB 5Gbps2-year warranty
Product overview

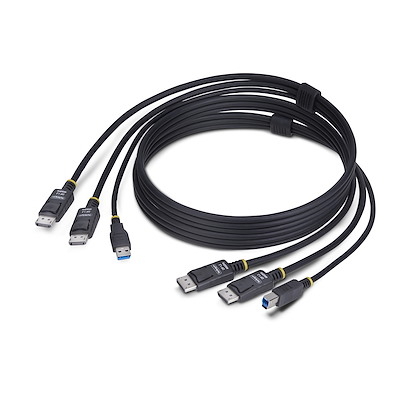

DDU1226-KVM-CABLE combines two DisplayPort male-to-male cables and a USB-A-to-USB-B 5Gbps cable into one managed assembly. It supports DisplayPort 1.2 video up to 4K 60Hz, HDR10 and DisplayPort audio.
Features that matter
USB 5Gbps host link
The bundled USB-A-to-USB-B connection supports data rates up to 5Gbps.
4K 60Hz DisplayPort 1.2
Supports up to 4K 60Hz, HDR10 and DisplayPort audio when the computer, KVM, displays and signal chain support them.
Universal passive cabling
OS-independent cable assembly supports compatible Intel, AMD and Apple Silicon hardware.
What to know before ordering
One cable set per computer
Each assembly connects one computer to one compatible KVM host port set; multi-computer installations need one set per host.
Connector requirement
The computer needs two DisplayPort outputs and one USB-A 5Gbps port; the KVM needs matching two-DisplayPort and USB-B host inputs.
Resolution depends on system
Maximum resolution and refresh rate follow the weakest computer, KVM, cable and display capability.
Warranty confidence in Australia
Australian version · Official StarTech.com warranty
This item is the Australian version supplied by DeviceDeal and is covered by the official two-year StarTech.com manufacturer warranty in Australia. Retain your DeviceDeal tax invoice as proof of purchase. Coverage and claims are subject to StarTech.com warranty terms, eligibility requirements and product assessment.
Frequently asked questions
What is StarTech DDU1226-KVM-CABLE?
DDU1226-KVM-CABLE is a 1.8m dual-DisplayPort and USB 5Gbps combo cable for connecting one computer to a compatible dual-monitor KVM.
Which connections are included?
The bundle contains two DisplayPort male-to-male connections and one USB-A-to-USB-B 5Gbps connection.
What is the maximum resolution?
The verified cable specification supports up to 4K at 60Hz, subject to the complete KVM and display signal chain.
Which KVMs are compatible?
It is intended for DisplayPort KVMs with two DisplayPort host inputs and one USB-B 5Gbps host input per computer.
Does it carry audio?
Yes. The official specification lists DisplayPort audio support.
How many computers does one cable serve?
One cable assembly connects one computer to one KVM host port set.
What is included in the package?
The package contains one 1.8m dual-DisplayPort and USB 5Gbps KVM cable assembly.
What warranty applies in Australia?
DDU1226-KVM-CABLE is the Australian version supplied by DeviceDeal and is covered by the official two-year StarTech.com manufacturer warranty in Australia, subject to StarTech.com terms, eligibility and product assessment.
(DDU1226-KVM-CABLE)
Features and highlights
DDU1226-KVM-CABLE key capabilities
Product-specific highlights verified for this exact StarTech.com model.
Dual-display KVM connection
Two DisplayPort links carry video from one computer to a compatible dual-monitor DisplayPort KVM.
USB 5Gbps host link
The bundled USB-A-to-USB-B connection supports data rates up to 5Gbps.
4K 60Hz DisplayPort 1.2
Supports up to 4K 60Hz, HDR10 and DisplayPort audio when the computer, KVM, displays and signal chain support them.
Universal passive cabling
OS-independent cable assembly supports compatible Intel, AMD and Apple Silicon hardware.
Key highlights
- 2 x DP male-to-male
- USB-A to USB-B 5Gbps
- DisplayPort 1.2 · 4K 60Hz
- HDR10 + DP audio
- Official two-year StarTech.com manufacturer warranty in Australia
Technical specifications
StarTech DDU1226-KVM-CABLE
Verified specifications and package details for the exact model.
General
Product type
Dual-DisplayPort and USB KVM combo cable
Cable length
1830mm (6ft)
Video revision
DisplayPort 1.2
Maximum resolution
4K 60Hz
HDR / audio
HDR10; DisplayPort audio
Warranty
2 Years
UPC
065030912853
Connections
Computer-side video
2 x DisplayPort male
Computer-side USB
1 x USB-A 5Gbps
KVM-side video
2 x DisplayPort male
KVM-side USB
1 x USB-B 5Gbps
USB maximum data rate
5Gbps
Construction and Physical
Colour
Black
Connector plating
Nickel
Cable jacket
TPE
Product dimensions (L x W x H)
1830 x 20.3 x 11mm
Product weight
235g
Packaging
Package dimensions (W x D x H)
145 x 290 x 31mm
Shipping weight
320g
Package contents
1 x KVM cable assembly
| SKU | DDU1226-KVM-CABLE |
| Barcode # | 65030912853 |
| Brand | Startech |
| Shipping Weight | 0.2500kg |
| Shipping Width | 0.002m |
| Shipping Height | 0.025m |
| Shipping Length | 0.022m |
Official StarTech.com manufacturer warranty
2 Years
This item is the Australian version supplied by DeviceDeal and is covered by the official two-year StarTech.com manufacturer warranty in Australia. Retain your DeviceDeal tax invoice as proof of purchase. Coverage and claims are subject to StarTech.com warranty terms, eligibility requirements and product assessment.
This warranty statement applies to StarTech DDU1226-KVM-CABLE.
