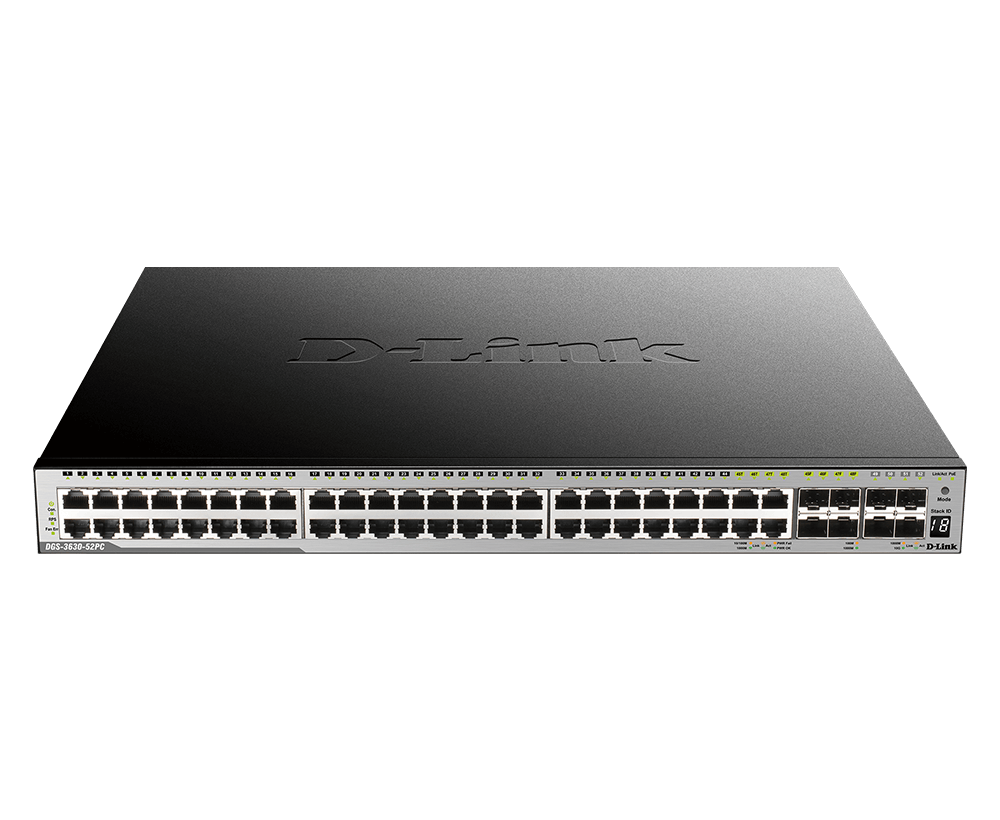

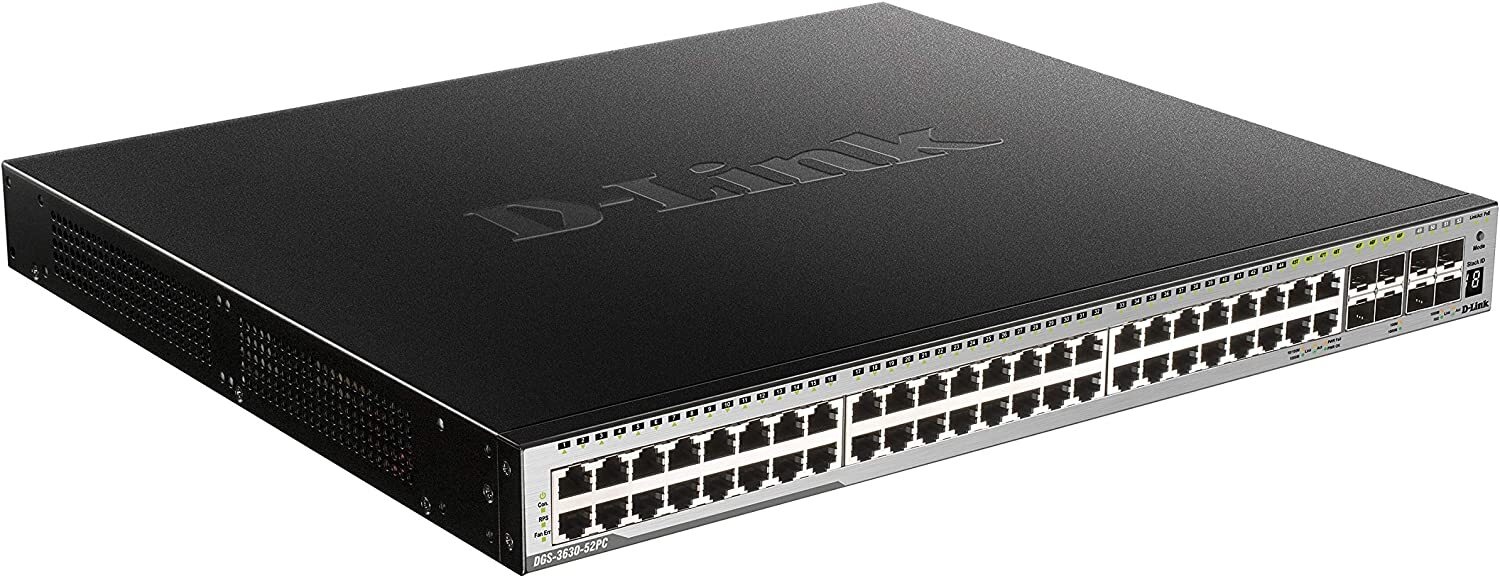

D-Link DGS-3630, 52-Port Stackable Managed Switch with Standard Image, 44 BASE-T PoE, 4 Combo BASE-T PoE/SFP and 4 (10G) SFP+ Ports

DGS-3630-52PC

Network - Switches

Features

The DGS-3630 Series Layer 3 Stackable Managed Switches are designed for Small to Mediumsized Businesses (SMBs), Small to Medium-sized Enterprises (SMEs), large enterprises, and Internet Service Providers (ISPs). They deliver high performance, flexibility, fault tolerance, and advanced software features for maximum return on investment. With Gigabit Ethernet, SFP, 10 Gigabit SFP+, security features, and advanced Quality of Service (QoS), the DGS-3630 Series can act as core, distribution, or access layer switches. High port density, switch stacking, and easy management make the DGS-3630 Series suitable for a variety of applications.

RJ-45 Ports: 48
RJ-45 Speeds: 1Gbps
Combo Ports (RJ-45 + SFP): 44 BASE-T PoE, 4 Combo BASE-T PoE/SFP and 4 (10G) SFP+ Ports
SFP (Small Form-Factor Pluggable) Ports : 8
SFP Speeds: 4 (1G), 4 (10G) SFP+
PoE++ (60w) or higher available?: Yes
Number of PoE Ports: 48
Extended PoE?: No
Capacity in Millions of Packets per Second (mpps): Packet Forwarding Rate:130.95
Switching Capacity in Gigabits per Second (Gbps): 176
Web-based GUI: Yes
Redundant Power Supply: No
19" Rack Mountable: Yes
DIN-Rail Mountable: No
Stacking Capacity (Physical): Yes
Stacking Capacity (Virtual): Yes
IPv4 Routing: Yes
IPv6 Routing: Yes
DHCP (Dynamic Host Configuration Protocol) Server Screening: Yes
Ruggedized: No
Operating Temperature: -5 to 50 C
Unit dimensions: 441 x 380 x 44 mm
Warranty Licence: Ltd L'Time

Technical Details

Model	DGS-3630-52PCSI
Main Port Type	Ethernet
Port Count	52
SFP Ports	8
Port Speed	10/100/1000
Managed	Fully Managed
PoE	Yes
PoE Budget	370
OSI Layer Capability	Layer 3
Form Factor	Rack-mount
Standard Warranty	Ltd L'Time
Stackable	Both
Cooling	Active
Redundant Power Supply	No
Cloud Managed	No
Licence required	No
Warranty	LIFETIME

Resources

High resolution Image

Links and Download

Product Link Product Data Sheet

(DGS-3630-52PC)

Technical Details

Model	DGS-3630-52PCSI
Main Port Type	Ethernet
Port Count	52
SFP Ports	8
Port Speed	10/100/1000
Managed	Fully Managed
PoE	Yes
PoE Budget	370
OSI Layer Capability	Layer 3
Form Factor	Rack-mount
Standard Warranty	Ltd L'Time
Stackable	Both
Cooling	Active
Redundant Power Supply	No
Cloud Managed	No
Licence required	No
Warranty	LIFETIME

SKU	DGS-3630-52PC
Barcode #	790069435027
Brand	D-LINK
Shipping Weight	8.5500kg
Shipping Width	0.560m
Shipping Height	0.550m
Shipping Length	0.160m
Shipping Cubic	0.047952000m3
