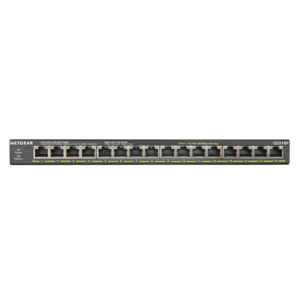

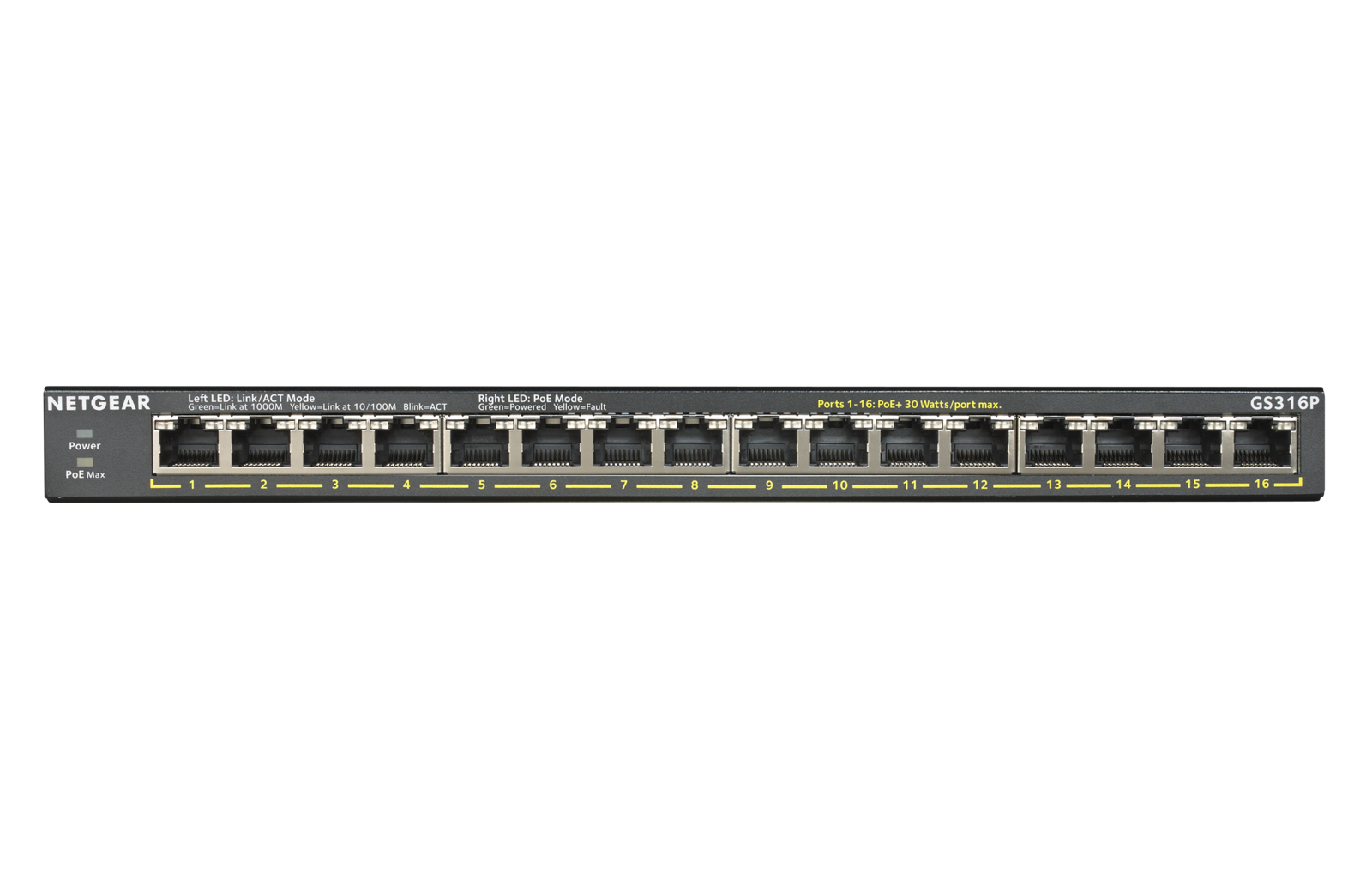

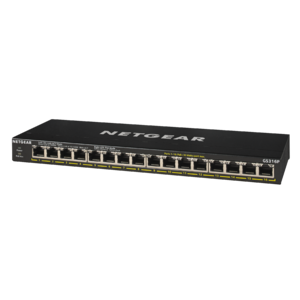

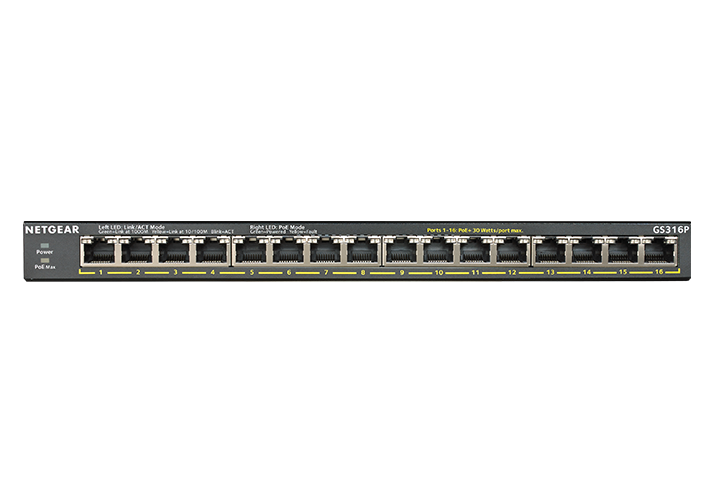

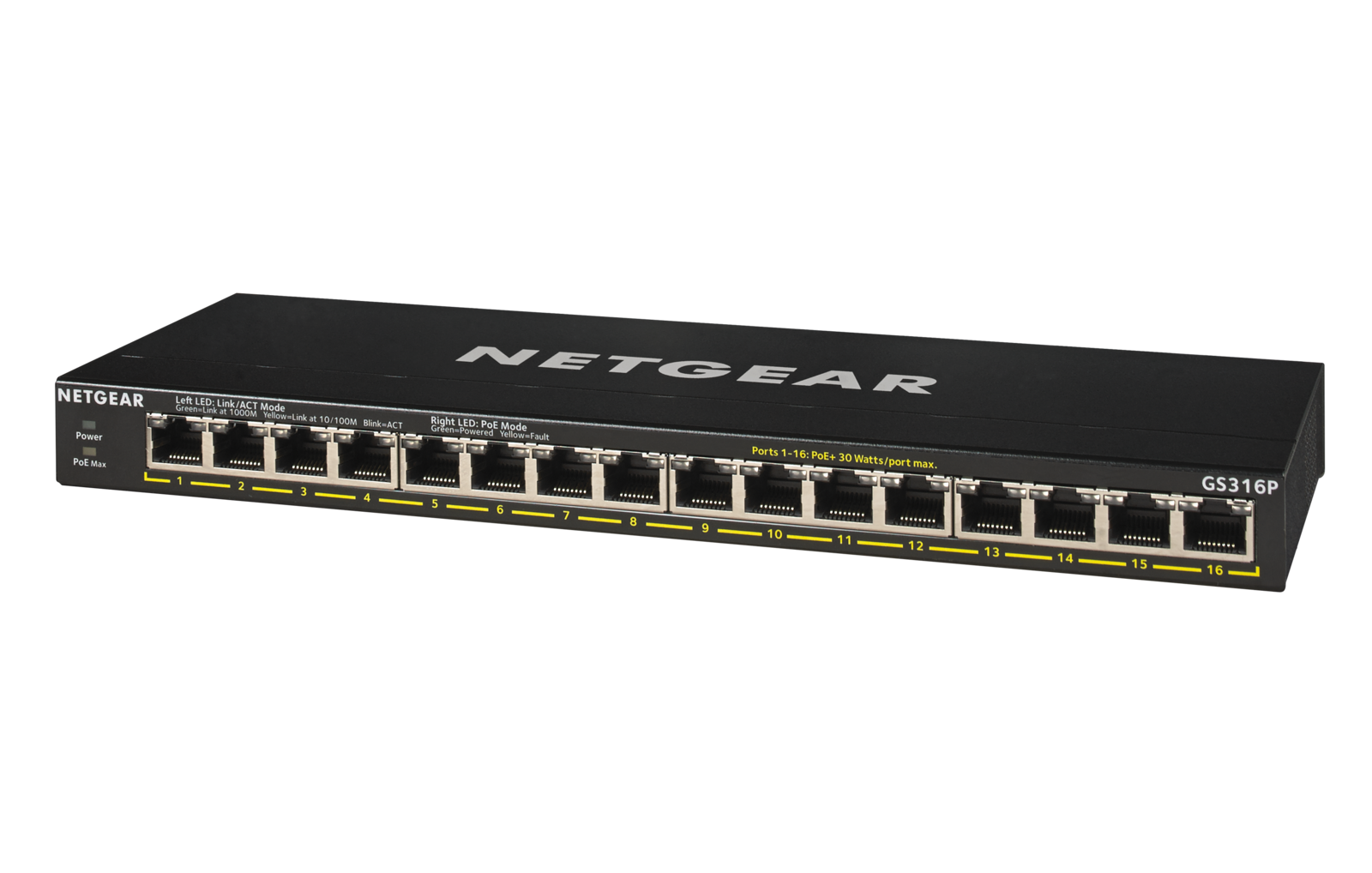

Netgear SOHO 16-port PoE+ Gigabit Unmanaged Switch (115W PoE Budget) (GS316P)
Model # GS316P-100AJS
-
SKU: GS316P-100AJS
- Pick Up Available
- Australian Warranty
- Checkout Securely
NETGEAR GS316P-100AJS
NETGEAR (GS316P) SOHO 16-PORT POE+ GbE UNMANAGED SWITCH, 115W
Overview:
Expanding Wired Connectivity for SOHO Networks needing PoE
NETGEAR 300 Series Gigabit Ethernet Unmanaged switches with PoE provide easy, reliable, and affordable network connectivity for home and small offices. With these unmanaged plug-and-play switches, you can expand your network connections to multiple devices instantly.
The unmanaged switches provides power and data from a single Ethernet (CAT-5e) cable to devices such as IP cameras, VoIP/Internet-based phones, wireless access points, etc. The majority of these models also support PoE power auto-balance and allocation feature.
NETGEAR’s unique PoE technology automatically balances the PoE power based on the device needs independent of PoE class detected. These switches deliver the power the device needs, at the most granular level.
Outstanding power flexibility with NETGEAR’s exclusive FlexPoE
The SOHO Gigabit PoE unmanaged switches support NETGEAR’s exclusive FlexPoE upgradeable PoE power feature. Powered by the industry’s first flexible PoE+ integrated technology, you can increase or decrease the PoE budget by simply purchasing a new NETGEAR. FlexPoE power supply, effectively futureproofing small business networks and budgets. With NETGEAR’s exclusive FlexPoE, these two switches help businesses cost effectively increase their power budget to expand their network as needed.
All ports support PoE/PoE+ up to 30W per port, which makes them the perfect switches for deploying Wireless APs, Pan/Tilt/Zoom and fixed IP Cameras, VoIP Phones, access-limited security door locks or any other IoT PoE-powered devices.
The SOHO Gigabit PoE unmanaged switches have copper Gigabit Ethernet PoE+ ports featuring NETGEAR FlexPoE power. The GS308PP ships with 83W300-Series_PoE_Gigabit_DS.pdf of PoE budget, GS316P ships with 115W300-Series_PoE_Gigabit_DS.pdf, and the GS316PP features an astounding 183W300-Series_PoE_Gigabit_DS.pdf of PoE power budget.
Should you need more power in the future, rather than replacing the entire switch, with NETGEAR FlexPoE, you can just purchase the optional NETGEAR FlexPoE EPS130W power adapter, which will boost the PoE budget of your GS308PP and with the EPS200W Power adapter, which will boost the PoE budget of your GS316P.
Highlights
- Auto-MDI/MDIX eliminates the need for crossover cables
- LED indicators for ease of use
- Energy-efficient technology for power savings
- Fanless design for silent operation
- Auto-negotiation for automatic connection at the highest common speed between switch and an end device
- Non-blocking switching architecture for maximum throughput at wire speed
- Plug-and-play; no setup required
- Durable and rugged metal case
- Desktop or wall-mountable (based on specific model)
- Ideal for small office and home networks
- Standards-based technology ensures interoperability with any standardsbased devices in the existing network
- 802.3af and 802.3at Power over Ethernet (PoE and /PoE+, depending on specific model) for IP cameras, VoIP/Internet-based phones, wireless access points
Features:
Performance Features
ETHERNET PORT CONFIGURATION
16 Gigabit ports
PLUG-AND-PLAY
Simple set up with no software to install or configuration needed and zero maintenance
FULL PERFORMANCE
Non-blocking switching architecture for maximum throughput at wire speed
Power Over Ethernet Features
POWER-OVER-ETHERNET
4 PoE+ ports with 63W total power budget to power wireless AP, IP Cameras, IP Phones and much more
NETGEAR FlexPoE
Upgradable to 183W PoE+ Budget (w/separately purchased power supply module)
PoE POWER AUTO-BALANCE AND ALLOCATION
NETGEAR's unique PoE technology automatically balances the PoE power at the most granular level on each port, depending on the device needs.
Hardware Features
SILENT OPERATION
The fanless design means zero added noise wherever its located, making it ideal for noise-sensitive environments
ENERGY EFFICIENT
Designed to optimize power usage lowering its cost to operate.
VERSATILE MOUNTING OPTIONS
Supports desktop and wall placement. Includes wall mount kit in the box
STANDARDS-BASED DESIGN
Ensure interoperability with any standards-based PDs
Metal Case
Durable and Rugged
(GS316P-100AJS)
NETGEAR SOHO Ethernet Unmanaged Switches
Extended Features
- Choice of Fast Ethernet and Gigabit Ethernet connectivity
- Energy-efficient technology for power savings
- Auto-MDI/MDIX eliminates the need for crossover cables
- Non-blocking switching architecture for maximum throughput at wire speed
Package Contents
- 16-Port Gigabit Ethernet Unmanaged PoE+ Switch with FlexPoE (GS316P)
- Rack mount kit
- Wall mount kit
- Installation guide
- Power adapter (External 130W)
- 16-Port Gigabit Ethernet Switches w/PoE+
- FlexPoE Switches
- Gigabit Ethernet Switches
- 16-Port Switches
- Unmanaged Switches
Specifications:
| NETGEAR GS316P-100AJS Specifications | |
|---|---|
| Physical Specification | Dimensions (WxDxH) @mm : 286 x 102 x 27 mm (11.3 x 4 x 1.1 in) Weight (kg) : 0.88 kg (1.94 lb) |
| Technical Specification | Product name : NETGEAR 16-Port Gigabit Ethernet Unmanaged PoE+ Switch with FlexPoE (GS316P) Speed : Gigabit Number of Ports : 16 PoE ports/Max power output : 115W Energy Efficient Ethernet support : Yes Jumbo frame support : 9,216 bytes MAC table size : 4K Packet buffer size : 1 MB PoE Auto balance : Yes PoE budget : Up to 115W |
| Support & Warranty | Warranty: These products are backup by a NETGEAR limited Hardware Warranty up to 3 years (depending on model and region). Support : 24/7 basic technical support provided for 90 days from purchase date, when purchased from a NETGEAR authorized reseller. |
| SKU | GS316P-100AJS |
| Barcode # | 606449146875 |
| Brand | NETGEAR |
| Shipping Weight | 2.7000kg |
| Shipping Width | 0.295m |
| Shipping Height | 0.083m |
| Shipping Length | 0.374m |
| Shipping Cubic | 0.009157000m3 |
