30-Port L3 Lite 100GbE Managed Switch
QNAP QSW-M7230-2X4F24T

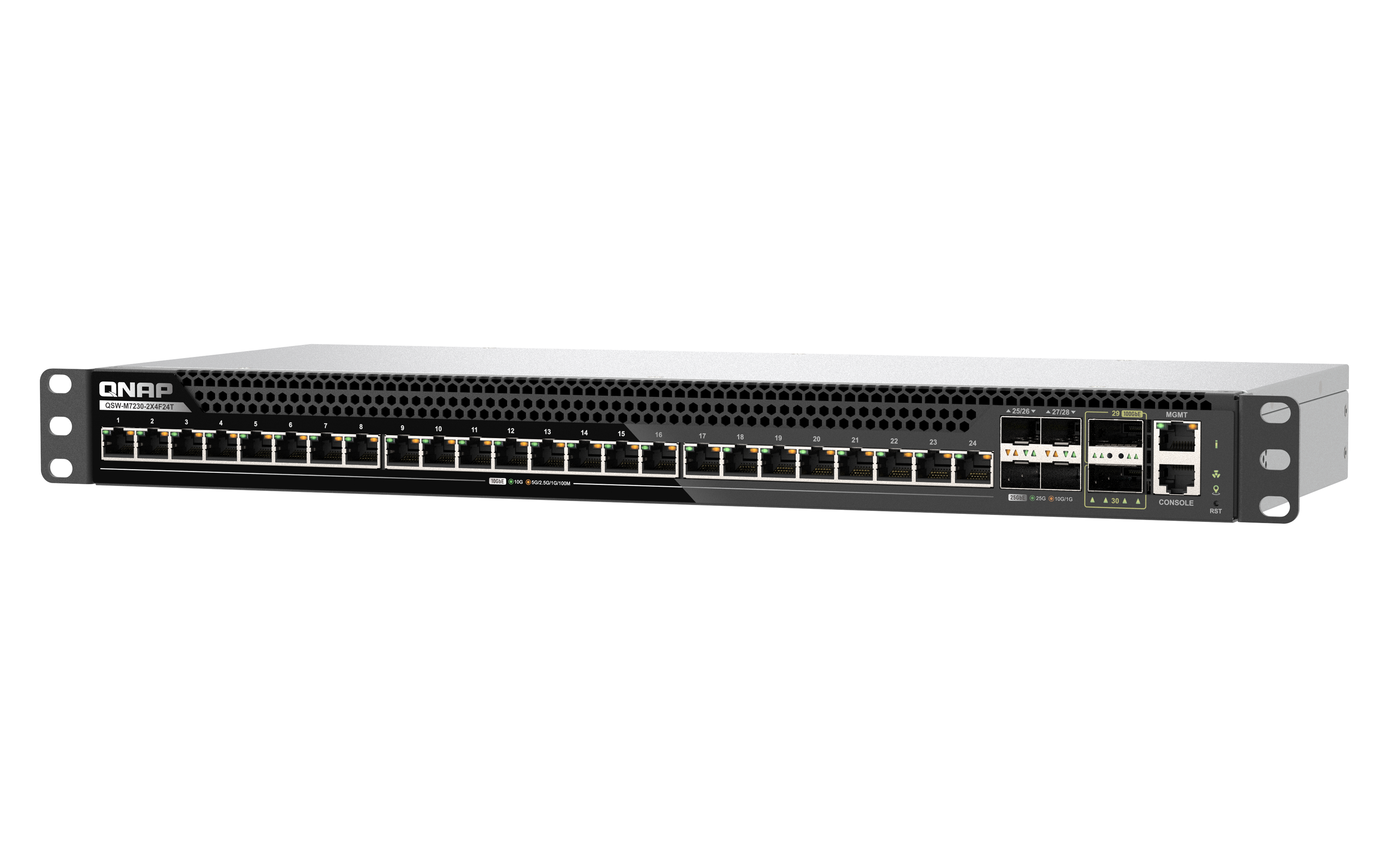

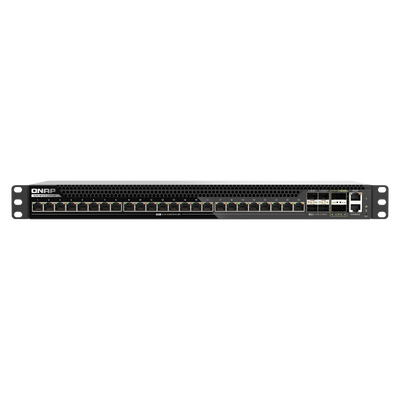

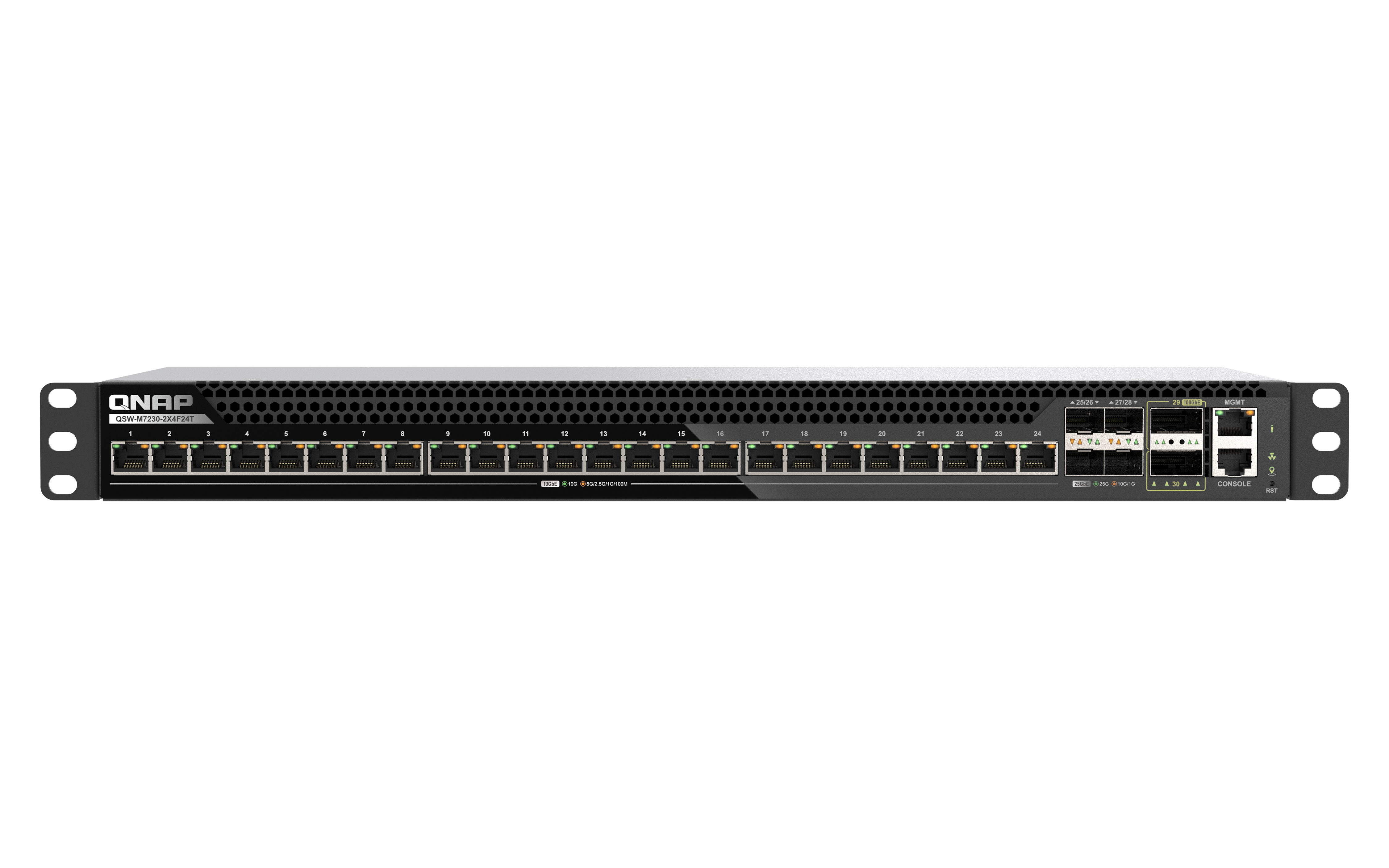

The QSW-M7230-2X4F24T combines 2 × 100GbE QSFP28, 4 × 25GbE SFP28 and 24 × 10GbE RJ45 ports in a 1U rackmount design. Built for high-performance storage environments and mid-to-large enterprise backbones, it supports L3 Lite routing, MC-LAG high availability and up to 1080Gbps switching capacity.
What is the QNAP QSW-M7230-2X4F24T?
It is a 30-port L3 Lite web-managed switch that integrates 100GbE, 25GbE and high-density 10GbE connectivity on one platform. It can provide high-speed uplinks for servers and NAS while supporting large-scale 10GbE access for servers, workstations and aggregation switches.
2 × 100GbEQSFP28 ports for core, server, NAS or switch uplinks
4 × 25GbESFP28 ports for aggregation switches, NAS and servers
24 × 10GbEMulti-Gig RJ45 access ports supporting 10G/5G/2.5G/1G/100M
1080GbpsSwitching capacity with 540Gbps non-blocking throughput
Triple-Rate Network Integration
One platform for backbone, aggregation and access-layer connectivity.
25GbE SFP28
Four 25GbE ports suit aggregation switches, NAS and servers. The interfaces are backward compatible with 10GbE SFP+ and 1GbE SFP interfaces.
10GbE RJ45
Twenty-four 10GbE RJ45 ports provide high-density access for servers and workstations and are backward compatible with 5G, 2.5G and 1G interfaces.
High-Capacity Enterprise Backbone
Wire-speed forwarding and stable, low-latency operation under heavy network traffic.
With up to 1080Gbps switching capacity and a non-blocking architecture, the QSW-M7230-2X4F24T is designed to maintain stable forwarding when multiple servers, NAS devices and switches are active at the same time.
Its 1U rackmount format integrates 100GbE, 25GbE and 10GbE connectivity for Top-of-Rack deployment and centralised access to server and storage nodes. Existing 10GbE cabling and equipment can remain in service while 25GbE and 100GbE links are introduced incrementally.
L3 Lite Routing and High Availability
Routing, redundancy and link aggregation features for segmented enterprise networks.
IP Routing
Static routing forwards packets by IP address between different network segments and subnets. L3 Lite also provides IPv4, IPv6, DNS, DHCP server, SNTP and advanced VLAN settings.
MC-LAG Redundancy
MC-LAG combines connections across switches into a logical link for high availability and redundancy, allowing connected devices to continue operating if one or more physical links fail.
LACP
Link Aggregation Control Protocol combines multiple network connections to increase throughput and protect against connection failure.
Precision Timing for AV over IP
High-precision synchronisation for complex multi-screen and audiovisual network environments.
The QSW-M7230-2X4F24T includes a SiTime high-precision clock and supports PTP Boundary Clock. Precision Time Protocol complies with ITU-T G.8273.3 Class A and corrects internal forwarding delays, with maximum time error usually limited to 100ns.
Combined with IGMP Snooping and VLAN support, this helps maintain consistent audiovisual transmission across encoders, decoders and display devices in environments such as video walls, command centres, broadcast control rooms, sports arenas, digital signage and multi-screen presentation spaces.
Bandwidth, Packet and Security Management
Practical tools for traffic control, segmentation, reliability and troubleshooting.
QoS and VLAN
QoS provides queue scheduling and strict-priority management for critical traffic, while VLANs combine selected devices from different networks into logical groups.
FEC and IGMP Snooping
Forward Error Correction detects and recovers lost data in noisy high-speed links. IGMP Snooping helps minimise bandwidth loss and prevent network information leakage.
ACL, LLDP, RSTP and Flow Control
Access controls, neighbour discovery, loop prevention and flow control help administrators strengthen network reliability and simplify troubleshooting.
Centralised and Local Management
Web-based switch administration with optional cloud-centralised monitoring.
QNAP Switch System Pro (QSS Pro) provides an easy-to-use Web GUI for Layer 3 Lite and Layer 2 management. The AMIZcloud management platform can also monitor multiple switches across different locations without additional management hardware or software, supporting remote troubleshooting and centralised administration.
Scalable Collaboration Across Two Work Areas
A supplied deployment example for medium-to-large creative, design and engineering teams.
Two QSW-M7230-2X4F24T switches connected through 100GbE can support up to 48 10GbE workstations and 8 25GbE NAS devices. Each work area can maintain its own 10GbE access and 25GbE storage nodes while sharing projects and assets across the 100GbE backbone.
Frequently Asked Questions
Quick answers about the QNAP QSW-M7230-2X4F24T.
How many ports does the QSW-M7230-2X4F24T have?
It has 30 network ports: two 100GbE QSFP28 ports, four 25GbE SFP28 ports and twenty-four 10GbE BASE-T RJ45 ports. It also has a separate 1GbE RJ45 management port.
What is the switching capacity?
The supplied datasheet lists 1080Gbps switching capacity and 540Gbps total non-blocking throughput.
Does it support Layer 3 management?
It is an L3 Lite web-managed switch with IP settings, static routing, DHCP server, SNTP and advanced VLAN settings.
Does it support network redundancy?
Yes. It supports MC-LAG for multi-chassis link aggregation and LACP for combining multiple network connections.
Can the 25GbE and 10GbE ports operate at lower speeds?
Yes. The 25GbE SFP28 ports are backward compatible with 10GbE SFP+ and 1GbE SFP interfaces. The 10GbE RJ45 ports support 10G, 5G, 2.5G, 1G and 100M speeds.
Does it support precision timing for AV over IP?
Yes. It supports PTP Boundary Clock and includes a SiTime high-precision clock for synchronising networked audiovisual devices.
What is the form factor?
It is a rackmount switch with dimensions of 44 × 439 × 190mm. The supplied description identifies it as a 1U design.
What warranty is listed in the datasheet?
The supplied datasheet lists a two-year warranty.
Product information: The QSW-M7230-2X4F24T is made in Taiwan. Product images are for illustrative purposes only and may differ from the actual product. Designs and specifications are subject to change without notice.
(QSW-M7230-2X4F24T)
QNAP QSW-M7230-2X4F24T Specifications
Review the management, interfaces, performance, power, standards, physical and environmental specifications.
| Specification | Details |
|---|---|
| Product and Management | |
| Management Type | L3 Lite Web Managed |
| Number of Ports | 30 |
| Management Interface | Web |
| Management Port | 1 × 1GbE RJ45 |
| Console | RJ45 |
| Network Interfaces | |
| 100GbE QSFP28 | 2 |
| 25GbE SFP28 | 4 |
| 10GbE BASE-T (RJ45) | 24 (10G/5G/2.5G/1G/100M) |
| Performance | |
| Total Non-Blocking Throughput | 540Gbps |
| Switching Capacity | 1080Gbps |
| MAC Address Table | 32K |
| Jumbo Frames | 9K |
| Power and Cooling | |
| Power Supply Description | Internal power supply unit |
| Maximum Power Consumption | 158.21W |
| Input Power Type | AC |
| Input Voltage Range | 100–240VAC, 50/60Hz |

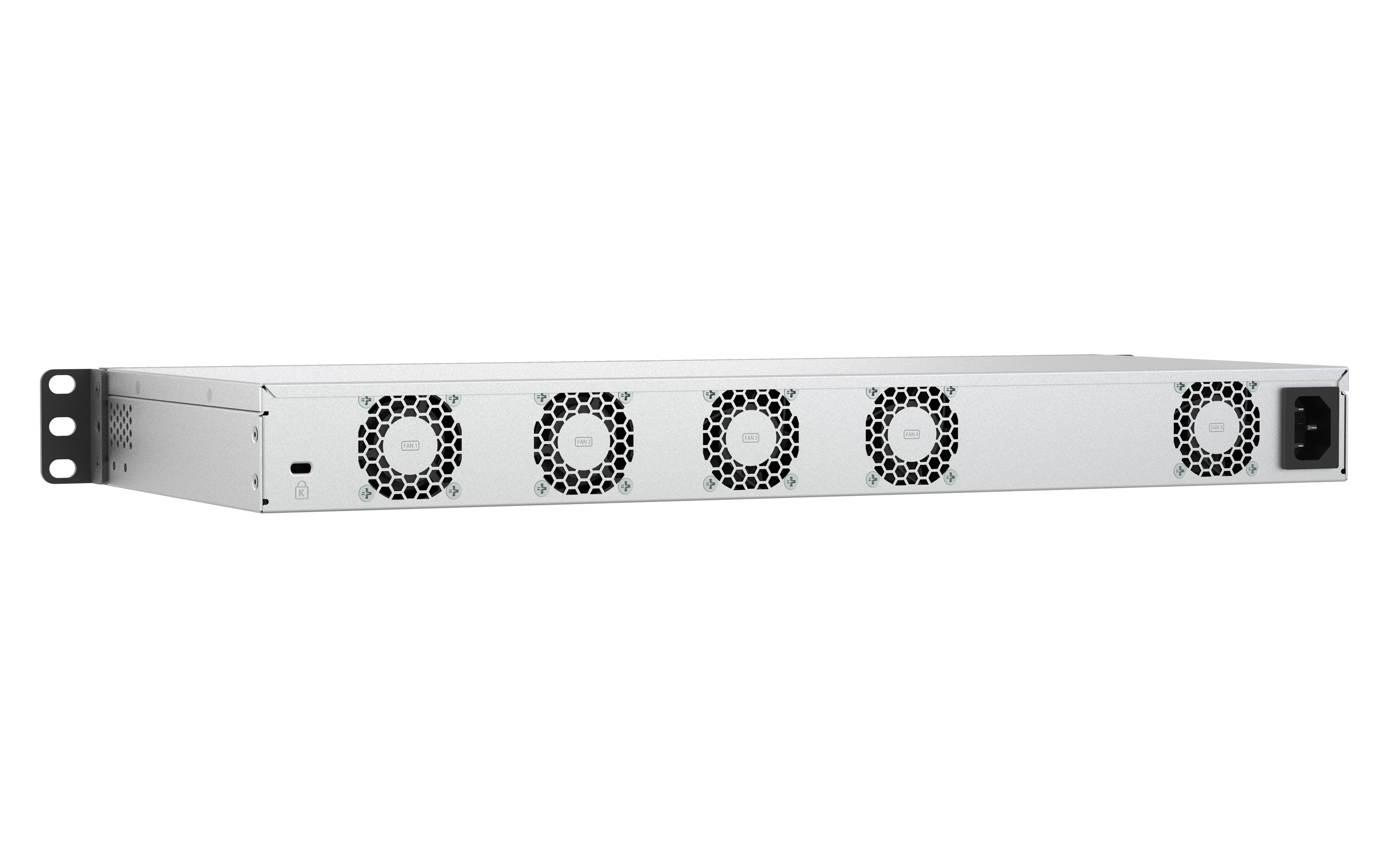

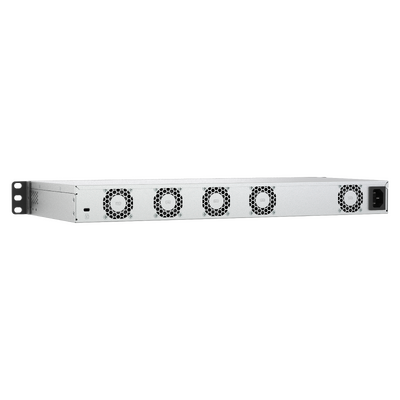

| Fan | PWM VAPO Bearing fan × 5 |
| Supported Standards | |
| IEEE Standards | IEEE 802.3 Ethernet IEEE 802.3u 100BASE-T IEEE 802.3ab 1000BASE-T IEEE 802.3z 1000BASE-SX/LX IEEE 802.3bz 2.5G/5GBase-T IEEE 802.3an 10GBASE-T IEEE 802.3ae 10G Fiber IEEE 802.3x Full-Duplex Flow Control IEEE 802.1Q VLAN Tagging IEEE 802.1w RSTP IEEE 802.3ad LACP IEEE 802.1AB LLDP IEEE 802.1p Class of Service |
| Physical Specifications | |
| Form Factor | Rackmount |
| LED Indicators | Per port: Speed/Link/Activity Per system: Power/Status/Locater |
| Buttons | Reset button |
| Dimensions (H × W × D) | 44 × 439 × 190mm |
| Weight (Net) | 3.1kg |
| Weight (Gross) | 4.67kg |
| Operating Environment | |
| Operating Temperature | 0°C to 40°C (32°F to 104°F) |
| Relative Humidity | 5–95% non-condensing |
| Compliance and Warranty | |
| Certifications | CE, FCC, VCCI, BSMI |
| Electromagnetic Compliance | CLASS A |
| Warranty | 2 years |
| SKU | QSW-M7230-2X4F24T |
| Brand | QNAP |
| Shipping Weight | 5.0000kg |
| Shipping Width | 0.440m |
| Shipping Height | 0.200m |
| Shipping Length | 0.440m |
| Shipping Cubic | 0.038720000m3 |
