QNAP USB4 dual-port network adapter

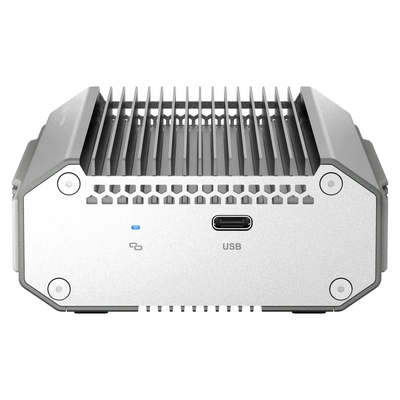

QNAP QNA-UC10G2T USB4 to Dual 10GBASE-T RJ45 Network Adapter

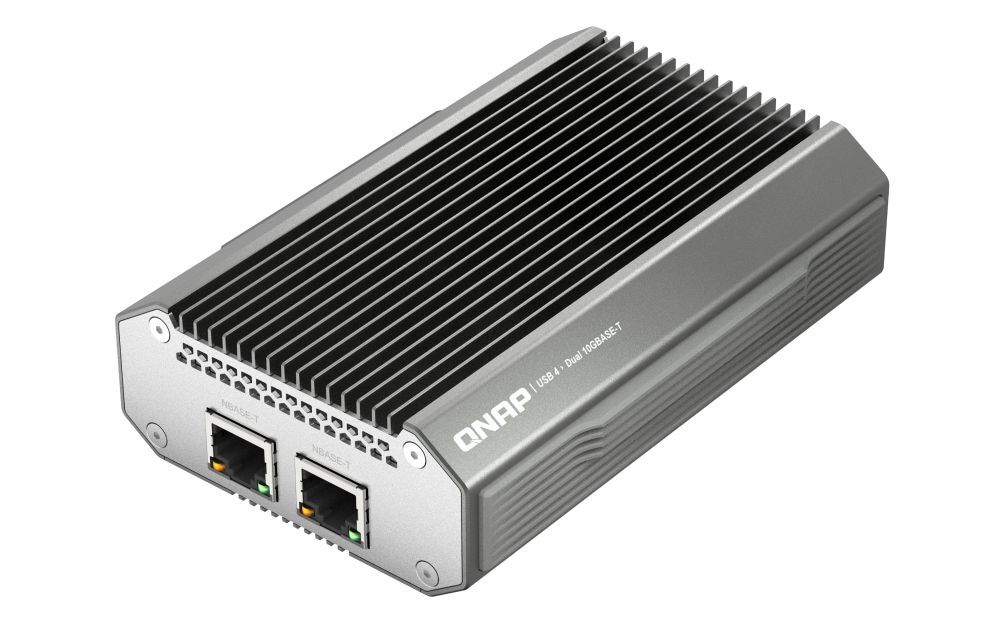

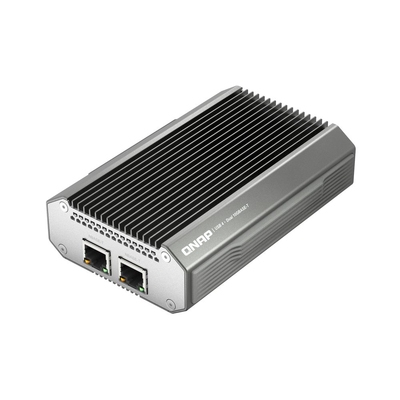

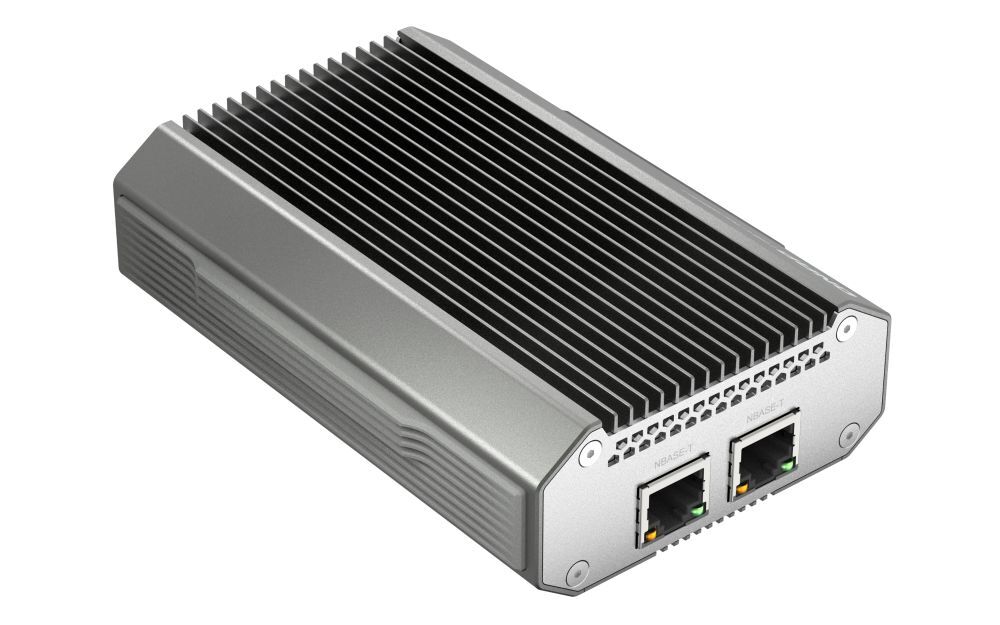

The QNAP QNA-UC10G2T adds two multi-speed 10GBASE-T RJ45 ports through a compatible USB Type-C host connection and includes a 1-metre USB4 cable.

Network ports2 × 10GBASE-T RJ45

Host connectionUSB4 Type-C

Network speeds10G / 5G / 2.5G / 1G / 100M

CoolingFanless

Dual multi-gigabit copper networking

Use one supported USB Type-C connection to add two RJ45 network ports for 10GbE and lower-speed Ethernet environments. The supplied specifications list an AQC113 PHY IC and recommend Cat 6a cabling.

Host, operating-system and package details

Windows host-port support is listed for USB4 and Thunderbolt 4.
macOS host-port support is listed for Thunderbolt 4 and Thunderbolt 3.
Windows, macOS and Linux require driver installation.
Windows running on ARM-based processors is not supported.
Package contents list the QNA adapter, one USB4 C-to-C cable and a manual.
The supplied adapter operating-temperature range is 035°C.

Compatibility and installation guidance

Confirm the computer operating system, exact USB4 or Thunderbolt port, required driver and network cabling before purchase. The description lists 10/5/2.5/1GbE, while the separate specifications additionally list 100Mbps.

Frequently asked questions

Answers below are based only on the supplied product information for QNA-UC10G2T.

How many Ethernet ports does the QNA-UC10G2T provide?

It provides two 10GBASE-T RJ45 Ethernet ports through one USB Type-C host connection.

Which network speeds are supported?

The supplied description lists 10, 5, 2.5 and 1GbE, and the separate specifications also list 100Mbps.

Which computer ports are listed as compatible?

Windows systems are listed with USB4 and Thunderbolt 4. macOS systems are listed with Thunderbolt 4 and Thunderbolt 3.

Which operating systems are listed?

Windows, macOS and Linux are listed, with driver installation required. Windows on ARM-based processors is not supported.

What is included with the QNA-UC10G2T?

The supplied package contents list the QNA adapter, one 1-metre USB4 C-to-C cable and a manual.

What warranty applies to the QNA-UC10G2T?

The supplied specifications state a 2-year QNAP manufacturer warranty.

(QNA-UC10G2T)

Features and highlights

QNAP QNA-UC10G2T USB4 to Dual 10GBASE-T RJ45 Network Adapter

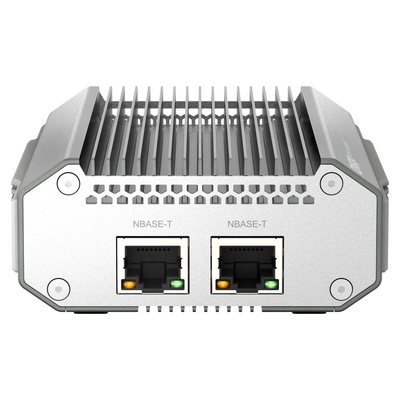

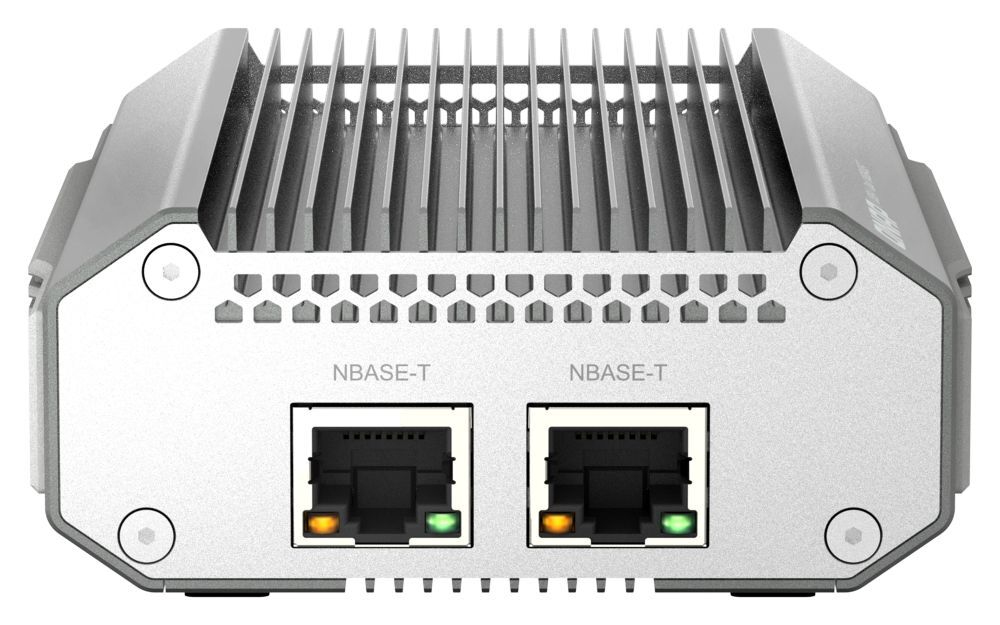

Dual 10GBASE-T

Adds two RJ45 network ports through one supported USB Type-C connection.

Multi-speed Ethernet

Supports the supplied 10G, 5G, 2.5G, 1G and 100M transmission-rate list.

USB4 cable included

Includes one 1-metre USB4 C-to-C host cable.

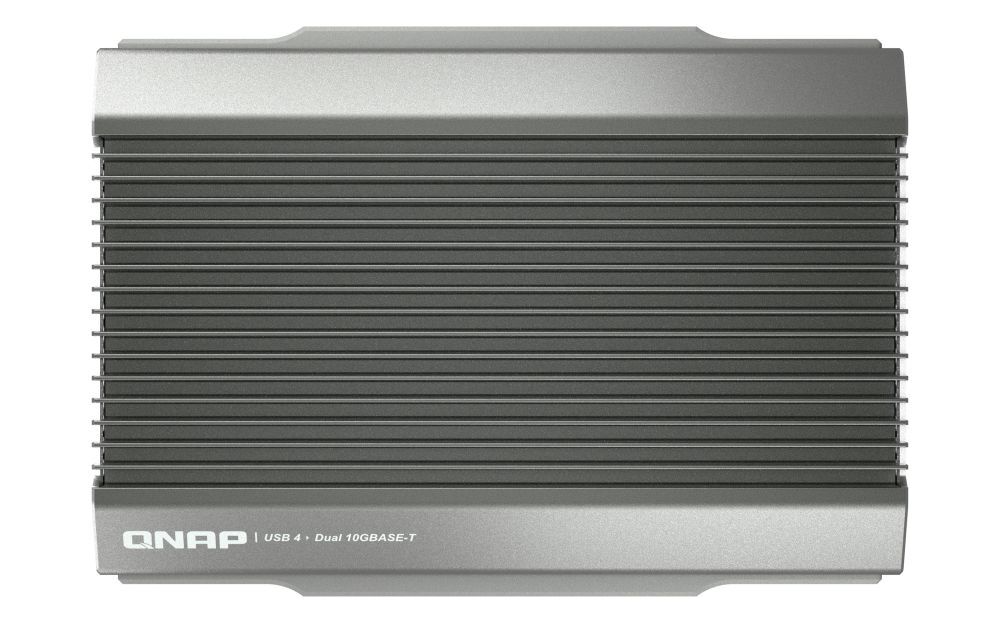

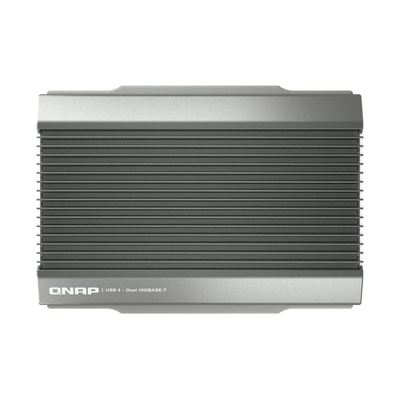

Fanless design

Uses fanless cooling and is specified for 035°C operation.

Key details to check before purchase

Host connector: 1 × USB-C
Network connectors: 2 × 10GBASE-T RJ45
PHY IC: AQC113
Cat 6a cable recommended

QNAP QNA-UC10G2T USB4 to Dual 10GBASE-T RJ45 Network Adapter specifications

Technical information below is organised from the supplied product data.

Specification	Details
Product Details
Brand	QNAP
SKU	QNA-UC10G2T
Product Type	USB4 Type-C to dual-port 10GbE network adapter
PHY IC	AQC113
Cooling Design	Fanless
Connectivity

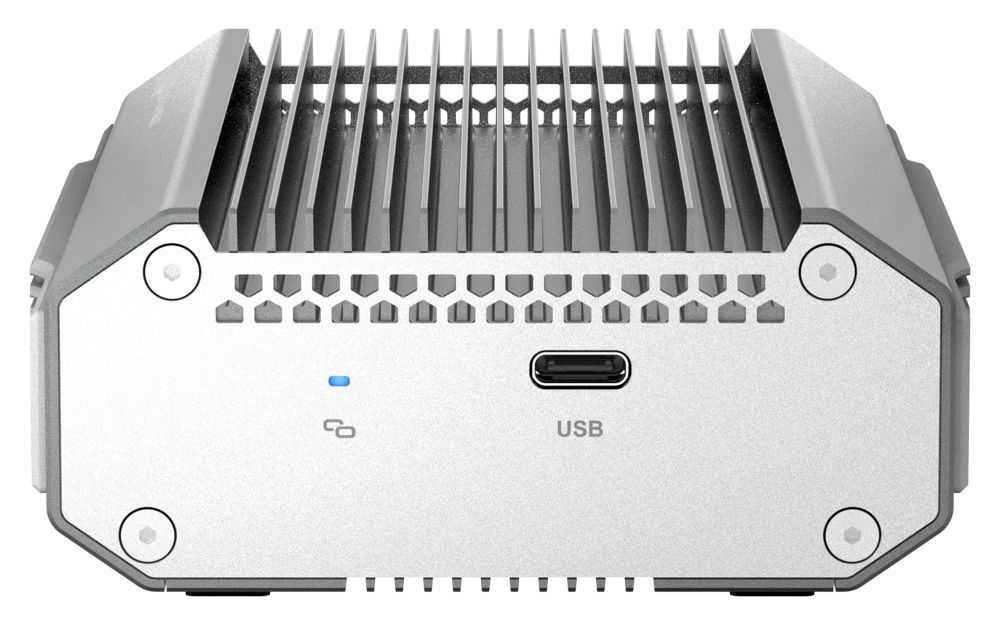

Host Connector	1 × USB-C
Host-Interface Wording	USB4
Network Connections	2 × 10GBASE-T RJ45
Transmission Rates	10Gbps / 5Gbps / 2.5Gbps / 1Gbps / 100Mbps
Port and Cable Note	RJ45; Cat 6a cable recommended
System Requirements
Windows Host-Port Support	USB4 and Thunderbolt 4
macOS Host-Port Support	Thunderbolt 4 and Thunderbolt 3
Supported Computer Operating Systems	Windows, macOS and Linux; driver installation required
Windows on ARM	Not compatible
Package, Environment and Warranty
Included Cable	1-metre USB4 C-to-C cable
Package Contents	QNA adapter, 1 × USB4 C-to-C cable and manual
Operating Temperature	035°C
Standard Warranty	2 year
