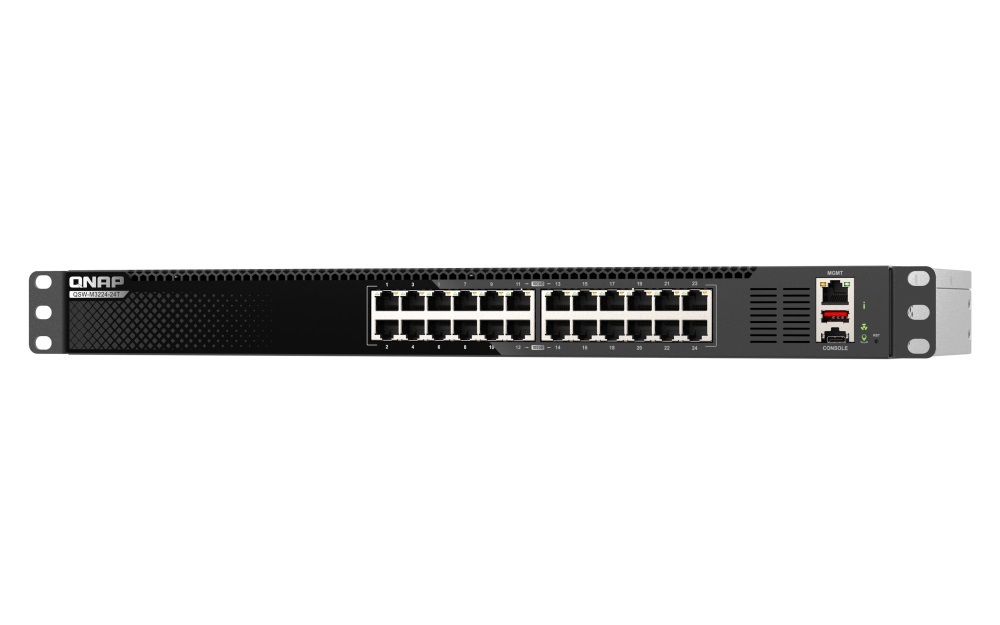

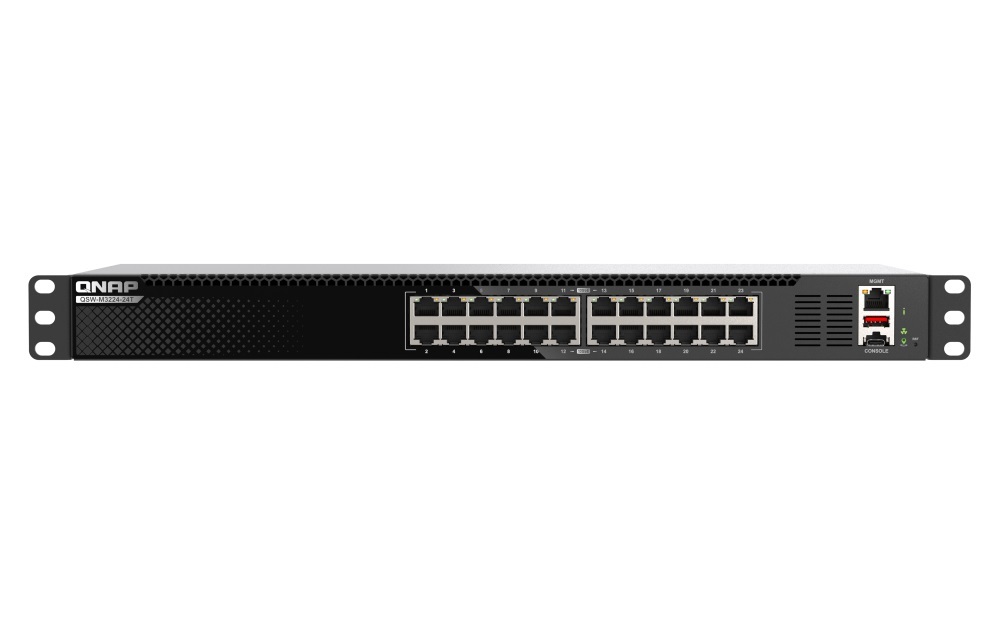

24-Port 10GbE L3 Lite Managed Switch

QNAP QSW-M3224-24T

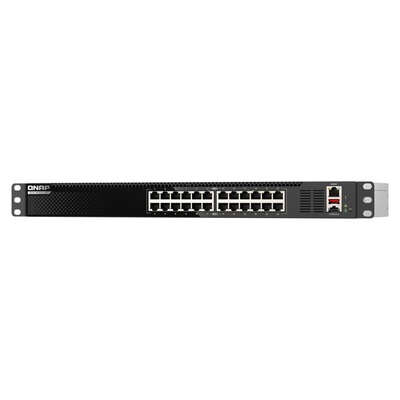

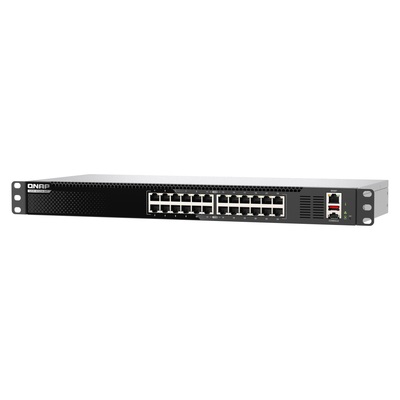

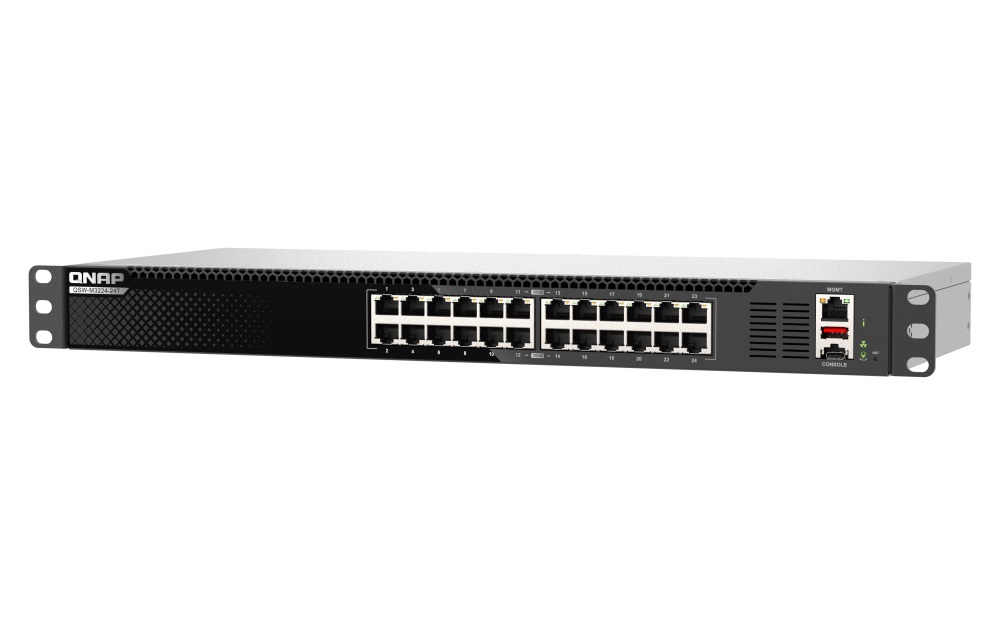

The QNAP QSW-M3224-24T is a cost-optimised, high-density 1U rackmount L3 Lite managed switch with twenty-four 10GbE Multi-Gigabit RJ45 ports. It supports MC-LAG, static routing, advanced VLAN management, SNMP, AV-over-IP configuration and cloud-based monitoring through AMIZcloud.

What is the QNAP QSW-M3224-24T?

The QSW-M3224-24T is an enterprise L3 Lite web-managed switch designed for high-density, low-latency 10GbE network environments. Its twenty-four RJ45 ports support 10G, 5G, 2.5G, 1G and 100M connections, while a 480Gbps switching capacity enables every port to reach its full potential. The switch is made in Taiwan.

24 × 10GbE Multi-Gigabit RJ45 ports supporting 10G, 5G, 2.5G, 1G and 100M

480Gbps Switching capacity with 240Gbps total non-blocking throughput

L3 Lite Static routing, IP settings, DHCP server, SNTP and advanced VLAN functions

MC-LAG Network redundancy and high availability across multiple switches

High-Density 10GbE Multi-Gigabit Networking

Connect more high-speed network devices through twenty-four copper Ethernet ports.

The QSW-M3224-24T provides twenty-four 10GbE BASE-T RJ45 ports and supports 10GBASE-T and Multi-Gigabit NBASE-T technologies. Each port can connect at 10G, 5G, 2.5G, 1G or 100M to accommodate network devices operating at different speeds.

With a 480Gbps switching capacity and 240Gbps total non-blocking throughput, the switch can connect or uplink servers, switches, 10GbE NAS systems, workstations, AV-over-IP devices and SNMP-compliant equipment within a flexible high-speed topology.

L3 Lite Routing and Enterprise Network Segmentation

Manage communication between network segments while simplifying larger network environments.

Static IP Routing

Forwards packets through IP addresses to enable communication between devices in different network segments and subnets.

IP and DHCP Services

Provides IPv4, IPv6 and DNS settings together with DHCP server and SNTP functions.

Advanced VLAN Management

Supports granular control over segmented enterprise networks to simplify network organisation and management.

High Availability and Connection Redundancy

Protect important network connections against individual link failures.

MC-LAG

Multi-chassis Link Aggregation Group combines connections between switches into a logical link that can continue operating if one or more physical links fail.

LACP

Link Aggregation Control Protocol combines multiple network connections to increase throughput and protect against connection failure. Two ports can provide up to 20Gbps bandwidth.

RSTP

Rapid Spanning Tree Protocol helps maintain a loop-free Ethernet topology by blocking or forwarding traffic as required.

AV-over-IP and Time-Sensitive Network Management

Configure traffic priority and multicast behaviour for high-resolution audiovisual environments.

The AV-over-IP Wizard guides administrators through configuring IGMP Snooping and VLAN settings for applications such as video walls and large outdoor display walls. QoS priority management supports low-latency delivery of critical audiovisual traffic.

Precision Time Protocol complies with ITU-T G.8273.3 Class A. The QSW-M3224-24T forwards PTP packets while correcting internal delays, with maximum time error usually limited to 100ns.

Bandwidth and Packet Control

Allocate bandwidth, prioritise critical traffic and reduce unnecessary multicast transmission.

Quality of Service

QoS provides queue scheduling and strict priority management to improve network performance and support real-time traffic delivery.

IGMP Snooping

Helps minimise bandwidth loss and prevent unnecessary network information from being distributed to unintended ports.

Flow Control

Balances traffic between senders and receivers to help avoid network congestion and packet loss.

Security, Monitoring and Troubleshooting

Control network access and centrally monitor connected devices.

Access Control Lists

ACL filters incoming and outgoing packet data through custom rules. ACL Mirroring can copy matching traffic to designated monitoring or analysis devices.

SNMP Management

Supports central and secure management of compatible network devices including NAS, routers, switches, workstations, modems, IP phones and IP cameras.

LLDP

Allows devices to advertise information to directly connected peers and neighbours to simplify network identification and troubleshooting.

QSS Pro Web-Based Management

Configure Layer 3 Lite and Layer 2 functions through an easy-to-use web interface.

The QSW-M3224-24T uses QNAP Switch System Pro, or QSS Pro. Its web interface provides an overview dashboard, port management, a guided setup process, status charts and online firmware checking and updates.

Qfinder Pro login is supported for convenient access to the switch management interface.

AMIZcloud Centralised Switch Monitoring

Monitor multiple switches distributed across different locations.

The AMIZcloud management platform provides cloud-based access to switch information without requiring additional management hardware or software. Administrators can monitor switches across multiple locations and remotely investigate network issues.

Supported Enterprise Applications

Designed for high-speed and high-density network environments.

Storage and Servers

Connect 10GbE NAS systems, servers, switches and computers operating at supported Multi-Gigabit speeds.

AI, Virtualisation and Video Editing

Supports the high-performance network transmission requirements of AI, multimedia, video editing and virtualisation applications.

AV-over-IP

Configure IGMP Snooping, VLAN and QoS for video walls, large outdoor display walls and other AV-over-IP deployments.

Frequently Asked Questions

Quick answers about the QNAP QSW-M3224-24T.

How many network ports does the QSW-M3224-24T have?

It has twenty-four 10GbE BASE-T RJ45 network ports and one separate 1GbE RJ45 management port.

Which Ethernet speeds are supported?

Each of the twenty-four 10GbE ports supports 10G, 5G, 2.5G, 1G and 100M connection speeds.

What is the switching capacity?

The QSW-M3224-24T provides a switching capacity of 480Gbps and total non-blocking throughput of 240Gbps.

Does the QSW-M3224-24T support Layer 3 functions?

Yes. It is an L3 Lite managed switch with static routing, IPv4 and IPv6 settings, DNS, DHCP server, SNTP and advanced VLAN management.

What is MC-LAG?

MC-LAG combines multiple physical connections between switches into a logical link to provide network redundancy and high availability.

Can two ports be combined for additional bandwidth?

Yes. LACP can combine two network ports to provide up to 20Gbps of bandwidth while also protecting against an individual connection failure.

Does the switch support AV-over-IP applications?

Yes. It provides an AV-over-IP Wizard, IGMP Snooping, VLAN management, QoS and PTP support for applications including video walls and large outdoor display walls.

Can the QSW-M3224-24T be managed through the cloud?

Yes. AMIZcloud can monitor multiple switches across different locations without requiring additional management hardware or software.

What is the standard warranty?

The supplied datasheet lists a two-year warranty.

Product notice: Product images are for illustrative purposes only and may differ from the actual product. Designs and specifications are subject to change without notice.

(QSW-M3224-24T)

QNAP QSW-M3224-24T Specifications

Review the management, network, performance, power, physical, environmental and compliance specifications.

Specification	Details
Product and Management
Model	QSW-M3224-24T
Management Type	L3 Lite Web Managed
Management Interface	Web
Management Port	1 × 1GbE RJ45
Console	USB Type-C
Network Interfaces
Number of Ports	24
10GbE BASE-T Ports	24 × RJ45, supporting 10G / 5G / 2.5G / 1G / 100M
Switching Performance
Switching Capacity	480Gbps
Total Non-Blocking Throughput	240Gbps
MAC Address Table	32K
Jumbo Frames	9K
Supported Standards
Ethernet Standards	IEEE 802.3 Ethernet IEEE 802.3u 100BASE-T IEEE 802.3ab 1000BASE-T IEEE 802.3bz 2.5G/5GBASE-T IEEE 802.3an 10GBASE-T
Network Management Standards	IEEE 802.3x Full-Duplex Flow Control IEEE 802.1Q VLAN Tagging IEEE 802.1w RSTP IEEE 802.3ad LACP IEEE 802.1AB LLDP IEEE 802.1p Class of Service
Power and Cooling
Power Supply	Internal power supply unit
Input Power Type	AC
Input Voltage Range	100–240VAC, 50/60Hz
Maximum Power Consumption	116.9W

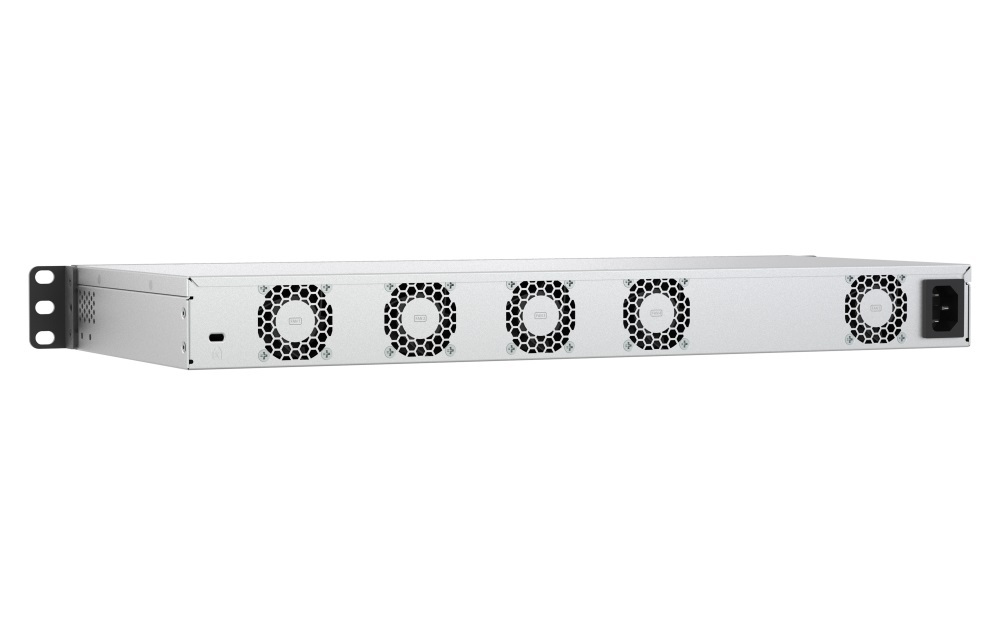

Fans	5 × PWM VAPO bearing fans
Physical Specifications
Form Factor	Rackmount
Dimensions	44.2 × 438.5 × 190mm
Net Weight	2.93kg
Gross Weight	4.5kg
Buttons	Reset button
LED Indicators	Per port: Speed, Link and Activity Per system: Status, Fan and Locator
Operating Environment
Operating Temperature	0°C to 40°C (32°F to 104°F)
Relative Humidity	5–95%, non-condensing
Compliance and Warranty
Certifications	CE, FCC, VCCI and BSMI
Electromagnetic Compliance	Class A
Warranty	2 years
