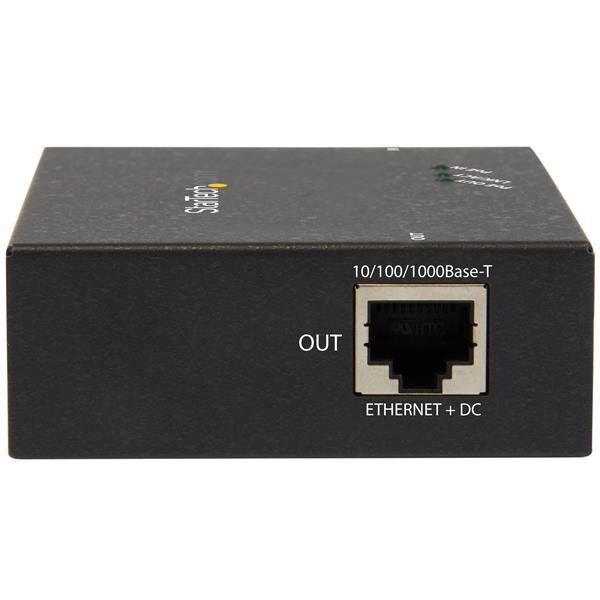

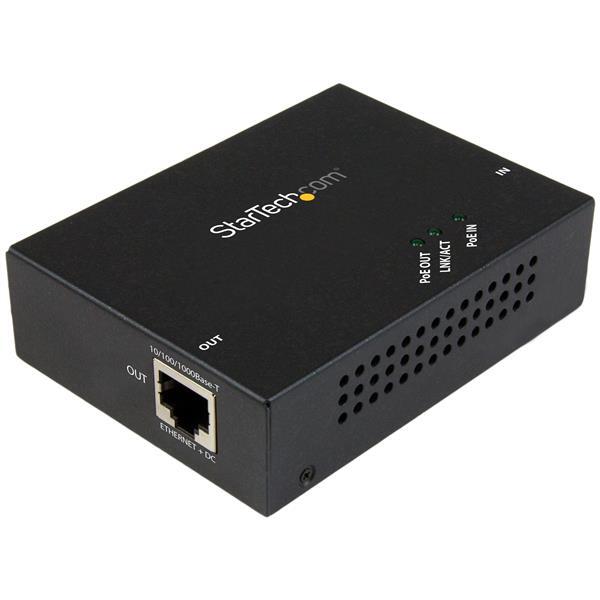

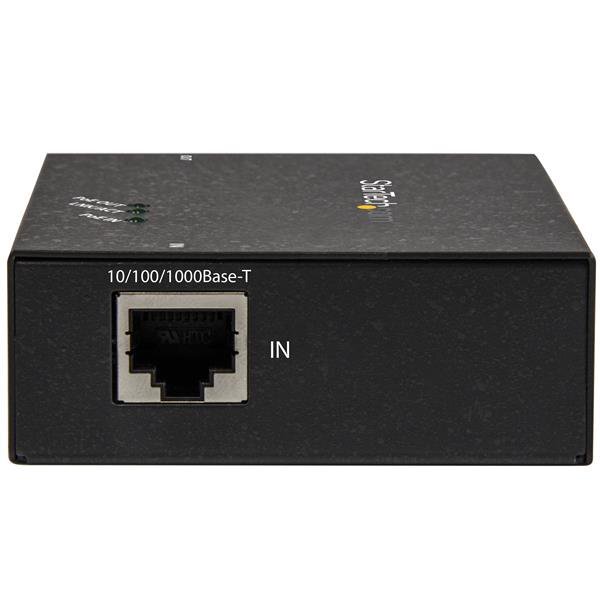

This Gigabit PoE+ extender spans your Power over Ethernet (PoE) device over longer distances, letting you double the 100m limitations of a traditional PoE infrastructure.

Now you can connect your Gigabit PoE device up to a maximum of 200m away, so it’s easy to install a remote IP camera or access point. Plus the extender can be daisy-chained for more scalability.
Unrestricted PoE+ range and convenience
Need more distance? This convenient PoE+ repeater maximizes range and flexibility by extending your PoE connection by an extra 100m (330ft), while providing 24-watt power output to compatible devices.
Simply connect the extender to your power sourcing equipment (PSE) and your PoE-powered device (PD) and you’re all set. The extender is compliant with the 802.3at/af standard, so it will work with existing PSE, such as a StarTech.com PoE+ injector (POEINJ1G) or PoE+ switch (IES81000POE).
Daisy chain for longer distance and flexibility
Still need more distance? If an extra 100m isn’t enough, this full-featured PoE extender offers daisy chain capability.
You can easily connect four extenders together, letting you install your PoE+ PD up to 500m (1640ft) away. It’s perfect for business, education, and retail environments (output wattage is dependent on the number of daisy-chained extenders used).

Convenient installation options and durable construction
Get up and running quickly. This Gigabit PoE+ extender can be positioned right where you need it, with a wall-mountable design that requires no external power adapter.
You can enjoy reliable performance with little worry of downtime or failure, the extender features a rugged metal housing with built-in ESD and surge protection.
The POEEXT1GAT is backed by a StarTech.com 2-year warranty and free lifetime technical support.
(POEEXT1GAT)
| Warranty Information | ||
|---|---|---|
| Warranty | 2 Years | |
| Hardware | ||
| Industry Standards | IEEE 802.3af PoE, IEEE 802.3at PoE+ | |
| IEEE 802.3 10BASE-T, IEEE 802.3u 100BASE-TX, IEEE 802.3ab 1000BASE-T | ||
| Ports | 1 | |
| Performance | ||
| Auto MDIX | Yes | |
| Compatible Networks | 10/100/1000 Mbps | |
| Flow Control | Half-duplex back-pressure IEEE 802.3x pause frame for full-duplex | |
| Full Duplex Support | Yes | |
| Jumbo Frame Support | No | |
| Maximum Cable Length | 328 ft [100 m] | |
| Maximum Data Transfer Rate | 2 Gbps (Full-Duplex) | |
| MTBF | 50,000 Hours | |
| Power Output | One extender - 24W Power Output: Two extender daisy chain - 20W Power Output: Three extender daisy chain - 16W Power Output: Four extender daisy chain - 12W | |
| Surge Protection | EN61000-4-2 (ESD) - 2kV EN61000-4-5 (Surge) - 2kV | |
| Switching Architecture | Store-and-Forward | |
| Connector(s) | ||
| Connector Type(s) | 2 - RJ-45 Female | |
| Special Notes / Requirements | ||
| Note | Total extension distances can often be shorter due to power delivery voltage-drop on the connected cables. Maximum distances can vary based on the quality of the UTP cables and the environment. | |
| You may daisy chain up to 4 POEEXT1GAT units total, for a maximum of 500m. The 4th unit will supply IEEE 802.3af up to 12W output. | ||
| Patents and Licenses | The following patents are licensed for this product. This list might not be all inclusive. ¥ United States Patent No. 5,406,260 (expired) ¥ United States Patent No. 6,650,622 ¥ United States Patent No. 7,457,250 ¥ United States Patent No. 8,155,012 ¥ United States Patent No. 8,902,760 ¥ United States Patent No. 8,942,107 ¥ United States Patent No. 9,019,838 ¥ United States Patent No. 9,049,019 ¥ United States Patent Application No. 14/695,456 ¥ United States Patent Application No. 14/726,940 | |
| System and Cable Requirements | If your connected device does not meet the IEEE 802.3af or IEEE 802.3at PoE standard, then the POEEXT1GAT will not pass-through power to the connected device / Ethernet cable. | |
| Indicators | ||
| LED Indicators | 1 - PoE IN | |
| 1 - LNK/ACT | ||
| 1 - PoE OUT | ||
| Power | ||
| Output Voltage | 52 ~ 56 DC | |
| Power Consumption (In Watts) | 3.2 W Max | |
| Power Source | PoE-Powered | |
| Environmental | ||
| Humidity | 5~95% RH (Non-Condensing) | |
| Operating Temperature | 0¡C to 50¡C (32¡F to 122¡F) | |
| Storage Temperature | -10¡C to 85¡C (14¡F to 185¡F) | |
| Physical Characteristics | ||
| Color | Black | |
| Enclosure Type | Steel | |
| Product Height | 1 in [2.5 cm] | |
| Product Length | 3.7 in [94 mm] | |
| Product Width | 2.7 in [69 mm] | |
| Weight of Product | 6.8 oz [193 g] | |
| Packaging Information | ||
| Package Height | 2.8 in [70 mm] | |
| Package Length | 8.1 in [20.5 cm] | |
| Package Width | 5.3 in [13.5 cm] | |
| Shipping (Package) Weight | 12.1 oz [343 g] | |
| What's in the Box | ||
| Included in Package | 1 - Gigabit Power over Ethernet extender | |
| 1 - instruction manual | ||
| Auto-Negotiation | Yes | |
| SKU | POEEXT1GAT |
| Barcode # | 65030860895 |
| Brand | Startech |
| Shipping Weight | 0.3400kg |
| Shipping Width | 0.100m |
| Shipping Height | 0.050m |
| Shipping Length | 0.200m |
| Shipping Cubic | 0.001000000m3 |
