StarTech 2 Port LP PCI Express Serial Card - PEX2S553LP
Model # PEX2S553LP
-
SKU: PEX2S553LP
- Pick Up Available
- Australian Warranty
- Checkout Securely

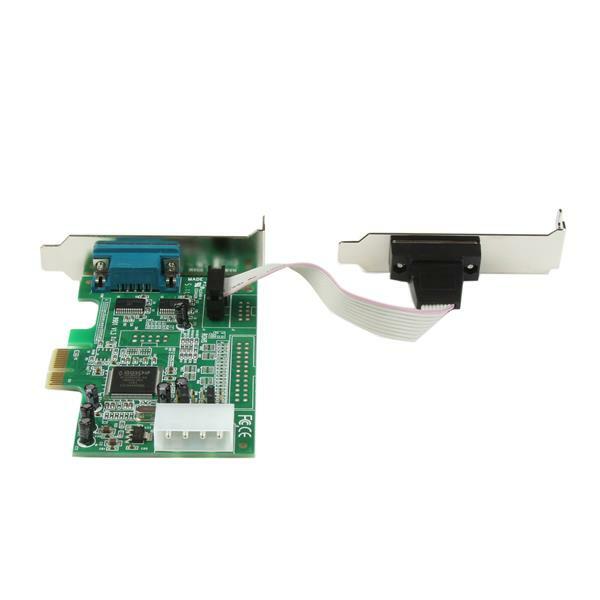

The PEX2S553LP low profile/half-height PCI Express Serial Card turns a PCI Express slot into two RS232 (DB9) serial connections.
The card is constructed using a native single chip design that lets you harness the full capability offered by PCI Express (PCIe), while reducing the load applied to the CPU by as much as 48% over conventional bridge chip serial cards.
The PCI Express RS232 Serial Adapter Card is compatible with a broad range of operating systems, including Windows®; and Linux Kernel 2.6.11 to 4.11.x, and ships with a low profile/half-height bracket installed but includes an optional full profile bracket that lets you add 2 serial ports to virtually any computer (regardless of the case form factor).
This product is a replacement for our PEX2S552LP card.
Backed by a StarTech.com 2-year warranty and free lifetime technical support.
(PEX2S553LP)
| Warranty Information | ||
|---|---|---|
| Warranty | 2 Years | |
| Hardware | ||
| Bus Type | PCI Express | |
| Card Type | Low Profile (SP bracket incl.) | |
| Chipset ID | ASIX - MCS9922CV-AA | |
| Interface | Serial | |
| Port Style | Integrated on Card | |
| Ports | 2 | |
| Performance | ||
| FIFO | 128 Bytes | |
| Max Baud Rate | 460.8 Kbps | |
| Serial Protocol | RS-232 | |
| Connector(s) | ||
| Connector Type(s) | 1 - PCI Express x1 Male | |
| External Ports | 2 - DB-9 (9 pin, D-Sub) Male | |
| Internal Ports | 1 - LP4 (4 pin; Large Drive Power) Male | |
| Software | ||
| Microsoft WHQL Certified | Yes | |
| OS Compatibility | Windows® DOS, 95, 98SE, 2000, CE 5.0/6.0, Embedded System 2009, POS Ready 2009, XP Embedded, XP, Vista, 7, 8, 8.1, 10 Windows Server® 2003, 2008 R2, 2012, 2012 R2, 2016, 2019 Mac OS X® 10.4 to 10.10 Linux kernel 2.6.x to 4.11.x LTS Versions only | |
| Environmental | ||
| Humidity | 5~85% RH | |
| Operating Temperature | -10°C to 80°C (14°F to 176°F) | |
| Storage Temperature | -20°C to 100°C (-4°F to 212°F) | |
| Physical Characteristics | ||
| Product Height | 0.8 in [2 cm] | |
| Product Length | 4.1 in [10.5 cm] | |
| Product Width | 3.1 in [80 mm] | |
| Weight of Product | 2.2 oz [63.5 g] | |
| Packaging Information | ||
| Package Height | 1.3 in [32 mm] | |
| Package Length | 6.8 in [17.3 cm] | |
| Package Width | 5.6 in [14.3 cm] | |
| Shipping (Package) Weight | 0.4 lb [0.2 kg] | |
| What's in the Box | ||

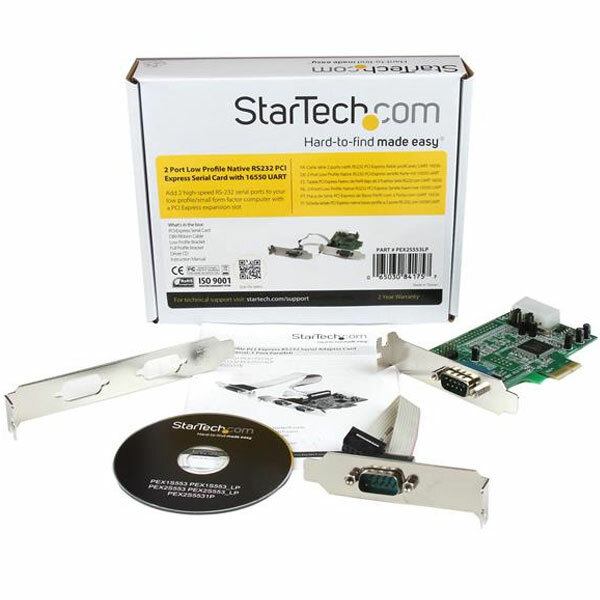

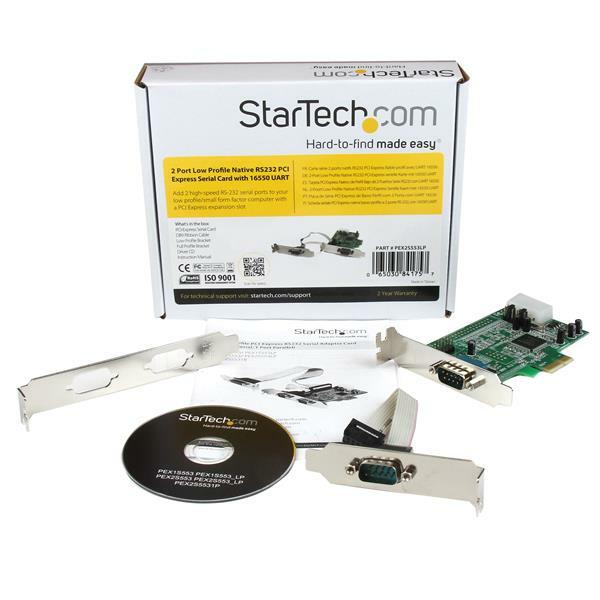

| Included in Package | 1 - PCI-Express Serial Card | |
| 1 - DB9 Ribbon cable | ||
| 1 - Full Profile Bracket | ||
| 1 - Low profile bracket | ||
| 1 - Driver CD | ||
| 1 - Instruction Manual | ||
| SKU | PEX2S553LP |
| Barcode # | 65030841757 |
| Brand | Startech |
| Shipping Weight | 0.1600kg |
| Shipping Width | 0.100m |
| Shipping Height | 0.050m |
| Shipping Length | 0.170m |
| Shipping Cubic | 0.000850000m3 |
