StarTech.com · HSB3SATSASBA

StarTech HSB3SATSASBA 3-Bay 3.5in SATA/SAS Trayless Hot-Swap Backplane

Three-drive trayless backplane that converts two 5.25in bays into front-access hot-swap storage for 3.5in SATA or SAS drives, with a 70mm fan.

Quick answer: HSB3SATSASBA adds three lockable, trayless 3.5in SATA/SAS hot-swap bays using two 5.25in computer bays.

Best forServers, storage workstations, labs and enterprise systems requiring frequent access to three 3.5in SATA or SAS drives.

Check before orderingThe system requires two 5.25in front bays, sufficient SATA/SAS host ports and power; SAS operation needs compatible SAS hardware.

Answers before you buy

Frequently asked questions

What is StarTech HSB3SATSASBA?

It is a three-drive trayless hot-swap backplane for 3.5in SATA or SAS drives.

Which drives are supported?

Up to three 3.5in SATA or SAS drives are supported.

Which computer bay space is required?

Two available 5.25in front drive bays are required.

What is the maximum interface speed?

It supports connections up to 6Gbps with compatible SATA/SAS hardware.

Does it support hot swapping?

Yes. Host controller and system configuration must also support hot swapping.

Is software required?

No. It is OS independent and does not require software or drivers; the host controller and operating environment must support the installed drives and intended hot-swap workflow.

Does it include physical drive security?

Yes. The drive bays use a key-lock design.

What warranty applies?

HSB3SATSASBA carries a 2-year StarTech.com manufacturer warranty, subject to the manufacturers terms and eligibility requirements.

Planning a broader setup? Browse the DeviceDeal buying guides.

(HSB3SATSASBA)

Features & highlights

Why choose HSB3SATSASBA?

?Three front-access drive baysInstalls three removable 3.5in SATA or SAS drives.

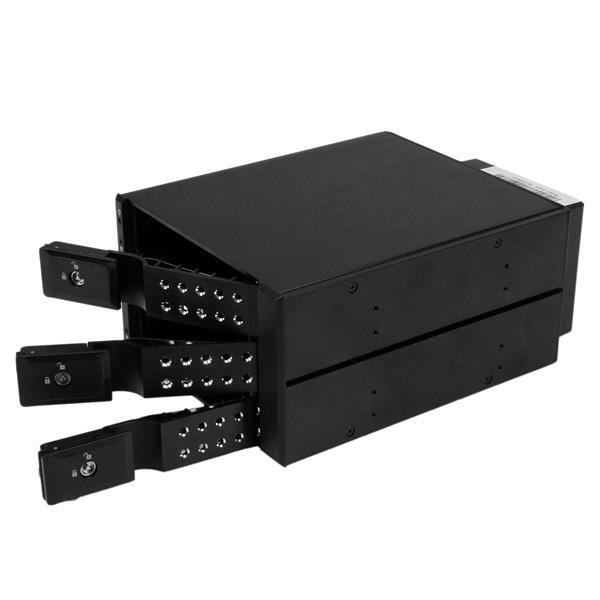

?Trayless ejection leversSimplify drive insertion and removal.

?SATA III up to 6GbpsSupports compatible drive connections up to 6Gbps.

?Integrated 70mm fanSupports airflow across the installed drives.

?Key-lock drive securityHelps prevent unintended drive removal.

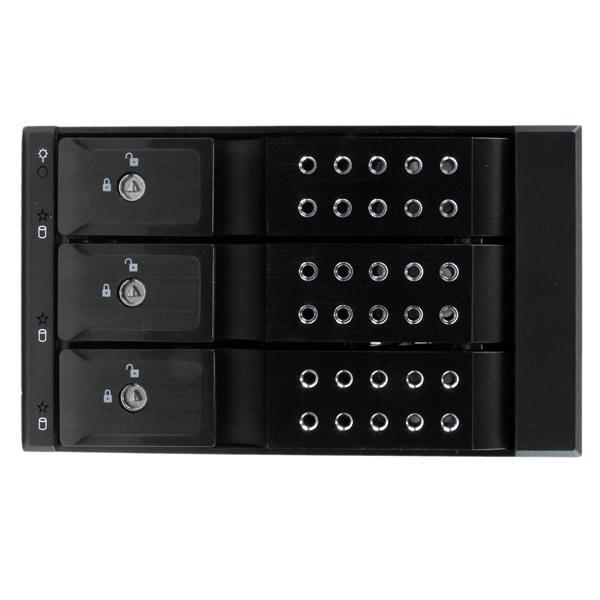

?Activity and power LEDsProvides front-panel status for installed drives.

Compatibility reminder: The system requires two 5.25in front bays, sufficient SATA/SAS host ports and power; SAS operation needs compatible SAS hardware.

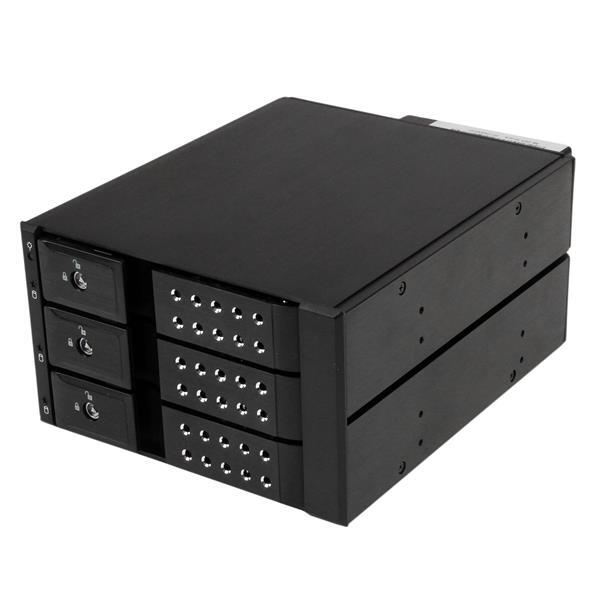

StarTech HSB3SATSASBA 3-Bay 3.5in SATA/SAS Trayless Hot-Swap Backplane product image

Technical specifications

HSB3SATSASBA specifications

Exact-model specifications for compatibility checking. Measurements may be rounded.

Warranty Information
Warranty	2 Years
Hardware
Compatible Drives	3 × 3.5in SATA or SAS drives
Computer Bays Required	2 × 5.25in front bays
Front Door Key Lock	Yes
Fan	70mm sleeve-bearing fan
Enclosure	Aluminium
Performance
Maximum Data Transfer Rate	6Gbps
Type and Rate	SATA III up to 6Gbps
Fan Speed	3000 RPM ±10%
Fan Airflow	27.60 CFM
Connectors
Drive Side	SFF-8482 SAS data and power receptacles
Host Side	SATA data and SATA power receptacles
Physical Characteristics
Dimensions	194 × 146 × 85mm
Weight	0.9kg
Colour	Black
What's in the Box
Included	Backplane, SATA cables, bay keys, screw kit and manual
