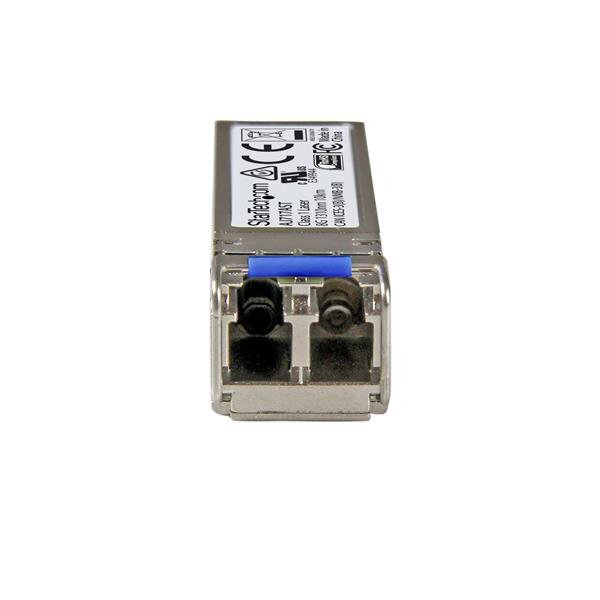

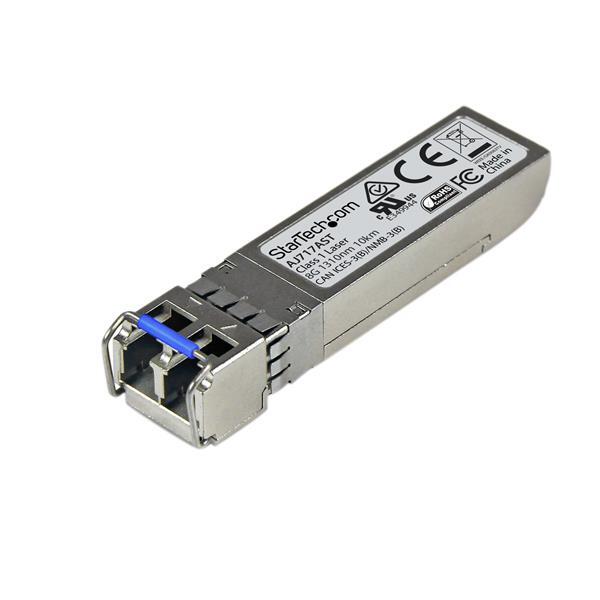

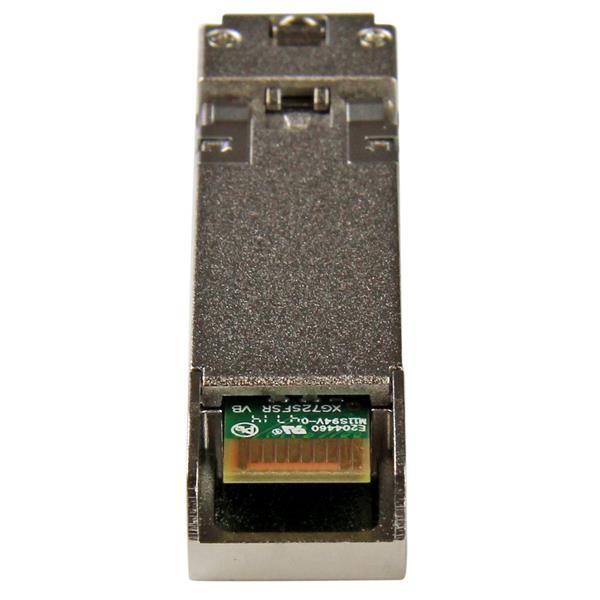

StarTech HP AJ717A Compatible SFP+ Transceiver Module - 8GFC AJ717AST
Model # AJ717AST
-
SKU: AJ717AST
- Pick Up Available
- Australian Warranty
- Checkout Securely
The AJ717AST is an HPE AJ716B compatible fiber transceiver module that has been designed, programmed and tested to work with HPE® brand switches and routers. It delivers dependable 8Gb fiber channel connectivity over fiber cable, for 8GFC compliant networks, with a maximum distance of up to 10 km (6.2 mi).
Technical Specifications:
- Wavelength: 1310 nm
- Maximum Data Transfer Rate: 8 Gbps
- Type: Single Mode Fiber
- Connection Type: LC Connector
- Maximum Transfer Distance: 10 km (6.2 mi)
- MTBF: 2,104,865 hours
- Power Consumption: Less than 1.5 Watts
- Digital Diagnostics Monitoring (DDM): Yes
This SFP+ fiber module is hot-swappable, making upgrades and replacements seamless by minimizing network disruptions.
StarTech.com SFPs
All StarTech.com SFP & SFP+ transceiver modules are backed by a lifetime warranty and free lifetime multilingual technical support. StarTech.com offers a wide variety of SFP modules and direct-attach SFP cables, providing the convenience and reliability you need to ensure dependable network performance.
(AJ717AST)
| Warranty Information | ||
|---|---|---|
| Warranty | Lifetime | |
| Hardware | ||
| Compatible Brand | HP | |
| Performance | ||
| Compatible Networks | 8 Gbps | |
| DDM | Yes | |
| Maximum Data Transfer Rate | 8 Gbps | |
| MTBF | 2,104,865 hours | |
| Type | Single Mode | |
| Wavelength | 1310nm | |
| Special Notes / Requirements | ||
| Note | For use in 8G Fibre Channel (8GFC) - Long Wave networking equipment and media converters | |
| System and Cable Requirements | MSA or HP compliant SFP+ port | |
| Power | ||
| Power Consumption (In Watts) | < 1.5 W | |
| Environmental | ||
| Humidity | 5~95% RH | |
| Operating Temperature | 0¡C to 70¡C (32¡F to 158¡F) | |
| Storage Temperature | -40¡C to 85¡C (-40¡F to 185¡F) | |
| Physical Characteristics | ||
| Color | Silver | |
| Enclosure Type | Aluminum | |
| Product Height | 0.5 in [12.6 mm] | |
| Product Length | 2.3 in [58.4 mm] | |
| Product Width | 0.5 in [13.9 mm] | |
| Weight of Product | 0.7 oz [21 g] | |
| Packaging Information | ||
| Package Height | 1.3 in [33 mm] | |
| Package Length | 3.6 in [92 mm] | |
| Package Width | 4.6 in [11.8 cm] | |
| Shipping (Package) Weight | 1.7 oz [49 g] | |
| What's in the Box | ||
| Included in Package | 1 - SFP+ transceiver | |
| Fiber Operating Mode | Full-Duplex | |
| Industry Standards | 8GFC | |
| Local Unit Connectors | 1 - Fiber Optic LC Duplex Female | |
| Max Transfer Distance | 10 km (6.2 mi) | |
| SKU | AJ717AST |
| Barcode # | 65030868570 |
| Brand | Startech |
| Shipping Weight | 0.0500kg |
| Shipping Width | 0.100m |
| Shipping Height | 0.050m |
| Shipping Length | 0.110m |
| Shipping Cubic | 0.000550000m3 |
