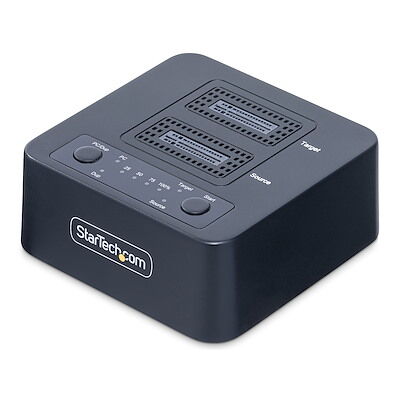

StarTech M2-HDD-DUPLICATOR-N1 1:1 M.2 NVMe Drive Duplicator Dock

1:1 M.2 NVMe Drive Duplicator Dock designed for professional IT, electronics, security or workstation use.

Quick answer: M2-HDD-DUPLICATOR-N1 clones one M.2 NVMe SSD to another at up to 90GB per minute without a computer.

Best forIT deployment, repair, migration and lab workflows that need standalone sector-by-sector M.2 NVMe duplication.

Check before orderingOnly M-Key PCIe NVMe drives are supported; the target drive must be equal to or larger than the source drive.

Answers before you buy

What is StarTech M2-HDD-DUPLICATOR-N1?

It is a standalone dual-slot M.2 NVMe duplicator and USB dock that clones one M.2 NVMe SSD to another at up to 90GB per minute without a computer.

Which connections or mounting method are provided?

Two top-loading M.2 NVMe slots, USB-C 20Gbps host port and barrel power input

What performance is specified?

Up to 90GB/min sector-by-sector duplication; USB 3.2 Gen 2x2 at 20Gbps

How is the product constructed?

Compact black plastic dock with 60mm fan, heatsink clearance, progress LEDs and audible completion alert

Does duplication require a computer?

No. It performs sector-by-sector duplication independently of a host computer.

Can the target drive be smaller than the source?

No. The target drive must be equal to or larger than the source drive.

What should be checked before ordering?

Only M-Key PCIe NVMe drives are supported; the target drive must be equal to or larger than the source drive.

What warranty applies?

M2-HDD-DUPLICATOR-N1 carries a StarTech.com 2 years manufacturer warranty, subject to the manufacturers terms and eligibility requirements.

Planning a broader setup? Browse the DeviceDeal buying guides.

(M2-HDD-DUPLICATOR-N1)

Features & highlights

Why choose M2-HDD-DUPLICATOR-N1?

?Purpose-built designTwo top-loading M.2 NVMe slots, USB-C 20Gbps host port and barrel power input

?Specified performanceUp to 90GB/min sector-by-sector duplication; USB 3.2 Gen 2x2 at 20Gbps

?Professional constructionCompact black plastic dock with 60mm fan, heatsink clearance, progress LEDs and audible completion alert

?Key capabilityStandalone duplication works without drivers, software or a connected computer.

?Deployment advantageSupports 2230, 2242, 2260, 2280 and 22110 M.2 lengths plus 4Kn sector size.

?Order with confidenceOnly M-Key PCIe NVMe drives are supported; the target drive must be equal to or larger than the source drive.

Compatibility reminder: Only M-Key PCIe NVMe drives are supported; the target drive must be equal to or larger than the source drive.

Technical specifications

Exact-model specifications for compatibility checking. Measurements may be rounded.

Warranty Information
Warranty	2 Years
Connectors
Drive Connectors	2 × M.2 NVMe, M-Key, PCIe x4
Host Connector	USB-C 20Gbps
Power Connector	Barrel connector, type M
Hardware
Drive Lengths	2230, 2242, 2260, 2280, 22110
Drive Installation	Removable, top-loading
Cooling	1 × 60mm fan
Chipset	JMicron JMS586U
Performance
Duplication Mode	Sector by sector, whole drive
Duplication Speed	Up to 90GB per minute
4Kn Support	Yes
MTBF	50,000 hours
Physical Characteristics
Colour / Material	Black plastic
Dimensions	77 × 77 × 44mm
Product Weight	129g
USB Cable Length	1m
What's in the Box
Included	Duplicator dock; USB-C cable; USB-A cable; universal ANZ power adapter; quick-start guide
