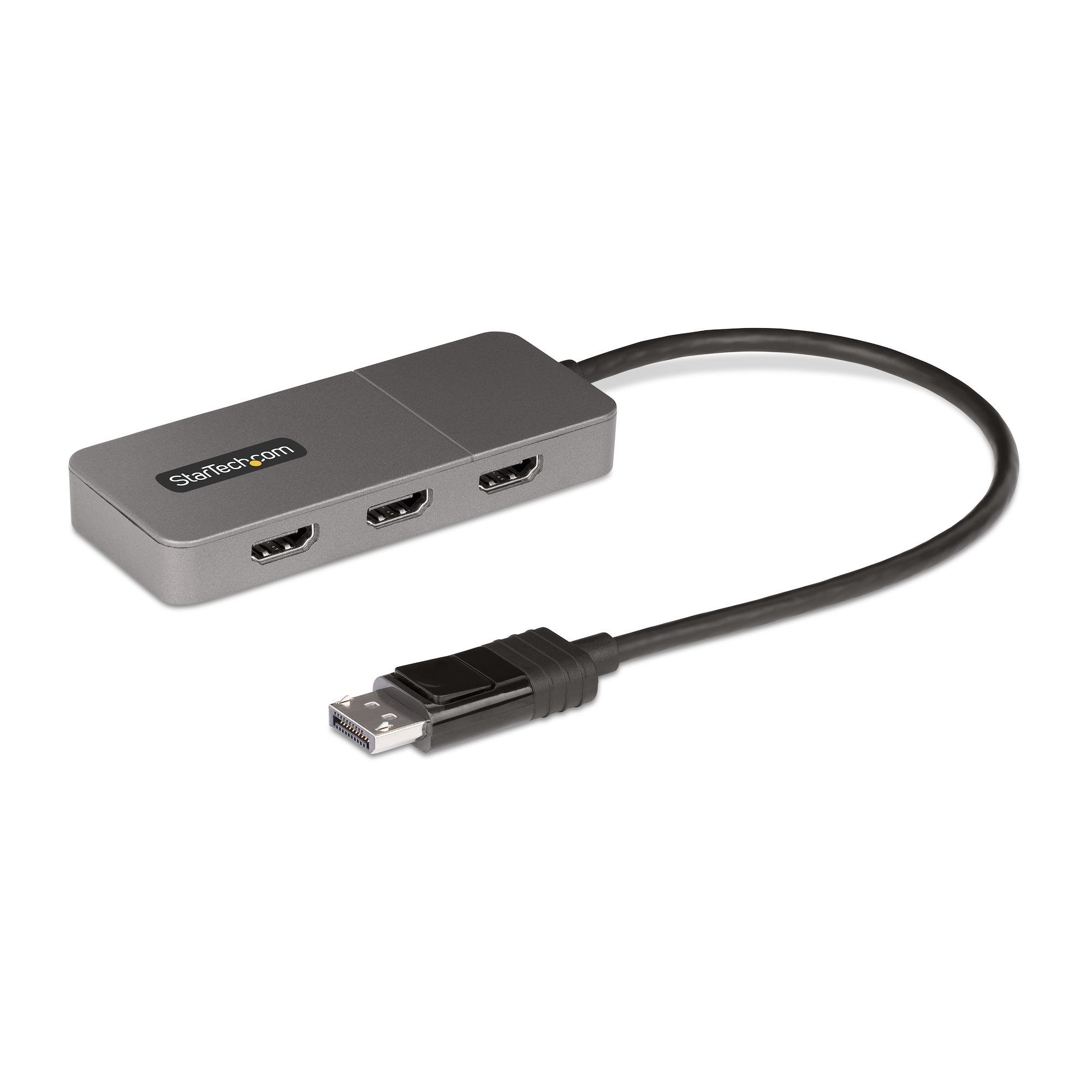

Connect three HDMI monitors to a DisplayPort-enabled host device, using this DisplayPort to HDMI MST Hub.
Drive Triple 4K 60Hz Displays with HDR
Multi-Stream Transport (MST) technology combines multiple video signals into a single output signal/stream. This MST Hub separates the single input stream into three independent signals, one for each HDMI-enabled display. Support for High Dynamic Range (HDR) facilitates enhanced contrast, brightness, color, and luminosity.
Host Connection
Maximum Resolution Output 1
Maximum Resolution Output 2
Maximum Resolution Output 3
Example Host Processor/Graphics
DisplayPort 1.4 with DSC
4K 60Hz
4K 60Hz
4K 60Hz
Intel 12th Gen Processors & Later
Dedicated AMD & Nvidia GPU's that support DSC
4K 60Hz
4K 60Hz
N/A
Intel 11th Gen with DSC
DisplayPort 1.4
4K 30Hz
4K 30Hz
4K 30Hz
Intel 10th Gen (Ice Lake Only)
Intel 11th Gen Processors & Later
Dedicated AMD and Nvidia GPU's that support DP 1.4
DisplayPort 1.2
4K 30Hz
4K 30Hz
1080p
Intel 8th - 10th Gen Processors & Later
*Please verify the GPU capabilities and driver support for DSC through MST with the OEM of the host device
Multitasking Made Easy
Configure the triple-HDMI displays in extended or mirrored mode. Create a high-performance workstation by adding three independent 4K 60Hz displays. This empowers increased multi-tasking across your organization, resulting in increased productivity.
Driverless for Rapid Deployment and Seamless User Setup Experience
This MST Hub achieves maximum performance with Windows desktops featuring Intel 12th generation (and later) processors, or dedicated graphics cards with DisplayPort 1.4 output ports and DSC support. Plug-and-play installation with no drivers or software required. The 12in (30cm) built-in DisplayPort cable provides options for flexible installation configurations, reducing the amount of strain on the port and connector. Additionally, this triple-monitor splitter is USB Powered and includes a 20inch (50cm) USB Micro-B power cable.
(MST14DP123HD)
MULTI-MONITOR CONFIGURATION: DisplayPort to Triple-HDMI MST Hub drives up to three 4K 60Hz displays from a DP 1.4 host with DSC; USB Powered; Supports HDR and 7.1ch HDMI Audio; HDCP 2.2; Backwards compatible with DP 1.2 hosts at lower resolutions
NO DRIVERS OR SOFTWARE: Increase productivity by adding three extended or mirrored displays to a Windows desktop; Utilize integrated or discrete GPU (Intel/AMD/Nvidia) capabilities enabling high performance graphics with minimal CPU usage
HARDWARE COMPATIBILITY: Windows computers with discrete GPUs or 12th gen and up Intel Processors featuring DP 1.4 with DSC support up to three 4K 60Hz monitors; See resolution chart for a list of other supported display configurations
EXTRA-LONG CABLE: 1ft (30cm) built-in cable provides extended reach and reduced port strain, enabling flexible placement of the adapter; Adapters with short cables provide no flexibility in placement, adding clutter and cables to the workspace
OUR ADVANTAGE: Included connectivity tools for IT Pro's and IT help-desk support teams with Windows Layout Utility which restores windows app locations when re-connecting the adapter
| SKU |
MST14DP123HD |
| Barcode # |
65030897631 |
| Brand |
STARTECH |
| Shipping Weight |
11.3000kg |
