StarTech.com · MSTCDP122DP

StarTech MSTCDP122DP USB-C to Dual DisplayPort 4K30 MST Hub

USB-C to Dual DisplayPort 4K30 MST Hub designed for professional IT, electronics, security or workstation use.

Quick answer: MSTCDP122DP connects two independent DisplayPort monitors to one compatible Windows USB-C host at up to 4K 30Hz.

Best forPortable dual-monitor productivity setups using a USB-C, Thunderbolt 3 or compatible DisplayPort Alt Mode computer.

Check before orderingThe host must support USB-C DisplayPort Alt Mode and MST; available resolutions depend on the host GPU, displays and cables.

Answers before you buy

Frequently asked questions

What is StarTech MSTCDP122DP?

It is a USB-C DisplayPort Alt Mode to dual DisplayPort 1.2 MST hub that connects two independent DisplayPort monitors to one compatible Windows USB-C host at up to 4K 30Hz.

Which connections or mounting method are provided?

USB-C male host input to two DisplayPort female outputs

What performance is specified?

DisplayPort 1.2 MST; up to 4K 30Hz; 5.1-channel audio; independent extended desktop on Windows

How is the product constructed?

Compact black plastic, bus-powered adapter with an attached USB-C cable

What maximum resolution is supported?

The supplied specification lists a maximum digital resolution of 4K at 30Hz.

Does it need an external power adapter?

No. The hub is powered through the connected USB-C host.

What should be checked before ordering?

The host must support USB-C DisplayPort Alt Mode and MST; available resolutions depend on the host GPU, displays and cables.

What warranty applies?

MSTCDP122DP carries a StarTech.com 3 years manufacturer warranty, subject to the manufacturers terms and eligibility requirements.

Planning a broader setup? Browse the DeviceDeal buying guides.

(MSTCDP122DP)

Features & highlights

Why choose MSTCDP122DP?

?Purpose-built designUSB-C male host input to two DisplayPort female outputs

?Specified performanceDisplayPort 1.2 MST; up to 4K 30Hz; 5.1-channel audio; independent extended desktop on Windows

?Professional constructionCompact black plastic, bus-powered adapter with an attached USB-C cable

?Key capabilityThe portable hub adds two DisplayPort outputs without an external power adapter.

?Deployment advantageMST extended mode lets compatible Windows systems present different content on each display.

?Order with confidenceThe host must support USB-C DisplayPort Alt Mode and MST; available resolutions depend on the host GPU, displays and cables.

Compatibility reminder: The host must support USB-C DisplayPort Alt Mode and MST; available resolutions depend on the host GPU, displays and cables.

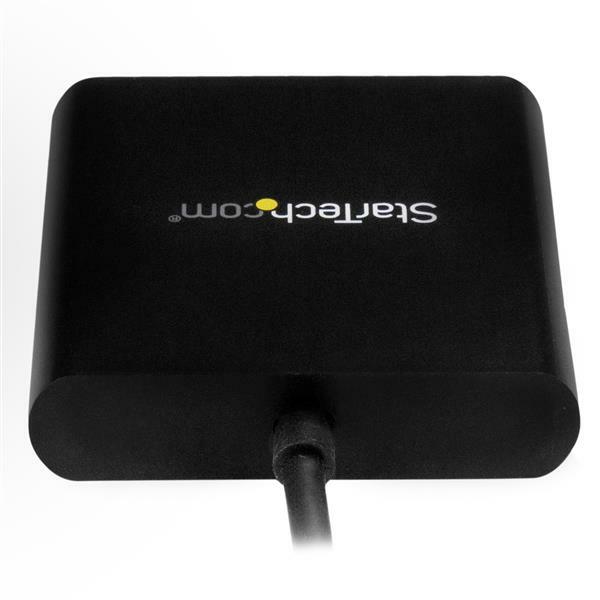

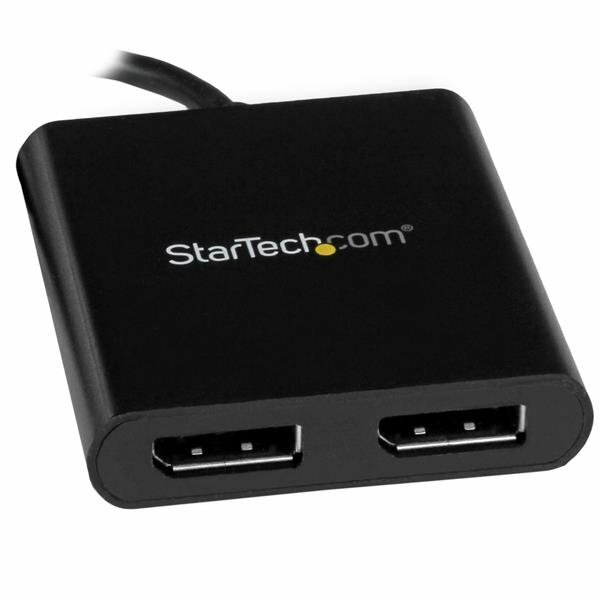

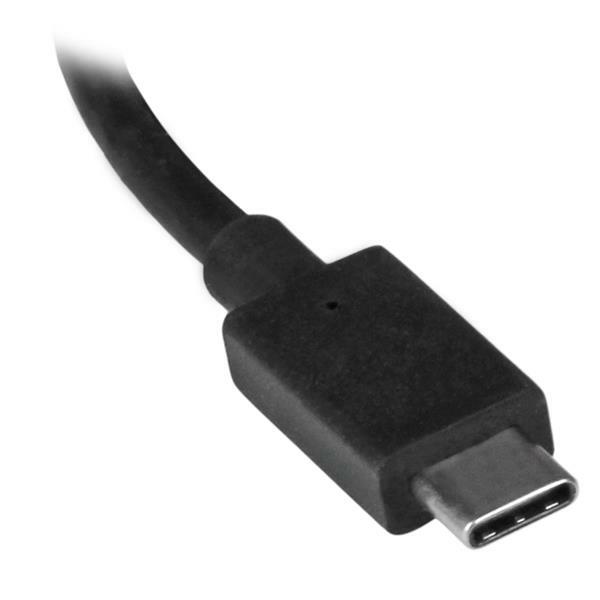

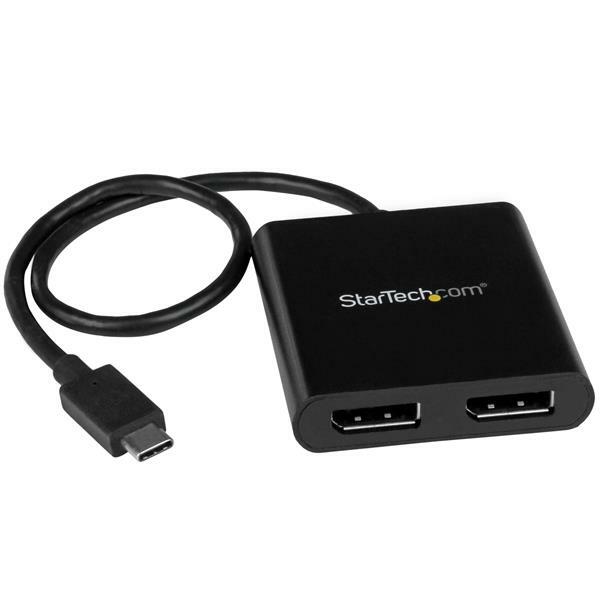

StarTech MSTCDP122DP USB-C to Dual DisplayPort 4K30 MST Hub product image

Technical specifications

MSTCDP122DP specifications

Exact-model specifications for compatibility checking. Measurements may be rounded.

Warranty Information
Warranty	3 Years
Hardware
Audio	Yes
AV Output	DisplayPort
Chipset ID	MegaChips - STDP4320; VIA/VLI - VL100
Ports	2
Performance
Maximum Digital Resolutions	3840x2160 @ 30hz
Supported Resolutions	Note: MST shares 21.6 Gbps across all attached displays. Higher resolutions can restrict the available bandwidth with the remaining ports, please see our guideline below for determining an ideal resolution for your setup. Average resolution bandwidth allocation 1920x1080 (High-definition 1080p) @60hz - 22%; 1920x1200 @60hz - 30%; 2560x1440 @60hz - 35%; 2560x1600 @60hz - 38%; 3840 x 2160 (Ultra HD 4K) @30hz - 38% Note: Exceeding 100% will reduce functionality.
Wide Screen Supported	Yes
Connector(s)
Connector A	1 - USB-C (24 pin) DisplayPort Alt Mode Male Input
Connector B	2 - DisplayPort (20 pin) Female Output
Software
OS Compatibility	Microsoft Windows® 10, 8/8.1, 7
Special Notes / Requirements
Note	DisplayPort 1.2 with MST+HBR2 support from the GPU is required for independent display output
Power
Power Source	USB-Powered
Environmental
Humidity	50-90%
Operating Temperature	5°C to 35°C (41°F to 95°F)
Storage Temperature	-20°C to 60°C (-4°F to 140°F)
Physical Characteristics
Cable Length	12.8 in [32.4 cm]
Color	Black
Product Height	0.6 in [1.4 cm]
Product Length	15.2 in [38.6 cm]
Product Width	2.3 in [58 mm]
Weight of Product	1.6 oz [44 g]
Packaging Information
Package Height	1.3 in [32 mm]
Package Length	6.8 in [17.2 cm]
Package Width	5.6 in [14.3 cm]
Shipping (Package) Weight	0.3 lb [0.1 kg]
What's in the Box
Included in Package	1 - MST hub
