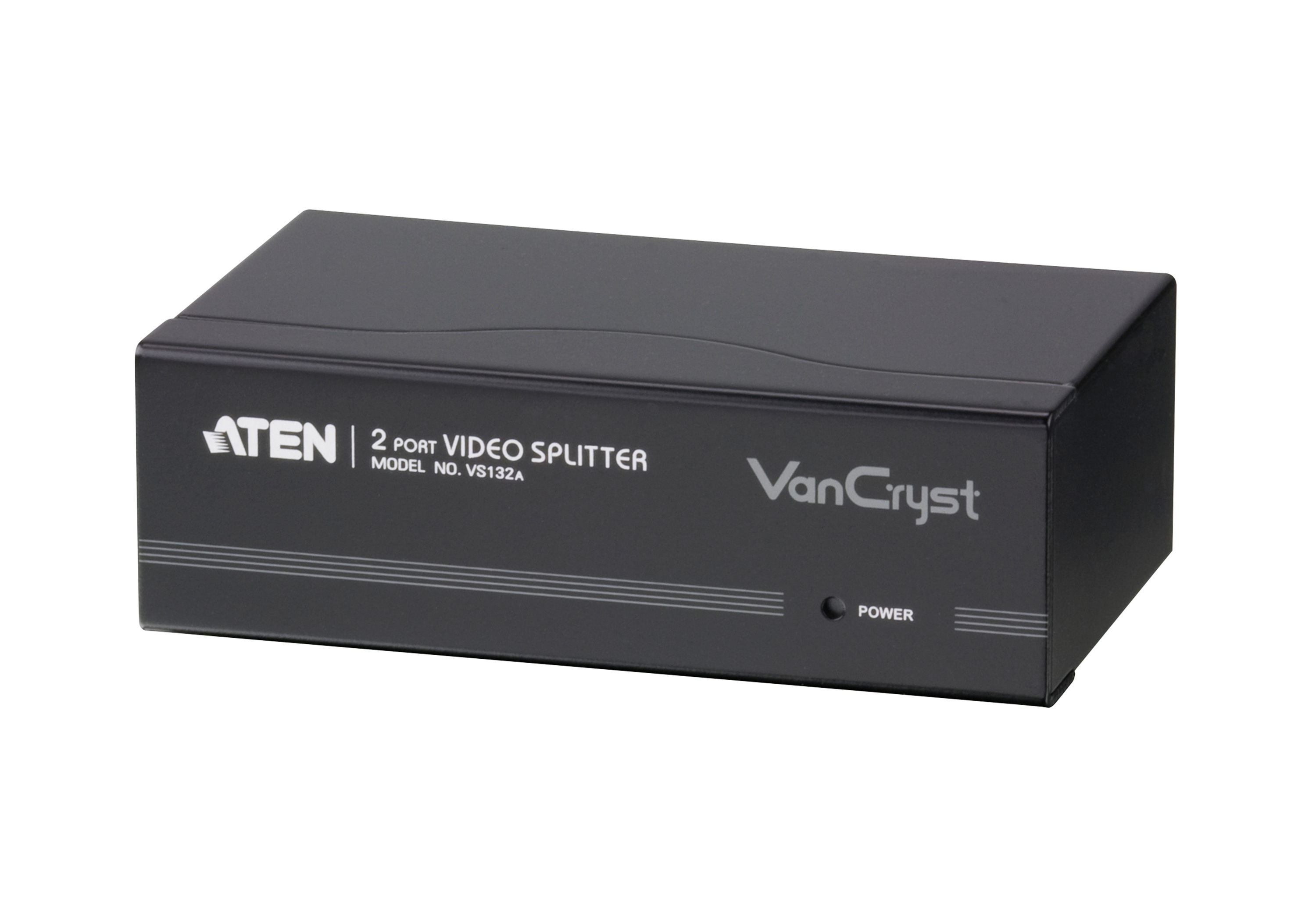

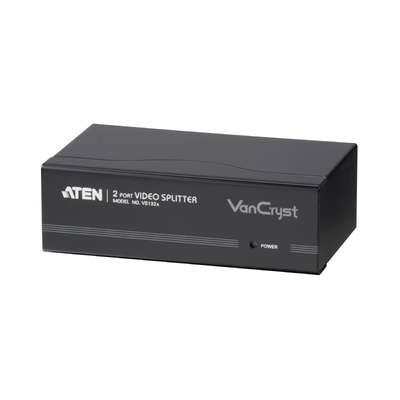

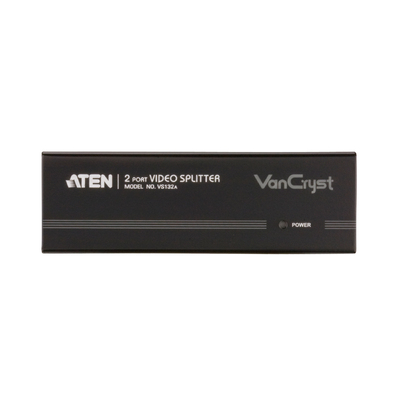

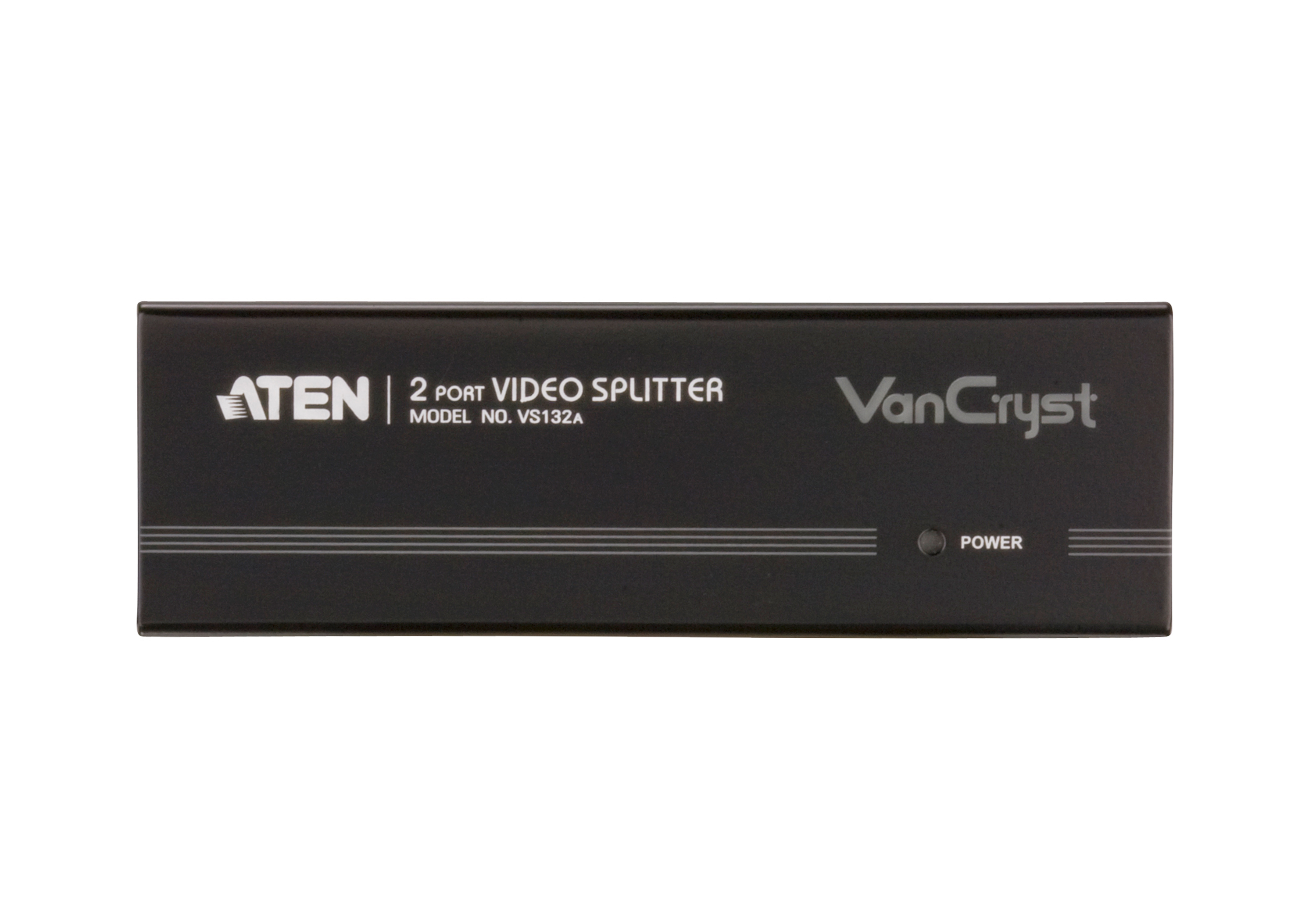

The VS132A Video Splitter is a boosting device that duplicates a video signal from one source to 2 output devices. Cascadable to three levels, the VS132A provides up to 8 video signals, in addition to extending transmission distance up to 30 m, making it excellent for public broadcast systems.

To transmit multiple, high-quality VGA, XGA, SVGA, UXGA, QXGA, WUXGA and multisync video signals over long distance without hassle, the VS132A is your best choice.

Applications include:
• Financial - the remote display of stock market information
• Education - the remote display of lectures and lessons to halls and classrooms
• Business - the remote display of addresses to overflow rooms; video conferencing; and demos

Package Contents

1x VS132A Video Splitter
1x Power Adapter
1x User Instructions

(VS132A-AT-U)

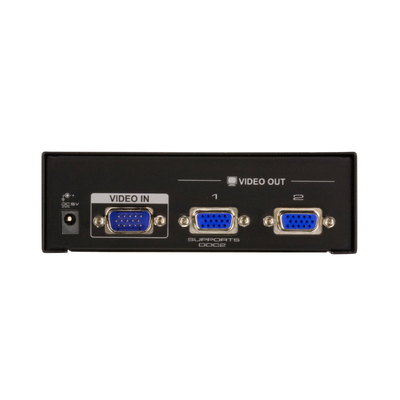

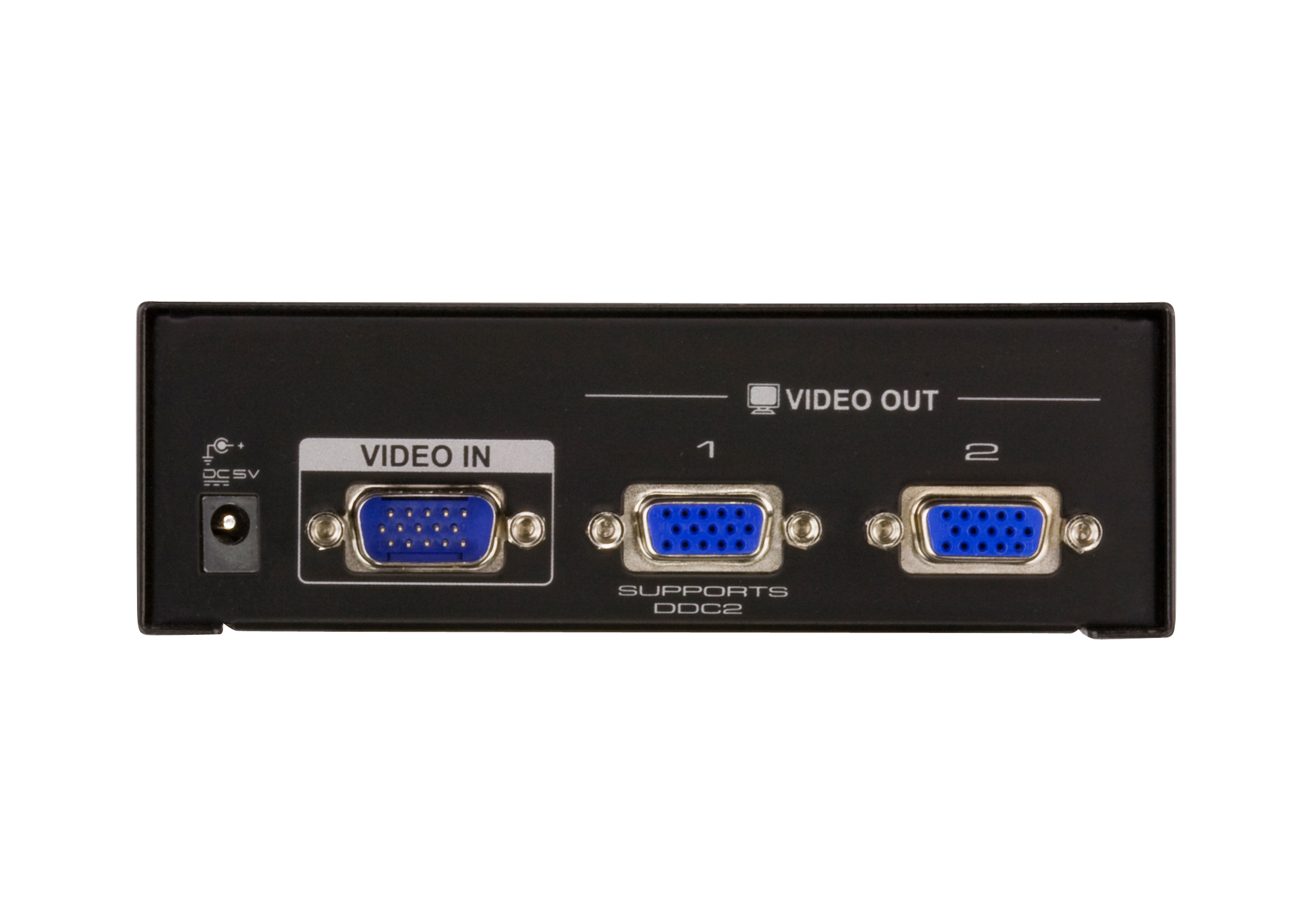

Video Input
Interfaces	1 x HDB-15 Male (Blue)
Impedance	75 ?
Max. Distance	1.8 m
Video Output
Interfaces	2 x HDB-15 Female (Blue)
Impedance	75 ?
Video
Max. Bandwidth	450 MHz
Max. Resolution	Up to 2048 x 1536
Max. Distance	Up to 30 m
Connectors
Power	1 x DC Jack
Power Consumption	DC5V:0.62W:3BTU
Environmental
Operating Temperature	0-50°C
Storage Temperature	-20 - 60°C
Humidity	0 - 80% RH, Non-Condensing
Physical Properties
Housing	Metal
Weight	0.42 kg ( 0.93 lb )
Dimensions (L x W x H)	13.00 x 7.51 x 4.40 cm (5.12 x 2.96 x 1.73 in.)
Carton Lot	20 pcs
Note	For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
