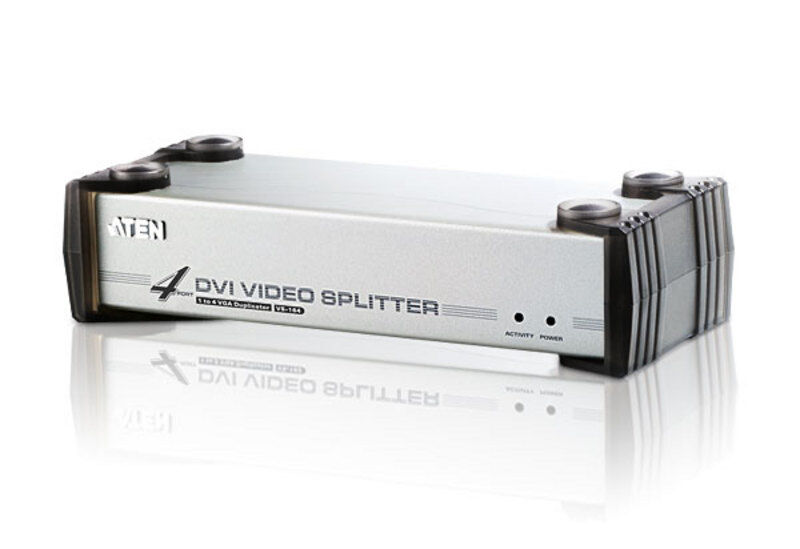

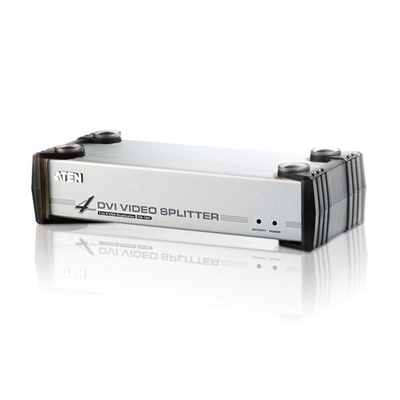

ATEN VS164-AT-U 4-Port DVI Video and Audio Splitter

The ATEN VS164-AT-U duplicates and boosts one DVI video and audio source for four DVI-compatible monitors or projectors.

The supplied name lists 1920 x 1200 at 60Hz, while the description states DVI digital and analogue support, HDCP and cascading through three levels for up to 64 outputs.

1 input to 4 outputs1920 x 1200 at 60Hz3-level cascadeManufacturer warrantyDeviceDeal authorised ATEN reseller

ATEN VS164-AT-U 4-Port DVI Video and Audio Splitter

Product overview

Four DVI outputs

One compatible DVI source can be distributed to four display and audio destinations.

1920 x 1200 at 60Hz

This maximum resolution and refresh rate is stated in the supplied product name.

Scalable cascade

Three cascade levels provide up to 64 video signals according to the source.

Source review: The supplied record does not include structured specifications or a warranty duration. Confirm connectors, power, physical details, current compatibility and the applicable ATEN warranty before purchase.

Frequently asked questions

How many direct outputs are provided?

The product is identified as a four-port DVI video and audio splitter.

What maximum resolution is listed?

The supplied product name lists 1920 x 1200 at 60Hz.

How many cascade levels are supported?

Three levels are stated, providing up to 64 video signals.

Is HDCP supported?

Yes. The supplied description states HDCP compliance.

What warranty applies?

The product is supplied under the applicable ATEN manufacturer warranty in Australia through DeviceDeal as an authorised ATEN reseller.

(VS164-AT-U)

Features

ATEN VS164-AT-U 4-Port DVI Video and Audio Splitter

Distribution

1 DVI source
4 DVI video/audio outputs
Signal duplication and boosting
Speaker audio enabled

Video

1920 x 1200 at 60Hz stated
DVI digital and analogue support stated
DDWG support
HDCP compliant

Cascade

3 cascade levels
Up to 64 outputs stated
1.8m source-to-device distance
5m device and display links stated

Confirm connector types and current display compatibility because no structured specification table is supplied.

Technical specifications

ATEN VS164-AT-U 4-Port DVI Video and Audio Splitter

Product details
Brand	ATEN
Model / SKU	VS164-AT-U
Product type	4-port DVI video/audio splitter
Functions stated
Source	1 DVI video/audio source
Outputs	4 DVI video/audio outputs
Maximum resolution	1920 x 1200 at 60Hz stated in product name
DVI support	Digital and analogue stated
HDCP	Compliant
DDC	DDC, DDC2 and DDC2B on port 1 only
Cascade
Source to splitter	1.8m
Splitter to splitter	5m
Splitter to display	5m
Cascade depth	3 levels
Maximum outputs stated	Up to 64
Source limitation
Structured specifications	Not included in the supplied record
Details to confirm	Exact connectors, power, physical dimensions and environment

SKU	VS164-AT-U
Barcode #	4710423773325
Brand	Aten
Shipping Weight	1.0200kg
Shipping Width	0.064m
Shipping Height	0.288m
Shipping Length	0.178m

Warranty information

ATEN VS164-AT-U 4-Port DVI Video and Audio Splitter

ATEN Manufacturer Warranty

DeviceDeal is an authorised ATEN reseller. This product is supplied under the applicable ATEN manufacturer warranty in Australia. Please contact DeviceDeal to confirm the warranty period and conditions for SKU VS164-AT-U.
