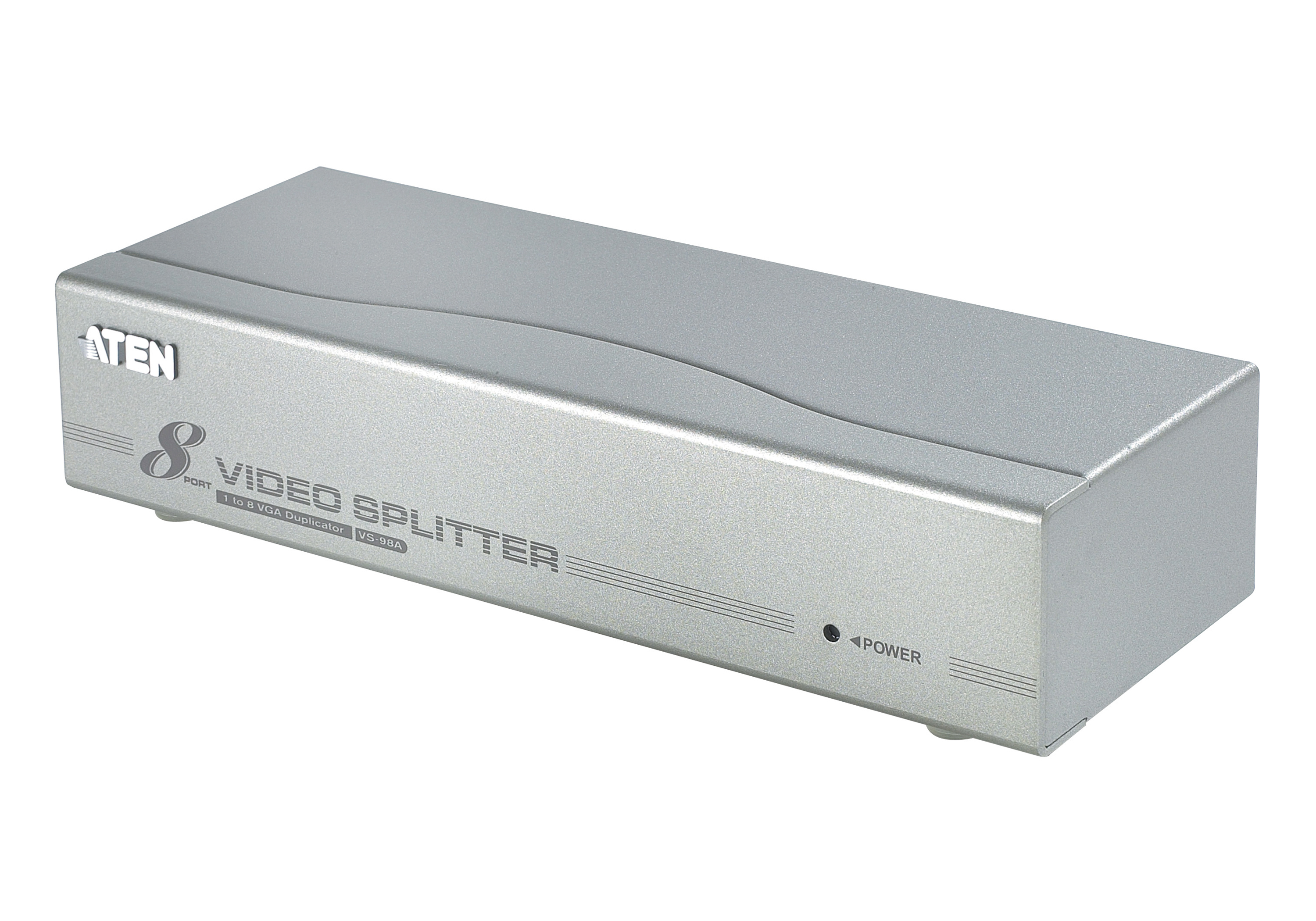

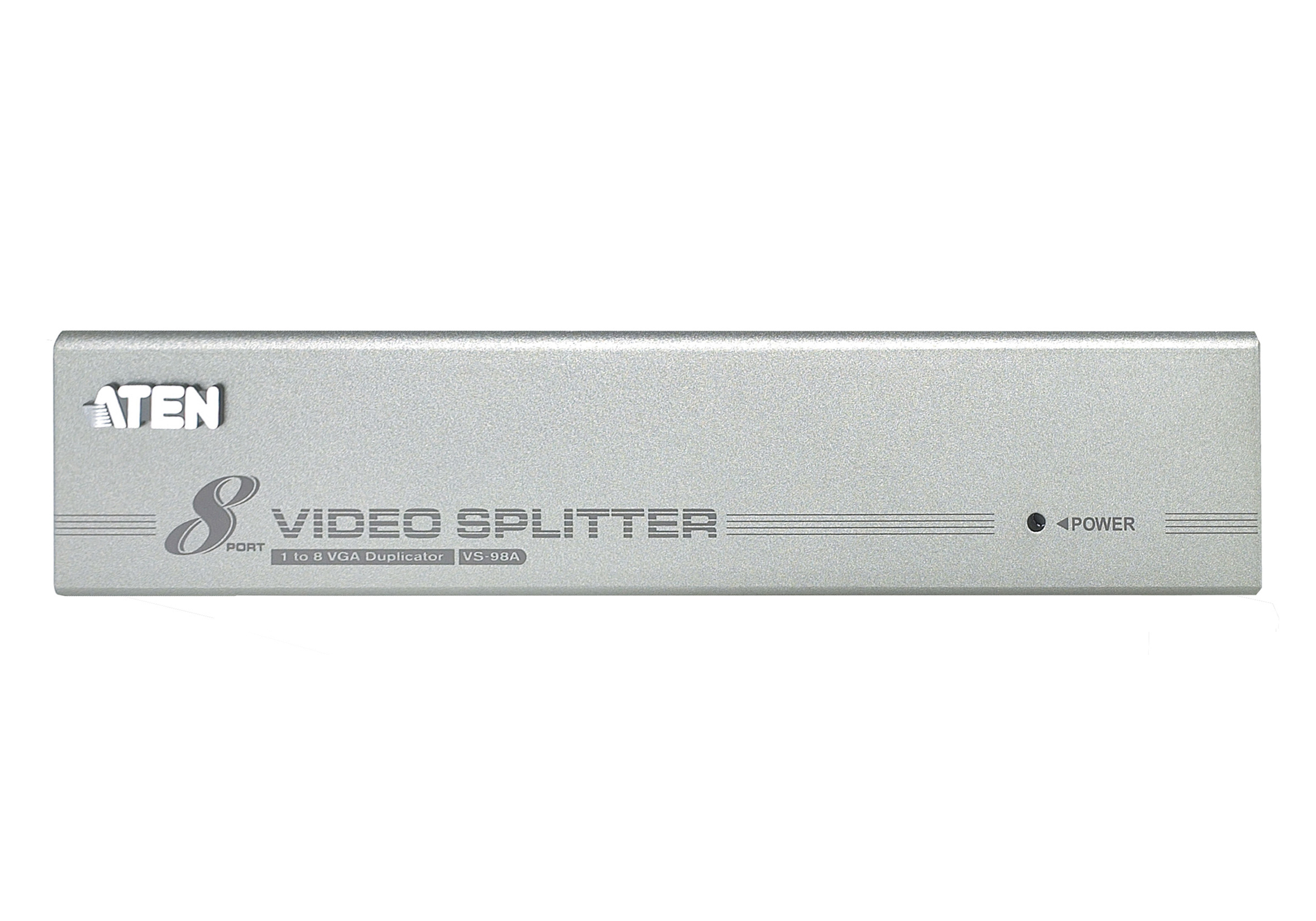

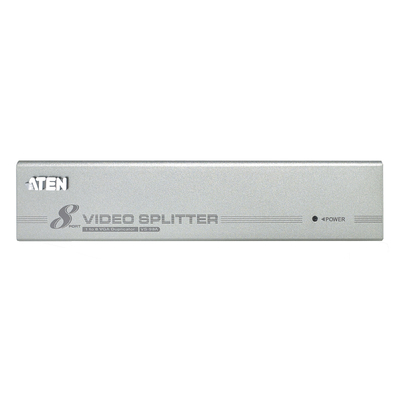

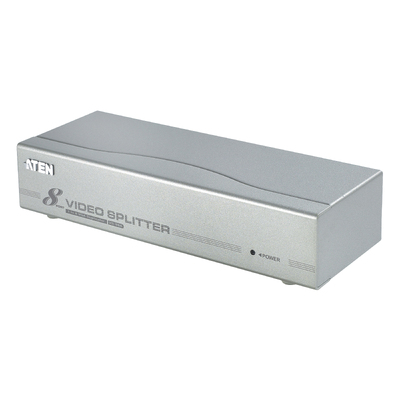

The VS98A is a video splitter that not only duplicates the video signal from any VGA, XGA, SVGA, UXGA, or multisync monitor to eight outputs, but also boosts the video signal over a distance of up to 30 meters. Cascadable to support up to 512 displays, and offering bandwidth up to 300 MHz, the VS98A is ideal for broadcasting and enhancing video information to the public, monitoring your work environments from safe locations, or offering superior video for company or classroom training.

Package Contents

1x 8-Port Video Splitter
1x Power Adapter
1x User Instructions

(VS98A-AT-U)

Video Input
Interfaces	1 x HDB-15 Male (Blue)
Impedance	75 ?
Max. Distance	1.8 m

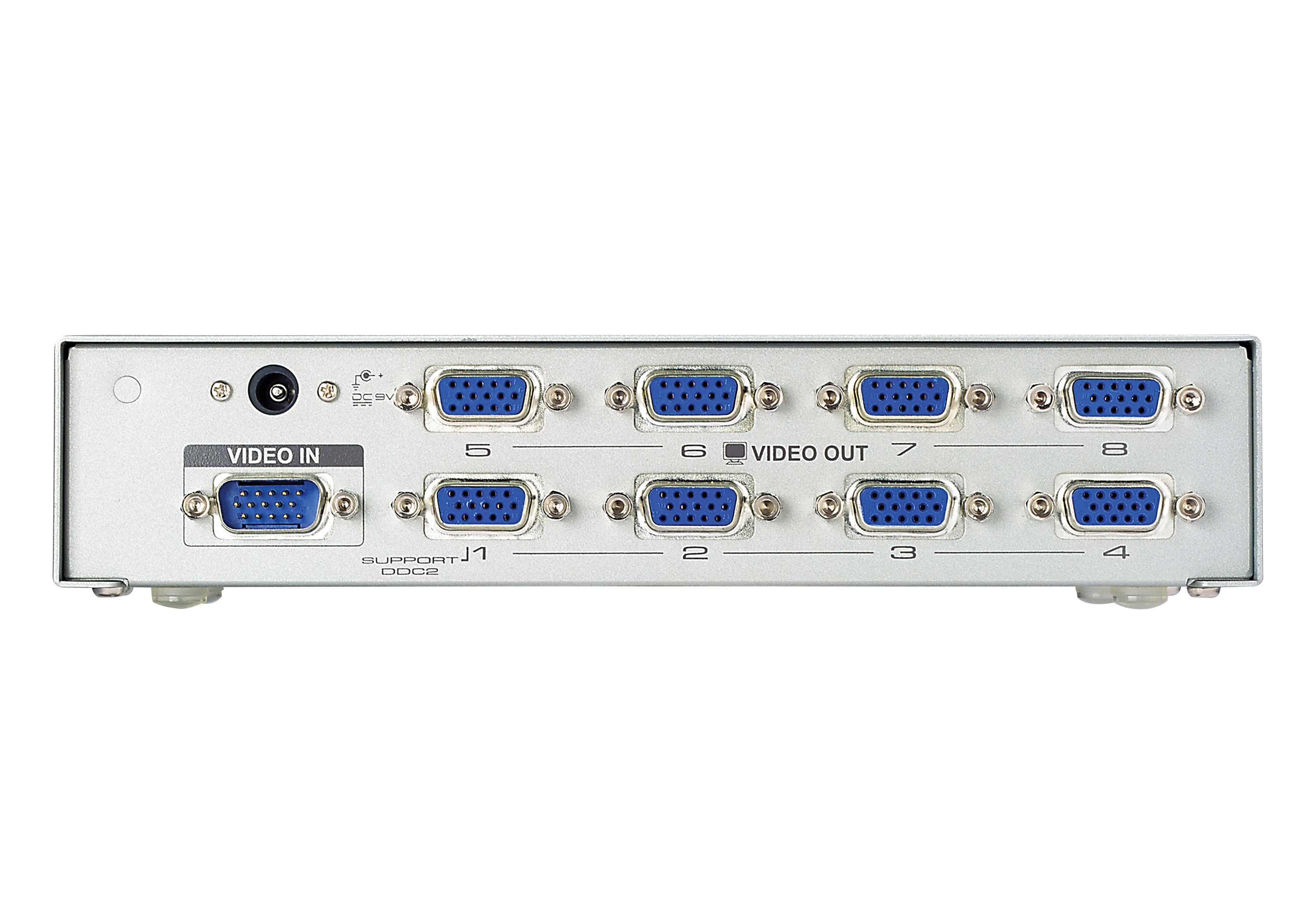

Video Output
Interfaces	8 x HDB-15 Female (Blue)
Impedance	75 ?
Video
Max. Bandwidth	350 MHz
Max. Resolution	Up to 1920 x 1440
Max. Distance	Up to 30 m
Connectors
Power	1 x DC Jack
Environmental
Operating Temperature	0 - 50°C
Storage Temperature	-20 - 60°C
Humidity	0 - 80% RH, Non-Condensing
Power Consumption	DC9V:5W:23BTU
Physical Properties
Housing	Metal
Weight	0.69 kg ( 1.52 lb )
Dimensions (L x W x H)	20.00 x 7.51 x 4.40 cm (7.87 x 2.96 x 1.73 in.)
Carton Lot	20 pcs
Note	For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
