StarTech.com · MSTDP123DP

StarTech MSTDP123DP DisplayPort to Triple DisplayPort 4K MST Hub

DisplayPort to Triple DisplayPort 4K MST Hub designed for professional IT, electronics, security or workstation use.

Quick answer: MSTDP123DP connects up to three independent DisplayPort monitors to one compatible DisplayPort 1.2 MST source with support up to 4K.

Best forMulti-monitor Windows workstations, control rooms and digital-signage layouts using a single DisplayPort source.

Check before orderingThe host must support DisplayPort 1.2 MST; the supplied AC adapter is required and total output resolution depends on available bandwidth.

Answers before you buy

Frequently asked questions

What is StarTech MSTDP123DP?

It is a DisplayPort 1.2 to three-port DisplayPort MST hub that connects up to three independent DisplayPort monitors to one compatible DisplayPort 1.2 MST source with support up to 4K.

Which connections or mounting method are provided?

DisplayPort male host input to three DisplayPort female outputs with external power input

What performance is specified?

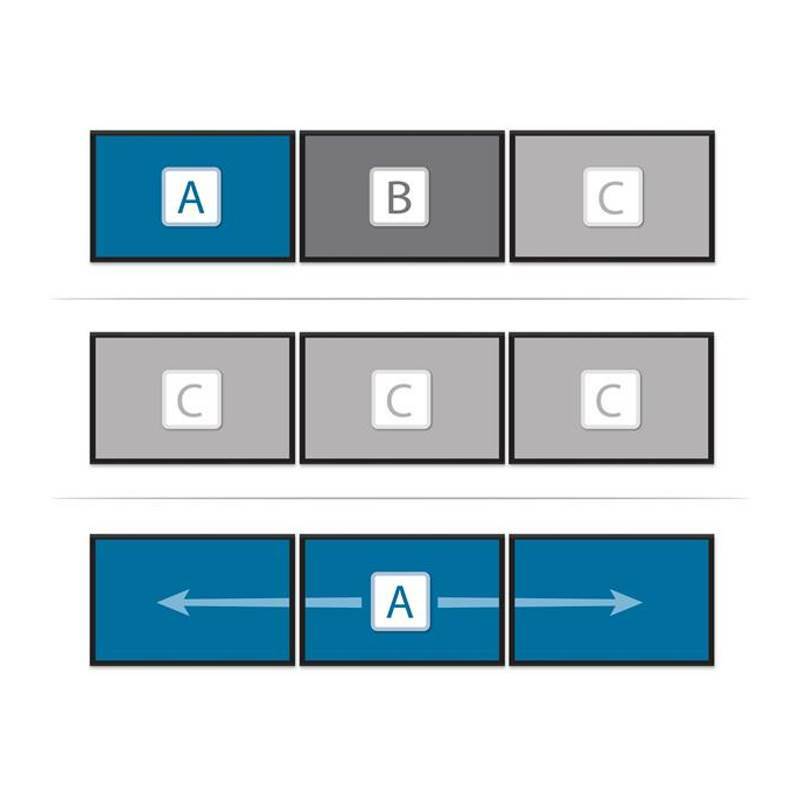

DisplayPort 1.2 MST; up to 4K digital output; three extended or mirrored displays on compatible Windows systems

How is the product constructed?

Compact desktop hub supplied with an AC power adapter

Does the hub require its AC adapter?

Yes. The included AC power adapter is required for operation.

Can the displays show independent content?

Yes, on a compatible Windows host that supports DisplayPort 1.2 MST extended desktop mode.

What should be checked before ordering?

The host must support DisplayPort 1.2 MST; the supplied AC adapter is required and total output resolution depends on available bandwidth.

What warranty applies?

MSTDP123DP carries a StarTech.com 3 years manufacturer warranty, subject to the manufacturers terms and eligibility requirements.

Planning a broader setup? Browse the DeviceDeal buying guides.

(MSTDP123DP)

Features & highlights

Why choose MSTDP123DP?

?Purpose-built designDisplayPort male host input to three DisplayPort female outputs with external power input

?Specified performanceDisplayPort 1.2 MST; up to 4K digital output; three extended or mirrored displays on compatible Windows systems

?Professional constructionCompact desktop hub supplied with an AC power adapter

?Key capabilityThree DisplayPort outputs expand one compatible source into a broad productivity workspace.

?Deployment advantageExternal power supports stable multi-display operation without drawing power from the host USB bus.

?Order with confidenceThe host must support DisplayPort 1.2 MST; the supplied AC adapter is required and total output resolution depends on available bandwidth.

Compatibility reminder: The host must support DisplayPort 1.2 MST; the supplied AC adapter is required and total output resolution depends on available bandwidth.

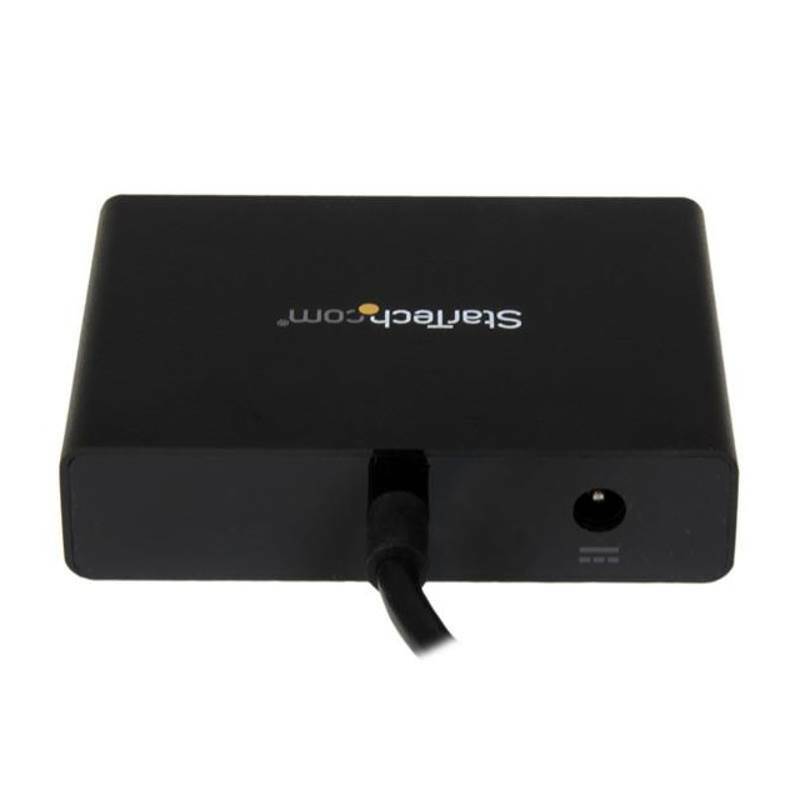

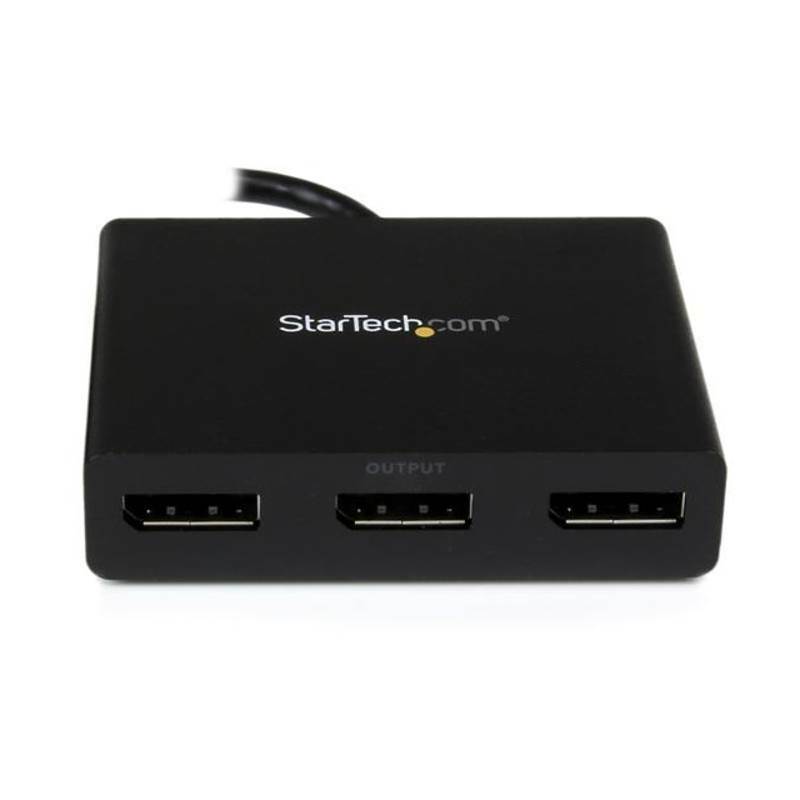

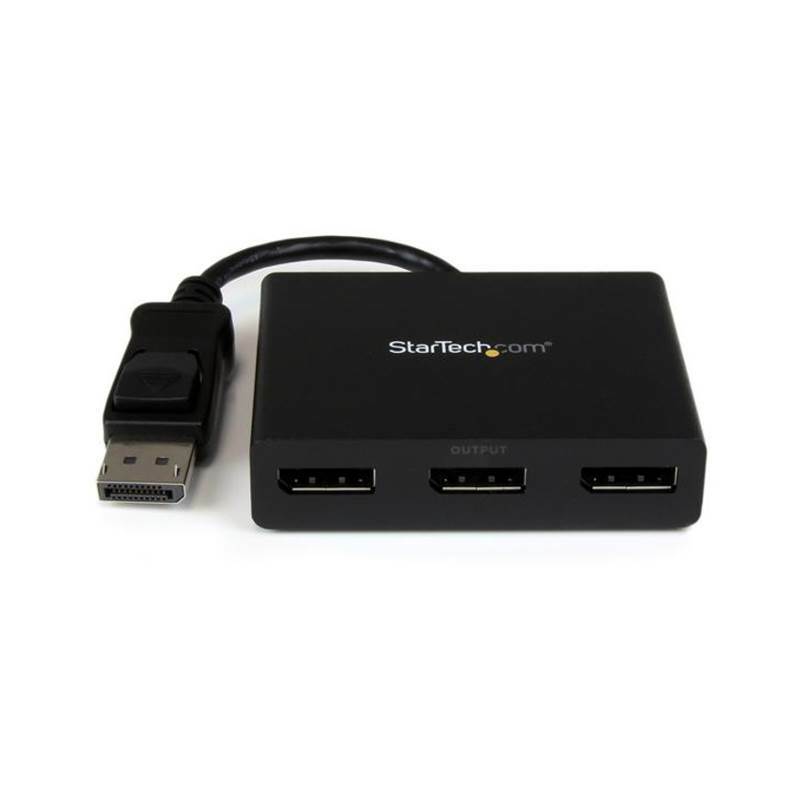

StarTech MSTDP123DP DisplayPort to Triple DisplayPort 4K MST Hub product image

Technical specifications

MSTDP123DP specifications

Exact-model specifications for compatibility checking. Measurements may be rounded.

Warranty Information
Warranty	3 Years
Hardware
Active or Passive Adapter	Active
Audio	Yes
Chipset ID	MegaChips - STDP4320
Ports	3
Performance
Maximum Digital Resolutions	Up to 4K
Wide Screen Supported	Yes
Connector(s)
Connector A	1 - DisplayPort (20 pin) Latching Male
Connector B	3 - DisplayPort (20 pin) Latching Female
Software
OS Compatibility	Windows 10 (32/64); Windows 8/8.1 (32/64); Windows 7(32/64)
Special Notes / Requirements
Note	DisplayPort 1.2 with MST+HBR2 support from the GPU is required for independent display output
Power
Center Tip Polarity	Positive
Input Current	0.5 A
Input Voltage	100 - 240 AC
Output Current	3A
Output Voltage	5 DC
Plug Type	N
Power Consumption (In Watts)	15
Power Source	AC Adapter Included
Environmental
Operating Temperature	0°C to 45°C (32°F to 113°F)
Storage Temperature	-20°C to 70°C (-4°F to 158°F)
Physical Characteristics
Cable Length	7.5 in [19 cm]
Color	Black
Enclosure Type	Plastic
Product Height	0.8 in [2 cm]
Product Length	15.2 in [38.6 cm]
Product Width	3.1 in [78 mm]
Weight of Product	3.5 oz [99 g]
Packaging Information
Package Height	2.2 in [55 mm]
Package Length	6.1 in [15.5 cm]
Package Width	9 in [22.9 cm]
Shipping (Package) Weight	14.4 oz [409 g]
What's in the Box
Included in Package	1 - 3-Port Multi Monitor DisplayPort MST Hub

Sources: https://www.devicedeal.com.au/startech-displayport-to-3x-display-port-mst-hub and https://www.startech.com/

SKU	MSTDP123DP
Barcode #	65030851886
Brand	STARTECH
Shipping Weight	0.4300kg
Shipping Width	0.100m
Shipping Height	0.050m
Shipping Length	0.240m
Shipping Cubic	0.001200000m3
