Two True 4K outputs
One DisplayPort input is distributed to two DisplayPort display connections.

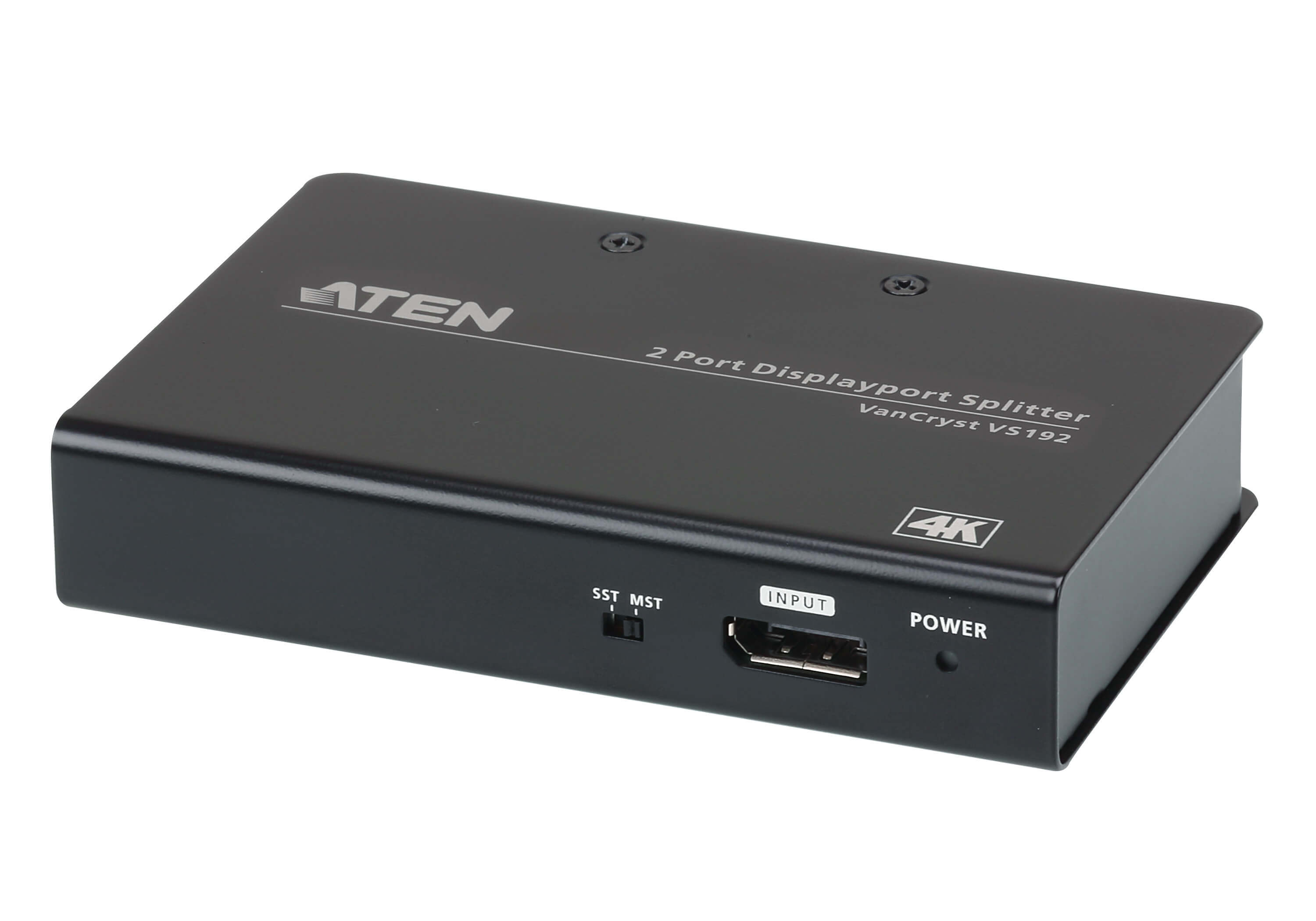

ATEN VS192-AT-U 2-port True 4K DisplayPort Splitter
Model # VS192-AT-U
-
SKU: VS192-AT-U
- Pick Up Available
- Australian Warranty
- Checkout Securely
ATEN SKU VS192-AT-U
ATEN VS192-AT-U 2-Port True 4K DisplayPort Splitter
The ATEN VS192-AT-U splits one DisplayPort audio/video source across two DisplayPort displays for mirrored or expanded multi-display applications.
DisplayPort 1.2a, HDCP 1.3, 21.6Gbps throughput and resolutions up to 4096 x 2160 or 3840 x 2160 at 60Hz are listed.
1 input to 2 outputsTrue 4K at 60Hz21.6Gbps2-year warrantyDeviceDeal authorised ATEN reseller
Product overview
4K at 60Hz
The structured specification lists up to 4096 x 2160 or 3840 x 2160 at 60Hz.
Multi-display use
The source identifies splitting and expanding DisplayPort audio/video signals across two monitors.
Source review: The stated 4.6m input and output test distance uses ATEN 2L-7D04DP cabling, as identified in the supplied specification.
Frequently asked questions
How many DisplayPort outputs are provided?
Two female DisplayPort outputs are listed.
What maximum resolution is stated?
Up to 4096 x 2160 or 3840 x 2160 at 60Hz is listed.
Which standards are supported?
DisplayPort 1.2a and HDCP 1.3 are listed.
What maximum data rate is stated?
The source lists 21.6Gbps, or 5.4Gbps per lane.
What warranty is supplied?
The source lists a two-year ATEN manufacturer warranty.
(VS192-AT-U)
Features
ATEN VS192-AT-U 2-Port True 4K DisplayPort Splitter
DisplayPort distribution
- 1 DisplayPort input
- 2 DisplayPort outputs
- Mirror or expand stated
- Audio/video signal distribution
True 4K performance
- 4096 x 2160 at 60Hz
- 3840 x 2160 at 60Hz
- 21.6Gbps maximum data rate
- DisplayPort 1.2a and HDCP 1.3
Build
- Metal housing
- 0.30kg
- 12.50 x 8.00 x 2.50cm
- DC power jack
The 4.6m distance was tested with the cable identified in the supplied source.
Technical specifications
ATEN VS192-AT-U 2-Port True 4K DisplayPort Splitter
| Product details | |
|---|---|
| Brand | ATEN |
| Model / SKU | VS192-AT-U |
| Product type | 2-port True 4K DisplayPort splitter |
| Video | |

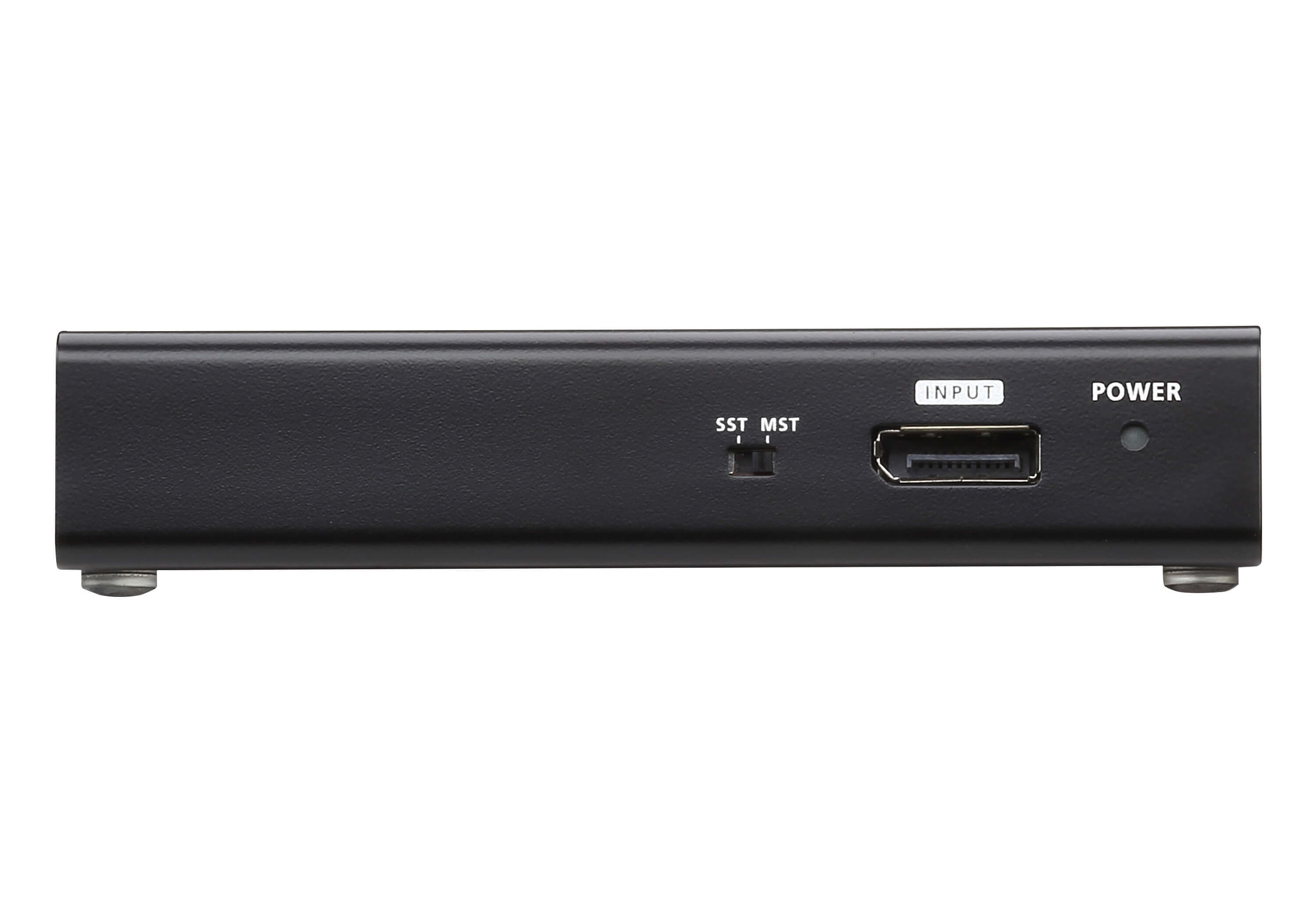

| Input | 1 x DisplayPort female, black |

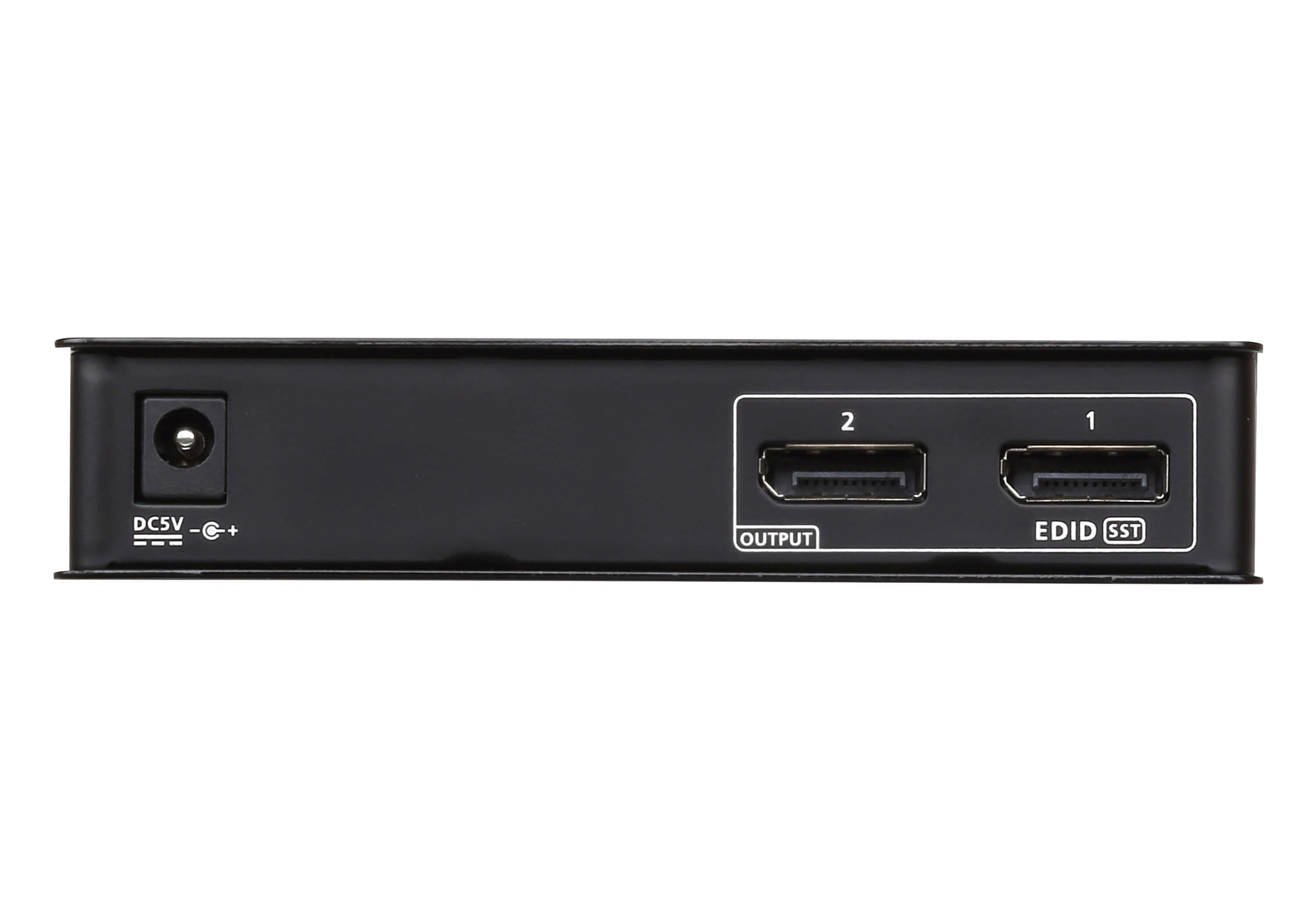

| Outputs | 2 x DisplayPort female, black |
| Maximum resolution | 4096 x 2160 / 3840 x 2160 at 60Hz |
| Maximum data rate | 21.6Gbps; 5.4Gbps per lane |
| Compliance | DisplayPort 1.2a; HDCP 1.3 |
| Tested input/output distance | 4.6m with 2L-7D04DP |
| Power and physical | |
| Power | 1 x DC jack |
| Power consumption stated | DC5V, 1.185W, 6BTU |
| Housing | Metal |
| Weight | 0.30kg |
| Dimensions (L x W x H) | 12.50 x 8.00 x 2.50cm |
| Environment | |
| Operating temperature | 040°C |
| Storage temperature | -2060°C |
| Humidity | 080% RH, non-condensing |
| SKU | VS192-AT-U |
| Barcode # | 4719264645242 |
| Brand | ATEN |
| Shipping Weight | 0.3900kg |
Warranty information
ATEN VS192-AT-U 2-Port True 4K DisplayPort Splitter
2-Year ATEN Manufacturer Warranty
DeviceDeal is an authorised ATEN reseller. This product is covered by a two-year ATEN manufacturer warranty in Australia, as listed in the supplied product information.
