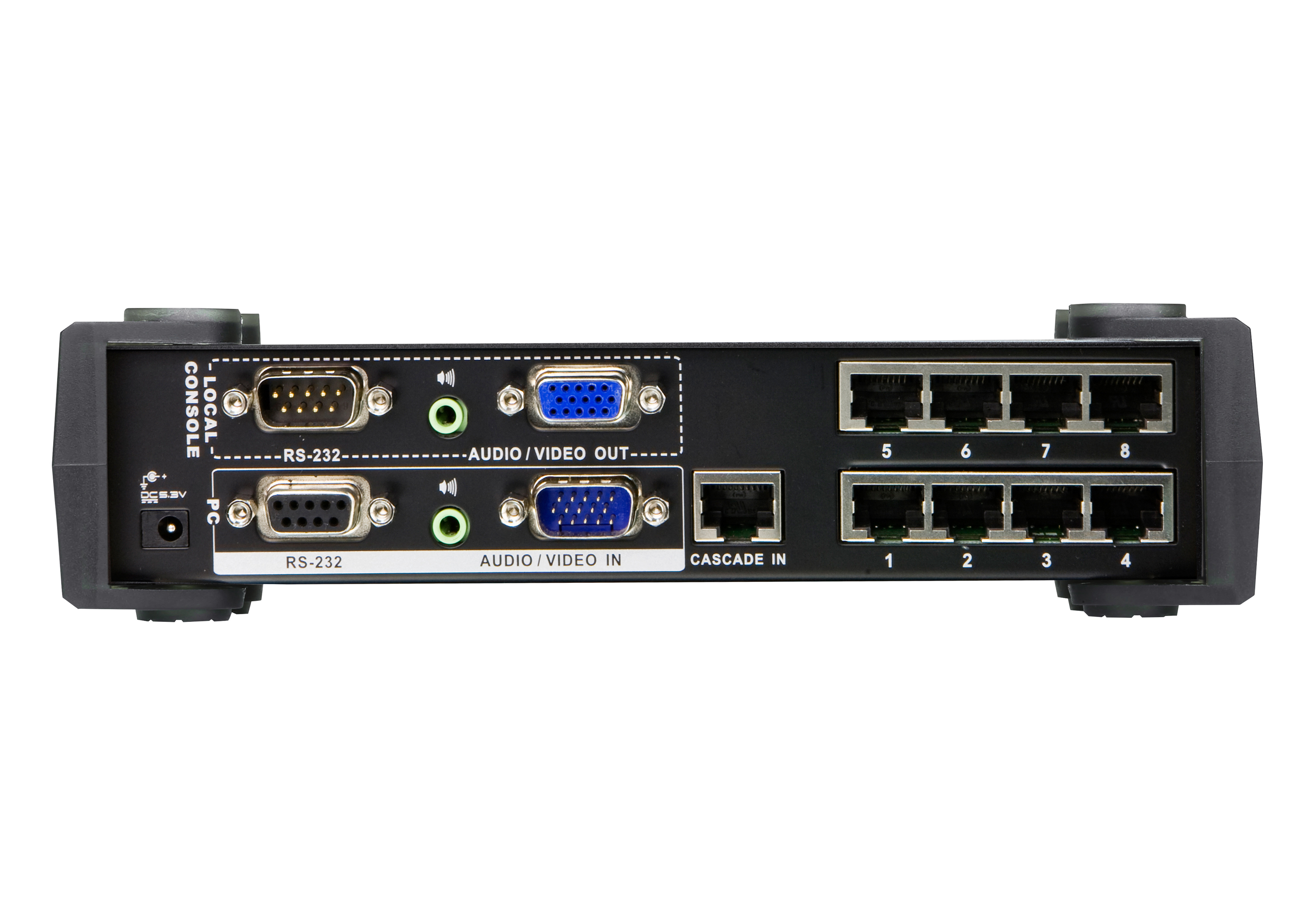

Eight remote destinations
Eight RJ45 outputs connect to compatible ATEN receivers, with a separate local VGA output also listed.

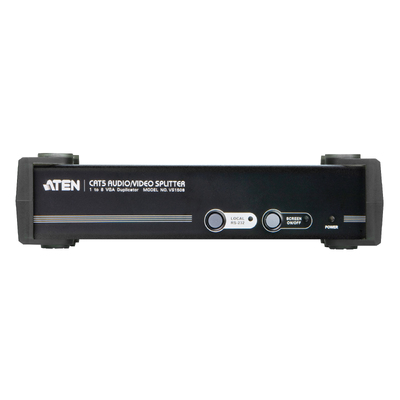

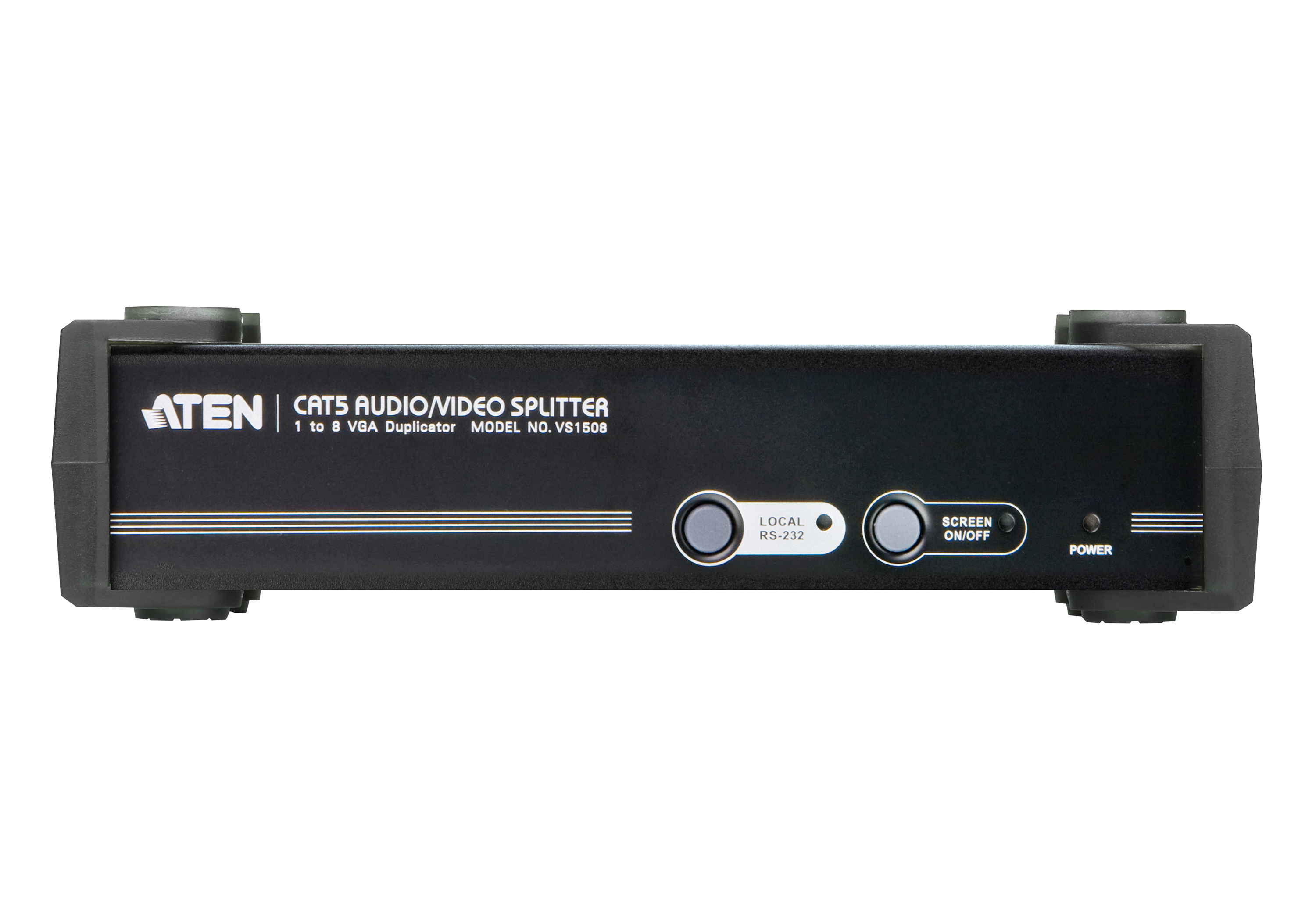

ATEN VS1508T-AT-U 8-Port VGA/Audio/RS-232 Cat 5 Splitter
Model # VS1508T-AT-U
-
SKU: VS1508T-AT-U
- Pick Up Available
- Australian Warranty
- Checkout Securely
ATEN SKU VS1508T-AT-U
ATEN VS1508T-AT-U 8-Port VGA/Audio/RS-232 Cat5 Splitter
The ATEN VS1508T-AT-U distributes one VGA, audio and RS-232 source to eight remote Cat5 receiver links plus a local VGA/audio output.
It supports 300MHz bandwidth, up to 1920 x 1200 at 30m or 1280 x 1024 at 150m, and can be cascaded through three levels for larger display networks.
1 source to 8 outputsVGA, audio and RS-2323-level cascade1-year warrantyDeviceDeal authorised ATEN reseller
Product overview
Serial-device support
RS-232 connectivity enables compatible serial devices such as touchscreens to be incorporated.
Scalable distribution
The source states three-level cascading and broader installations using compatible repeaters or extenders.
Source review: The narrative mentions installations reaching destinations up to 500m when suitable receivers or repeaters are incorporated, while the direct structured ranges are 30m or 150m by resolution. The video-impedance unit is corrupted and not inferred.
Frequently asked questions
How many remote display links are provided?
Eight RJ45 female outputs are listed, plus one local VGA output.
Which resolutions and distances are stated?
Up to 1920 x 1200 at 60Hz over 30m or 1280 x 1024 at 60Hz over 150m is listed.
Does it carry audio and RS-232?
Yes. Stereo audio and RS-232 control connections are listed.
Which receiver units are suggested?
The source identifies the VB552 repeater and VE200R audio/video receiver.
What warranty is supplied?
The source lists a one-year ATEN manufacturer warranty.
(VS1508T-AT-U)
Features
ATEN VS1508T-AT-U 8-Port VGA/Audio/RS-232 Cat5 Splitter
Distribution
- 1 VGA source
- 8 RJ45 remote outputs
- 1 local VGA output
- 3-level cascade
Video, audio and control
- 300MHz bandwidth
- 1920 x 1200 at 60Hz up to 30m
- 1280 x 1024 at 60Hz up to 150m
- Stereo audio and RS-232
Package
- VS1508 splitter
- 1.8m VGA/audio cable
- Power adapter
- User instructions
- VB552 may depend on package purchased
Compatible receiver or repeater units are required for remote Cat5 display connections.
Technical specifications
ATEN VS1508T-AT-U 8-Port VGA/Audio/RS-232 Cat5 Splitter
| Product details | |
|---|---|
| Brand | ATEN |
| Model / SKU | VS1508T-AT-U |
| Product type | 8-port VGA/audio/RS-232 Cat5 splitter |
| Video | |
| Input | 1 x HDB-15 male, blue |
| Local output | 1 x HDB-15 female, blue |
| Remote outputs | 8 x RJ45 female |
| Maximum bandwidth | 300MHz |
| Resolution / distance | 1920 x 1200 at 60Hz up to 30m; 1280 x 1024 at 60Hz up to 150m |
| Audio and control | |
| Audio input | 1 x mini stereo jack female, green |
| Audio output | 1 x mini stereo jack female, green |
| RS-232 | 1 x DB-9 female; 1 x DB-9 male |
| Power | 1 x DC jack, black |
| Power consumption stated | DC5.3V, 7.93W, 37BTU |
| Physical and environment | |
| Housing | Metal |
| Weight | 0.76kg |
| Dimensions (L x W x H) | 21.00 x 8.80 x 5.55cm |
| Operating temperature | 050°C |
| Storage temperature | -2060°C |
| Humidity | 080% RH, non-condensing |
| SKU | VS1508T-AT-U |
| Barcode # | 4710423776470 |
| Brand | ATEN |
| Shipping Weight | 1.3600kg |
Warranty information
ATEN VS1508T-AT-U 8-Port VGA/Audio/RS-232 Cat5 Splitter
1-Year ATEN Manufacturer Warranty
DeviceDeal is an authorised ATEN reseller. This product is covered by a one-year ATEN manufacturer warranty in Australia, as listed in the supplied product information.
