StarTech.com ST121UTPEP

VGA over CAT5 point-to-point extender kit up to 80m

Extend VGA over CAT5 UTP with 1920×1200 supported to 50m and 1280×1024 supported to 80m using the supplied transmitter/receiver kit.

VGA over CAT51920×1200 to 50m1280×1024 to 80m2-year warranty

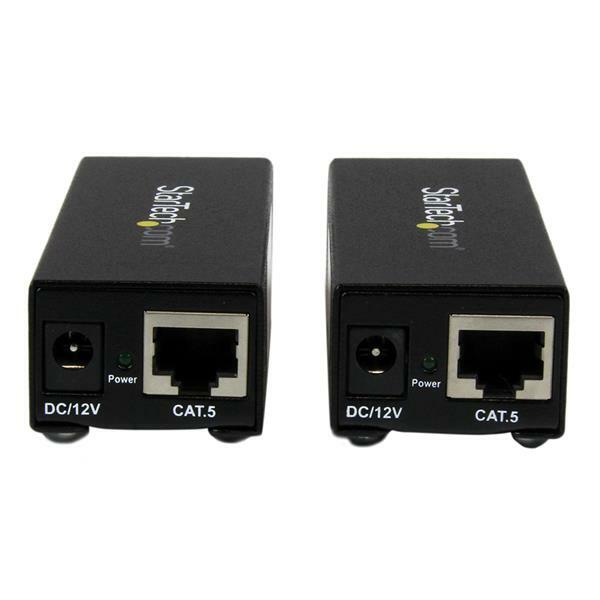

StarTech ST121UTPEP VGA over CAT5 extender kit

Key capabilities

80m VGA reach

Supports 1280×1024 up to 80m.

1920×1200 to 50m

Higher-resolution VGA is listed to 50m.

Single power adapter

The power adapter can be installed at either the local or remote end.

Point-to-point kit

Includes both the VGA transmitter and receiver.

What to know before buying

Resolution and distance can vary with cable quality. CAT5e UTP cabling is recommended by StarTech.

Australian version and manufacturer warranty

This item is the Australian version supplied by DeviceDeal and is covered by the official StarTech.com 2-year manufacturer warranty in Australia.

Please retain your DeviceDeal tax invoice as proof of purchase. Warranty coverage and claims are subject to StarTech.com warranty terms, eligibility requirements and product assessment.

Frequently asked questions

What is the maximum VGA extension distance?

Up to 80m for 1280×1024.

How far can 1920×1200 be extended?

Up to 50m.

What cable type is used?

CAT5 UTP, with CAT5e recommended.

Does it carry audio?

No.

How many power adapters are required?

One.

What units are included?

A VGA transmitter and VGA receiver.

Is a VGA cable included?

Yes.

What warranty applies in Australia?

The Australian version supplied by DeviceDeal is covered by the official StarTech.com 2-year manufacturer warranty in Australia, subject to StarTech.com terms and product assessment.

(ST121UTPEP)

Features and highlights

80m VGA reach

Supports 1280×1024 up to 80m.

1920×1200 to 50m

Higher-resolution VGA is listed to 50m.

Single power adapter

The power adapter can be installed at either the local or remote end.

Point-to-point kit

Includes both the VGA transmitter and receiver.

VGA over CAT5
1920×1200 to 50m
1280×1024 to 80m
2-year warranty

Warranty confidence: Official StarTech.com 2-year manufacturer warranty in Australia, subject to StarTech.com terms and assessment.

Specifications

Verified specifications for StarTech ST121UTPEP.

Warranty Information

Warranty	2 Years

Hardware

Audio	No
Cabling	Cat 5 UTP
Daisy-Chain	No
Ports	1

Performance

Max Distance	80 m / 260 ft
Supported Resolutions	1920x1200 @ 50m(164ft) 1280x1024 @ 80m(260ft)

Connector(s)

Local Unit Connectors	1 - RJ-45 Female
Local Unit Connectors	1 - VGA (15 pin, High Density D-Sub) Female
Remote Unit Connectors	1 - RJ-45 Female
Remote Unit Connectors	1 - VGA (15 pin, High Density D-Sub) Female

Special Notes / Requirements

Note	Resolution may vary at distances depending on cable quality. Cat 5e UTP cables are recommended.

Power

Center Tip Polarity	Positive
Output Current	0.6A
Output Voltage	12 DC
Plug Type	M
Power Consumption (In Watts)	7.2
Power Source	AC Adapter Included

Physical Characteristics

Color	Black
Enclosure Type	Aluminum
Product Height	1 in [2.5 cm]
Product Length	3.9 in [10 cm]
Product Width	5.4 in [13.8 cm]
Weight of Product	9.3 oz [263 g]

Packaging Information

Package Height	2.4 in [60 mm]
Package Length	12.4 in [31.5 cm]
Package Width	5.5 in [14 cm]
Shipping (Package) Weight	28.1 oz [795 g]

What's in the Box

Included in Package	1 - VGA over Cat5 Transmitter
Included in Package	1 - VGA over Cat5 Receiver
Included in Package	1 - Installation Bracket (w/ screws)
Included in Package	1 - VGA Cable
Included in Package	1 - Universal Power Adapter (NA/UK/EU/AUS)
Included in Package	1 - Instruction Manual
