StarTech.com ST12MHDLAN4K

Scalable 4K 30Hz HDMI over IP extender and video-wall kit

A transmitter/receiver AV-over-IP kit for distributing 4K 30Hz HDMI over existing Gigabit Ethernet infrastructure, with point-to-point reach up to 100m, scalable receiver expansion, video-wall control and RS-232 passthrough.

4K 30HzUp to 100mUp to 16 TX / 256 RX2-year warranty

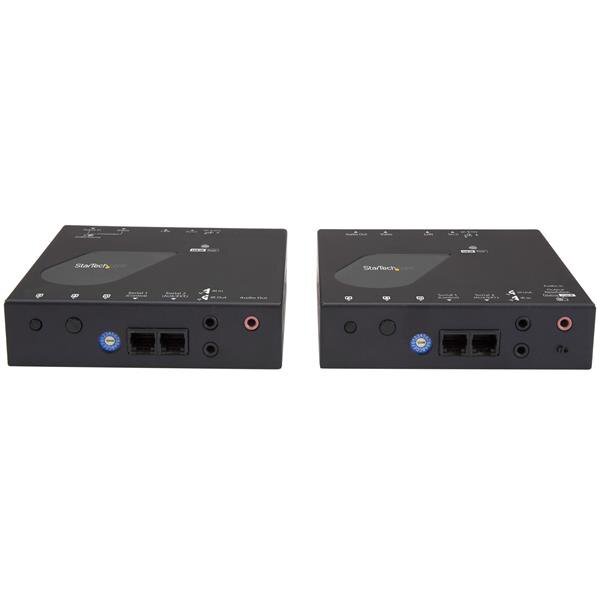

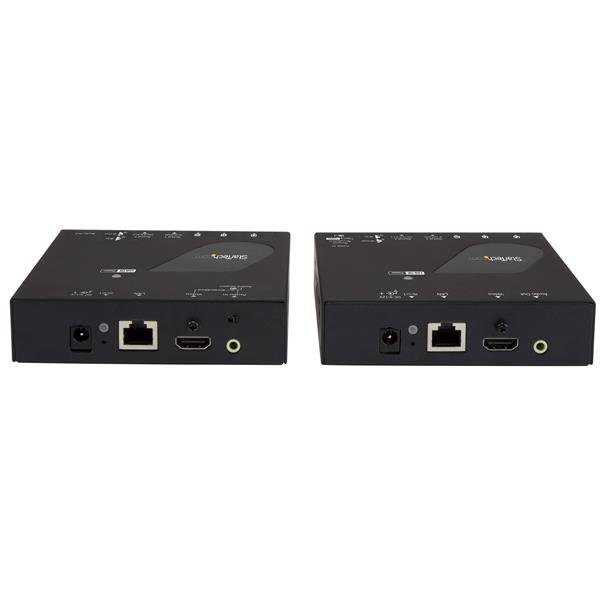

StarTech ST12MHDLAN4K 4K HDMI over IP extender kit

Key capabilities

Scalable HDMI over IP

Supports one-to-many with up to 16 receivers per transmitter and many-to-many deployments up to 16 transmitters and 256 receivers.

4K 30Hz AV-over-IP

Distributes HDMI video up to 3840×2160 at 30Hz across compatible network infrastructure.

100m point-to-point reach

Direct transmitter-to-receiver Cat5e/Cat6 connections can reach up to 100m / 330ft.

Video Control App and RS-232

Use the iOS/Android control app for source/display naming, switching and video-wall configuration, with RS-232 passthrough for serial control.

What to know before buying

For networks with more than one transmitter or more than four receivers, StarTech recommends a managed switch with IGMP. Jumbo-frame support should be enabled for effective 4K streaming. This kit works with ST12MHDLAN4R receivers.

Australian version and manufacturer warranty

This item is the Australian version supplied by DeviceDeal and is covered by the official StarTech.com 2-year manufacturer warranty in Australia.

Please retain your DeviceDeal tax invoice as proof of purchase. Warranty coverage and claims are subject to StarTech.com warranty terms, eligibility requirements and product assessment.

Frequently asked questions

What maximum resolution does ST12MHDLAN4K support?

Up to 3840×2160 4K at 30Hz.

What is the point-to-point distance?

Up to 100m / 330ft over Cat5e/Cat6.

How many receivers can one transmitter feed?

Up to 16 receivers.

How large can a many-to-many deployment be?

Up to 16 transmitters and 256 receivers.

Which additional receiver is compatible?

ST12MHDLAN4R.

Is a control app included?

Yes, StarTech provides an iOS/Android Video Control App.

What network-switch features are recommended for larger deployments?

A managed switch with IGMP is recommended, and jumbo frames should be enabled for 4K streaming.

What warranty applies in Australia?

The Australian version supplied by DeviceDeal is covered by the official StarTech.com 2-year manufacturer warranty in Australia, subject to StarTech.com terms and product assessment.

(ST12MHDLAN4K)

Features and highlights

Scalable HDMI over IP

Supports one-to-many with up to 16 receivers per transmitter and many-to-many deployments up to 16 transmitters and 256 receivers.

4K 30Hz AV-over-IP

Distributes HDMI video up to 3840×2160 at 30Hz across compatible network infrastructure.

100m point-to-point reach

Direct transmitter-to-receiver Cat5e/Cat6 connections can reach up to 100m / 330ft.

Video Control App and RS-232

Use the iOS/Android control app for source/display naming, switching and video-wall configuration, with RS-232 passthrough for serial control.

4K 30Hz
Up to 100m
Up to 16 TX / 256 RX
2-year warranty

Warranty confidence: Official StarTech.com 2-year manufacturer warranty in Australia, subject to StarTech.com terms and assessment.

Specifications

Verified specifications for StarTech ST12MHDLAN4K.

Warranty Information

Warranty	2 Years

Hardware

AV Input	HDMI
Cabling	Cat5e UTP or better
Rack-Mountable	Yes
Compatible Receiver	ST12MHDLAN4R

Performance

Maximum Resolution	4K @ 30Hz
Maximum Point-to-Point Distance	100m [330ft]
Audio	Stereo
Bandwidth Requirement at 4K 30Hz	480850Mbps per transmitter/receiver pair
Latency at 4K 30Hz	200ms

Scalability

One-to-Many	Up to 16 receivers per transmitter
Many-to-Many	Up to 16 transmitters and 256 receivers

Control

Mobile App	iOS/Android Video Control App
Serial Control	RS-232 passthrough
Video Wall	Supported

Network Guidance

Recommended for >1 transmitter or >4 receivers	Managed switch with IGMP
4K Streaming	Jumbo frames should be enabled

SKU	ST12MHDLAN4K
Barcode #	65030868372
Brand	STARTECH
Shipping Weight	2.3200kg
Shipping Width	0.240m
Shipping Height	0.080m
Shipping Length	0.370m
Shipping Cubic	0.007104000m3

2-year official manufacturer warranty

StarTech.com warranty in Australia

This item is the Australian version supplied by DeviceDeal and is covered by the official StarTech.com 2-year manufacturer warranty in Australia.

Please retain your DeviceDeal tax invoice as proof of purchase.

Warranty coverage and claims are subject to StarTech.com warranty terms, eligibility requirements and product assessment. This wording does not promise automatic replacement or guaranteed claim approval.
