StarTech.com · HDBOOST4K

HDMI 2.0 Signal Booster, 4K 60Hz

Extend HDMI 2.0 using two standard HDMI cables, supporting 4K 60Hz across 10m, 4K 30Hz across 25m or 1080p across 35m.

4K 60HzUp to 35mHDCP 2.2USB powered

StarTech HDBOOST4K HDMI 2.0 Signal Booster, 4K 60Hz

Built for dependable use

Resolution-based reach

Supports 4K 60Hz at 10m, 4K 30Hz at 25m or 1080p 60Hz at 35m.

HDMI 2.0 capability

Maintains compatible 4K signals when the source, display and cabling support HDMI 2.0.

HDCP 2.2 support

Supports protected content across a compatible end-to-end signal chain.

7.1-channel audio

Carries compatible surround-sound audio with the HDMI signal.

What to know before you connect

4K 60Hz requires an HDMI 2.0 source, display and cables.
Maximum distance changes with the selected resolution.
Two HDMI cables are required and are not listed as included.
The included USB cable must connect to a suitable 5V USB power source.

Australian version with official warranty

Supplied by DeviceDeal and covered by the official StarTech.com 2 years manufacturer warranty in Australia. Keep your DeviceDeal tax invoice as proof of purchase; coverage is subject to StarTech.com terms, eligibility and product assessment.

Frequently asked questions

What does the StarTech HDBOOST4K do?

It amplifies HDMI between two cables so compatible video can travel farther at the selected resolution.

What connections does the HDBOOST4K provide?

It has one HDMI female input, one HDMI female output and a USB power connection.

What is the maximum verified performance?

It supports 4K 60Hz at 10m, 4K 30Hz at 25m and 1080p 60Hz at 35m.

How is the HDBOOST4K powered?

It is USB powered and includes a 1.5m USB power cable; a suitable USB power source is required.

What compatibility should I check?

For 4K 60Hz, the HDMI source, display and both cables must support HDMI 2.0.

Does every resolution work at the full 35m distance?

No. The full 35m distance applies to 1080p; 4K 30Hz is supported to 25m and 4K 60Hz to 10m.

What is included in the package?

The package includes one HDMI signal booster and one 1.5m USB power cable.

What warranty applies in Australia?

The Australian-version HDBOOST4K supplied by DeviceDeal is covered by a 2 years official StarTech.com manufacturer warranty in Australia, subject to StarTech.com terms and assessment.

Not sure this is the right product for your setup? Visit the DeviceDeal Buying Guides.

(HDBOOST4K)

Features and highlights

Resolution-based reach

Supports 4K 60Hz at 10m, 4K 30Hz at 25m or 1080p 60Hz at 35m.

HDMI 2.0 capability

Maintains compatible 4K signals when the source, display and cabling support HDMI 2.0.

HDCP 2.2 support

Supports protected content across a compatible end-to-end signal chain.

7.1-channel audio

Carries compatible surround-sound audio with the HDMI signal.

Compact USB-powered design

Includes a 1.5m USB power cable for installation without an AC adapter.

Key highlights

HDMI female input and output
4K 60Hz at 10m
TAA compliant
Power-status LED

Official StarTech.com 2 years manufacturer warranty in Australia.

Technical specifications

StarTech HDBOOST4K · HDMI 2.0 Signal Booster, 4K 60Hz

Warranty Information

Warranty

2 Years

Hardware

Audio

Yes

AV Input

HDMI

AV Output

HDMI

Cabling

HDMI

Daisy-Chain

Rack-Mountable

Performance

Max Distance

35 m / 115 ft

Maximum Cable Length

114.8 ft [35 m]

Maximum Digital Resolutions

At 10 m | Up to 4K at 60Hz | | At 25 m | Up to 4K at 30Hz | | At 35 m | Up to 1080p

Supported Resolutions

3840x2160 (4K), 2560x1600, 1920x1200, 1920x1080 (1080p), 1280x720 (720p)

Wide Screen Supported

Yes

Connector(s)

Connector A

1 - HDMI (19 pin) Female Input

Connector B

1 - HDMI (19 pin) Female Output

Indicators

LED Indicators

1 - Power LED

Power

Power Source

USB-Powered

Environmental

Humidity

20°C to 80°C (68°F to 176°F)

Operating Temperature

0°C to 35°C (32°F to 95°F)

Storage Temperature

-5°C to 40°C (23°F to 104°F)

Physical Characteristics

Product Height

0.6 in [1.5 cm]

Product Length

2.2 in [56 mm]

Product Width

1.8 in [46 mm]

Weight of Product

5.3 oz [150 g]

Packaging Information

Package Height

1.8 in [46 mm]

Package Length

6.2 in [15.7 cm]

Package Width

4 in [10.1 cm]

Shipping (Package) Weight

0.4 lb [0.2 kg]

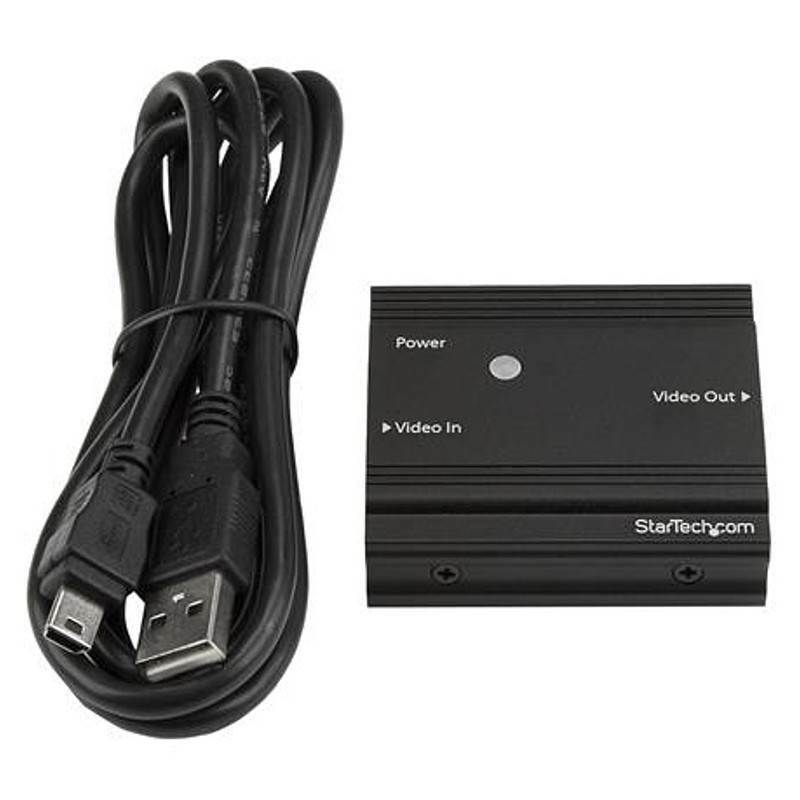

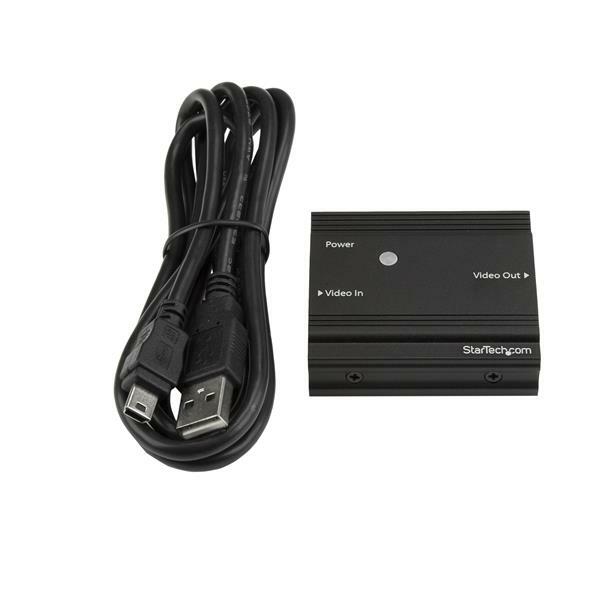

What's in the Box

Included in Package

1 - HDMI signal booster

Additional detail

1 - 5 ft [1.5 m] USB power cable

Official Performance

HDMI Revision

HDMI 2.0

HDCP

HDCP 2.2

4K 60Hz Distance

10m [30ft]

4K 30Hz Distance

25m [82ft]

1080p 60Hz Distance

35m [115ft]

Audio

7.1-channel surround sound

Official Physical Details

Dimensions

56 × 46 × 15mm

Weight

150g
