Cascade-ready receiver
Up to ten cascade levels are stated for compatible ATEN transmitter and receiver units.
ATEN VE172R-AT-U VGA/Audio Cat 5 Receiver with Cascade (1280 x 1024@150m)
Model # VE172R-AT-U
-
SKU: VE172R-AT-U
$260.00
Stock Availability
🟢Live
In Stock · Call to confirm
Pickup from Vermont, VIC
Allow 1–2 business days for stock transfer
Allow 1–2 business days for stock transfer
- Pick Up Available
- Australian Warranty
- Checkout Securely
ATEN SKU VE172R-AT-U

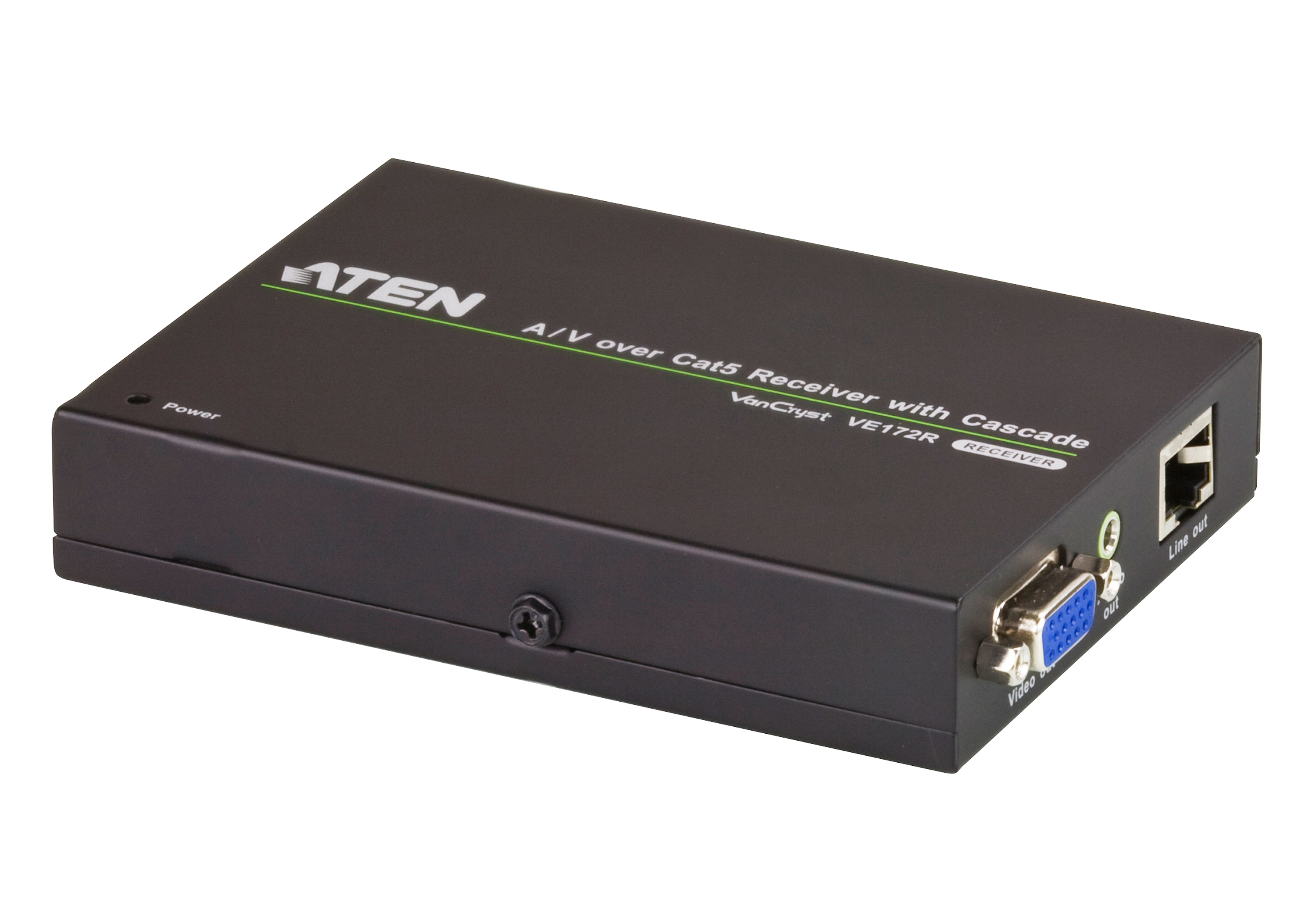

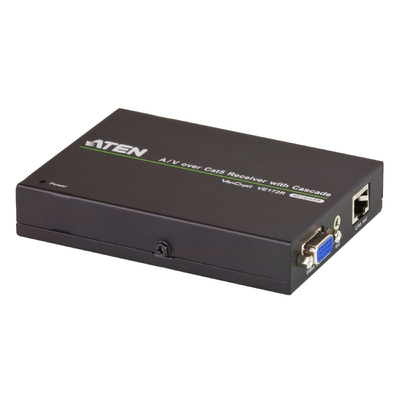

ATEN VE172R-AT-U VGA/Audio Cat5 Receiver with Cascade
The ATEN VE172R-AT-U is a VGA/audio Cat5 receiver for the ATEN MDS Standard Plus solution, with a cascade connection for extending compatible installations.
The source states cascading up to ten levels, maximum 300MHz bandwidth and resolutions up to 1920 x 1200 at 30m or 1280 x 1024 at 150m.
VGA and audioUp to 150m10-level cascade2-year warrantyDeviceDeal authorised ATEN reseller
Product overview
Up to 150m
The structured specification lists 1280 x 1024 at distances up to 150 metres.
MDS Standard Plus compatibility
Compatibility is stated with VE170 and VS1204T/VS1208T transmitter solutions.
Source review: The supplied source displays the video impedance unit as a question mark. The value is retained as 75 with the unit marked for confirmation rather than inferred.
Frequently asked questions
What maximum cascade depth is stated?
The supplied description lists up to ten cascade levels.
How far can 1280 x 1024 be extended?
The source lists up to 150 metres.
What resolution is listed at 30 metres?
Up to 1920 x 1200 is stated.
Which compatible transmitters are identified?
VE170T, VS1204T and VS1208T are listed.
What warranty is supplied?
The source lists a two-year ATEN manufacturer warranty.
(VE172R-AT-U)
Features
ATEN VE172R-AT-U VGA/Audio Cat5 Receiver with Cascade
Receiver and cascade
- VGA/audio Cat5 receiver
- Up to 10 cascade levels
- Compatible MDS Standard Plus solution
- 300MHz maximum bandwidth
Video and audio
- HDB-15 VGA output
- Mini stereo audio output
- 1920 x 1200 up to 30m
- 1280 x 1024 up to 150m
Build
- Metal housing
- 0.24kg
- 12.77 x 9.04 x 2.26cm
- DC power jack
A compatible ATEN transmitter and suitable Cat5 cabling are required.
Technical specifications
ATEN VE172R-AT-U VGA/Audio Cat5 Receiver with Cascade
| Product details | |
|---|---|
| Brand | ATEN |
| Model / SKU | VE172R-AT-U |
| Product type | VGA/audio Cat5 receiver with cascade |
| Cascade | Up to 10 levels stated |
| Video, audio and connections | |

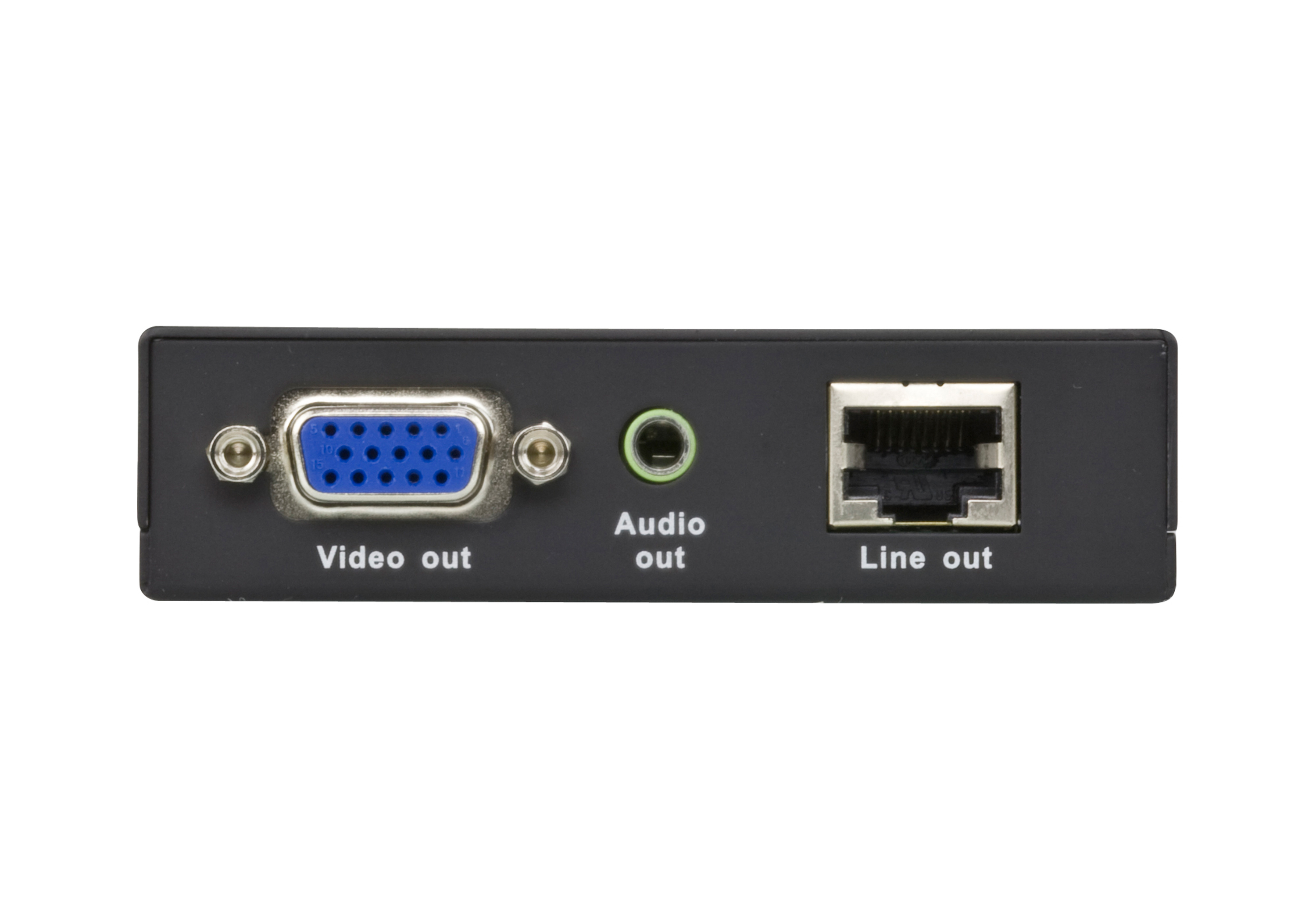

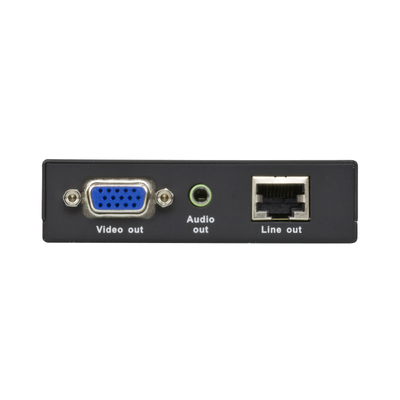

| Video output | 1 x HDB-15 female, blue |
| Maximum bandwidth | 300MHz |
| Maximum resolutions / distance | 1920 x 1200 up to 30m; 1280 x 1024 up to 150m |
| Audio output | 1 x mini stereo jack female, green |

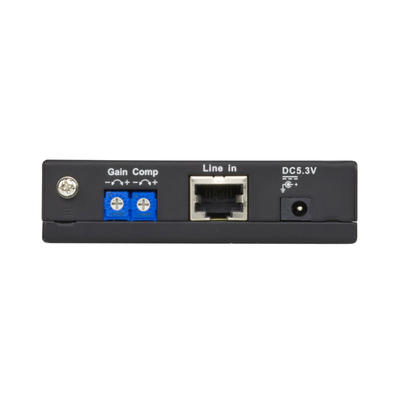

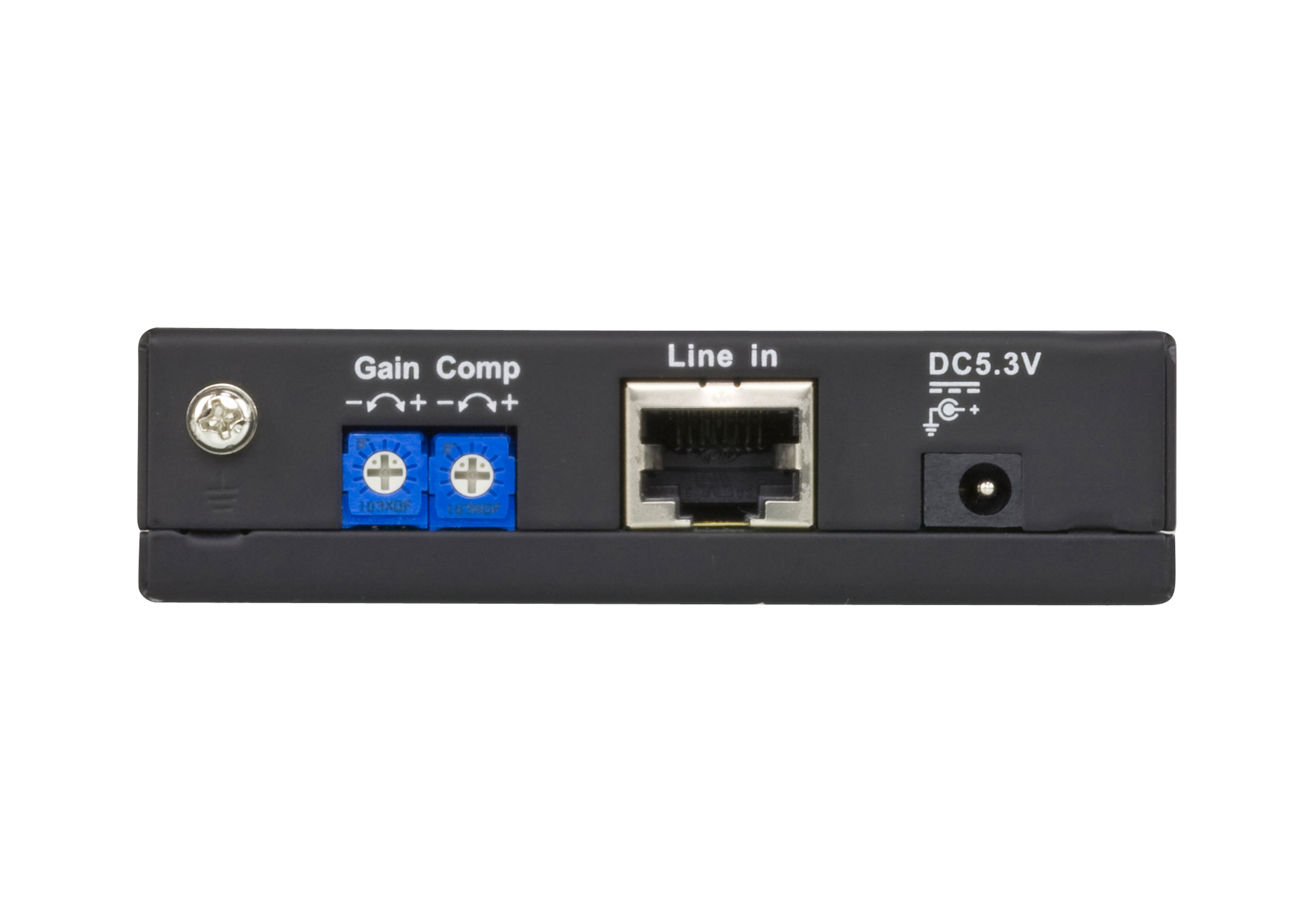

| Power | 1 x DC jack, black |
| Power consumption stated | DC5.3V, 2.29W, 11BTU |
| Physical and environment | |
| Housing | Metal |
| Weight | 0.24kg |
| Dimensions (L x W x H) | 12.77 x 9.04 x 2.26cm |
| Operating temperature | 050°C |
| Storage temperature | -2060°C |
| Humidity | 080% RH, non-condensing |
| Source clarification | |
| Video impedance | 75; source unit is corrupted and requires confirmation |
| Compatible transmitters stated | VE170T; VS1204T; VS1208T |
| Compatible receivers stated | VE172R; VE170R; VE170RQ |
| SKU | VE172R-AT-U |
| Barcode # | 4710423779891 |
| Brand | Aten |
| Shipping Weight | 1.9000kg |
Warranty information
ATEN VE172R-AT-U VGA/Audio Cat5 Receiver with Cascade
2-Year ATEN Manufacturer Warranty
DeviceDeal is an authorised ATEN reseller. This product is covered by a two-year ATEN manufacturer warranty in Australia, as listed in the supplied product information.
