HDMI and USB extension
The system extends an HDMI signal and one USB 2.0 port between local and remote units.

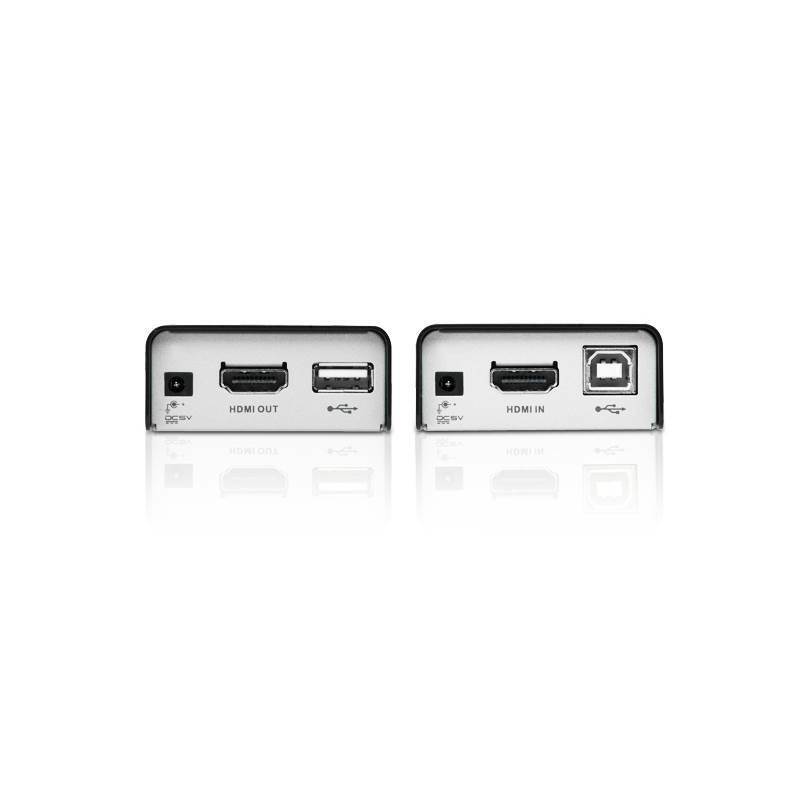

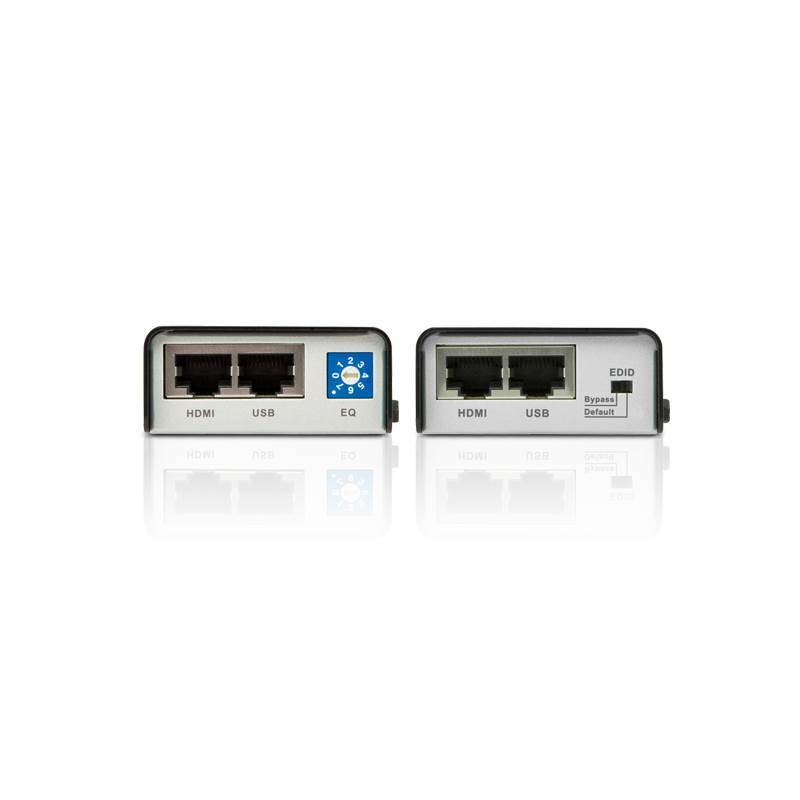

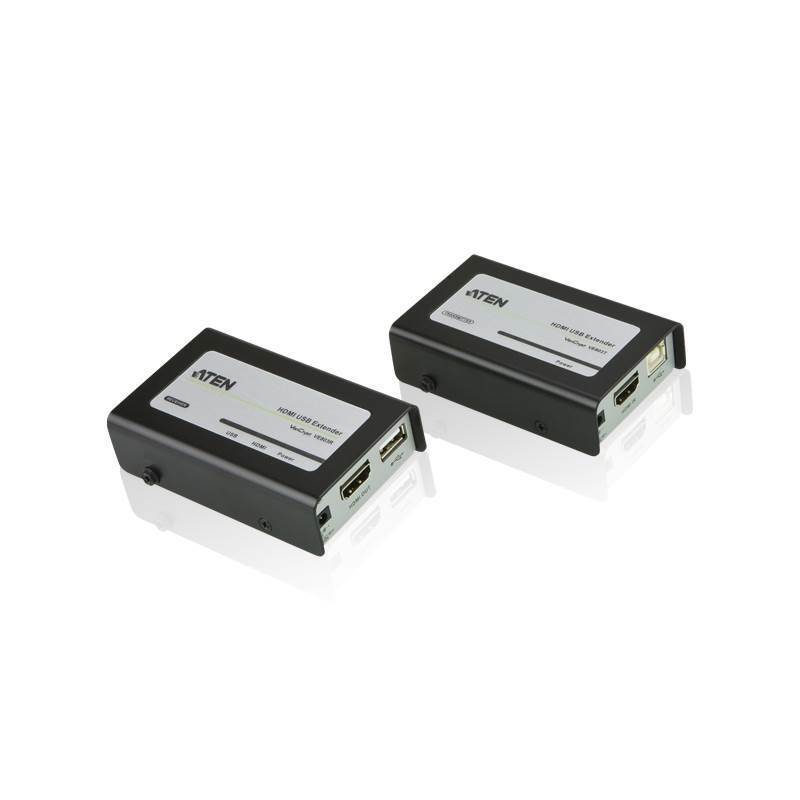

The ATEN VE803-AT-U extends HDMI and one USB 2.0 connection over two Cat5e cables for remote video and USB control.
It supports 1080p signals up to 40 metres and 1080i up to 60 metres, making it suitable for touch panels, kiosks and controlled-display installations.

The system extends an HDMI signal and one USB 2.0 port between local and remote units.
The USB link can support control of a local HDMI source from a remote touch panel or the reverse arrangement described in the source.
The local unit can be powered through USB when connected to an appropriate source device.
Source review: The supplied narrative specifies two Cat5e cables and describes the system range by video format. Confirm cable category, connector quantities, power arrangements and host compatibility before installation.
The supplied description lists two Cat5e cables.
The source lists up to 40 metres.
The source lists up to 60 metres.
Yes. The supplied description specifically identifies touch-panel control as an application.
The source lists a 12-month limited ATEN manufacturer warranty.
(VE803-AT-U)
Two suitable Cat5e cable runs are required according to the supplied description.
| Product details | |
|---|---|
| Brand | ATEN |
| Model / SKU | VE803-AT-U |
| Product type | HDMI and USB over Cat5 extender |
| Cable runs stated | 2 x Cat5e |
| Video, USB and audio | |
| 1080p distance | Up to 40m |
| 1080i distance | Up to 60m |
| Maximum resolution stated | 1920 x 1200 at 60Hz |
| USB | 1 x USB 2.0 port extension |
| Equalisation | 8-segment adjustment |
| Audio | Dolby TrueHD; DTS-HD Master Audio |
| Protection | Built-in ESD protection |
| Content protection | HDCP compliant |
| Application notes | |
| Control | Remote touch-panel control stated |
| Local power | May be powered via USB from an appropriate source device |
| Typical applications stated | Transportation centres; medical facilities; shopping centres; kiosks |
| SKU | VE803-AT-U |
| Barcode # | 672792004285 |
| Brand | Aten |
| Shipping Weight | 3.9000kg |
| Shipping Width | 0.060m |
| Shipping Height | 0.160m |
| Shipping Length | 0.240m |
| Shipping Cubic | 0.002304000m3 |
DeviceDeal is an authorised ATEN reseller. This product is covered by a 12-month limited ATEN manufacturer warranty in Australia, as listed in the supplied product information.
