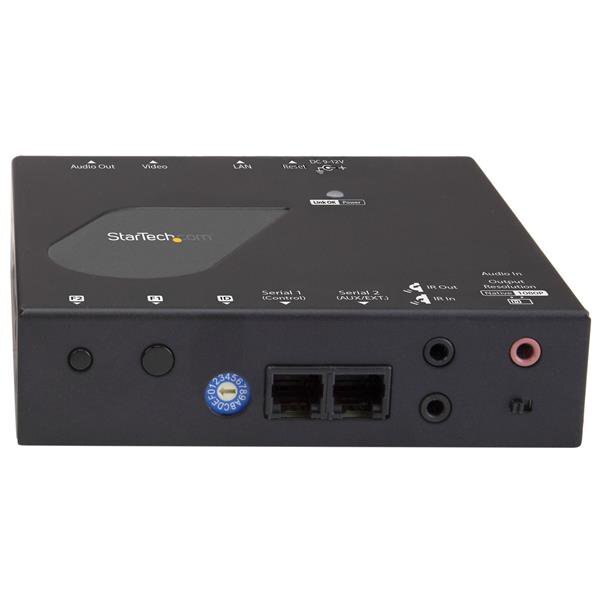

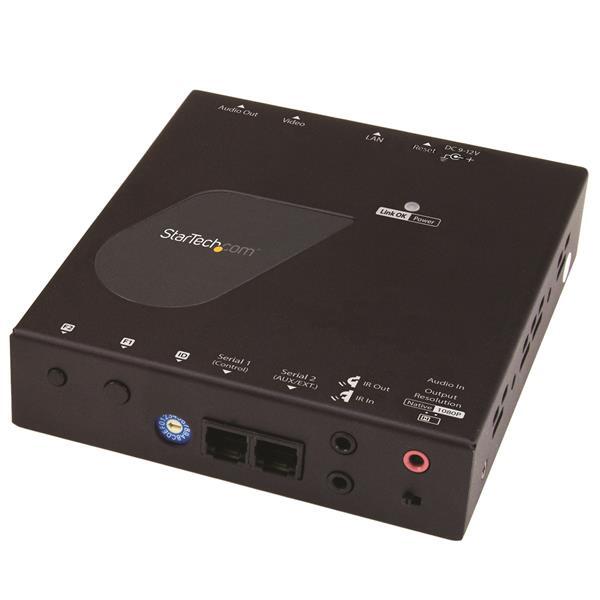

StarTech.com ST12MHDLAN4R

4K 30Hz HDMI over IP receiver for ST12MHDLAN4K

Add another display to a compatible ST12MHDLAN4K HDMI-over-IP deployment with 4K 30Hz video, up to 100m point-to-point reach, video-wall control and RS-232 passthrough.

Receiver for ST12MHDLAN4K4K 30Hz100m / 330ft2-year warranty

StarTech ST12MHDLAN4R HDMI over IP receiver for ST12MHDLAN4K

Key capabilities

Scalable HDMI over IP

Use additional receivers to expand one-to-many and many-to-many digital-signage or video-wall deployments.

4K 30Hz to 100m

Supports up to 3840×2160 at 30Hz with a point-to-point distance up to 100m over Cat5e or better.

Mobile video control

The compatible iOS/Android Video Control App can name sources/displays, switch inputs and configure video walls.

RS-232 passthrough

Serial-controlled displays and devices can be managed through the compatible network deployment.

What to know before buying

This is a receiver only and requires a compatible ST12MHDLAN4K transmitter/extender deployment. For more than one transmitter or more than four receivers, StarTech recommends a managed switch with IGMP; jumbo frames should be enabled for effective 4K streaming.

Australian version and manufacturer warranty

This item is the Australian version supplied by DeviceDeal and is covered by the official StarTech.com 2-year manufacturer warranty in Australia.

Please retain your DeviceDeal tax invoice as proof of purchase. Warranty coverage and claims are subject to StarTech.com warranty terms, eligibility requirements and product assessment.

Frequently asked questions

What does ST12MHDLAN4R work with?

It is an additional HDMI-over-IP receiver for the StarTech ST12MHDLAN4K extender system.

What maximum resolution is supported?

Up to 3840×2160 4K at 30Hz.

What is the maximum point-to-point distance?

Up to 100m / 330ft.

How many receivers can one transmitter support?

StarTech lists up to 16 receivers per transmitter.

How large can a many-to-many system be?

Up to 16 transmitters and 256 receivers.

What network features are recommended for larger systems?

A managed switch with IGMP is recommended, and jumbo frames should be enabled for 4K streaming.

What latency is listed at 4K 30Hz?

Approximately 200ms between transmitter and receiver.

What warranty applies in Australia?

The Australian version supplied by DeviceDeal is covered by the official StarTech.com 2-year manufacturer warranty in Australia, subject to StarTech.com terms and product assessment.

(ST12MHDLAN4R)

Features and highlights

Scalable HDMI over IP

Use additional receivers to expand one-to-many and many-to-many digital-signage or video-wall deployments.

4K 30Hz to 100m

Supports up to 3840×2160 at 30Hz with a point-to-point distance up to 100m over Cat5e or better.

Mobile video control

The compatible iOS/Android Video Control App can name sources/displays, switch inputs and configure video walls.

RS-232 passthrough

Serial-controlled displays and devices can be managed through the compatible network deployment.

Receiver for ST12MHDLAN4K
4K 30Hz
100m / 330ft
2-year warranty

Warranty confidence: Official StarTech.com 2-year manufacturer warranty in Australia, subject to StarTech.com terms and assessment.

Specifications

Verified specifications for StarTech ST12MHDLAN4R.

Warranty Information

Warranty	2 Years

Hardware

Audio	Yes
AV Input	HDMI
Cabling	Cat 5e UTP or better
Daisy-Chain	Yes
Ports	1
Rack-Mountable	Yes

Performance

Audio Specifications	Stereo Sound
Max Distance	100 m / 330 ft
Maximum Digital Resolutions	4K @ 30Hz
Supported Resolutions	3840x2160 (4K) @ 30Hz 2560x1600 1920x1200 @ 60Hz 1920x1080 (1080p) 1280x720 (720p)
Wide Screen Supported	Yes

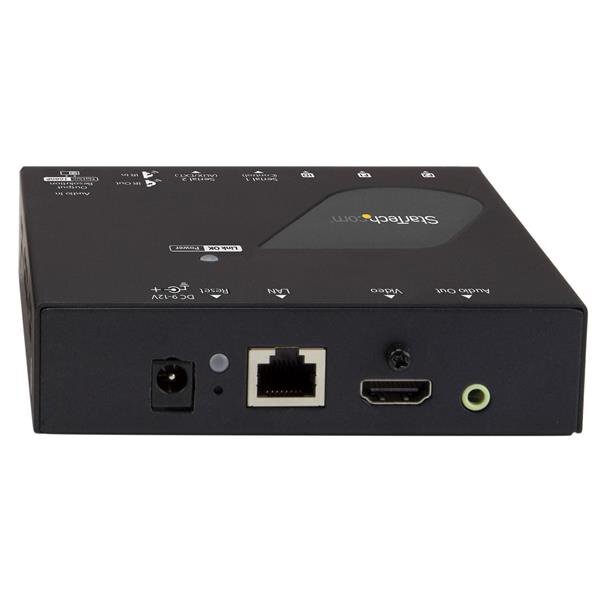

Connector(s)

Connector A	1 - HDMI (19 pin) Female Output
Connector A	1 - RJ-45 Female
Connector A	2 - RJ-11 Female
Connector A	4 - 3.5 mm Mini-Jack (3 Position) Female

Special Notes / Requirements

Note	Bandwidth requirement at 4k 30hz resolution is between 480Mbps and 850Mbps (per transmitter and receiver pair)
Note	Latency at 4K 30hz resolution is 200ms between transmitter and receiver

Power

Center Tip Polarity	Positive
Input Current	0.6 A
Input Voltage	100 - 240 AC
Output Current	1.5 A
Output Voltage	12 DC
Plug Type	M
Power Consumption (In Watts)	18
Power Source	AC Adapter Included

Environmental

Humidity	0% - 80 %
Operating Temperature	0°C to 40°C (32°F to 104°F)
Storage Temperature	-10°C to 60°C (14°F to 140°F)

Physical Characteristics

Color	Black
Enclosure Type	Aluminum
Product Height	1.2 in [3 cm]
Product Length	5.2 in [13.1 cm]
Product Width	4.6 in [11.7 cm]
Weight of Product	21 oz [594 g]

Packaging Information

Package Height	2.6 in [65 mm]
Package Length	11.6 in [29.5 cm]
Package Width	8.3 in [21 cm]
Shipping (Package) Weight	2.7 lb [1.2 kg]

What's in the Box

Included in Package	1 - HDMI over IP receiver
Included in Package	1 - universal power adapter (NA, EU, UK, ANZ)
Included in Package	1 - mounting bracket
Included in Package	1 - CAT5 cable
Included in Package	1 - RJ11 to RS232 adapter
Included in Package	1 - RJ11 cable
Included in Package	1 - plastic screwdriver
Included in Package	1 - quick-start guide

SKU	ST12MHDLAN4R
Barcode #	65030868969
Brand	STARTECH
Shipping Weight	1.2200kg
Shipping Width	0.100m
Shipping Height	0.050m
Shipping Length	0.290m
Shipping Cubic	0.001450000m3
