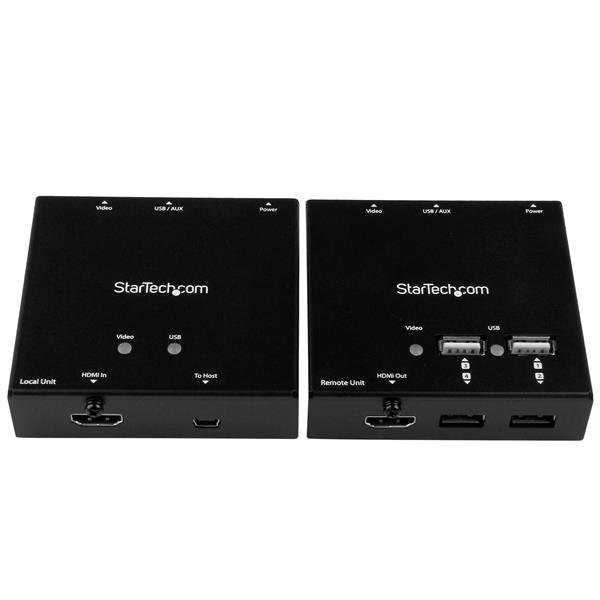

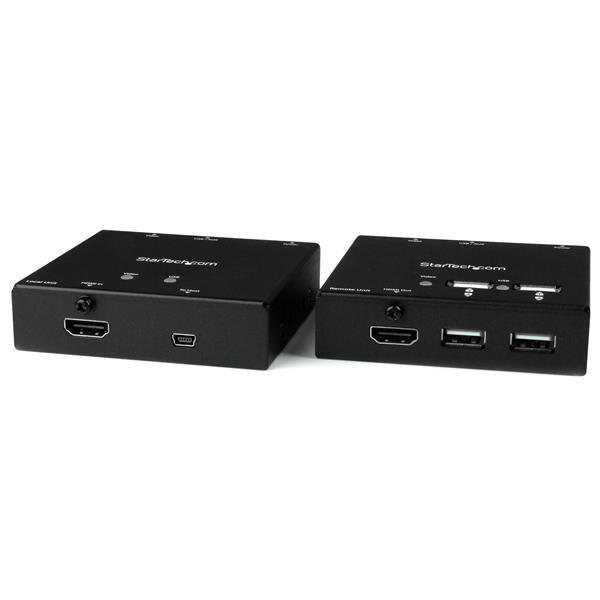

StarTech Extend 1080p video and four USB peripheral devices to a remote location ST121USBHD
Model # ST121USBHD
-
SKU: ST121USBHD
- Pick Up Available
- Australian Warranty
- Checkout Securely
1080p HDMI extender with four remote USB 2.0 ports
Extend Full HD video and four USB 2.0 peripherals to a remote display location, with up to 50m overall reach and 1080p to 40m using shielded CAT6.
Key capabilities
Four remote USB 2.0 ports
Connect up to four USB peripherals at the display location.
1080p support
Supports up to 1080p 60Hz and 1920×1200-class video.
Up to 50m overall reach
Maximum distance is listed as 50m, subject to cable type and resolution.
Driver-free setup
The exact product description states no additional software or drivers are required.
What to know before buying
For 1080p, StarTech specifies shielded CAT6 up to 40m. With unshielded CAT6 the maximum is reduced to 30m, and with CAT5 it is reduced to 15m.
Australian version and manufacturer warranty
This item is the Australian version supplied by DeviceDeal and is covered by the official StarTech.com 2-year manufacturer warranty in Australia.
Please retain your DeviceDeal tax invoice as proof of purchase. Warranty coverage and claims are subject to StarTech.com warranty terms, eligibility requirements and product assessment.
Frequently asked questions
What resolution is supported?
How many remote USB ports are provided?
How far can 1080p be extended?
What is the overall maximum distance?
Does it require drivers?
What audio formats are listed?
What main components are included?
What warranty applies in Australia?
(ST121USBHD)
Features and highlights
Four remote USB 2.0 ports
Connect up to four USB peripherals at the display location.
1080p support
Supports up to 1080p 60Hz and 1920×1200-class video.
Up to 50m overall reach
Maximum distance is listed as 50m, subject to cable type and resolution.
Driver-free setup
The exact product description states no additional software or drivers are required.
- 1080p video
- 4 × USB 2.0
- Up to 50m
- 2-year warranty
Specifications
Verified specifications for StarTech ST121USBHD.
Warranty Information
| Warranty | 2 Years |
|---|
Hardware
| Audio | Yes |
|---|---|
| AV Input | HDMI |
| Cabling | Cat 5 UTP or better |
| Daisy-Chain | No |
| Ports | 1 |
Performance
| Audio Specifications | Supports Dolby TrueHD, DTS-HD MA |
|---|---|
| IR Interface | Bi-directional 38Khz / ±10¡ / 5M |
| Max Distance | 50 m / 165 ft |
| Maximum Data Transfer Rate | HDMI - 3.4Gbps RS232 - 115200bps baud |
| Maximum Digital Resolutions | 1080p @ 60Hz, 48-bit |
| Wide Screen Supported | Yes |
Connector(s)
| Connector A | 1 - HDMI (19 pin) Female Input |
|---|---|
| Connector A | 2 - USB Mini-B (5 pin) Female |
| Connector B | 1 - HDMI (19 pin) Female Output |
| Connector B | 4 - USB Type-A (4 pin) USB 2.0 Female |
| Connector B | 1 - USB Mini-B (5 pin) Female |
Power
| Output Current | 1 A |
|---|---|
| Output Voltage | 5 DC |
| Plug Type | N |
| Power Consumption (In Watts) | 5 |
| Power Source | AC Adapter Included |
Environmental
| Humidity | 0% - 80 % RH (non-condensing) |
|---|---|
| Operating Temperature | 0°C to 40°C (32°F to 104°F) |
| Storage Temperature | -10°C to 60°C (14°F to 140°F) |
Physical Characteristics
| Product Height | 0.8 in [2.1 cm] |
|---|---|
| Product Length | 3.2 in [82 mm] |
| Product Width | 3.2 in [82 mm] |
| Weight of Product | 16.2 oz [460 g] |
Packaging Information
| Package Height | 2.8 in [71 mm] |
|---|---|
| Package Length | 7.1 in [18 cm] |
| Package Width | 12.2 in [30.9 cm] |
| Shipping (Package) Weight | 2.4 lb [1.1 kg] |
What's in the Box
| Included in Package | 1 - HDMI over CAT6 transmitter |
|---|---|
| Included in Package | 1 - HDMI over CAT6 receiver |
| Included in Package | 2 - Ethernet cables |
| Included in Package | 2 - USB to Mini-USB cables |
| Included in Package | 1 - universal power adapter (NA/EU/UK/AU) |
| Included in Package | 1 - mounting kit |
| Included in Package | 1 - quick install guide |
| SKU | ST121USBHD |
| Barcode # | 65030862363 |
| Brand | STARTECH |
| Shipping Weight | 1.0400kg |
| Shipping Width | 0.080m |
| Shipping Height | 0.070m |
| Shipping Length | 0.310m |
| Shipping Cubic | 0.001736000m3 |
