ATEN SKU VE800A-AT-U

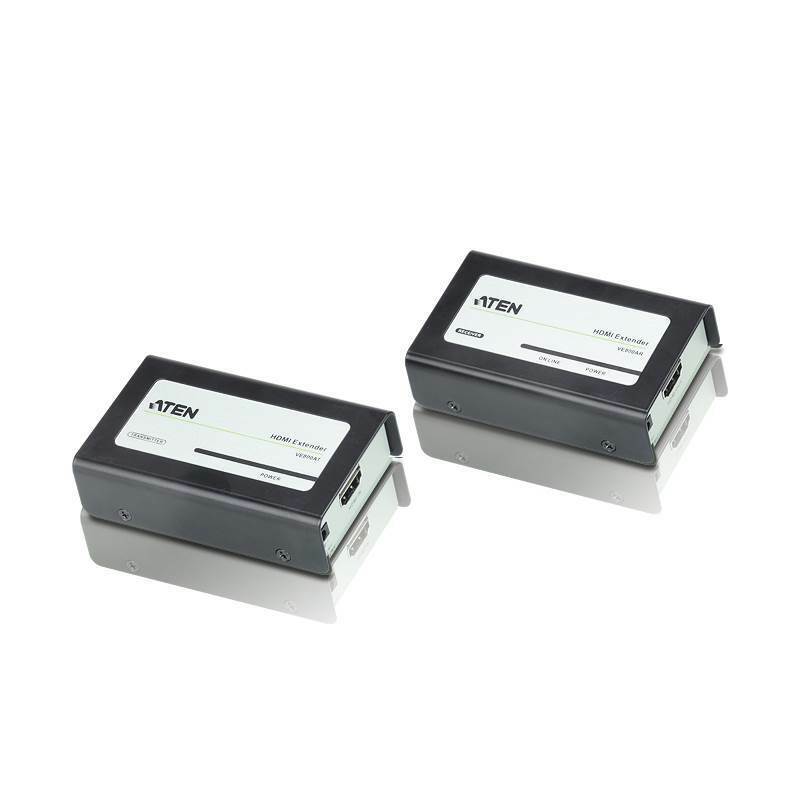

ATEN VE800A-AT-U HDMI over Cat5 Video and Audio Extender

The ATEN VE800A-AT-U extends HDMI video and audio over Cat5 cabling for installations that place a display away from its source.

The supplied record lists 1080p transmission up to 40 metres, 1080i up to 60 metres, 3D support and Dolby TrueHD and DTS-HD Master Audio support.

HDMI over Cat51080p up to 40m1080i up to 60m12-month warrantyDeviceDeal authorised ATEN reseller

Product overview

HDMI over Cat5

Video and audio can be extended from the source to a remote display using Cat5 cabling.

Resolution-based range

The source lists 1080p up to 40m and 1080i up to 60m.

Equalisation control

Eight-segment equalisation adjustment is stated for tuning the remote video signal.

Source review: The supplied record provides a concise feature list and high-level product-type table only. Connector quantities, package contents, physical details and power requirements require confirmation.

Frequently asked questions

How far can 1080p be extended?

The supplied source lists up to 40 metres.

How far can 1080i be extended?

The source lists up to 60 metres.

Does the VE800A support 3D?

Yes. 3D support is stated.

Which audio formats are listed?

Dolby TrueHD and DTS-HD Master Audio are listed.

What warranty is supplied?

The source lists a 12-month limited ATEN manufacturer warranty.

(VE800A-AT-U)

Features

ATEN VE800A-AT-U HDMI over Cat5 Video and Audio Extender

Video extension

HDMI over Cat5
1080p up to 40m
1080i up to 60m
1920 x 1200 stated in product name

Video functions

8-segment equalisation adjustment
DDC compatible
3D support

Audio

Audio extension
Dolby TrueHD support
DTS-HD Master Audio support

Confirm the required Cat5 cable arrangement, connectors and power supplies for the intended installation.

Technical specifications

ATEN VE800A-AT-U HDMI over Cat5 Video and Audio Extender

Product details
Brand	ATEN
Model / SKU	VE800A-AT-U
Product type	HDMI over Cat5 video/audio extender
Compatible use	Video extender
Functions stated
1080p distance	Up to 40m
1080i distance	Up to 60m
Maximum resolution in product name	1920 x 1200
Equalisation	8-segment adjustment
DDC	Compatible
3D	Supported
Audio	Dolby TrueHD; DTS-HD Master Audio
Source limitation
Details to confirm	Connector quantities, Cat5 cable arrangement, package contents, power and physical dimensions

SKU	VE800A-AT-U
Barcode #	672792005749
Brand	Aten
Shipping Weight	0.7800kg
Shipping Width	0.055m
Shipping Height	0.024m
Shipping Length	0.090m
Shipping Cubic	0.000119000m3

Warranty information

ATEN VE800A-AT-U HDMI over Cat5 Video and Audio Extender

12-Month Limited ATEN Manufacturer Warranty

DeviceDeal is an authorised ATEN reseller. This product is covered by a 12-month limited ATEN manufacturer warranty in Australia, as listed in the supplied product information.
