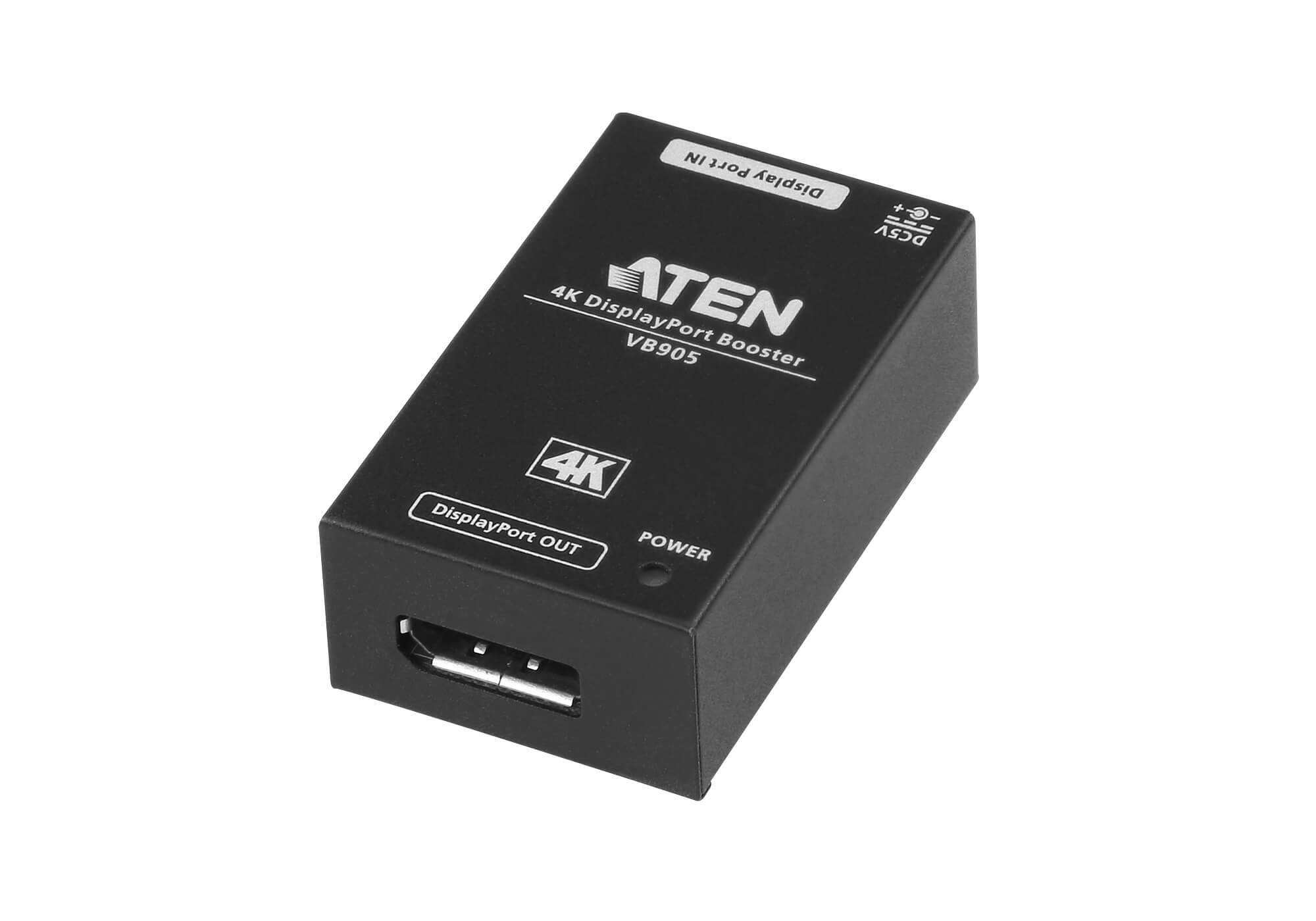

ATEN VB905 extends True 4K signal from a source device to a display up to 5 meters. For long distance transmission, the VB905 can be cascaded up to 3 levels (20 meters), guaranteeing ultimate color and image quality.

The VB905 supports all DisplayPort enabled devices. For installation flexibility, the booster can be rack mounted, offering excellent fl exibility for managing both work and home settings.

Package Contents

1x VB905 True 4K DisplayPort Booster
1x Power Adapter
1x User Instructions

(VB905-AT-U)

Video Input
Interfaces	1 x DisplayPort Female (20-pin)
Max. Distance	Up to 4Kx2K@60Hz (4:4:4) / 5m 1080p@60Hz / 5m
Video Output
Interfaces	1 x DisplayPort Female (20-pin)
Max. Distance	Up to 4Kx2K@60Hz (4:4:4) / 5m 1080p@60Hz / 5m
Video
Max. Data Rate	21.6 Gpbs (5.4 Gbps Per Lane)
Compliance	DP1.2a HDCP 2.2
Max. Resolution	4096 x 2160@60Hz (4:4:4)
Connectors
Power	1 x DC Jack
Power Consumption	DC5V:0.937W:4BTU
Environmental
Operating Temperature	0 - 40°C
Storage Temperature	-20 - 60°C
Humidity	0 - 80% RH, Non-Condensing
Physical Properties
Housing	Metal
Weight	0.05 kg ( 0.11 lb )
Dimensions (L x W x H)	5.84 x 3.53 x 2.06 cm (2.3 x 1.39 x 0.81 in.)
Carton Lot	10 pcs
Note	For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
