Long-distance VGA
The structured source lists up to 1920 x 1200 at 150m and 1280 x 1024 at 300m.
ATEN VE170Q-AT-U VGA / Audio Cat 5 Extender (1280 x 1024@300m)
Model # VE170Q-AT-U
-
SKU: VE170Q-AT-U
$481.00
Stock Availability
🟢Live
In Stock · Call to confirm
Pickup from Vermont, VIC
Allow 1–2 business days for stock transfer
Allow 1–2 business days for stock transfer
- Pick Up Available
- Australian Warranty
- Checkout Securely
ATEN SKU VE170Q-AT-U
ATEN VE170Q-AT-U VGA/Audio Cat5 Extender with Deskew

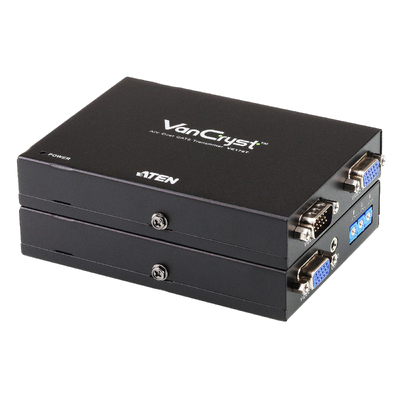

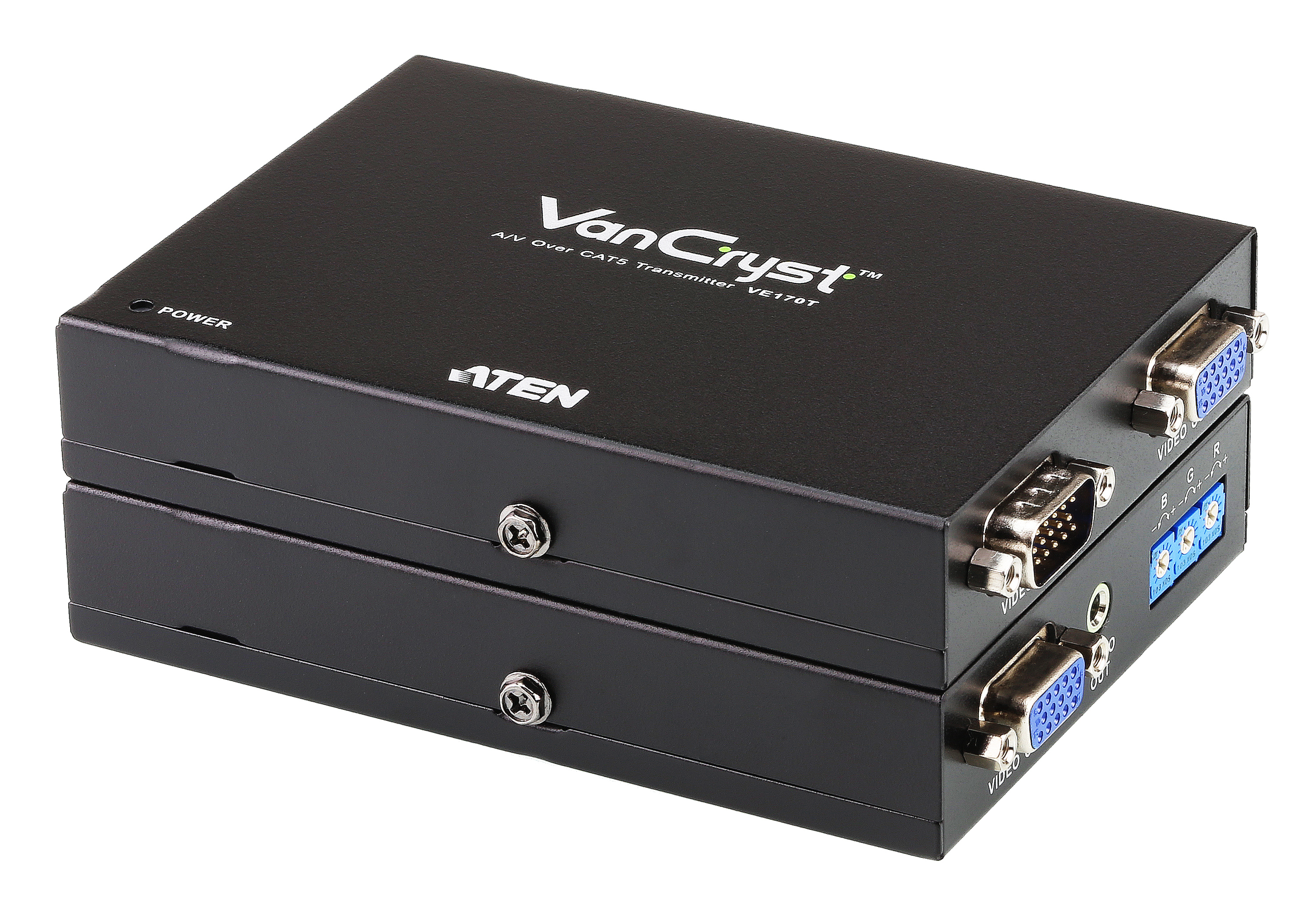

The ATEN VE170Q-AT-U package combines a VE170T transmitter with a VE170RQ receiver to extend VGA video and audio over Cat5 cabling.
ATEN Deskew technology provides manual RGB synchronisation and phase correction, with the source listing 1920 x 1200 up to 150m or 1280 x 1024 up to 300m.
VGA and audio1280 x 1024 up to 300mDeskew technology2-year warrantyDeviceDeal authorised ATEN reseller
Product overview
Deskew correction
Manual RGB synchronisation corrects colour phase and timing errors over long cable runs.
Transmitter and receiver kit
The package includes one VE170T transmitter and one VE170RQ receiver.
Source review: The supplied source displays the video impedance unit as a question mark. The value is retained as 75 with the unit marked for confirmation rather than inferred.
Frequently asked questions
Which units are included in the VE170Q package?
One VE170T transmitter and one VE170RQ receiver are listed.
How far can 1280 x 1024 be extended?
The supplied specification lists up to 300 metres.
How far can 1920 x 1200 be extended?
The source lists up to 150 metres.
What does Deskew provide?
It supports manual RGB synchronisation and correction of colour phase and timing errors.
What warranty is supplied?
The source lists a two-year ATEN manufacturer warranty.
(VE170Q-AT-U)
Features
ATEN VE170Q-AT-U VGA/Audio Cat5 Extender with Deskew
Video extension
- VGA over Cat5
- 1920 x 1200 up to 150m
- 1280 x 1024 up to 300m
- 300MHz maximum bandwidth
Deskew and audio
- Manual RGB synchronisation
- Colour phase correction
- Timing-error correction

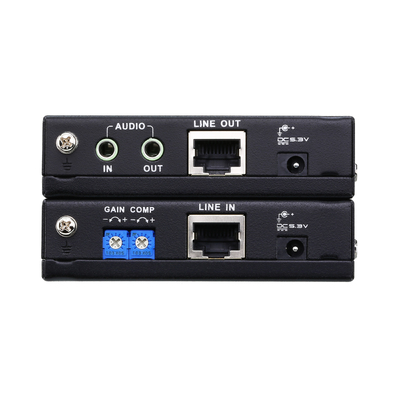

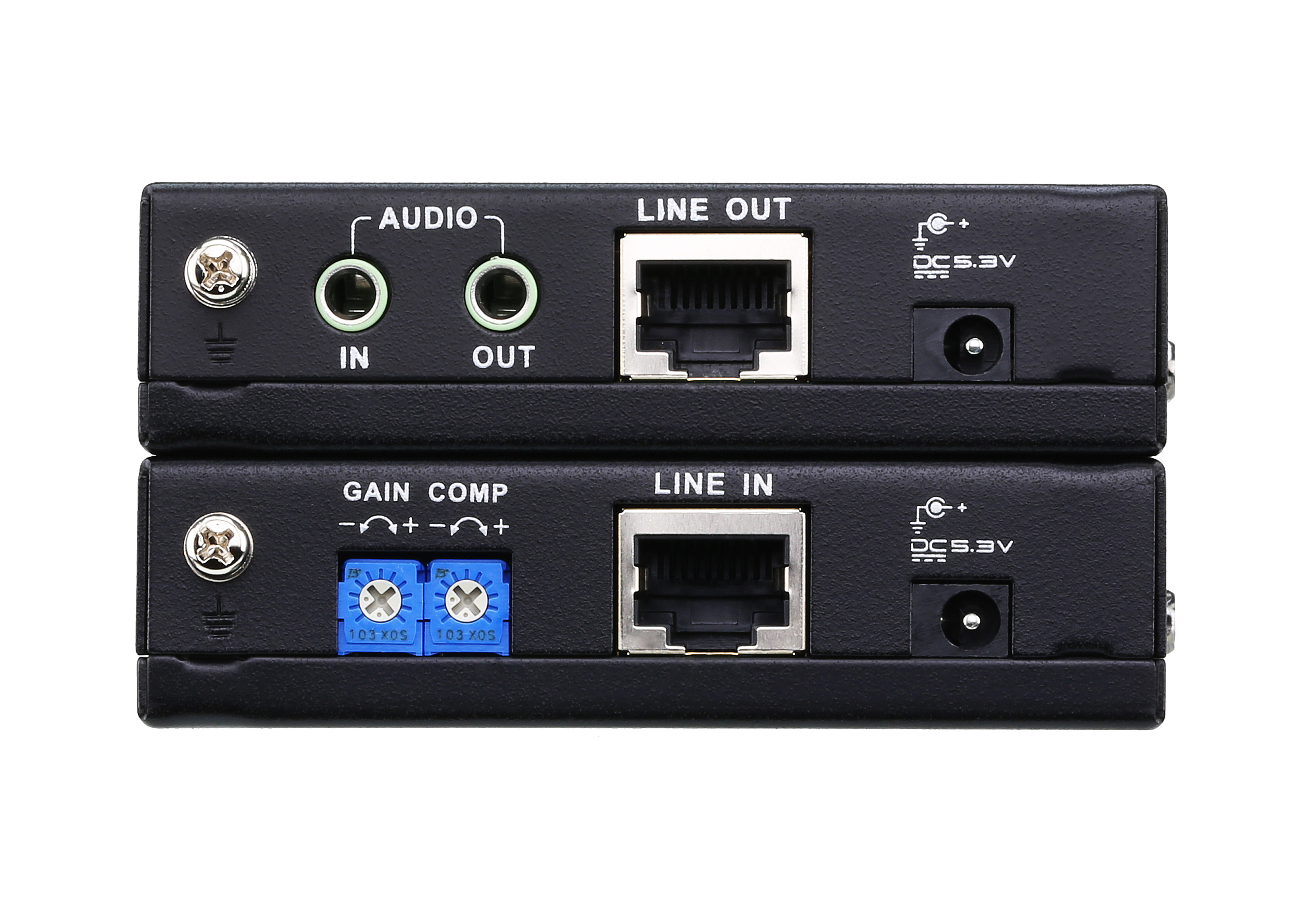

- Stereo audio extension
Package
- VE170T transmitter
- VE170RQ receiver
- 1.8m VGA/audio cable
- 2 power adapters
- Mounting kit
A suitable Cat5 cable is required between the transmitter and receiver.
Technical specifications
ATEN VE170Q-AT-U VGA/Audio Cat5 Extender with Deskew
| Product details | |
|---|---|
| Brand | ATEN |
| Model / SKU | VE170Q-AT-U |
| Package units | VE170T transmitter; VE170RQ receiver |
| Product type | VGA/audio Cat5 extender with Deskew |
| Video and audio | |

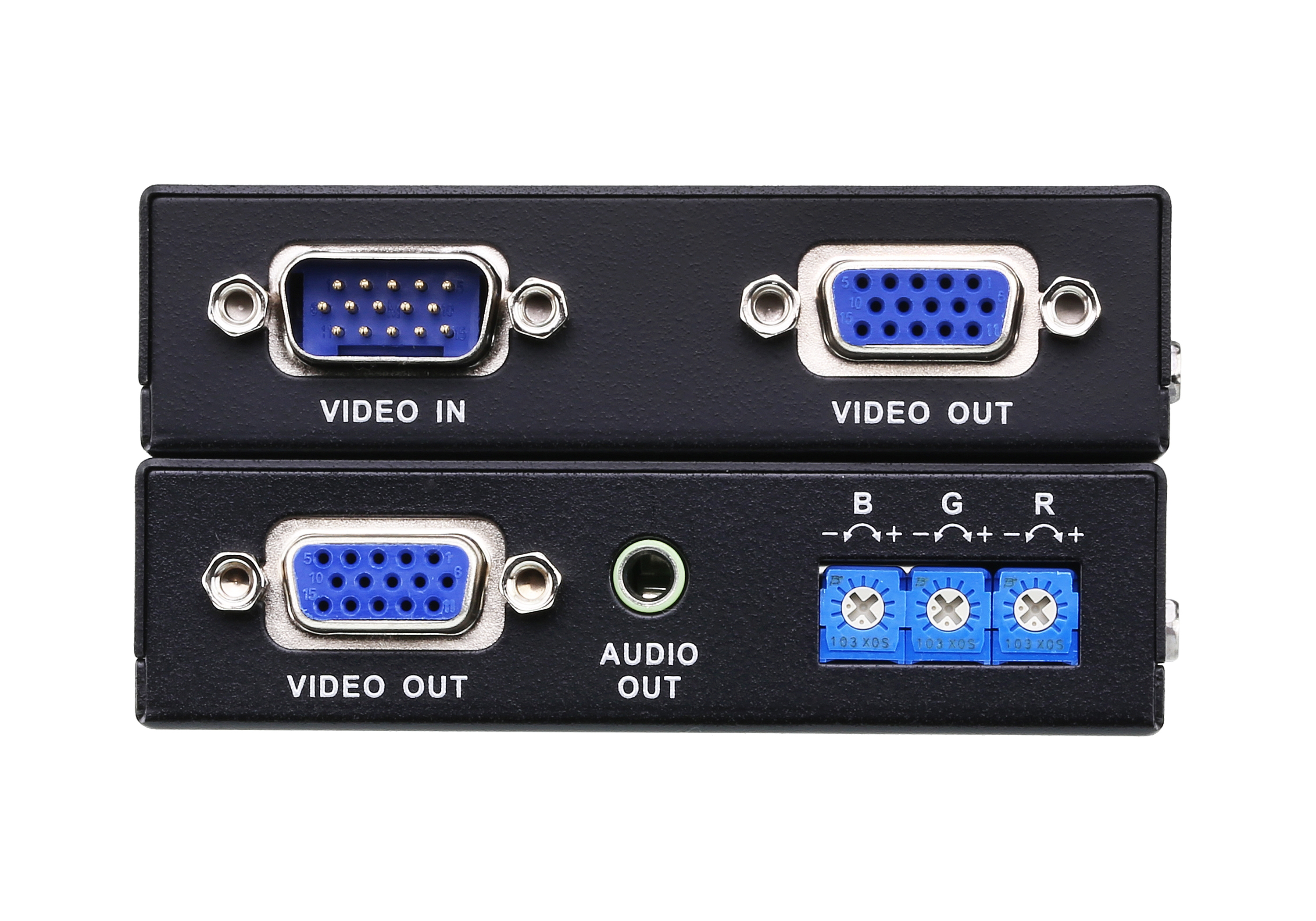

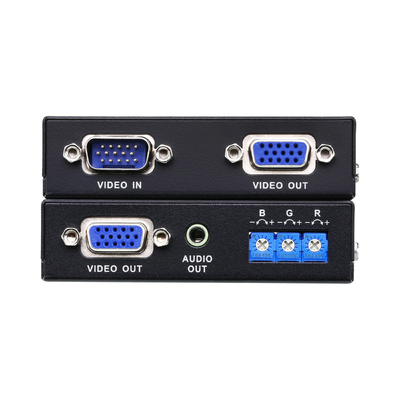

| Video input | VE170T: 1 x HDB-15 male, blue |
| Video output | VE170T and VE170RQ: 1 x HDB-15 female, blue |
| Maximum bandwidth | 300MHz |
| Maximum resolutions / distance | 1920 x 1200 up to 150m; 1280 x 1024 up to 300m |
| Audio | Mini stereo jack connections listed |
| Physical and environment | |
| Housing | Metal |
| Weight | 0.24kg per unit |
| Dimensions per unit (L x W x H) | 12.77 x 9.04 x 2.26cm |
| Operating temperature | 050°C |
| Storage temperature | -2060°C |
| Humidity | 080% RH, non-condensing |
| Source clarification | |
| Video impedance | 75; source unit is corrupted and requires confirmation |
| Power consumption stated | VE170RQ: DC5.3V, 5.24W, 25BTU; VE170T: DC5.3V, 2.42W, 11BTU |
| SKU | VE170Q-AT-U |
| Barcode # | 4710423777293 |
| Brand | Aten |
| Shipping Weight | 1.1800kg |
Warranty information
ATEN VE170Q-AT-U VGA/Audio Cat5 Extender with Deskew
2-Year ATEN Manufacturer Warranty
DeviceDeal is an authorised ATEN reseller. This product is covered by a two-year ATEN manufacturer warranty in Australia, as listed in the supplied product information.
