ATEN VE814AT-AT-U HDMI HDBaseT Transmitter with Local Output (4K@100m) (HDBaseT Class A)
Model # VE814AT-AT-U
-
SKU: VE814AT-AT-U
- Pick Up Available
- Australian Warranty
- Checkout Securely

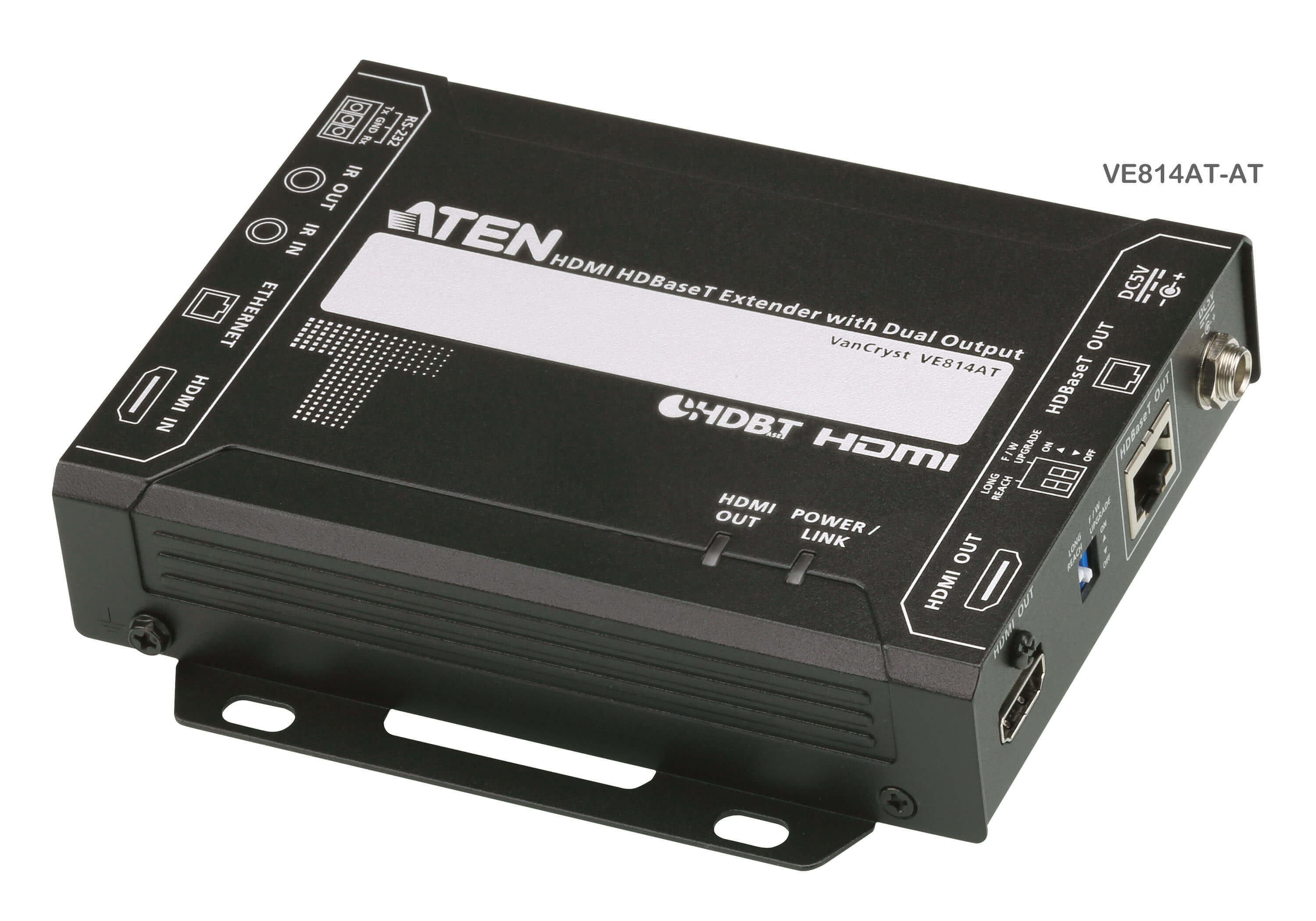

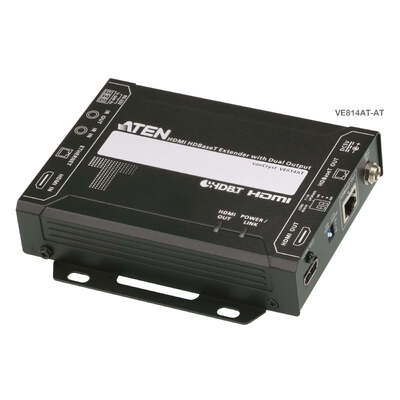

ATEN VE814AT is an HDBaseT Video Transmitter that is capable of sending HDMI signals up to 100 m over a single Cat 5e/6/6a or ATEN 2L-2910 Cat 6 cable. Featuring dual synchronous outputs, the VE814AT can transmit video signal to two remote displays and one at the local side. This HDCP 2.2-compliant transmitter meets the HDMI Specification, including 3D, Deep Color, the maximum data rate of (10.2 Gbps), and 4K video quality up to 100 m.
The VE814AT supports RS-232 and IR signaling pass-through, allowing you to control the HDMI source device from the remote unit (VE814AR) while granting access to the HDMI display device from the local unit (VE814AT). In addition, it supports Long Reach Mode that extends HDMI signals up to 150 m, 1080p, via a single Cat 5e/6 cable.
The VE814AT is a powerful solution for where digital signage is required, such as bars, educational spaces, and public transportation stations, allowing display of identical contents at different spots.
Package Contents
- 1x VE814AT Transmitter
- 1x RS-232 Terminal Block
- 1x Power Adapter
- 1x User Instructions
(VE814AT-AT-U)
| Video Input | |
| Interfaces | 1 x HDMI Type A Female (Black) |
| Impedance | 100 ? |
| Max. Distance | 3 m |
| Video Output | |
| Interfaces | 1 x HDMI Type A Female (Black) |
| Impedance | 100 ? |
| Max. Distance | 3 m |
| Video | |
| Max. Data Rate | 10.2Gbps (3.4Gbps per lane) |
| Max. Pixel Clock | 340 MHz |
| Compliance | HDMI (3D, Deep Color, 4K) HDCP2.2 Compatible Consumer Electronics Control (CEC) |
| Max. Resolutions / Distance | Up to 4K@70m (Cat 5e/6) / 100m (Cat 6a/ATEN 2L-2910 Cat6); 1080p@100m (Cat 5e/6/6a) *4K supported: 4096 x 2160 / 3840 x 2160 @ 60Hz (4:2:0); 4096 x 2160 / 3840 x 2160 @ 30Hz (4:4:4) |
| Audio | |
| Input | 1 x HDMI Type A Female (Black) |
| Output | 1 x HDMI Type A Female (Black) |
| Connectors | |
| Unit To Unit | 1 x RJ-45 Female |
| Power | 1 x DC Jack (Black) with locking |
| Control | |
| RS-232 | Connector: 1 x Terminal Block, 3 pole Baud Rate: 57600, Data Bits:8, Stop Bits:1, no parity and flow control |
| IR | 2 x Mini Stereo Jack Female (Black) |
| Ethernet | 1 x RJ-45 Female Note: The RJ-45 ports is functional for device supporting the Ethernet port only |
| Switches | |
| Long Reach Mode Switch | 1 x Slide Switch - ON/OFF |
| Firmware Upgrade | 1 x Slide Switch - ON/OFF |
| Power Consumption | DC5V:5.09W:24BTU |
| Environmental | |
| Operating Temperature | 0 - 40°C |
| Storage Temperature | -20 - 60°C |
| Humidity | 0 - 80% RH, Non-Condensing |
| Physical Properties | |
| Housing | Metal |
| Weight | 0.45 kg ( 0.99 lb ) |
| Dimensions (L x W x H) with bracket | 14.02 x 12.30 x 3.00 cm (5.52 x 4.84 x 1.18 in.) |
| Dimensions (L x W x H) without bracket | 13.60 x 10.10 x 2.90 cm (5.35 x 3.98 x 1.14 in.) |
| Note | The VE814AT-AT supports Ethernet function and the VE814AT-ATA does not. |
| SKU | VE814AT-AT-U |
| Barcode # | 4719264646041 |
| Brand | ATEN |
| Shipping Weight | 0.5000kg |
