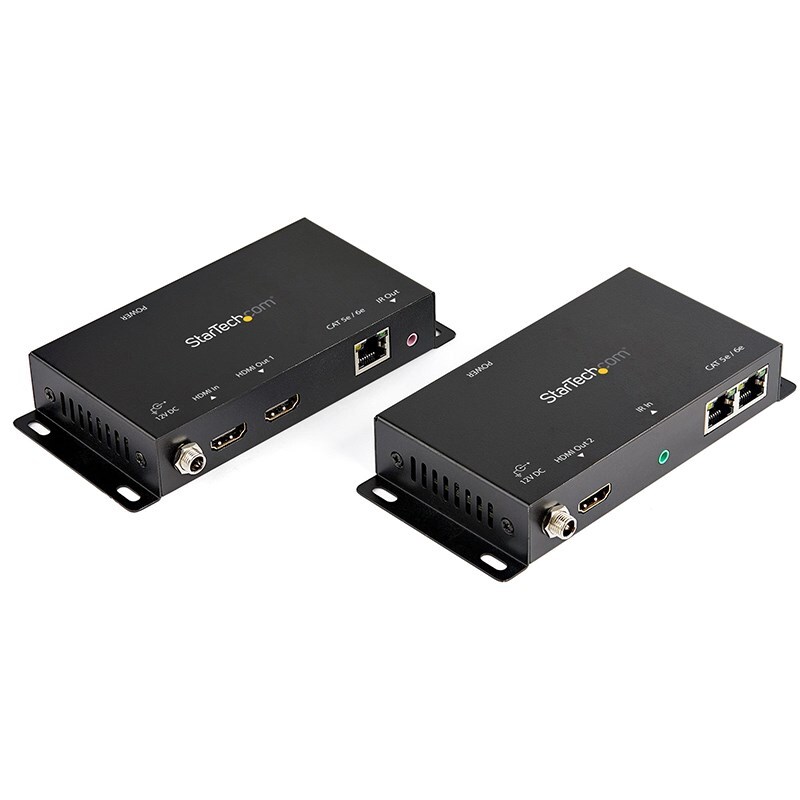

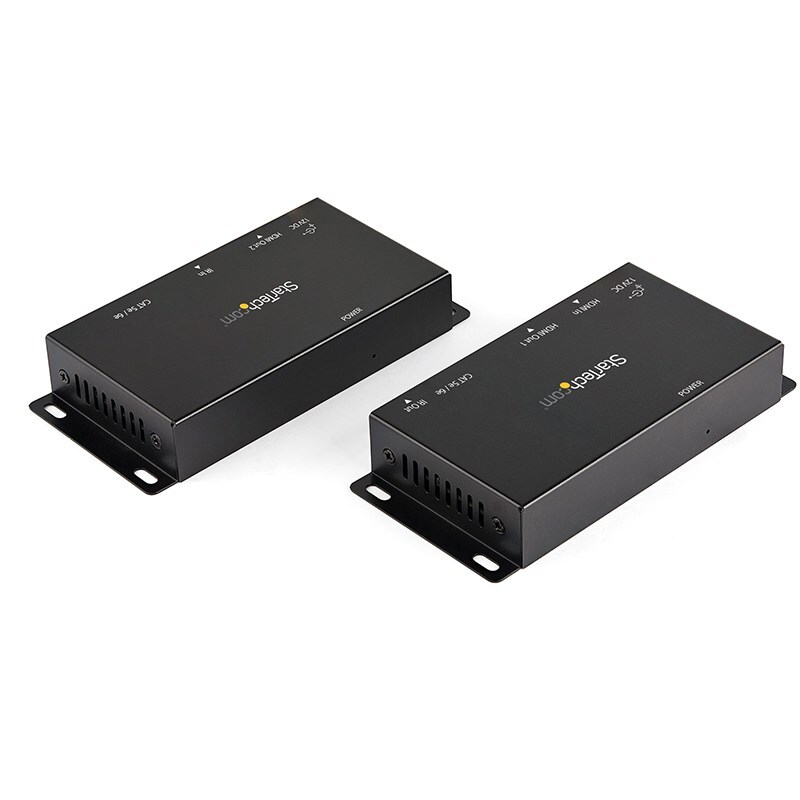

The HDMI® Over IP Extender kit lets you extend an HDMI signal over your network or network cabling.

Point-to-Point Configuration

For smaller-scale applications, the HDMI® video extender over Cat6 kit can be used as a point-to-point video extender up to 492 feet (150 meters). The 1080p HDMI® extender units can even cascade the same signal to multiple receivers.

Flexible Installation

The HDMI® Balun kit includes optional mounting hardware for a tidy installation. Ideal for corporate applications, the extender supports 1080p video resolutions and stereo audio. The HDMI® extender over LAN uses standard Cat5e or Cat6 Ethernet cables with RJ45 connectors, it eliminates both the expense and hassle of running specialized cables. The local unit also features an HDMI output to avoid the need for an additional HDMI splitter.

The Choice of IT Pros Since 1985

StarTech.com conducts thorough compatibility and performance testing on all our products to ensure we are meeting or exceeding industry standards and providing high-quality products to IT Professionals. Our local StarTech.com Technical Advisors have broad product expertise and work directly with our StarTech.com Engineers to provide support for our customers both pre and post-sales

The ST12MHDLNV is backed by a StarTech.com 2-year warranty and free lifetime technical support.

Applications

  • Display multiple communication boards showing dynamic data such as times and dates on digital charts in airports, train stations, bus stations or hospitals, that can be updated at any time
  • Place the display in a convenient viewing area, while the HDMI source equipment is placed elsewhere in a separate, secured environment
  • Extend HDMI using existing network infrastructure

HDMI over IP extender | 1080p 60Hz HDMI & 2ch audio up to 492ft/150m over ethernet | HDCP 1.4 | YUV video encoding to minimize network bandwidth - Connect through 100Mbps or Gigabit switch w/ no IP configuration required | Max distance depends on LAN setup - Alternatively directly connect transmitter to receiver (without switch) up to 150m over CAT5e/CAT6 cable; incl IR extension kit for TV remote - HDMI outputs on local and remote units for preview - No drivers | Mounting hardware incl

(ST12MHDLNV)

Specifications

Warranty Information Warranty 2 Years

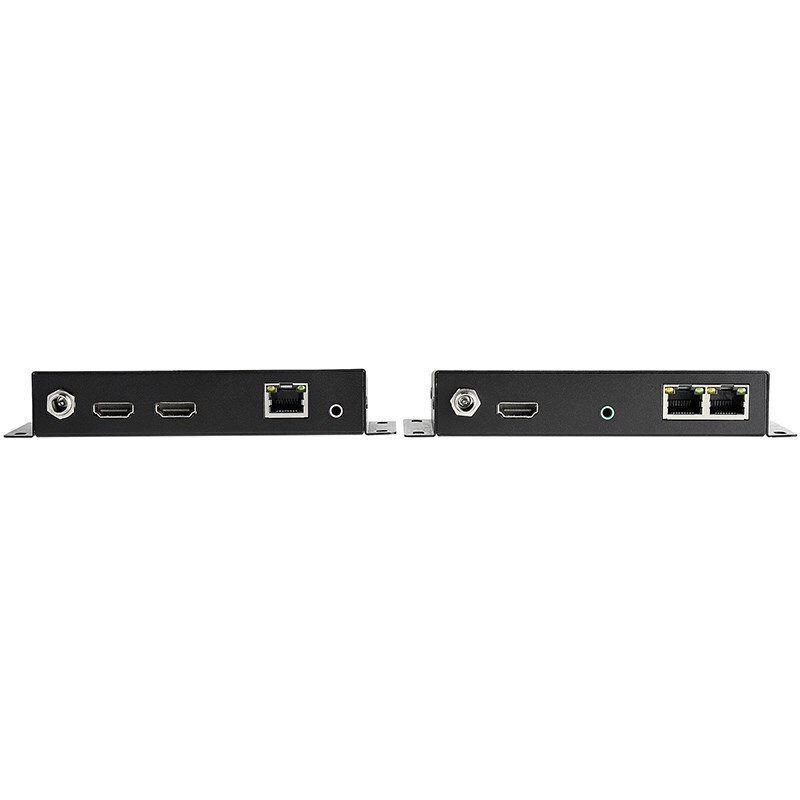

Connector(s) 1 - Connector Type(s) HDMI 1.4
RJ-45
1 - Local Unit Connectors HDMI (19 pin)
1 - Remote Unit Connectors HDMI (19 pin)
1 - Local Unit Connectors HDMI (19 pin)
1 - Remote Unit Connectors RJ-45
1 - Local Unit Connectors RJ-45
1 - Remote Unit Connectors RJ-45
1 - Local Unit Connectors 3.5 mm Mini-Jack (3 Position)
1 - Remote Unit Connectors 3.5 mm Mini-Jack (3 Position)
Environmental Operating Temperature 0°C to 70°C (32°F to 158°F)
Storage Temperature 0°C to 70°C (32°F to 158°F)
Humidity 0% - 95%
Hardware Ports 1
Cabling Cat 5e UTP or better
Audio Yes
Daisy-Chain Yes
Indicators 1 - LED Indicators 1 - Power
Packaging Information Package Height 2.6 in [67.0 mm]
Package Length 12.0 in [30.6 cm]
Shipping (Package) Weight 2.8 lb [1.3 kg]
Package Width 10.0 in [25.5 cm]
Performance Max Distance 150 m / 500 ft
Supported Resolutions HDMI: 1920x1080 / 60Hz
Physical Characteristics Color Black
Product Height 1.0 in [26.0 mm]
Product Length 4.9 in [12.5 cm]
Weight of Product 16.7 oz [474.0 g]
Product Width 2.8 in [70.0 mm]
Material Steel
Power Power Source AC Adapter Included
Input Voltage 100 - 240 AC
Output Voltage 12V DC
Output Current 1.5 A
What's in the Box 1 - Included in Package HDMI over IP Transmitter
HDMI over IP Receiver
2 - Included in Package Power Adapters (NA, UK, EU and AU)
1 - Included in Package IR Blaster
IR Receiver
4 - Included in Package Mounting Screws
8 - Included in Package Rubber Feet
1 - Included in Package Manual
SKU ST12MHDLNV
Barcode # 65030887359
Brand Startech
Shipping Weight 1.2000kg
Manufacturer Warranty: 2 Years Limited Warranty
