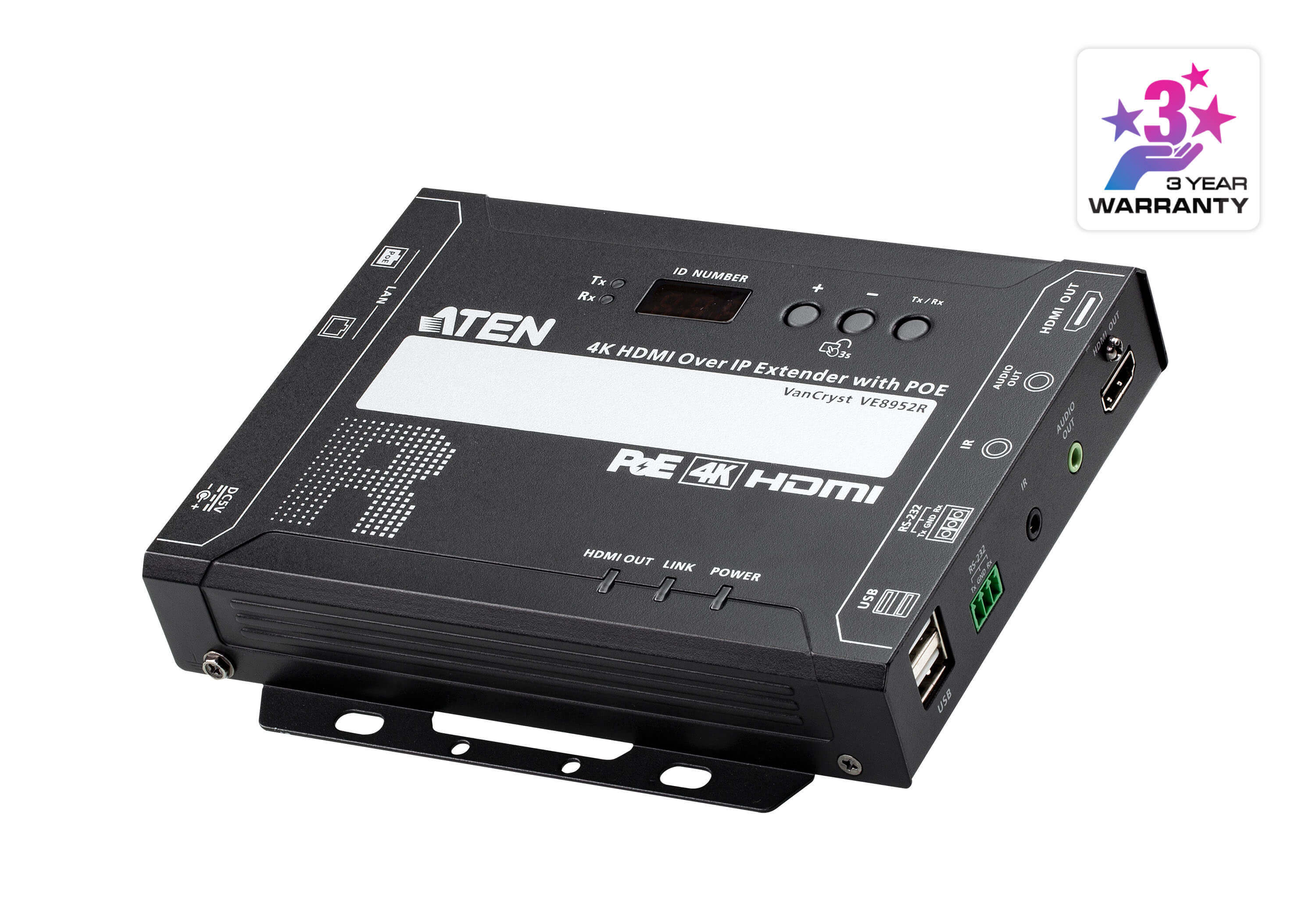

The ATEN VE8952R 4K HDMI over IP Receiver with PoE delivers visually lossless 4K AV signals with low latency over long distance via a standard Gigabit network. It is an effective and easy-to-use solution that directly addresses the challenges system integrators encounter when deploying AV over IP.

  • Limitless Scalability and Flexibility
    From a simple point-to-point setup to hundreds of endpoints, it offers flexibility, scalability and multi-functionality in extender, splitter, matrix switch, and video wall applications.



  • No Complicated IP Setup
    Allows you to effortlessly switch input sources via top panel pushbuttons/ID display and offers simple configuration that requires no extensive IT experience.



  • No Additional Server PCs or Software Required
    Effortlessly manage your AV over IP system by logging in to any receiver from the intuitive web GUI with drag and drop operation.



  • Go Further for Less with Daisy Chaining
    Easily expand your AV network coverage without cable clutter or extra network switches while also lowering per-port costs.



  • Locate Anywhere without the Need for Power Cabling
    With PoE support, you can easily place VE8952R units where they are needed the most without having to install additional power cabling and outlets.



  • Flexible Control with Mobile App
    Manage and control any VE8952R with a dedicated app (VE8950/VE8900 Control App) that allows instant preview, monitoring, and switching of video sources to streamline your operations.

    *Note: For more information regarding installation and network switch requirements, please refer to the Implementation Guide : http://assets.aten.com/product/manual/VE89_Implementation_Guide.pdf

Talk to Our Experts

If you prefer to have ATEN contact you, please complete the form and a representative will be in touch with you shortly



Package Contents

  • 1x VE8952R 4K HDMI over IP Receiver with PoE
  • 1x RS-232 Terminal Block
  • 1x Power Adapter
  • 4x Foot Pads
  • 1x User Instructions

(VE8952R-AT-U)

Video Output
Interfaces1 x HDMI Type A Female (Black)
Impedance100 ?
Max. Distance3 m
Video
Max. Data RateAverage: 150 ~ 500Mbps
ComplianceHDMI
HDCP Compatible
Max. Resolutions / DistanceUp to 4K@100m (Cat 5e/6, point to point)

*4K supported:
4096 x 2160 / 3840 x 2160 @ 30Hz (4:4:4)
Audio

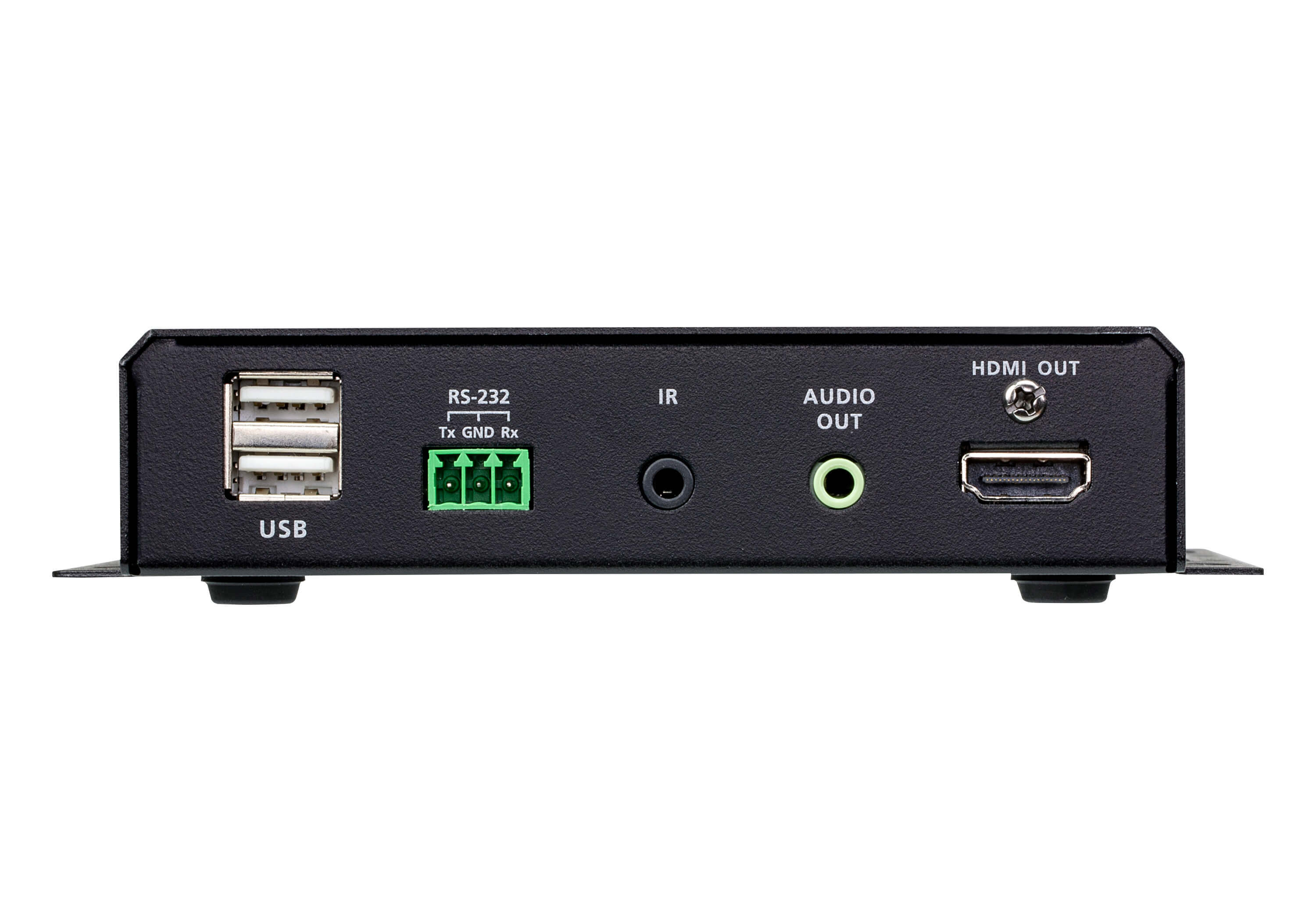

Output1 x HDMI Type A Female (Black)
1 x Mini Stereo Jack Female (Green)
Connectors

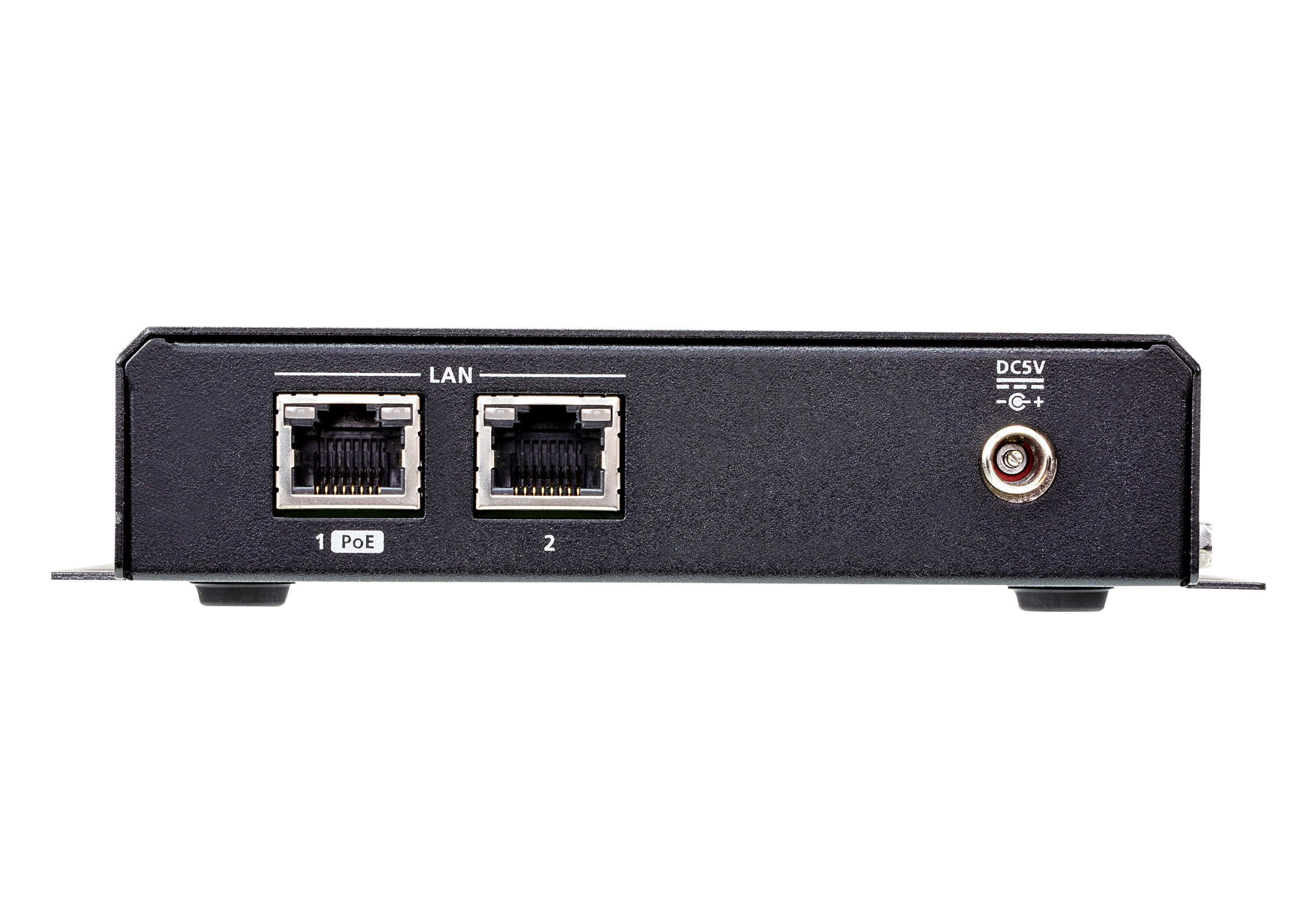

Unit To Unit2 x RJ-45 Female
Power1 x DC Jack (Black) with locking
or 1 x RJ-45 (Power Over Ethernet, POE)
Control
IR1 x Mini Stereo Jack Female (Black)
RS-232Connector: 1 x Terminal Block, 3 pole
Baud Rate: 19200, Data Bits:8,
Stop Bits:1, no parity and flow control
USB2 x USB Type A Female (Black)
Pushbuttons
ID Number Selection3 x Push buttons
Power ConsumptionDC5V:5.22W:46BTU
POE:6.52W:52BTU
Environmental
Operating Temperature0 - 40°C
Storage Temperature-20 - 60°C
Humidity0 - 80% RH, Non-Condensing
Physical Properties
HousingMetal
Weight0.68 kg ( 1.5 lb )
Dimensions (L x W x H) with bracket17.02 x 14.69 x 3.00 cm
(6.7 x 5.78 x 1.18 in.)
Dimensions (L x W x H) without bracket16.60 x 12.49 x 2.90 cm
(6.54 x 4.92 x 1.14 in.)

SKU VE8952R-AT-U
Barcode # 672792012211
Brand ATEN
Shipping Weight 1.0000kg
Manufacturer Warranty: 2 Years Manufacturer Warranty
