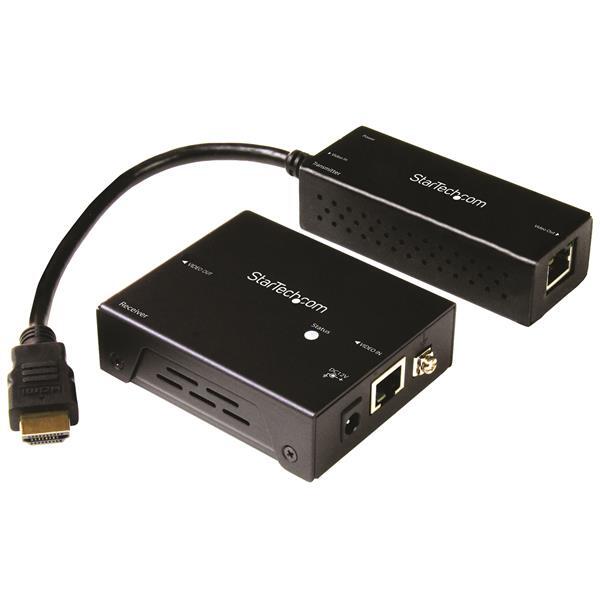

This 4K HDMI extender uses HDBaseT to transmit your HDMI A/V signal to a remote location up to 70 m (230 ft.) away.

Easy and Discreet Installation

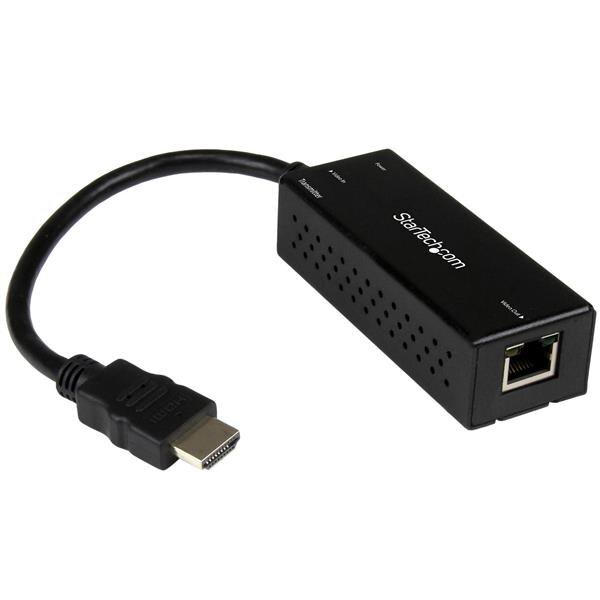

The transmitter in this HDMI HDBaseT extender kit features a small footprint and built-in HDMI cable that connects directly to your source for reduced clutter. It’s powered from a USB port on your source device, which makes it easier to install in areas where power outlets may be limited. Mounting hardware is included for the receiver for a discreet, professional installation.

Get 4K Video at 130 ft. (40 m)

This HDMI over CAT6 extender maintains your UHD 4K picture quality, even at 130 feet away from your video source. Because the extender is backward compatible with 1080p and lower resolutions at 230 feet away, you can comfortably use this extender to make any video source look great. The extender also supports 7.1 audio to ensure all audio channels are captured.

Seamless Integration with Your Existing Infrastructure

The kit extends HDMI over a single cable, unlike some HDMI extenders that require two cables, reducing potential failure points and lowering your cabling costs. Ideal for digital signage, the HDMI over CAT6 extender uses standard CAT5e, CAT6 or CAT7 cables to extend HDMI video over the Ethernet infrastructure that's already in your building.

The ST121HDBTDK is backed by a StarTech.com 2-year warranty and free lifetime technical support.

(ST121HDBTDK)

Warranty Information
Warranty 2 Years
Hardware
Audio Yes
Cabling Cat 5e UTP or better
Daisy-Chain No
Ports 1
Rack-Mountable Yes
Performance
Audio Specifications 7.1 Surround Sound
Max Distance 70 m / 230 ft
Maximum Cable Length 0.2 ft [0.1 m]
Maximum Digital Resolutions 4096 x 2160 (4K) @ 30 Hz
Wide Screen Supported Yes
Connector(s)
Local Unit Connectors 1 - HDMI (19 pin) Latching Female Input
1 - RJ-45 Female Output
Remote Unit Connectors 1 - HDMI (19 pin) Female Output
1 - RJ-45 Female Input
Indicators
LED Indicators 1 - Status LED (receiver)
Power
Center Tip Polarity Positive
Input Current 0.6 A
Input Voltage 100 - 240 AC
Output Current 1.5 A
Output Voltage 12 DC
Plug Type M
Power Consumption (In Watts) 18
Power Source AC Adapter Included
Environmental
Humidity 0% - 80 % RH (non-condensing)
Operating Temperature 0¡C to 40¡C (32¡F to 104¡F)
Storage Temperature -10¡C to 60¡C (14¡F to 140¡F)
Physical Characteristics
Product Height 1 in [2.5 cm]
Product Length 3.1 in [80 mm]
Product Width 2.7 in [68 mm]
Weight of Product 8.9 oz [252 g]
Packaging Information
Package Height 2.9 in [74 mm]
Package Length 11.5 in [29.3 cm]
Package Width 7.7 in [19.6 cm]
Shipping (Package) Weight 3.5 lb [1.6 kg]
What's in the Box
Included in Package 1 - HDBaseT transmitter
1 - HDBaseT receiver
1 - USB power cable (transmitter) (1310 mm)
1 - universal power adapter (receiver) (NA, EU, UK, ANZ)
1 - mounting kit (receiver)
1 - screw kit for mounting
1 - footpad set (receiver)
1 - quick start guide
AV Input HDMI
AV Output HDMI
Connector A 1 - HDMI (19 pin) Female Input
1 - RJ-45 Female Output
Connector B 1 - HDMI (19 pin) Female Output
1 - RJ-45 Female Input
SKU ST121HDBTDK
Barcode # 65030864916
Brand Startech
Shipping Weight 0.9400kg
Shipping Width 0.100m
Shipping Height 0.050m
Shipping Length 0.290m
Shipping Cubic 0.001450000m3
