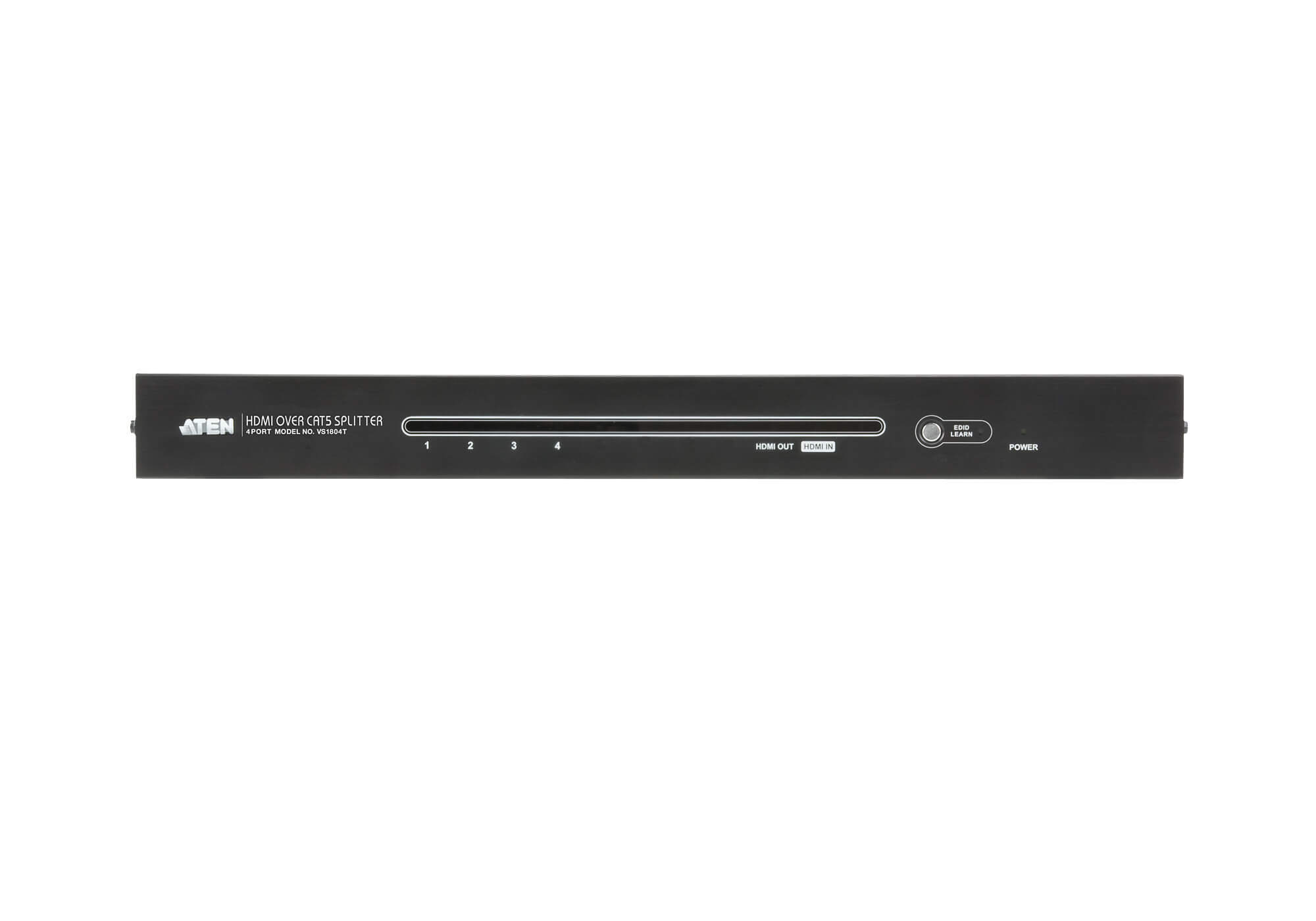

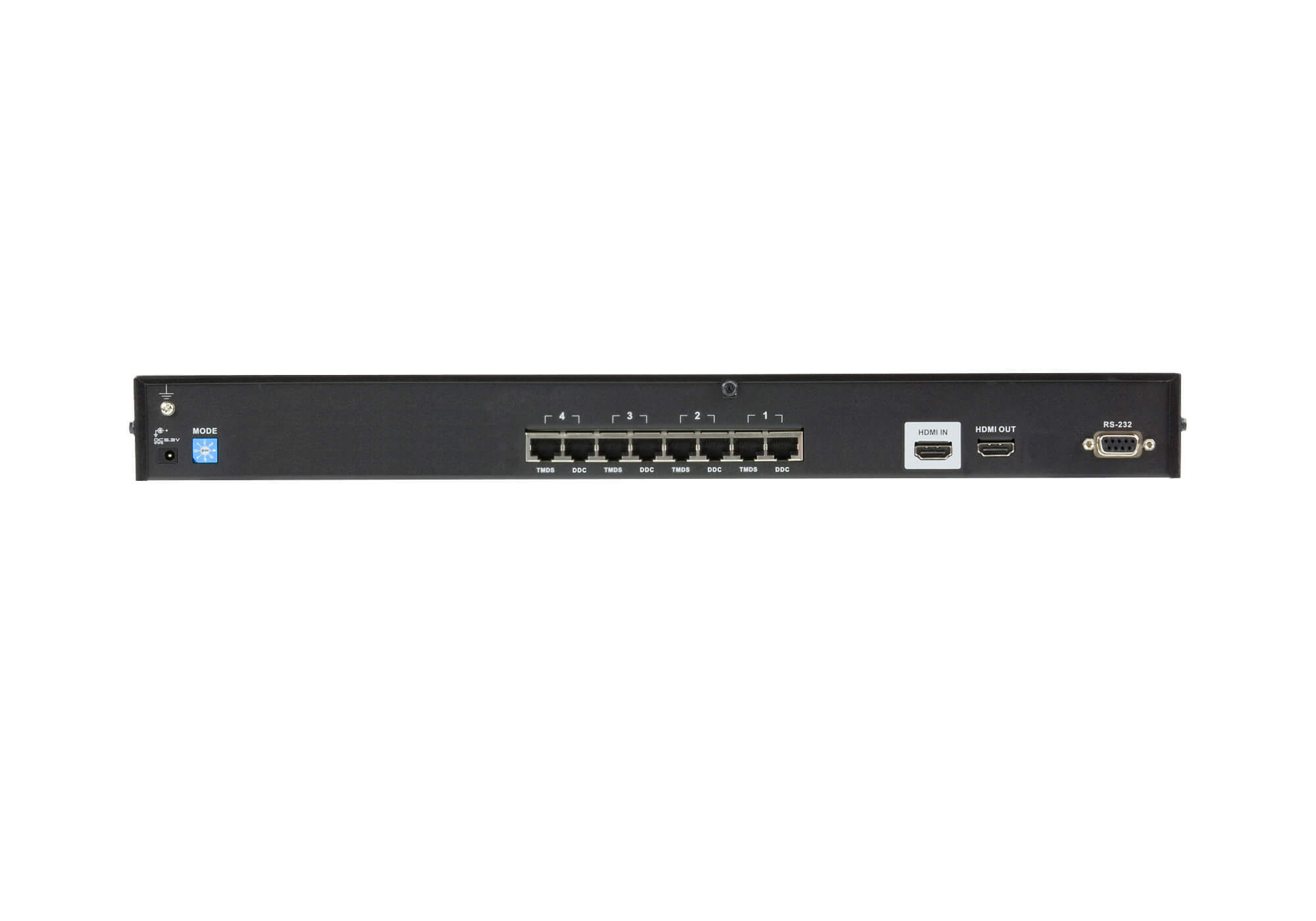

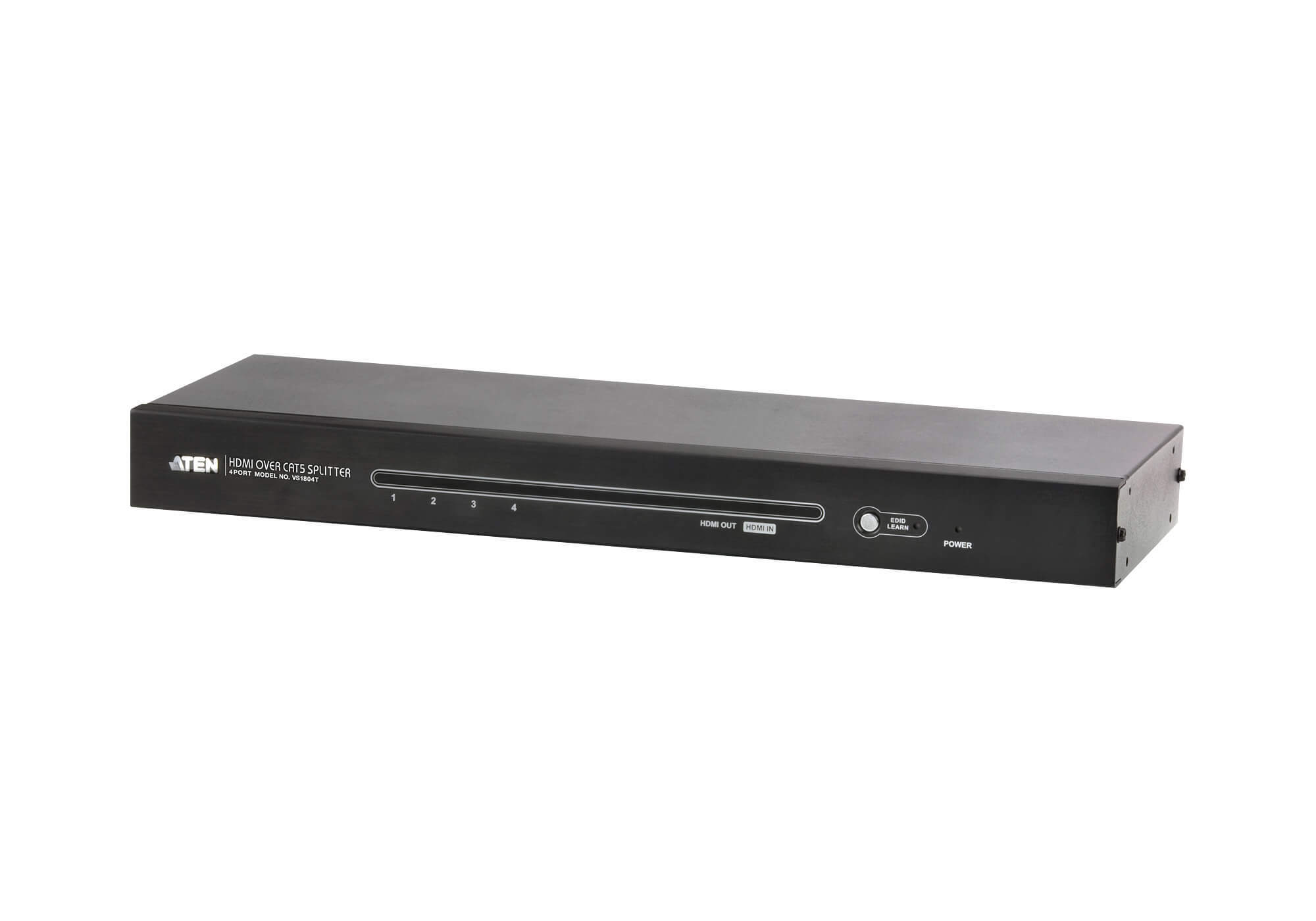

ATEN VS1804T-AT-U 4-Port HDMI Cat 5 Splitter
Model # VS1804T-AT-U
-
SKU: VS1804T-AT-U
- Pick Up Available
- Australian Warranty
- Checkout Securely
The VS1804T HDMI Over Cat 5 Splitter is a splitter designed to connect one source to 4 displays over a long distance. Incorporating suggested compatible receivers *, the VS1804T HDMI Over Cat 5 Splitter can be a complete solution ideal for any professional A/V installation that requires multimedia content to be delivered to multiple destinations located up to 60 m away from the source.
* Compatible Receiver Units:
VB802 HDMI Over Cat 5 Repeater – cadcadable up to five levels
VE800AR HDMI Receiver
VS1804T combined with VB802 and VE800AR units can transmit signals up to 300 m
The VS1804Tsolution is perfect for a wide range of applications:
• In-store or tradeshow digital signage
• Broadcasting information in public (news, airline or train arrival/departure information)
• Sporting events
• Theater and lecture rooms
• Company training facilities
Package Contents
- 1x VS1804T 4-Port HDMI Over Cat 5 Splitter
- 1x Power Adapter
- 1x Foot Pad Set (4 pcs)
- 1x Mounting Kit
- 1x User Instructions
(VS1804T-AT-U)
| Video Input | |
| Interfaces | 1 x HDMI Type A Female (Black) |
| Impedance | 100 ? |
| Max. Distance | 1.8 m |
| Video Output | |
| Interfaces | 1 x HDMI Type A Female (Black) - Local Output 4 x RJ-45 Female |
| Impedance | 100 ? |
| Video | |
| Max. Data Rate | 6.75 Gbps (2.25 Gbps Per Lane) |
| Max. Pixel Clock | 225 MHz |
| Compliance | HDMI (3D, Deep Color) HDCP Compatible Consumer Electronics Control (CEC) |
| Max. Resolution | Up to 1080p (Depends on connected receiver) |
| Max. Distance | Up to 60 m (Depends on connected receiver) |
| Audio | |
| Input | 1 x HDMI Type A Female (Black) |
| Output | 1 x HDMI Type A Female (Black) |
| Control | |
| RS-232 | Connector: 1 x DB-9 Female (Black) Baud Rate and Protocol: Baud Rate: 19200, Data Bits: 8, Stop Bits:1, Parity: No, Flow Control: No |
| EDID Settings | EDID Mode: Default / Port 1 / Learn |
| Connectors | |
| Power | 1 x DC Jack (Black) |
| Power Consumption | DC5.3V:5.2W:24BTU |
| Environmental | |
| Operating Temperature | 0-50°C |
| Storage Temperature | -20 - 60°C |
| Humidity | 0 - 80% RH, Non-Condensing |
| Physical Properties | |
| Housing | Metal |
| Weight | 2.10 kg ( 4.63 lb ) |
| Dimensions (L x W x H) | 43.72 x 15.78 x 4.40 cm (17.21 x 6.21 x 1.73 in.) |
| Carton Lot | 3 pcs |
| Note | For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format. |
| SKU | VS1804T-AT-U |
| Barcode # | 4710423775640 |
| Brand | ATEN |
| Shipping Weight | 1.9000kg |
