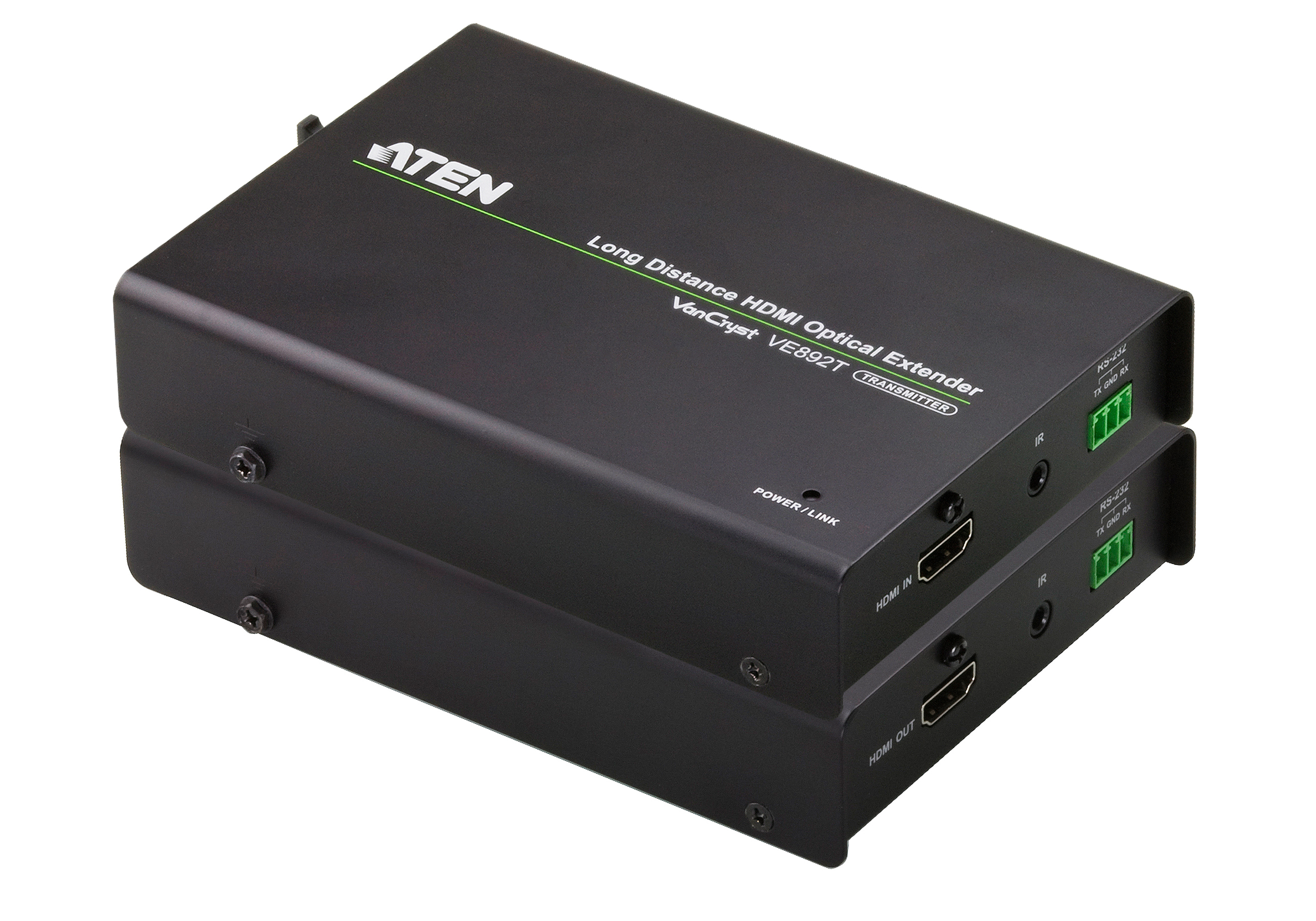

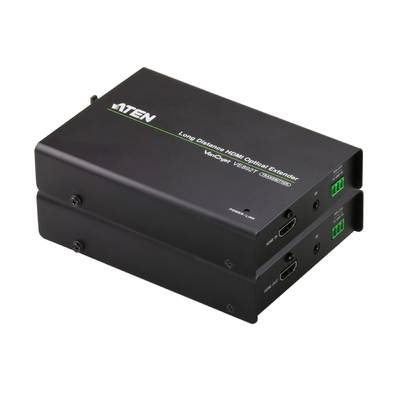

The VE892 is an Optical HDMI Extender that overcomes the length restriction of standard HDMI cables by using optical fiber to send high definition audio and video signals over large distances.

The VE892 accepts an audio-video stream from a local source and serializes the data to pass it over a single 3.125 Gbps optical link (for resolutions up to 1080p@60Hz at 24-bits)

The VE892 can also extend the IR remote control and transfer RS-232 (up to 115kbps) in both directions, allows you to connect serial devices such as touch screens and barcode scanners.

Package Contents

1x VE892T
1x VE892R
1x IR Transmitter
1x IR Receiver
1x Mounting Kit
2x Power Adapters
1x User Instructions

(VE892-AT-U)

Function	VE892R	VE892T
Video Input
Interfaces	N/A	1 x HDMI Type A Female (Black)
Impedance	N/A	100 ?
Max. Distance	N/A	3 m
Video Output
Interfaces	1 x HDMI Type A Female (Black)	N/A
Impedance	100 ?	N/A
Max. Distance	3 m	N/A
Video
Max. Data Rate	6.75 Gbps (2.25 Gbps Per Lane)	6.75 Gbps (2.25 Gbps Per Lane)
Max. Pixel Clock	225 MHz	225 MHz
Compliance	HDMI (3D, Deep Color) HDCP 1.4 Compatible	HDMI (3D, Deep Color) HDCP 1.4 Compatible
Max. Distance	1 x SFP Module (*Note) 20km @ Single mode (SM) fiber	1 x SFP Module (*Note) 20km @ Single mode (SM) fiber
Max. Resolution	Up to 1080p	Up to 1080p
Audio
Input	N/A	1 x HDMI Type A Female (Black)
Output	1 x HDMI Type A Female (Black)	N/A
Connectors

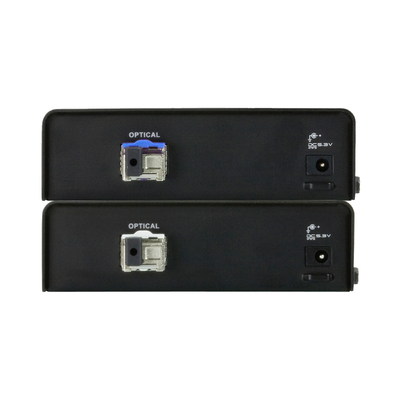

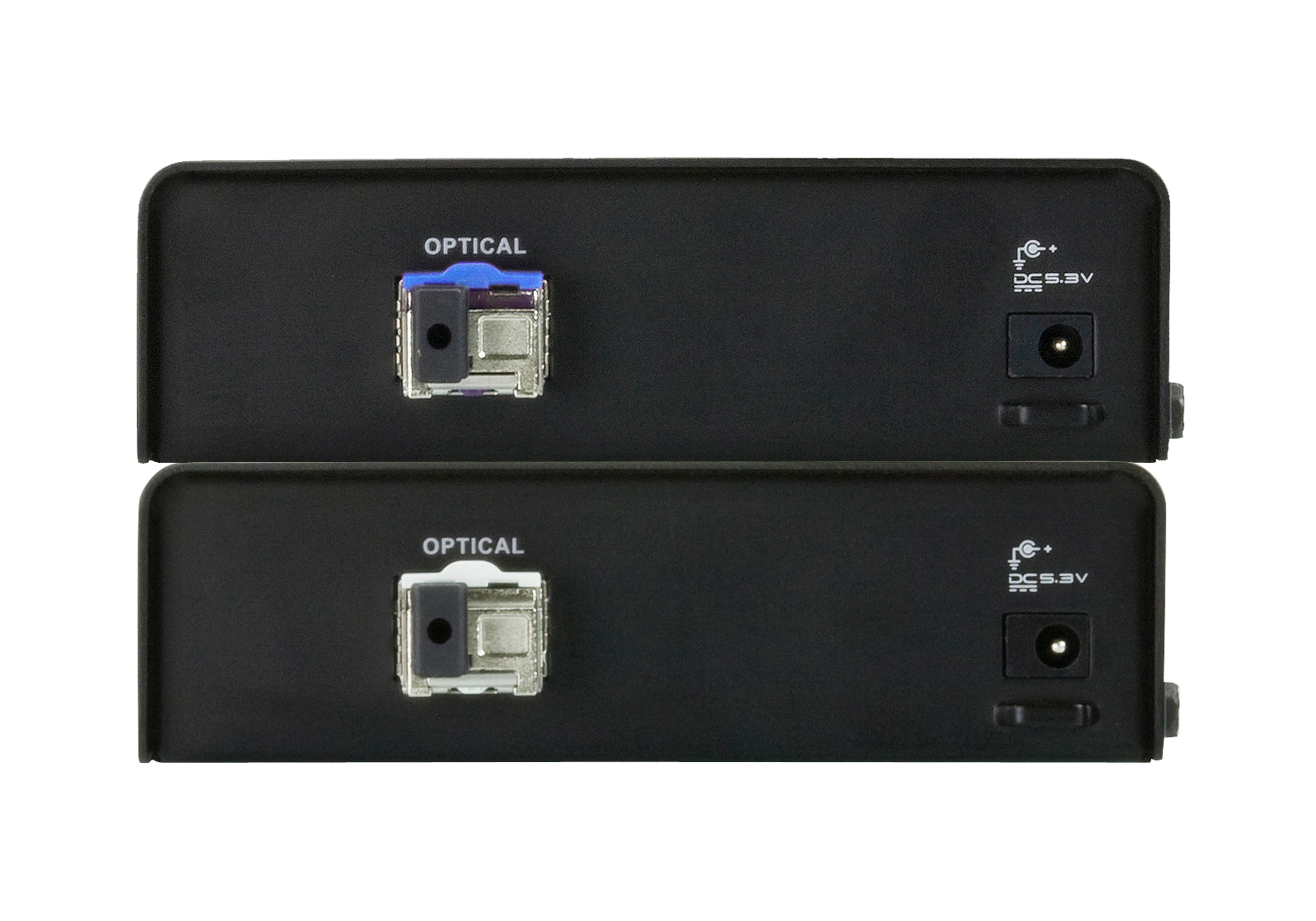

Unit To Unit	1 x bi-directional SFP (LC)	1 x bi-directional SFP (LC)
Power	1 x DC Jack	1 x DC Jack
Power Consumption	DC5.3V:4.69W:22BTU	DC5.3V:5.80W:27BTU
Control

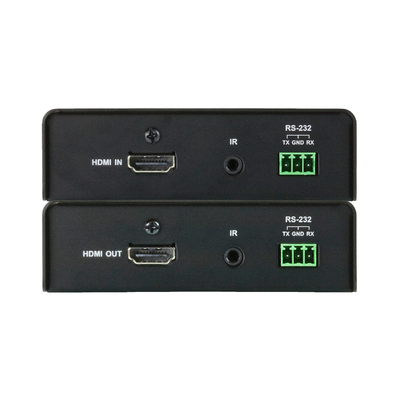

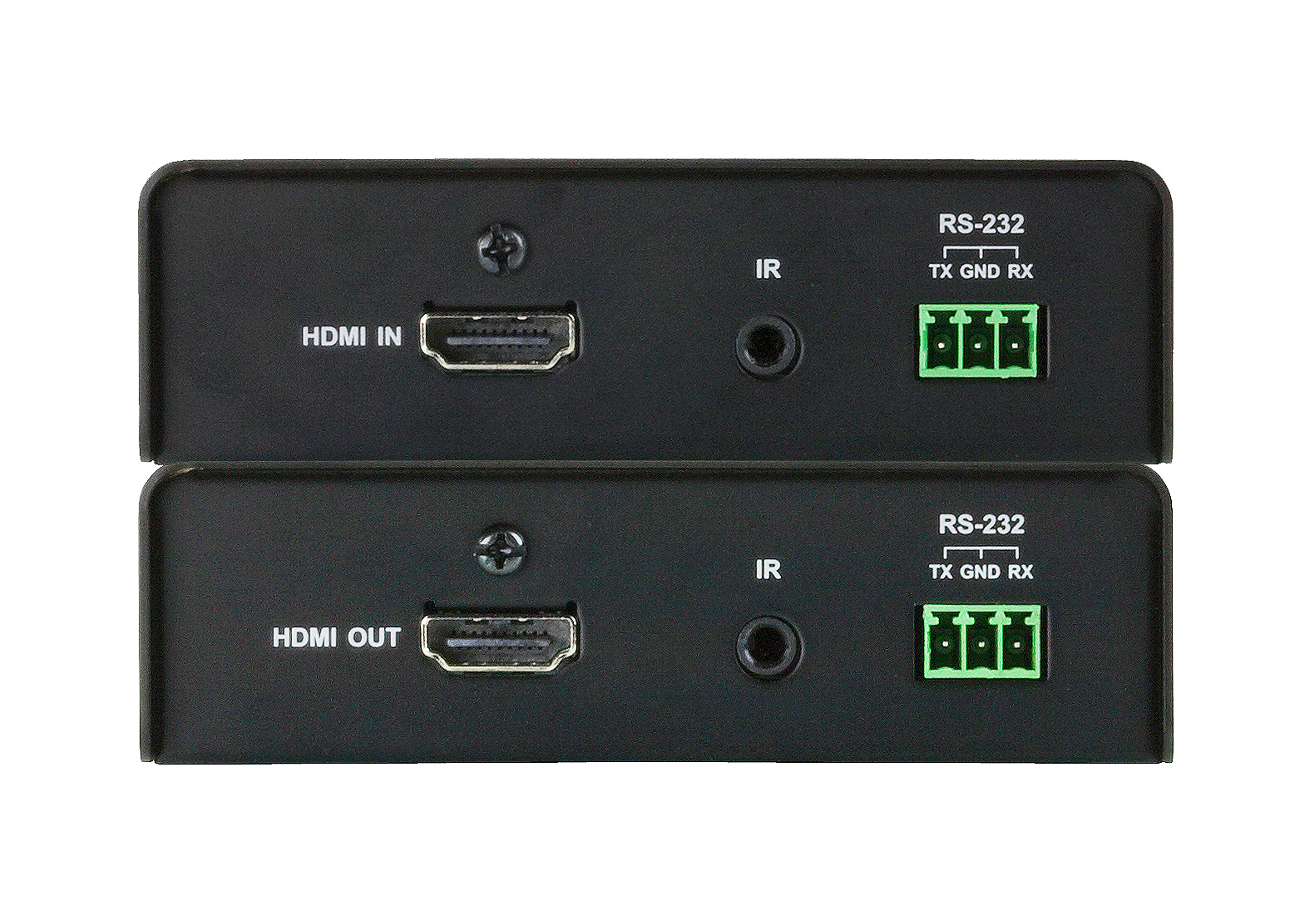

IR Channel	1 x Mini Stereo Jack Female (Black); 30~56 KHz full range transmission	1 x Mini Stereo Jack Female (Black); 30~56 KHz full range transmission
RS-232 Channel	1 x Terminal Block, 3 pole (Green)	1 x Terminal Block, 3 pole (Green)
Environmental
Operating Temperature	0-40°C	0-40°C
Storage Temperature	-20 - 60°C	-20 - 60°C
Humidity	0 - 80% RH, Non-Condensing	0 - 80% RH, Non-Condensing
Physical Properties
Housing	Metal	Metal
Weight	0.44 kg ( 0.97 lb )	0.44 kg ( 0.97 lb )
Dimensions (L x W x H)	14.17 x 10.30 x 3.00 cm (5.58 x 4.06 x 1.18 in.)	14.17 x 10.30 x 3.00 cm (5.58 x 4.06 x 1.18 in.)
Carton Lot	5 pcs	5 pcs
Note	1. Operating distance is approximate. A typical maximum distance may vary depending on factors such as fi ber type, bandwidth, connector splicing, losses, modal or chromatic dispersion, environmental factors, and kinks. 2. It is recommended that you use a Single Mode optical fi ber cable that conforms to IEC 60793- 2-50 B1.1 or ITU-T G.652.B specifi cations.	1. Operating distance is approximate. A typical maximum distance may vary depending on factors such as fi ber type, bandwidth, connector splicing, losses, modal or chromatic dispersion, environmental factors, and kinks. 2. It is recommended that you use a Single Mode optical fi ber cable that conforms to IEC 60793- 2-50 B1.1 or ITU-T G.652.B specifi cations.
Note	For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.

Input Resolutions	640 x 480 @ 60 Hz	1366 x 768 @ 60 Hz
	720 x 480 @ 60 Hz	1440 x 900 @ 60 Hz
	800 x 600 @ 60 Hz	1600 x 1200 @ 60 Hz
	1024 x 768 @ 60 Hz	1680 x 1050 @ 60 Hz
	1280 x 720 @ 60 Hz	1920 x 1080 @ 50/60 Hz
	1280 x 800 @ 60 Hz	1920 x 1200 @ 60 Hz
	1280 x 1024 @ 60 Hz
