ATEN VE806-AT-U HDMI/Audio Cat 5 Extender Wall Plate (US) (1080p@40m)
Model # VE806-AT-U
-
SKU: VE806-AT-U
- Pick Up Available
- Australian Warranty
- Checkout Securely

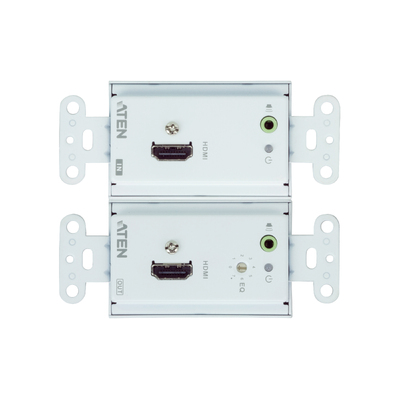

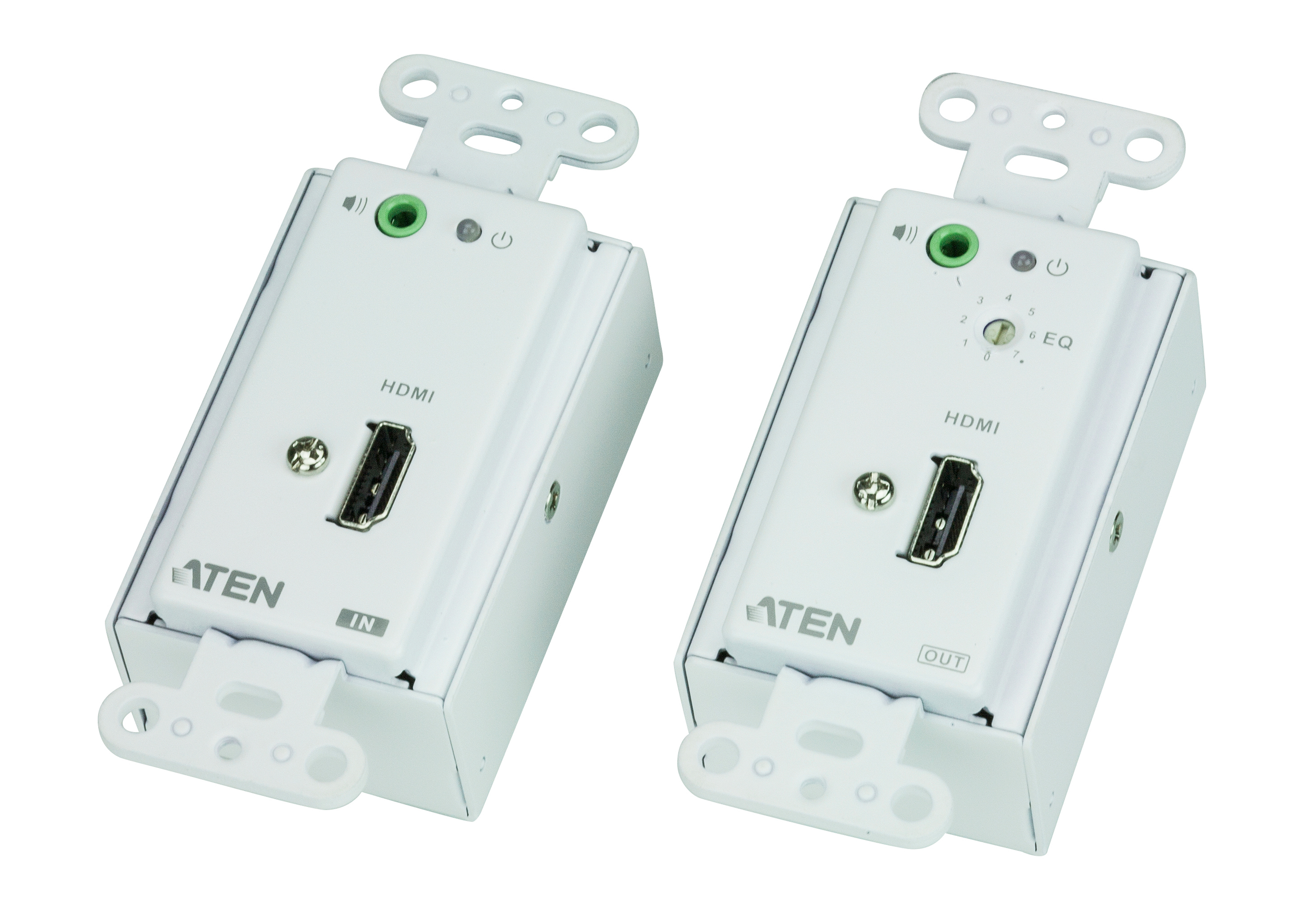

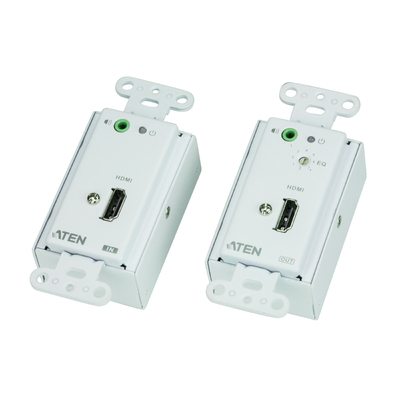

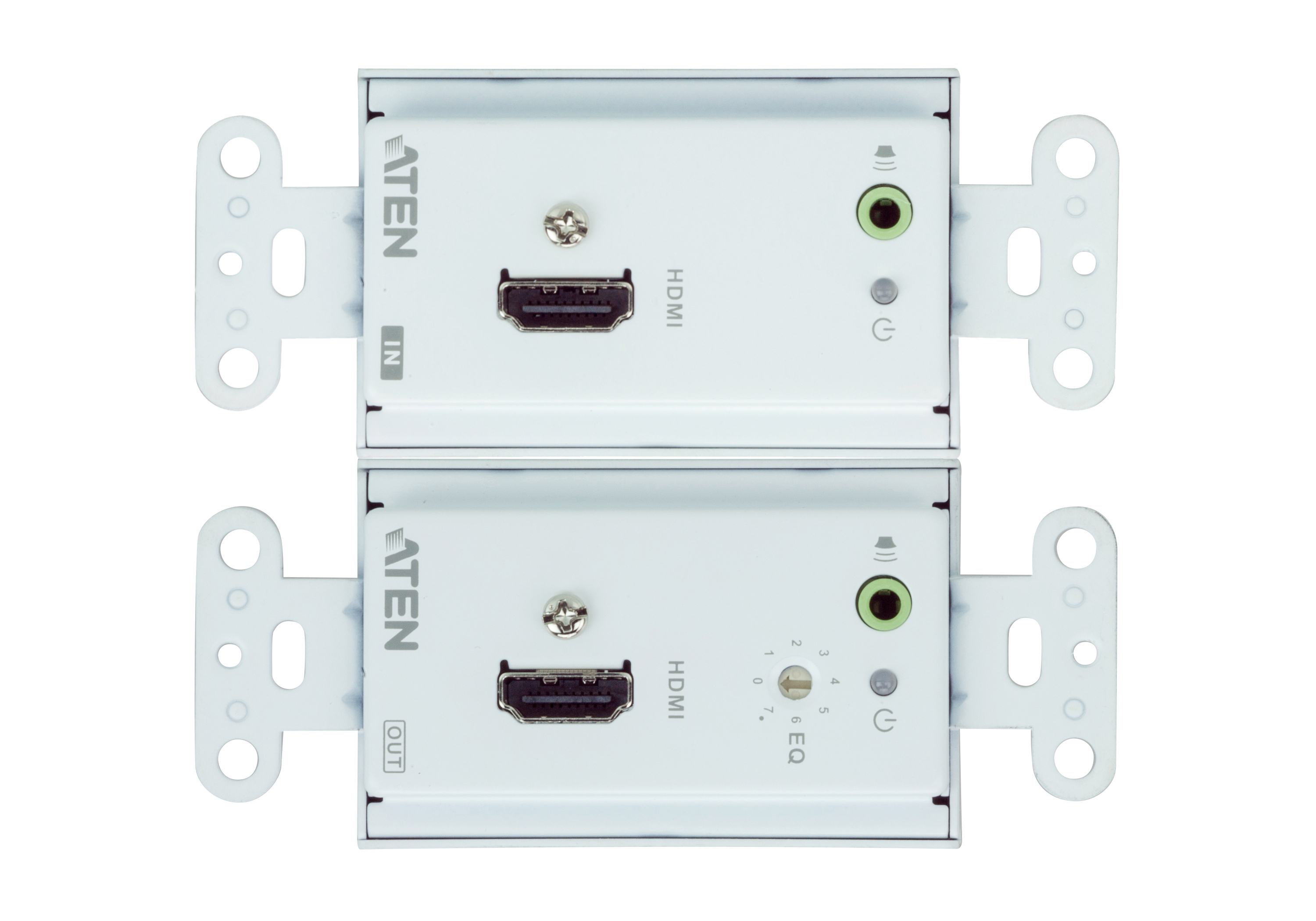

The VE806 HDMI Over Cat 5 Extender Wall Plate extends HDMI and audio signals up to 60m using Cat 5e cable. It supports popular wide screen formats and ensures excellent video quality over long distance transmissions. The VE806 combination can further extend the distance or multiply sources/displays.

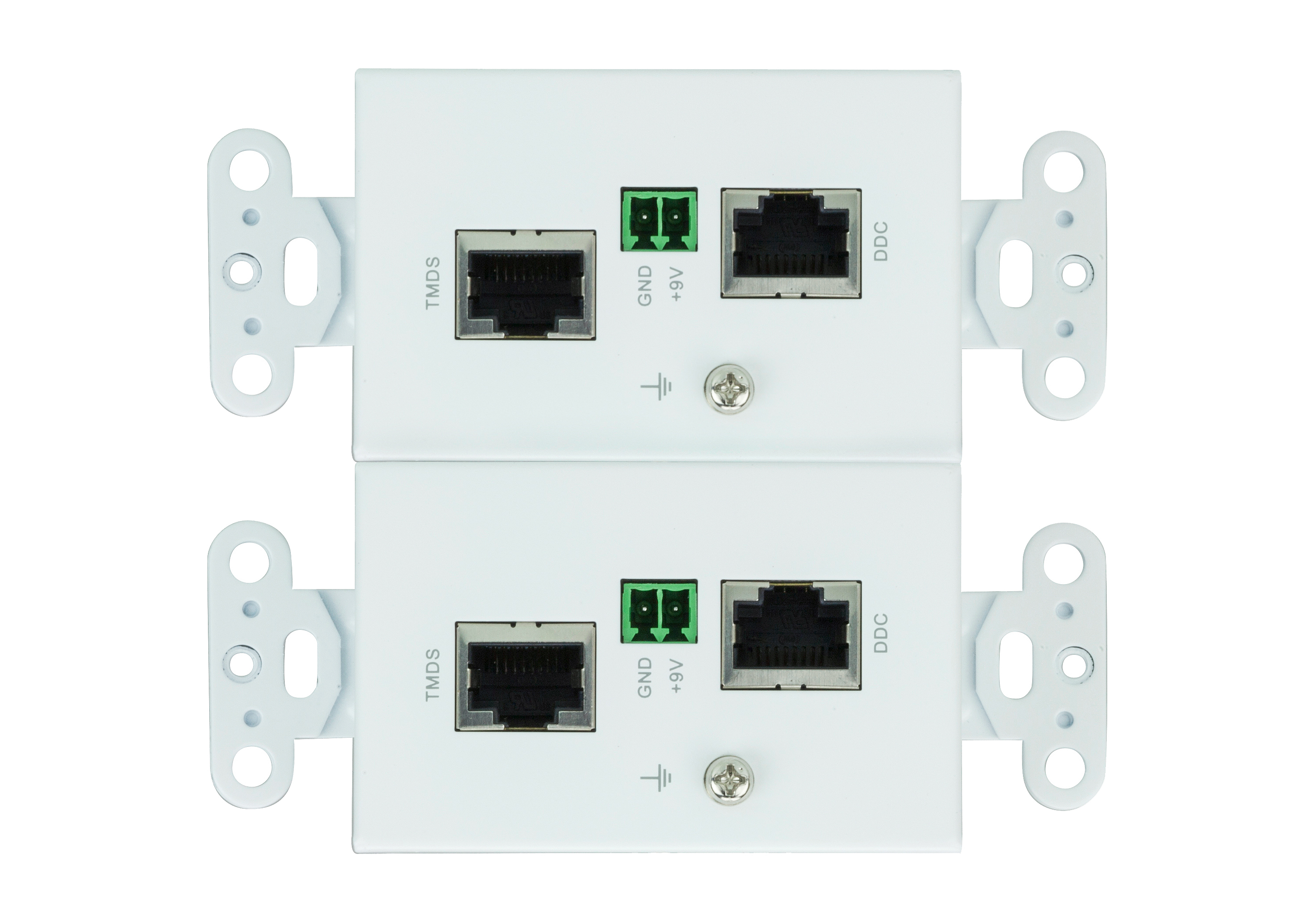

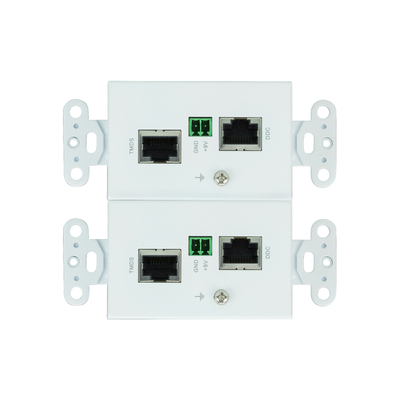

The VE806 can be powered at either the Transmitter or Receiver side, and a second Cat 5e cable is used for power signal transmission, real EDID bypass, and HDCP key authentication. The VE806’s compact wall plate design does away with bulky cables and allows a neat and convenient installation. It is an ideal solution for function rooms, museums and any environment that requires equipment or cabling to be kept hidden from public view.
Package Contents
- 1x VE806T HDMI Over Cat 5 Extender Wall Plate
- 1x VE806R HDMI Over Cat 5 Extender Wall Plate
- 1x Terminal Block Connector
- 1x Power Adapter
- 1x User Instructions
(VE806-AT-U)
| Function | VE806R | VE806T |
| Video Input | ||
| Interfaces | N/A | 1 x HDMI Type A Female (Black) |
| Impedance | N/A | 100 ? |
| Max. Distance | N/A | 3 m |
| Video Output | ||
| Interfaces | 1 x HDMI Type A Female (Black) | N/A |
| Impedance | 100 ? | N/A |
| Max. Distance | 3 m | N/A |
| Video | ||
| Max. Data Rate | 6.75 Gbps (2.25 Gbps Per Lane) | 6.75 Gbps (2.25 Gbps Per Lane) |
| Max. Pixel Clock | 225 MHz | 225 MHz |
| Compliance | HDMI (3D, Deep Color) HDCP Compatible | HDMI (3D, Deep Color) HDCP Compatible |
| Max. Resolutions / Distance | Up to 1080p@40m; 1080i@60m | Up to 1080p@40m; 1080i@60m |
| Audio | ||
| Input | N/A | 1 x HDMI Type A Female (Black) |
| Output | 1 x HDMI Type A Female (Black) | N/A |
| Connectors | ||
| Power | 1 x Terminal Block (Green) | 1 x Terminal Block (Green) |
| Power Consumption | DC9V:2.28W:11BTU | DC9V:2.33W:11BTU |
| Environmental | ||
| Operating Temperature | 0 - 50°C | 0 - 50°C |
| Storage Temperature | -20 - 60°C | -20 - 60°C |
| Humidity | 0-80% RH, Non-Condensing | 0-80% RH, Non-Condensing |
| Physical Properties | ||
| Housing | Metal | Metal |
| Weight | 0.17 kg ( 0.37 lb ) | 0.17 kg ( 0.37 lb ) |
| Dimensions (L x W x H) | 10.41 x 4.44 x 4.00 cm (4.1 x 1.75 x 1.57 in.) | 10.41 x 4.44 x 4.00 cm (4.1 x 1.75 x 1.57 in.) |
| Carton Lot | 5 pcs | 5 pcs |
| Note | For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format. | |
| SKU | VE806-AT-U |
| Barcode # | 4719264640483 |
| Brand | ATEN |
| Shipping Weight | 1.1000kg |
