StarTech VGAVideo Extender Over Cat 5 With Audio - ST122UTPA
Model # ST122UTPA
-
SKU: ST122UTPA
- Pick Up Available
- Australian Warranty
- Checkout Securely

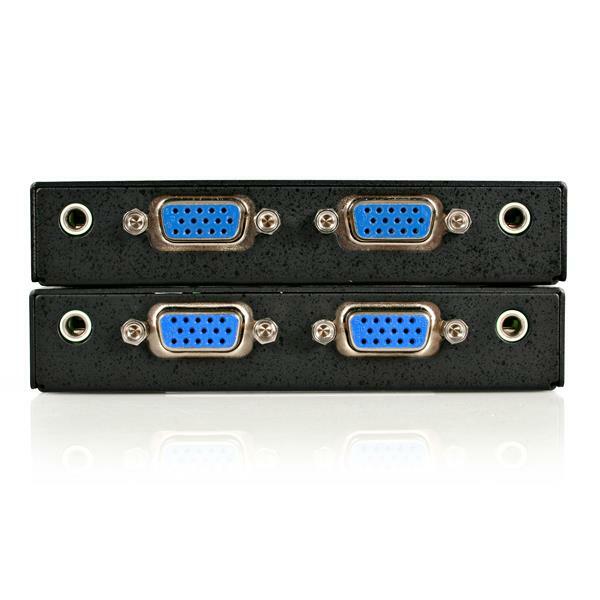

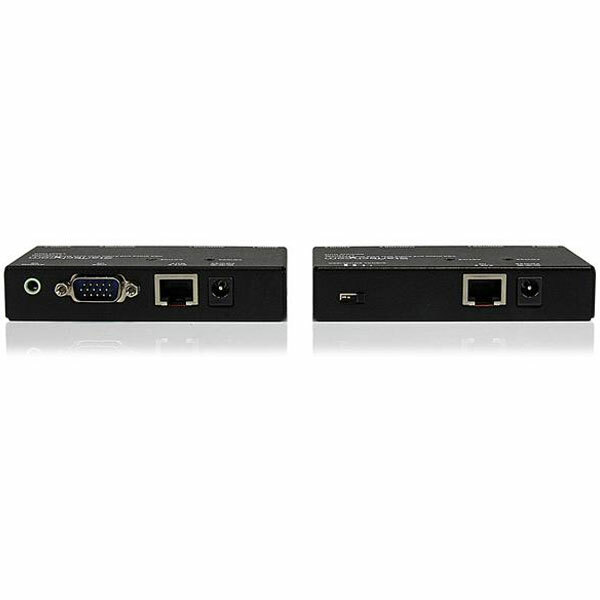

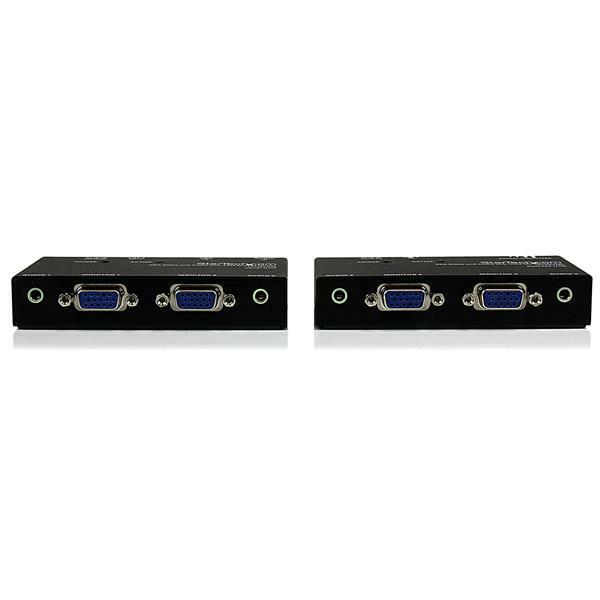

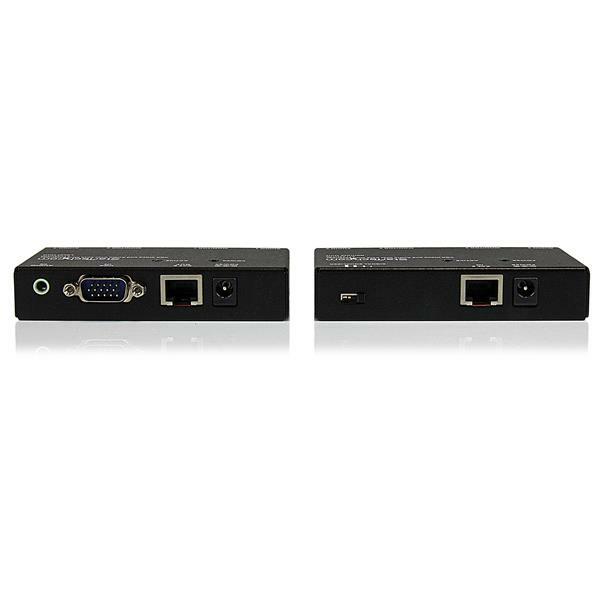

The ST122UTPA VGA Video Extender over Cat 5 with Audio allows up to 4 (2 local and 2 remote) monitors to be connected to a single PC. The video signal and corresponding audio are sent to the remote unit over standard 4 pair Category 5 or better (Cat 5e recommended) UTP cable, supporting extended video distances of up to 150m / 500ft.
The VGA video and audio extender includes a local transmitter and a remote receiver, providing an out-of-the box solution that's perfect for point to point digital signage applications that require audio. To simplify installation, this kit also includes a mounting bracket for the ST122UTPA receiver to install onto walls, desks or cabinets for a tidy setup.
This product is TAA compliant and backed by a Startech.com 2-year warranty with free lifetime technical support.
(ST122UTPA)
| Warranty Information | ||
|---|---|---|
| Warranty | 2 Years | |
| Hardware | ||
| Audio | Yes | |
| Cabling | Cat 5e UTP or better | |
| Daisy-Chain | No | |
| Ports | 2 | |
| Performance | ||
| Max Distance | 150 m / 500 ft | |
| Maximum Cable Length | 500 ft [152.4 m] | |
| Supported Resolutions | 1440x900 @ 150ft / 50m 1280x1024 @ 300ft / 100m 1024x768 @ 500ft / 150m | |
| Connector(s) | ||
| Local Unit Connectors | 1 - RJ-45 Female | |
| 1 - VGA (15 pin, High Density D-Sub) Male | ||
| 2 - 3.5 mm Mini-Jack (3 Position) Female | ||
| 2 - VGA (15 pin, High Density D-Sub) Female | ||
| Remote Unit Connectors | 1 - RJ-45 Female | |
| 2 - 3.5 mm Mini-Jack (3 Position) Female | ||
| 2 - VGA (15 pin, High Density D-Sub) Female | ||
| Power | ||
| Center Tip Polarity | Positive | |
| Output Current | 0.5A | |
| Output Voltage | 12 DC | |
| Power Consumption (In Watts) | 6 | |
| Power Source | AC Adapter Included | |
| Physical Characteristics | ||
| Color | Black | |
| Enclosure Type | Aluminum | |
| Product Height | 0.8 in [2 cm] | |
| Product Length | 2.4 in [60 mm] | |
| Product Width | 3.3 in [83 mm] | |
| Weight of Product | 14.2 oz [402 g] | |
| Packaging Information | ||
| Package Height | 3.6 in [91 mm] | |
| Package Length | 7.3 in [18.6 cm] | |
| Package Width | 9.5 in [24.1 cm] | |
| Shipping (Package) Weight | 30.5 oz [864 g] | |
| What's in the Box | ||
| Included in Package | 1 - Local VGA Extender Unit | |
| 1 - Remote VGA Extender Unit | ||
| 1 - Mounting Bracket Kit (w/ screws) | ||
| 2 - Sets Rubber Feet | ||
| 2 - Power Adapter | ||
| 1 - Instruction Manual | ||
| SKU | ST122UTPA |
| Barcode # | 65030811408 |
| Brand | Startech |
| Shipping Weight | 0.8800kg |
| Shipping Width | 0.190m |
| Shipping Height | 0.090m |
| Shipping Length | 0.242m |
| Shipping Cubic | 0.004138000m3 |
