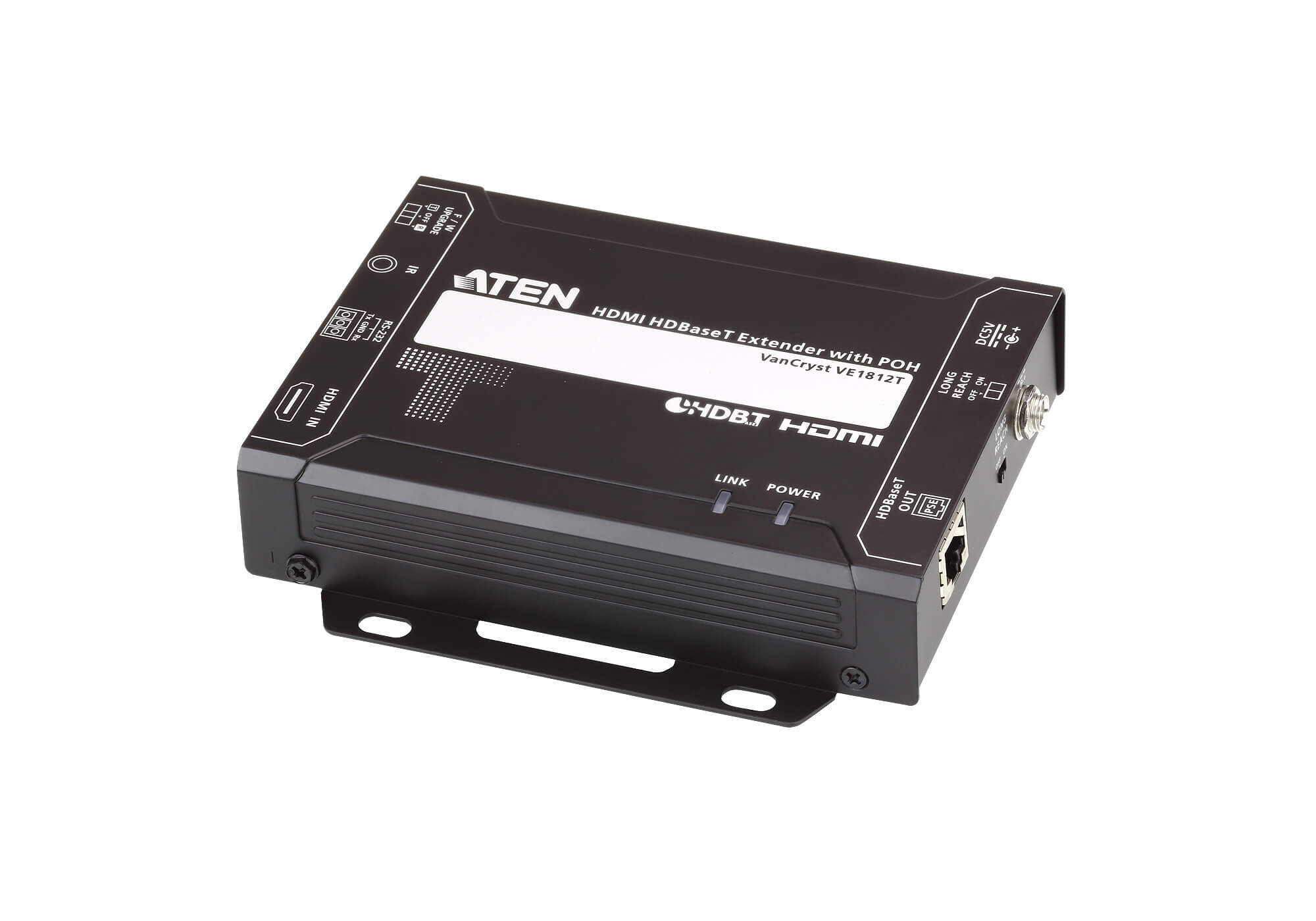

ATEN VE1812T-AT-U HDMI HDBaseT Transmitter with POH (4K@100m) (HDBaseT Class A) (PoH PSE)
Model # VE1812T-AT-U
-
SKU: VE1812T-AT-U
- Pick Up Available
- Australian Warranty
- Checkout Securely
The VE1812T features Power over HDBaseT (POH) which sends power from Tx to Rx over Cat 5e / 6 / 6a cable without any additional power supply. The VE1812T supports RS-232 and IR signaling pass-through, allowing you to control the HDMI source device from the receiver unit (VE1812R) while also accessing the HDMI display device from the transmitter unit (VE1812T). The IR signals can also be extended in both directions.
The VE1812T HDMI HDBaseT Transmitter with POH is HDMI (3D, Deep Color, 4kx2k) and HDCP compatible. When transmitting HDMI / 4K with a Cat 6a or ATEN 2L-2910 Cat 6 cable, the maximum distance can reach up to 100 meters. With Long Reach Mode enabled, the VE1812T can extend HDMI signal up to 150m @1080p. The VE1812T is perfect for digital classrooms, video conference rooms, gaming or any installation that requires superior video quality.
Package Contents
- 1x VE1812T HDMI HDBaseT Transmitter with POH
- 1x Power Adapter
- 1x RS-232 Terminal Block
- 1x User Instructions
(VE1812T-AT-U)
| Video Input | |
| Interfaces | 1 x HDMI Type A Female (Black) |
| Impedance | 100 ? |
| Max. Distance | 3 m (2L-7D03H) |
| Video | |
| Max. Data Rate | 10.2Gbps (3.4Gbps per lane) |
| Max. Pixel Clock | 340 MHz |
| Compliance | HDMI (3D, Deep Color, 4K) HDCP2.2 Compatible Consumer Electronics Control (CEC) |
| Max. Resolutions / Distance | Up to 4K@70m (Cat 5e/6) / 100m (Cat 6a/ATEN 2L-2910 Cat6); 1080p@100m (Cat 5e/6/6a) *4K supported: 4096 x 2160 / 3840 x 2160 @ 60Hz (4:2:0); 4096 x 2160 / 3840 x 2160 @ 30Hz (4:4:4) |
| Audio | |

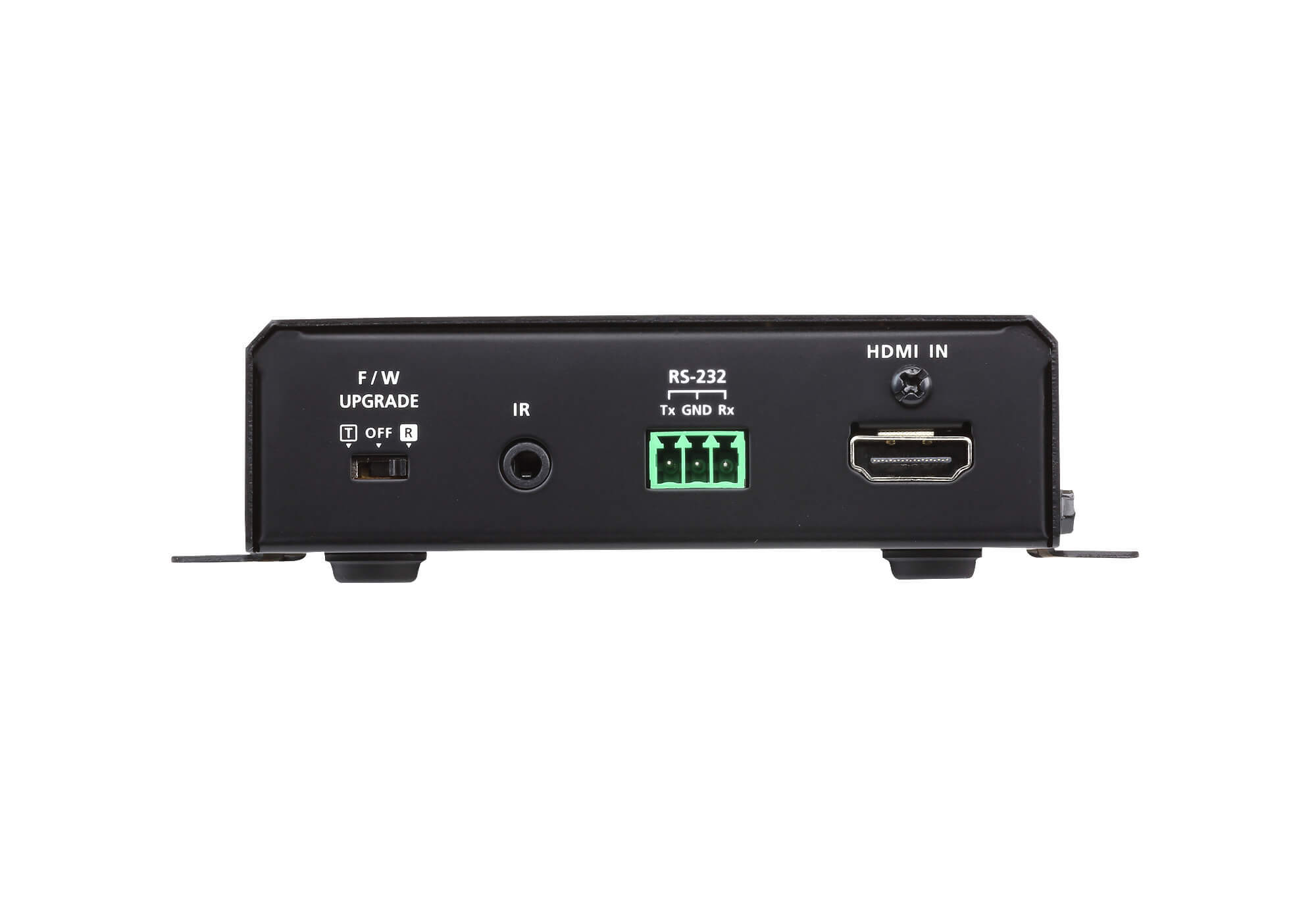

| Input | 1 x HDMI Type A Female (Black) |
| Connectors | |

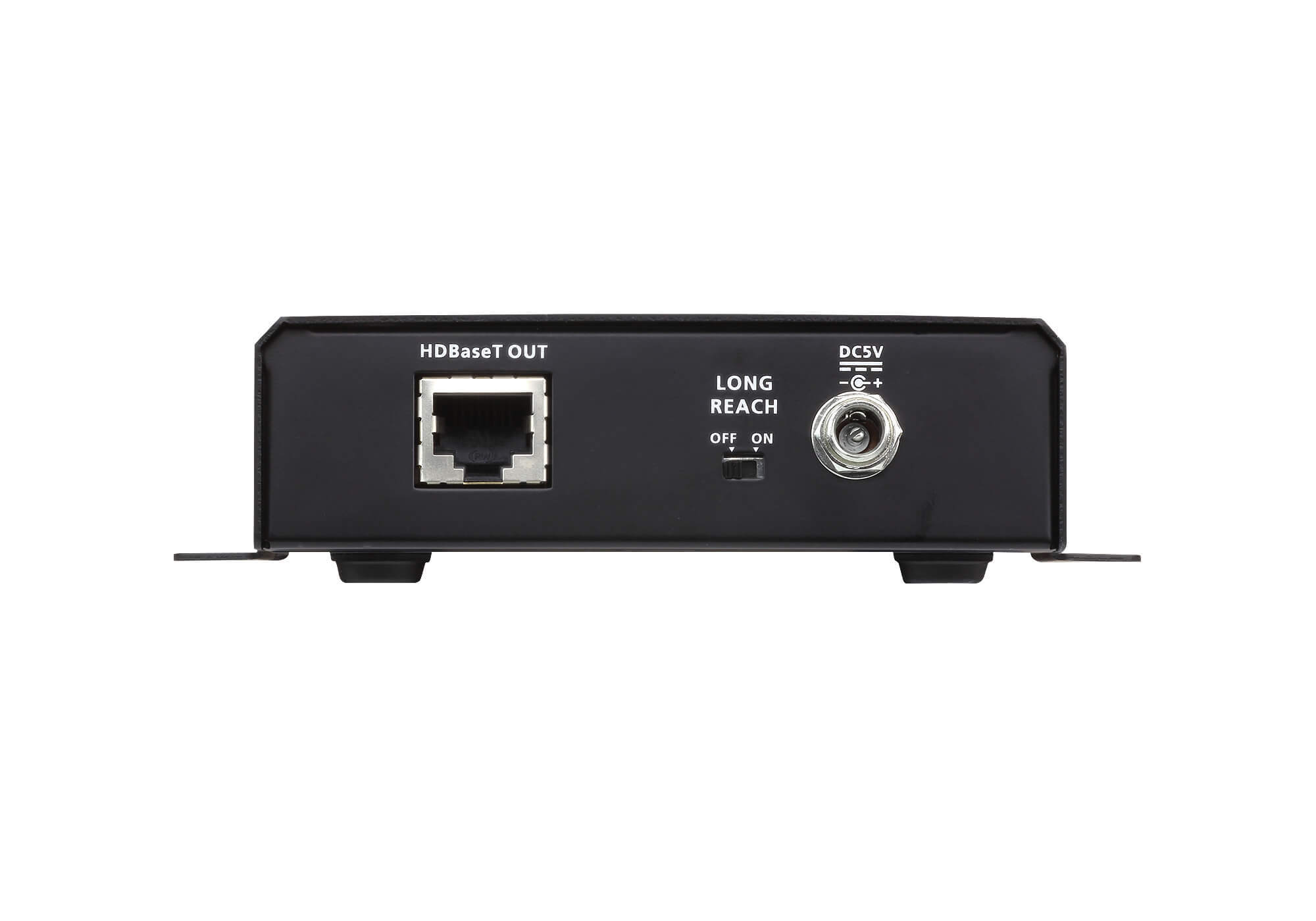

| Unit To Unit | 1 x RJ-45 Female |
| Power | 1 x DC Jack (Black) with locking |
| Control | |
| RS-232 | Connector: 1 x Terminal Block, 3 pole Baud Rate: 19200, Data Bits:8, Stop Bits:1, no parity and flow control |
| IR | 1 x Mini Stereo Jack Female (Black) |
| Switches | |
| Long Reach Mode Switch | 1 x Slide Switch - ON/OFF |
| Firmware Upgrade | 1 x Slide Switch - ON/OFF |
| Power Consumption | DC5V:3.2W:15BTU |
| Environmental | |
| Operating Temperature | 0 - 40°C |
| Storage Temperature | -20 - 60°C |
| Humidity | 0 - 80% RH, Non-Condensing |
| Physical Properties | |
| Housing | Metal |
| Weight | 0.47 kg ( 1.04 lb ) |
| Dimensions (L x W x H) with bracket | 14.04 x 12.30 x 3.00 cm (5.53 x 4.84 x 1.18 in.) |
| Dimensions (L x W x H) without bracket | 13.60 x 10.10 x 2.90 cm (5.35 x 3.98 x 1.14 in.) |
| SKU | VE1812T-AT-U |
| Brand | ATEN |
| Shipping Weight | 0.8000kg |
