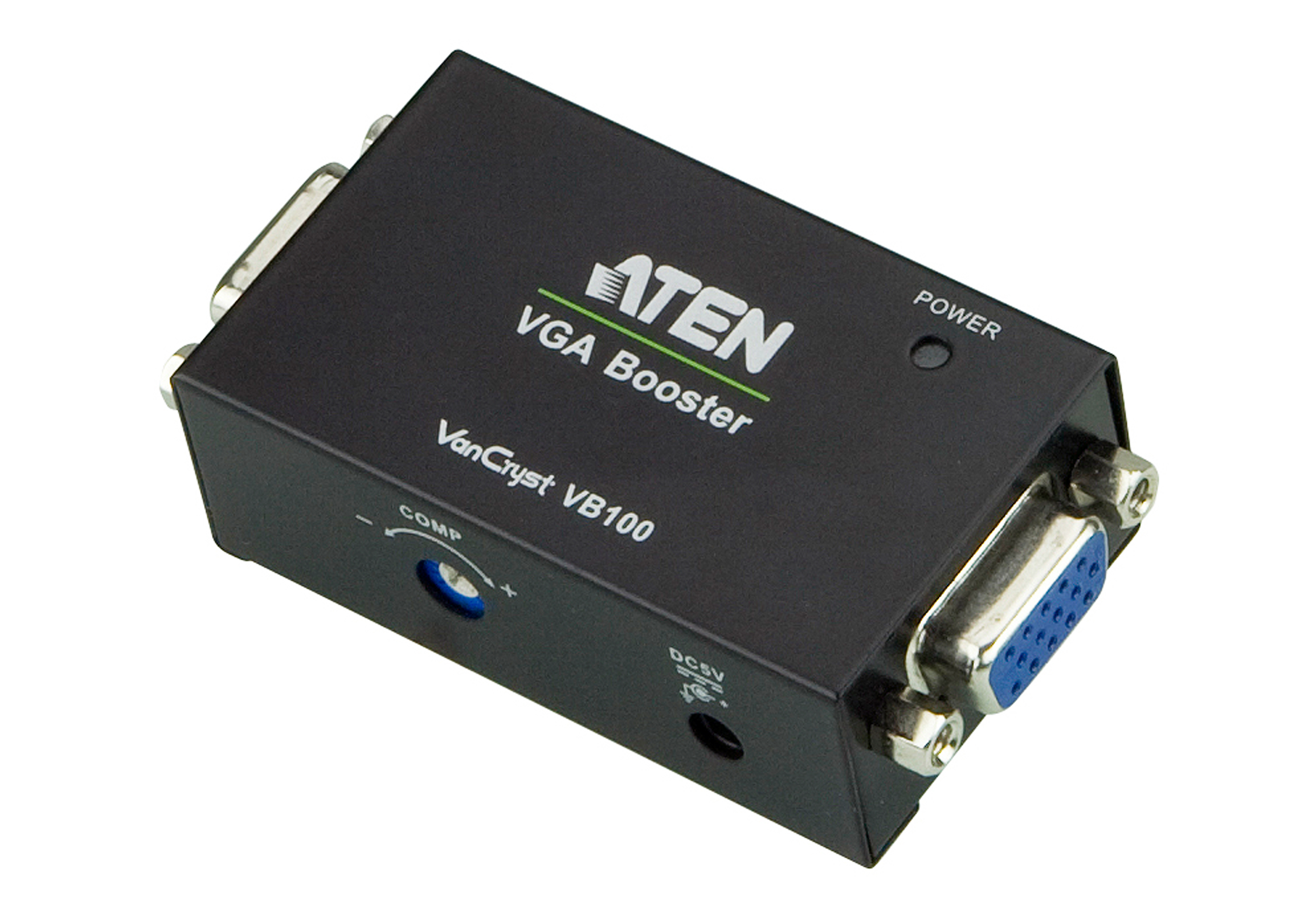

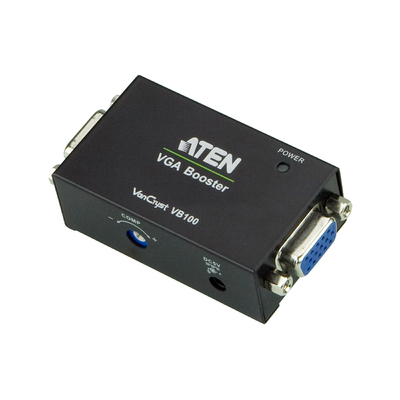

The VB100 VGA Booster amplifies the VGA signal from a source device and transmits it to a display up to 70 meters away. The VGA booster extends the display distance without any signal loss; to bring you a crystal clear video display at a longer distance. The VB100 is built with a compact housing design for easy installation and manual gain control to improve image quality at different distances. The VB100 can be powered from the VGA source and has a built-in LED indicator for power. The VB100 supports hotplugging and requires no software forinstallation, making it an easy, compact, and affordable solution to extend your VGA display.

Package Contents

1x VB100 VGA Booster
1x Power Adapter
1x User Instructions

(VB100-AT-U)

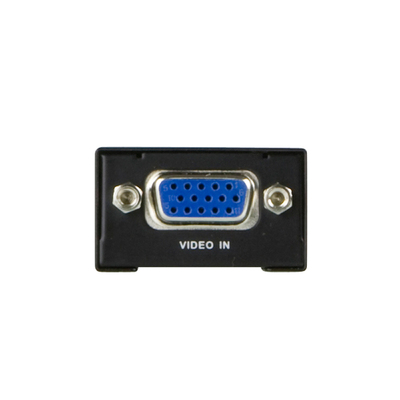

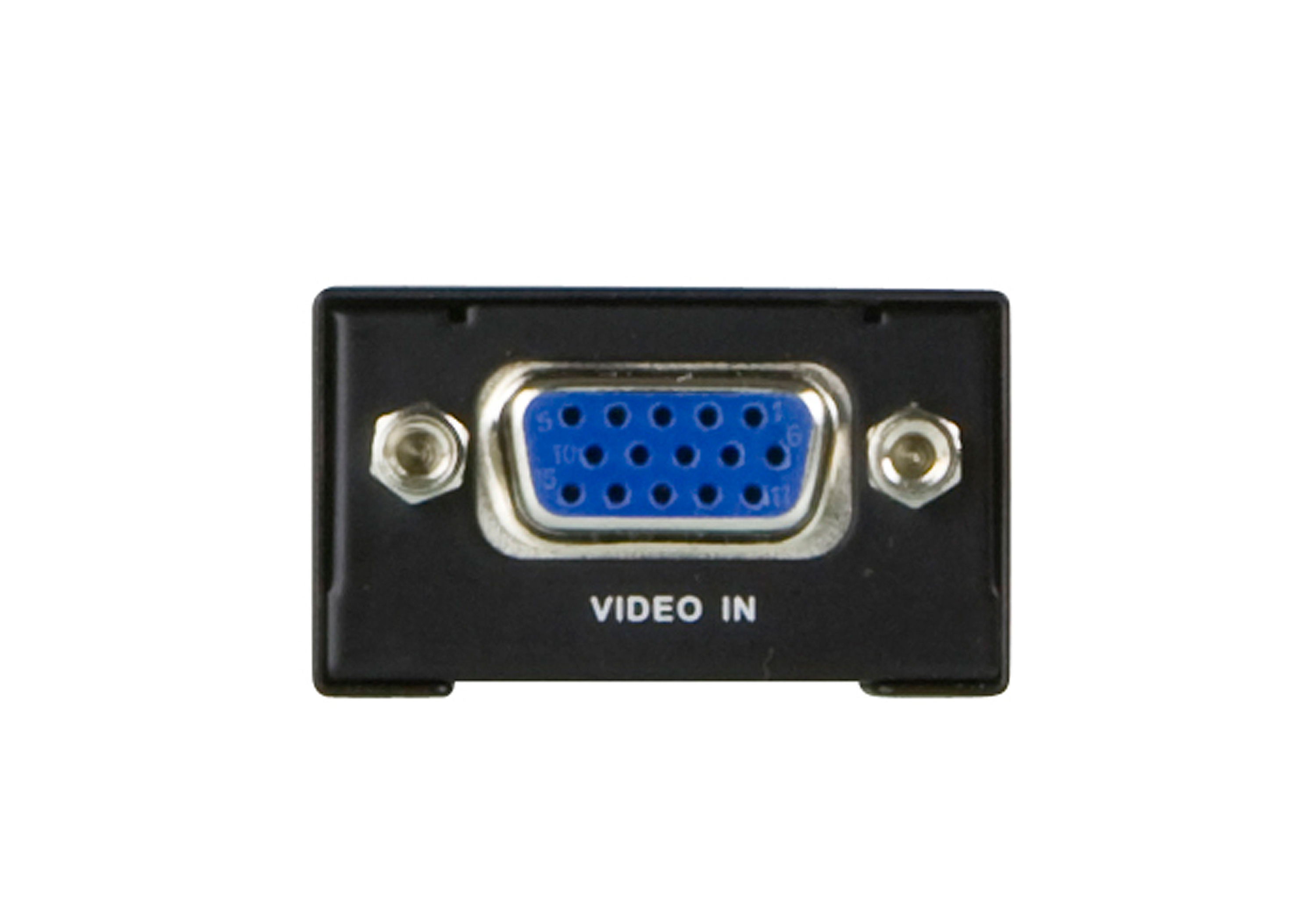

Video Input
Interfaces	1 x HDB-15 Female (Blue)
Impedance	75 ?

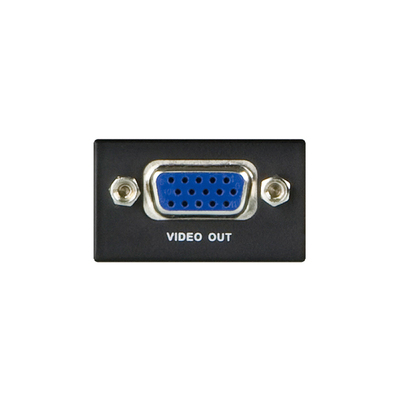

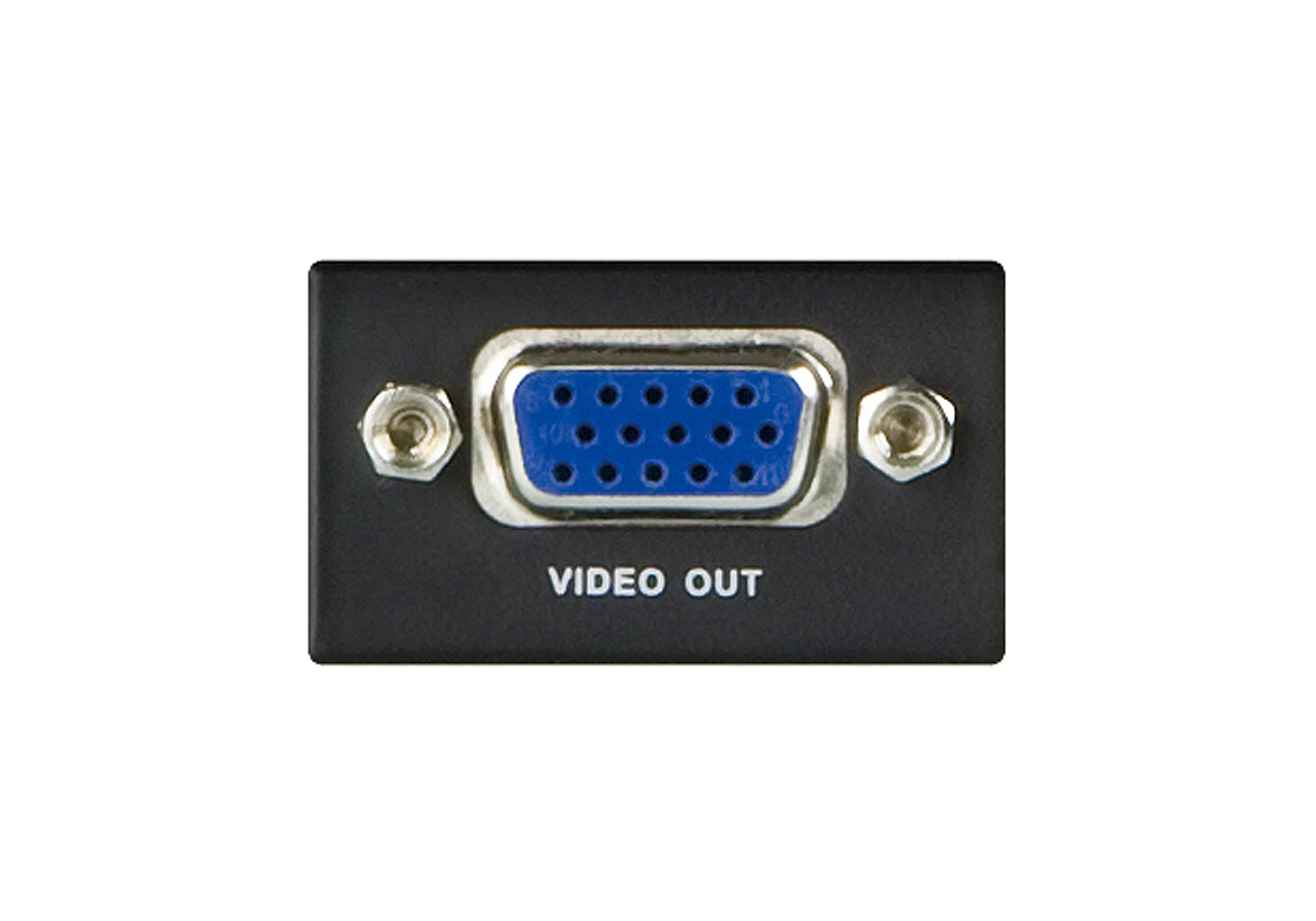

Video Output
Interfaces	1 x HDB-15 Female (Blue)
Impedance	75 ?
Video
Max. Bandwidth	300 MHz
Max. Resolutions / Distance	Up to 1920 x 1200@30m; 1280 x 1024@70m
Connectors
Power	1 x DC Jack
Power Consumption	DC5V:0.63W:3BTU
Environmental
Operating Temperature	0 - 50°C
Storage Temperature	-20 - 60°C
Humidity	0 - 80% RH, Non-Condensing
Physical Properties
Housing	Metal
Weight	0.06 kg ( 0.13 lb )
Dimensions (L x W x H)	3.53 x 6.88 x 2.06 cm (1.39 x 2.71 x 0.81 in.)
Carton Lot	10 pcs
Note	For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
