ATEN VE814A-AT-U HDMI HDBaseT Extender with Dual Output (4K@100m) (HDBaseT Class A)
Model # VE814A-AT-U
-
SKU: VE814A-AT-U
- Pick Up Available
- Australian Warranty
- Checkout Securely

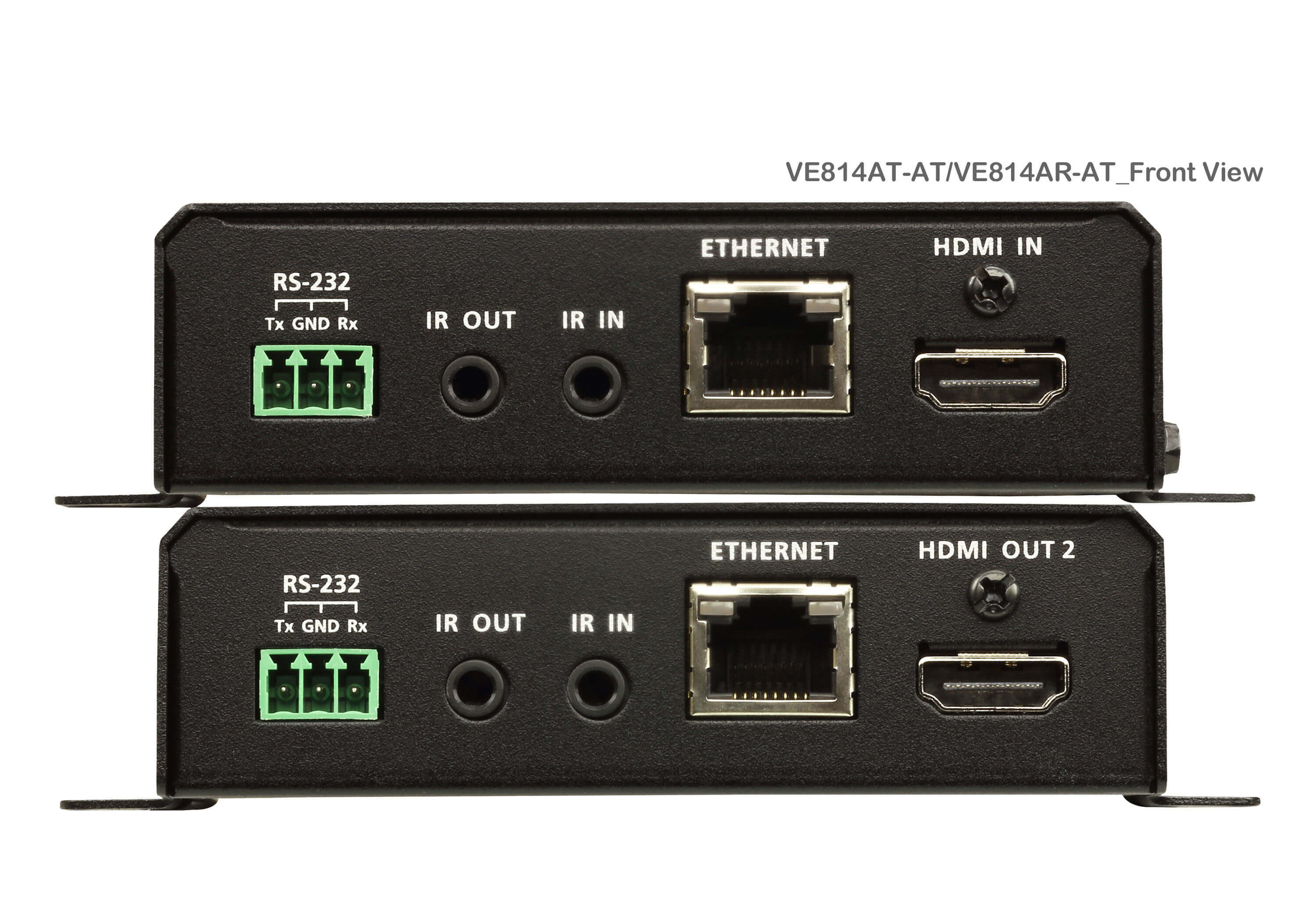

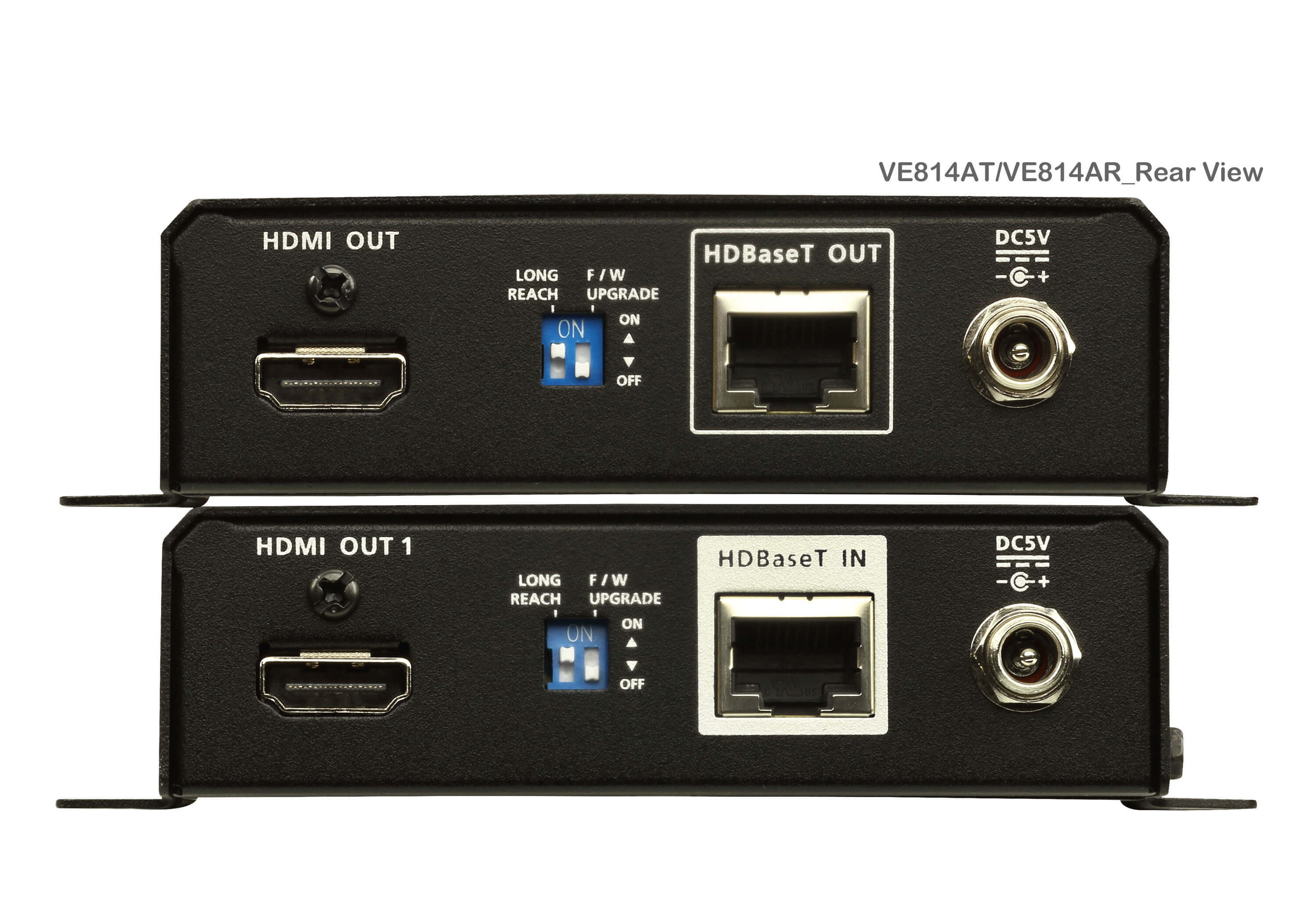

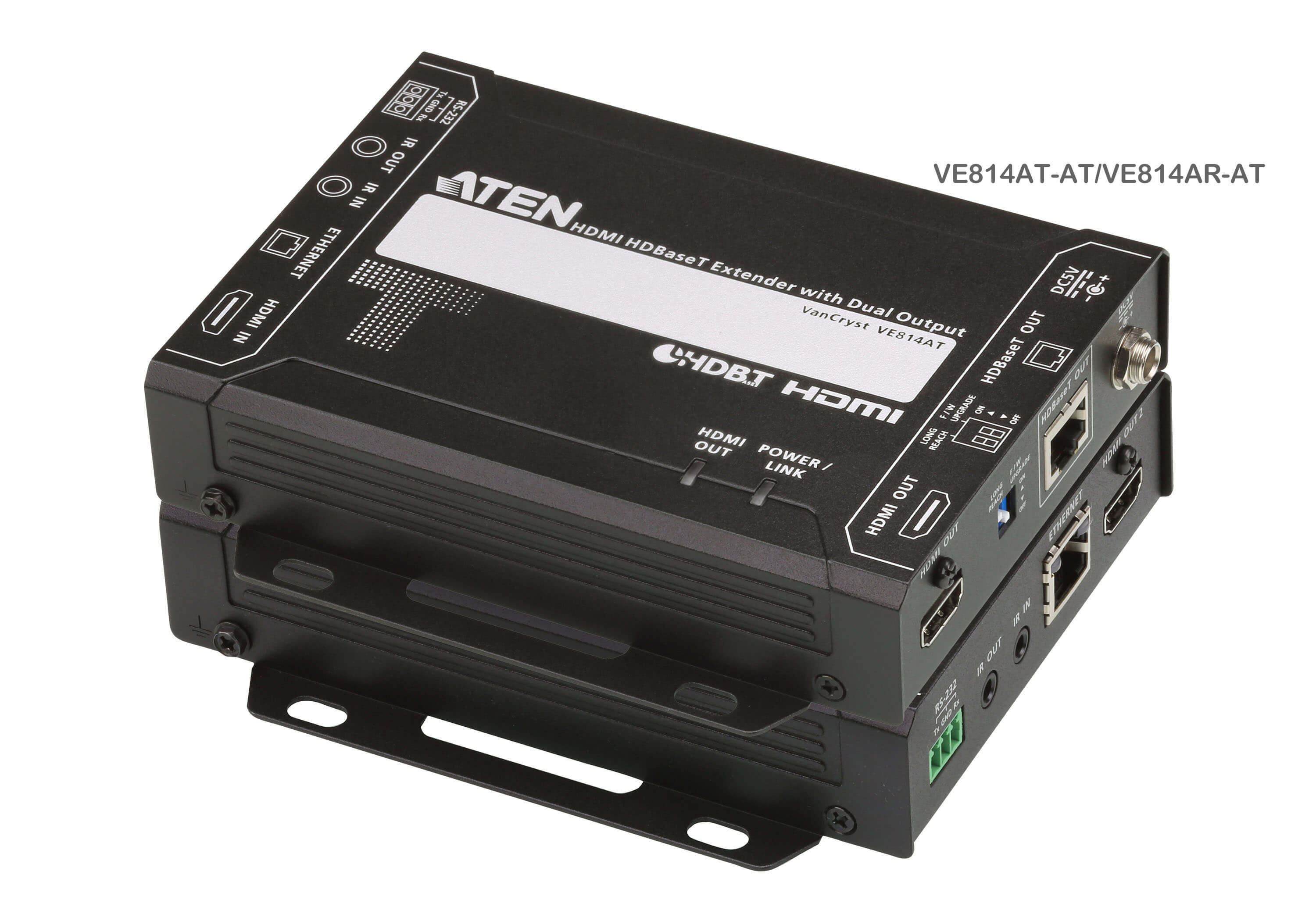

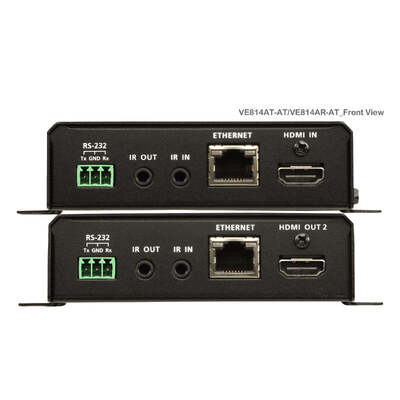

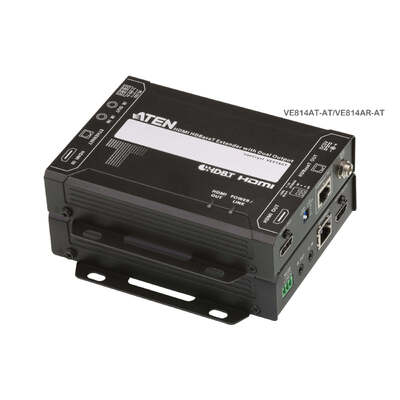

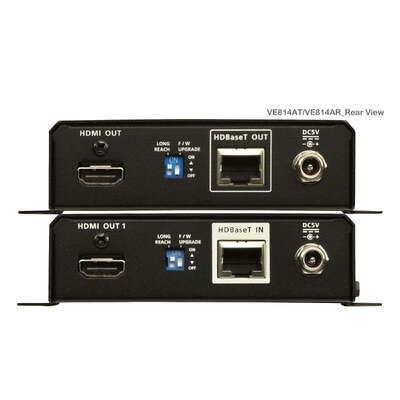

ATEN VE814A is an HDBaseT Video Extender that is capable of sending HDMI signals up to 100 m over a single Cat 5e/6/6a or ATEN 2L-2910 Cat 6 cable. Featuring dual synchronous outputs, the VE814A can transmit video signal to two remote displays and one at the local side. This HDCP 2.2-compliant extender meets the HDMI Specification, including 3D, Deep Color, the maximum data rate of (10.2 Gbps), and 4K video quality up to 100 m.
The VE814A supports RS-232 and IR signaling pass-through, allowing you to control the HDMI source device from the remote unit (VE814AR) while granting access to the HDMI display device from the local unit (VE814AT). In addition, it supports Long Reach Mode that extends HDMI signals up to 150 m, 1080p, via a single Cat 5e/6 cable.
The VE814A is a powerful solution for where digital signage is required, such as bars, educational spaces, and public transportation stations, allowing display of identical contents at different spots.
Package Contents
- 1x VE814AT Transmitter
- 1x VE814AR Receiver
- 1x IR Transmitter Cable
- 1x IR Receiver Cable
- 2x RS-232 Terminal Blocks
- 2x Power Adapters
- 1x User Instructions
(VE814A-AT-U)
| Function | VE814AR | VE814AT |
| Video Input | ||
| Interfaces | N/A | 1 x HDMI Type A Female (Black) |
| Impedance | N/A | 100 ? |
| Max. Distance | N/A | 3 m |
| Video Output | ||
| Interfaces | 2 x HDMI Type A Female (Black) | 1 x HDMI Type A Female (Black) |
| Impedance | 100 ? | 100 ? |
| Max. Distance | 3 m | 3 m |
| Video | ||
| Max. Data Rate | 10.2Gbps (3.4Gbps per lane) | 10.2Gbps (3.4Gbps per lane) |
| Max. Pixel Clock | 340 MHz | 340 MHz |
| Compliance | HDMI (3D, Deep Color, 4K) HDCP2.2 Compatible Consumer Electronics Control (CEC) | HDMI (3D, Deep Color, 4K) HDCP2.2 Compatible Consumer Electronics Control (CEC) |
| Max. Resolutions / Distance | Up to 4K@70m (Cat 5e/6) / 100m (Cat 6a/ATEN 2L-2910 Cat6); 1080p@100m (Cat 5e/6/6a) *4K supported: 4096 x 2160 / 3840 x 2160 @ 60Hz (4:2:0); 4096 x 2160 / 3840 x 2160 @ 30Hz (4:4:4) | Up to 4K@70m (Cat 5e/6) / 100m (Cat 6a/ATEN 2L-2910 Cat6); 1080p@100m (Cat 5e/6/6a) *4K supported: 4096 x 2160 / 3840 x 2160 @ 60Hz (4:2:0); 4096 x 2160 / 3840 x 2160 @ 30Hz (4:4:4) |
| Audio | ||
| Input | N/A | 1 x HDMI Type A Female (Black) |
| Output | 2 x HDMI Type A Female (Black) | 1 x HDMI Type A Female (Black) |
| Connectors | ||
| Unit To Unit | 1 x RJ-45 Female | 1 x RJ-45 Female |
| Power | 1 x DC Jack (Black) with locking | 1 x DC Jack (Black) with locking |
| Control | ||
| RS-232 | Connector: 1 x Terminal Block, 3 pole Baud Rate: 57600, Data Bits:8, Stop Bits:1, no parity and flow control | Connector: 1 x Terminal Block, 3 pole Baud Rate: 57600, Data Bits:8, Stop Bits:1, no parity and flow control |
| IR | 2 x Mini Stereo Jack Female (Black) | 2 x Mini Stereo Jack Female (Black) |
| Ethernet | 1 x RJ-45 Female Note: The RJ-45 ports is functional for device supporting the Ethernet port only | 1 x RJ-45 Female Note: The RJ-45 ports is functional for device supporting the Ethernet port only |
| Switches | ||
| Long Reach Mode Switch | 1 x Slide Switch - ON/OFF | 1 x Slide Switch - ON/OFF |
| Firmware Upgrade | 1 x Slide Switch - ON/OFF | 1 x Slide Switch - ON/OFF |
| Power Consumption | DC5V:7.87W:37BTU | DC5V:5.09W:24BTU |
| Environmental | ||
| Operating Temperature | 0 - 40°C | 0 - 40°C |
| Storage Temperature | -20 - 60°C | -20 - 60°C |
| Humidity | 0 - 80% RH, Non-Condensing | 0 - 80% RH, Non-Condensing |
| Physical Properties | ||
| Housing | Metal | Metal |
| Weight | 0.47 kg ( 1.04 lb ) | 0.45 kg ( 0.99 lb ) |
| Dimensions (L x W x H) with bracket | 14.02 x 12.30 x 3.00 cm (5.52 x 4.84 x 1.18 in.) | 14.02 x 12.30 x 3.00 cm (5.52 x 4.84 x 1.18 in.) |
| Dimensions (L x W x H) without bracket | 13.60 x 10.10 x 2.90 cm (5.35 x 3.98 x 1.14 in.) | 13.60 x 10.10 x 2.90 cm (5.35 x 3.98 x 1.14 in.) |
| Note | The VE814A-AT supports Ethernet function and the VE814A-ATA does not. | The VE814A-AT supports Ethernet function and the VE814A-ATA does not. |
| SKU | VE814A-AT-U |
| Barcode # | 4719264646041 |
| Brand | ATEN |
| Shipping Weight | 1.2900kg |
