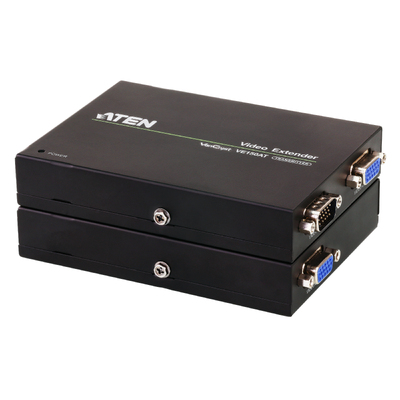

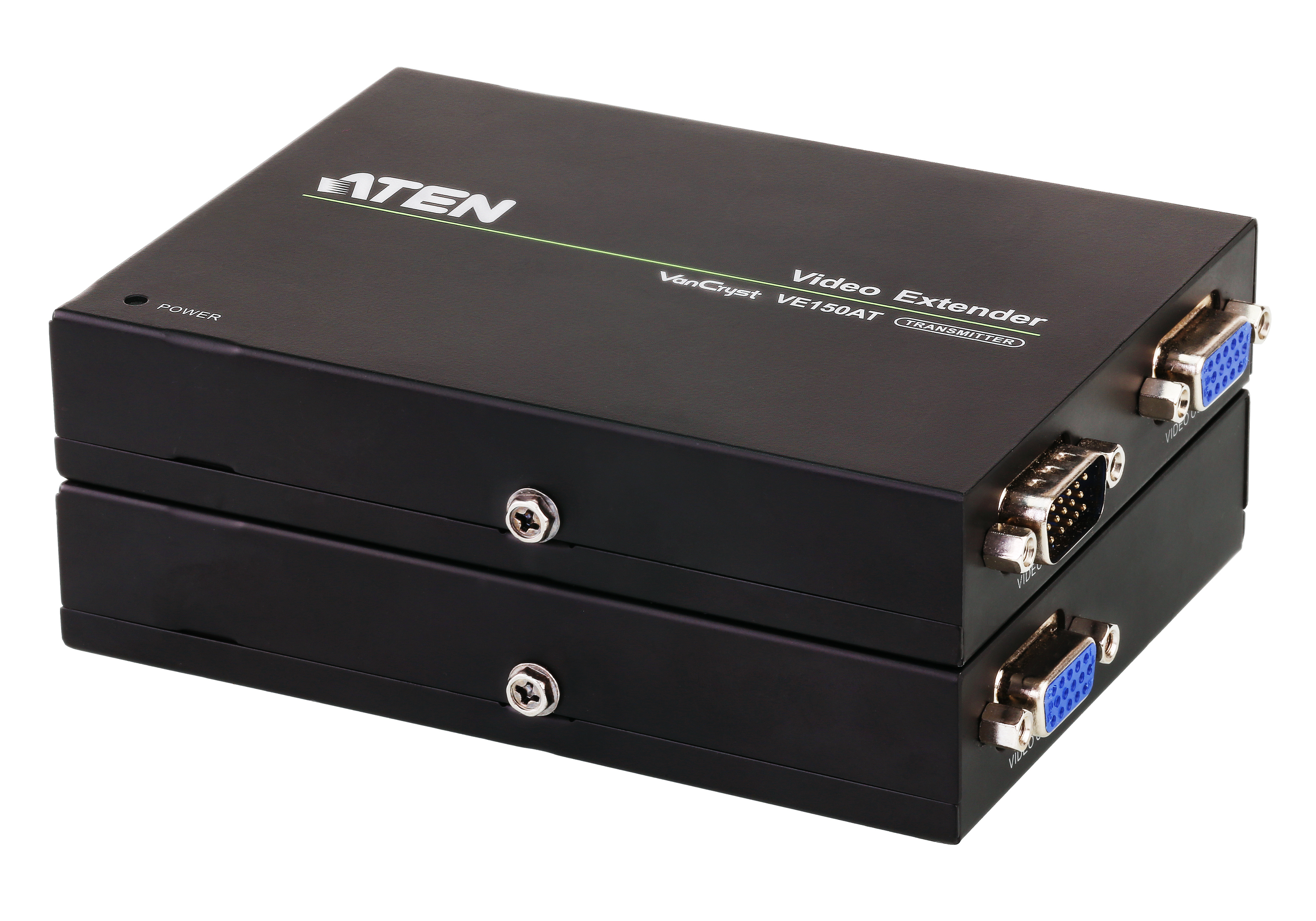

VE150A video extender comprises a local transmitting unit and a remote receiving unit which are connected by standard Cat 5e cables. The distance of both units can be extended up to 150m. It is ideal for factories and construction sites, or any location where the display may need to expose in a risky setting, but you want the system to be kept in a safe location.

Package Contents

1x VE150AT Video Extender (Local unit)
1x VE150AR Video Extender (Remote unit)
2x Power Adapters
1x VGA Cable (1.8m/6ft)
1x Mounting Kit
1x User Instructions

(VE150A-AT-U)

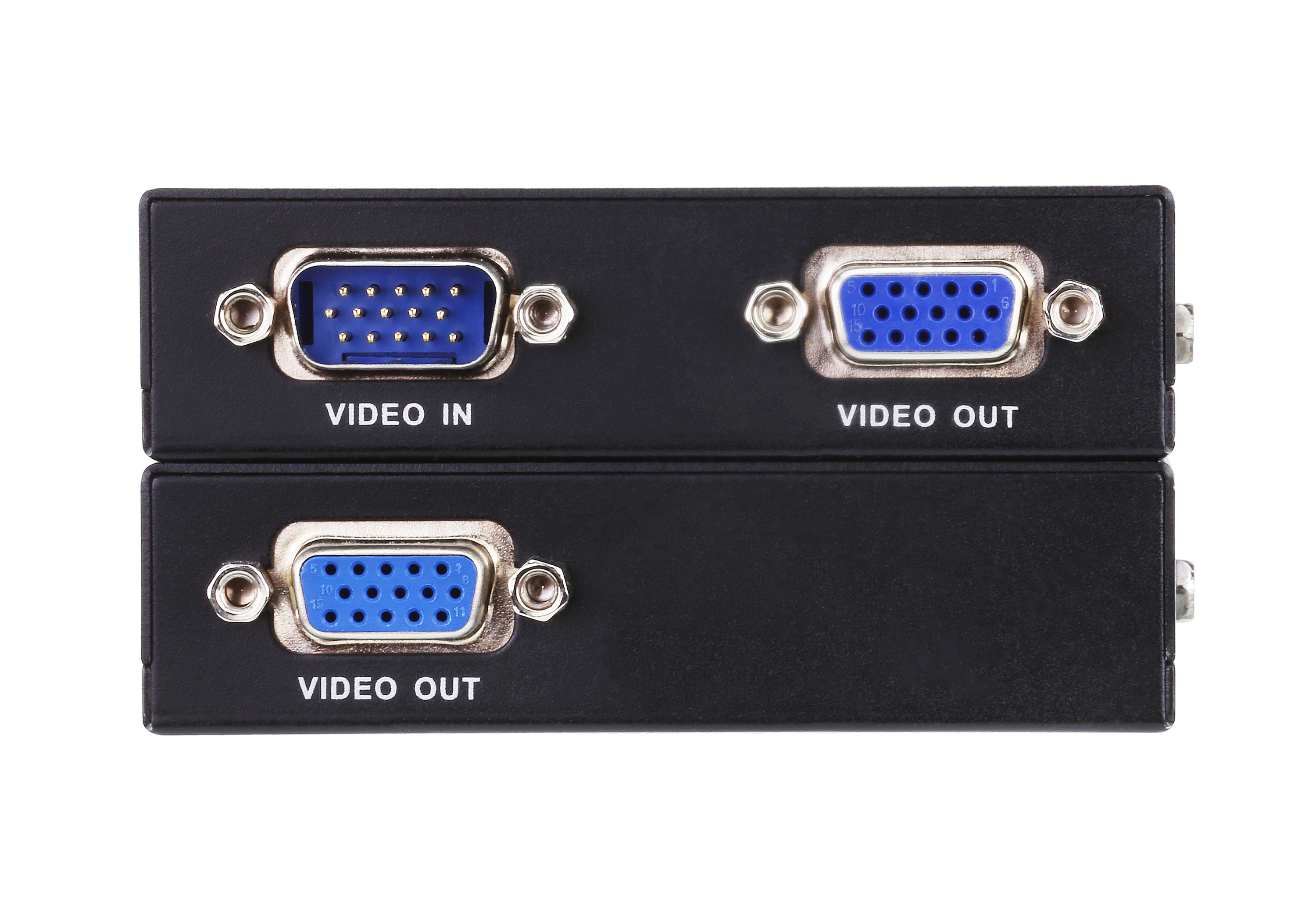

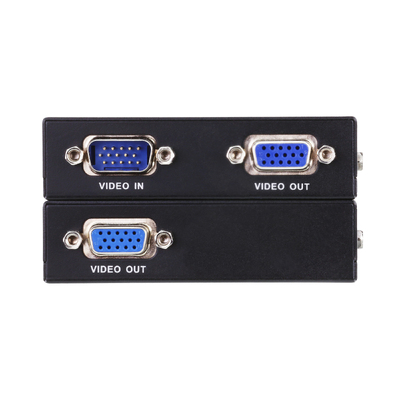

Function	VE150AR	VE150AT
Video Input
Interfaces	N/A	1 x HDB-15 Male (Blue)
Impedance	N/A	75 ?
Max. Distance	N/A	1.8 m
Video Output
Interfaces	1 x HDB-15 Female (Blue)	1 x HDB-15 Female (Blue)
Impedance	75 ?	75 ?
Video
Max. Bandwidth	300 MHz	300 MHz
Max. Resolutions / Distance	Up to 1920 x 1200@30m; 1280 x 1024@150m	Up to 1920 x 1200@30m; 1280 x 1024@150m

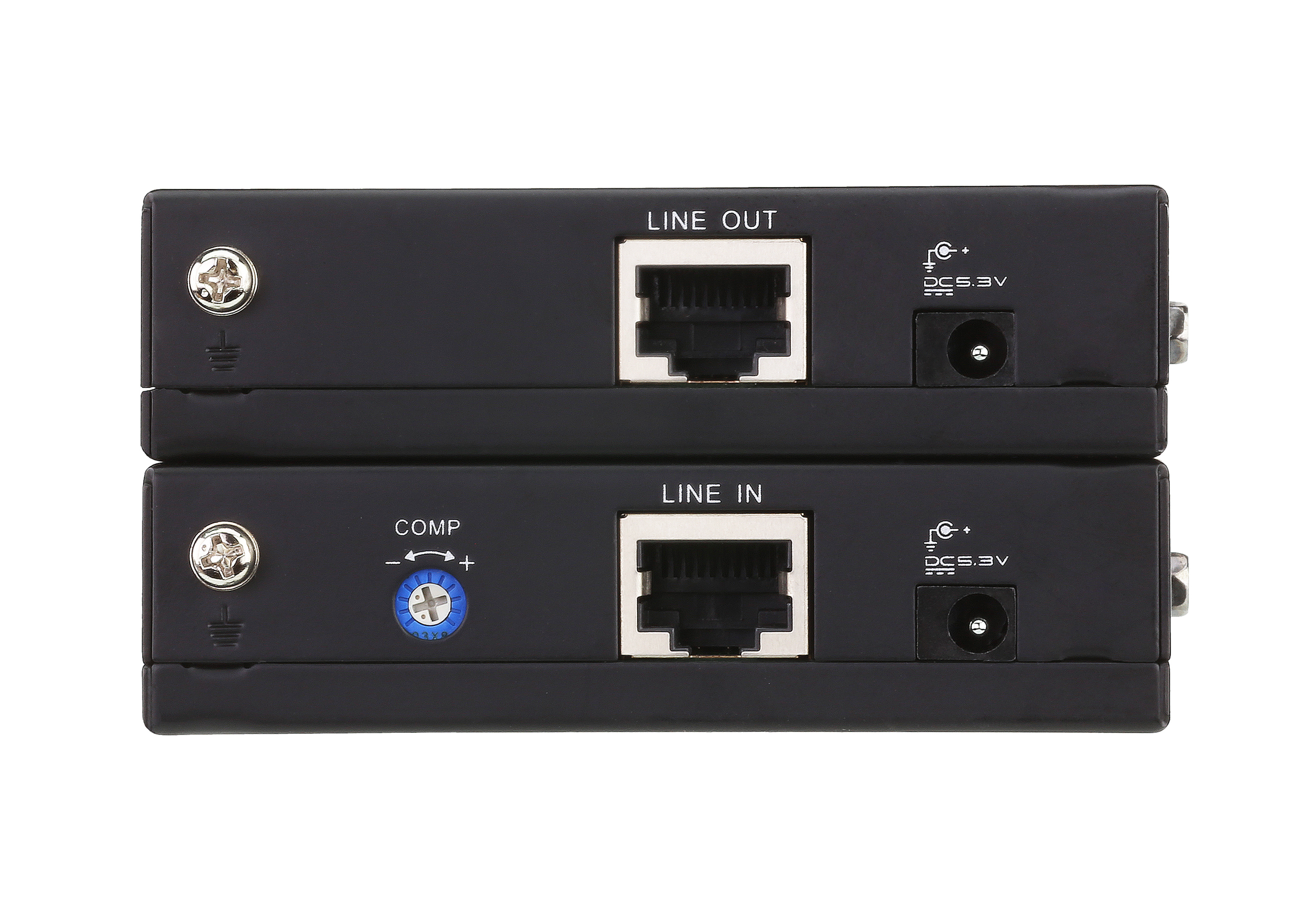

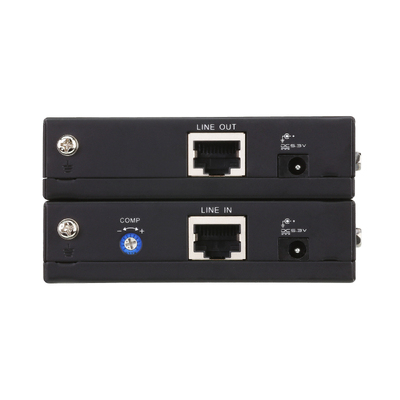

Connectors
Power	1 x DC Jack	1 x DC Jack
Power Consumption	DC5.3V:0.87W:8BTU	DC5.3V:1.35W:11BTU
Environmental
Operating Temperature	0 - 50°C	0 - 50°C
Storage Temperature	-20 - 60°C	-20 - 60°C
Humidity	0 - 80% RH, Non-Condensing	0 - 80% RH, Non-Condensing
Physical Properties
Dimensions (L x W x H)	12.77 x 9.04 x 2.26 cm (5.03 x 3.56 x 0.89 in.)	12.77 x 9.04 x 2.26 cm (5.03 x 3.56 x 0.89 in.)
Housing	Metal	Metal
Weight	0.24 kg ( 0.53 lb )	0.24 kg ( 0.53 lb )
Carton Lot	5 pcs	5 pcs
Note	For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
