StarTech HDMI Extender 70 m Extended Range- Black - EXTEND-HDMI-4K40C6P1
Model # EXTEND-HDMI-4K40C6P1
-
SKU: EXTEND-HDMI-4K40C6P1
- Pick Up Available
- Australian Warranty
- Checkout Securely
4K HDMI Extender over CAT6/CAT5e with PoC and IR
Extend HDMI video and 7.1-channel audio over one network cable: 4K 30Hz up to 40m on CAT6 or 1080p up to 70m.
Resolution-based reach
Supports 4K 30Hz up to 40m over CAT6 or 35m over CAT5e, and 1080p up to 70m or 60m respectively.
Single-adapter PoC
One 12V power adapter at the transmitter powers both transmitter and receiver over the extension cable.
Local HDMI and IR control
A transmitter HDMI output supports a local display or cascading, while the included IR kit controls the source remotely.
What to know
This is a point-to-point HDMI extender over dedicated CAT5e/CAT6 cabling, not an IP network device. Do not route it through an Ethernet switch. Maximum distance depends on cable category and video resolution, and the IR remote handset is not included.
Frequently asked questions
What does EXTEND-HDMI-4K40C6P1 do?
It extends an HDMI audio/video signal between the included transmitter and receiver over a direct CAT5e or CAT6 cable.
How far does EXTEND-HDMI-4K40C6P1 carry 4K video?
It supports 4K 30Hz up to 40m over CAT6 or up to 35m over CAT5e.
How far does EXTEND-HDMI-4K40C6P1 carry 1080p video?
It supports 1080p up to 70m over CAT6 or up to 60m over CAT5e.
Can EXTEND-HDMI-4K40C6P1 connect through an Ethernet switch?
No. It requires a direct point-to-point cable between the transmitter and receiver.
How is EXTEND-HDMI-4K40C6P1 powered?
The included adapter connects to the transmitter and Power over Cable supplies the receiver.
Does EXTEND-HDMI-4K40C6P1 support a local display?
Yes. The transmitter has an HDMI output for a local display or another compatible extender cascade.
What is included with EXTEND-HDMI-4K40C6P1?
The kit includes the transmitter, receiver, IR blaster, IR receiver, power adapter and quick-start guide.
What warranty applies to EXTEND-HDMI-4K40C6P1?
It is supplied by DeviceDeal as an Australian-market product and is backed by a 2-year StarTech.com manufacturer warranty in Australia.
Not sure this is the right product for your setup? Visit the DeviceDeal Buying Guides.
(EXTEND-HDMI-4K40C6P1)
Features and highlights
- HDMI transmitter and receiver kit for point-to-point extension
- 4K 30Hz up to 40m over CAT6 or 35m over CAT5e
- 1080p up to 70m over CAT6 or 60m over CAT5e
- HDMI 1.4, HDCP 1.4 and 4:4:4 chroma support
- HDMI 7.1-channel audio support
- Power over Cable from one transmitter-side adapter
- Local HDMI output supports a display or extender cascade
- Included 1.5m IR blaster and IR receiver cables
- Metal housings with integrated mounting brackets
- 2-year StarTech.com manufacturer warranty
Specifications
| Product type | Point-to-point HDMI extender transmitter and receiver kit |
|---|---|
| Maximum CAT6 resolution / distance | 4K 30Hz to 40m; 1080p to 70m |
| Maximum CAT5e resolution / distance | 4K 30Hz to 35m; 1080p to 60m |
| Maximum data rate | 10.2Gbps |
| Video standards | HDMI 1.4; HDCP 1.4; 4:4:4 chroma subsampling |
| Audio | HDMI 7.1-channel audio |
| Required cabling | CAT5e UTP or better; direct point-to-point connection |

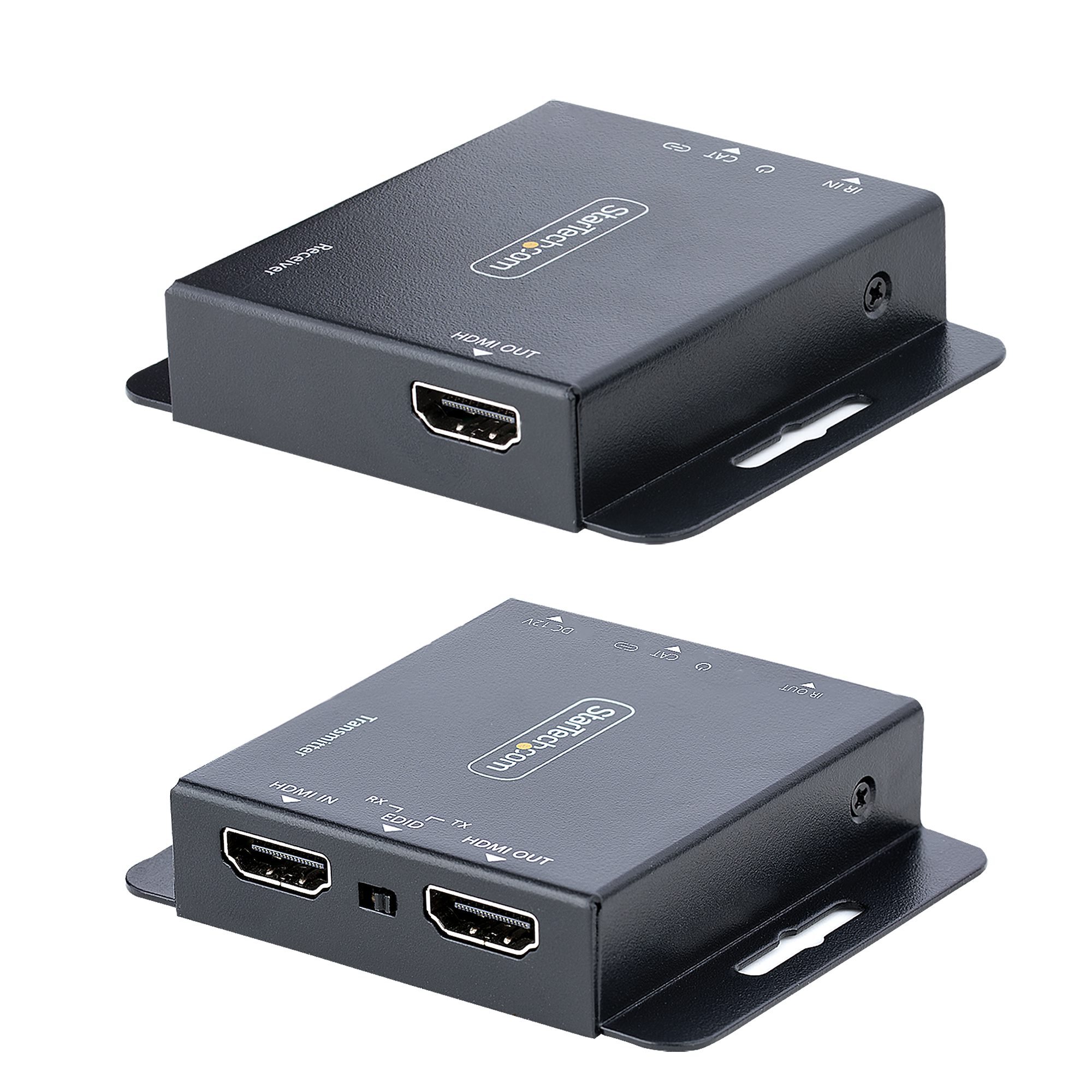

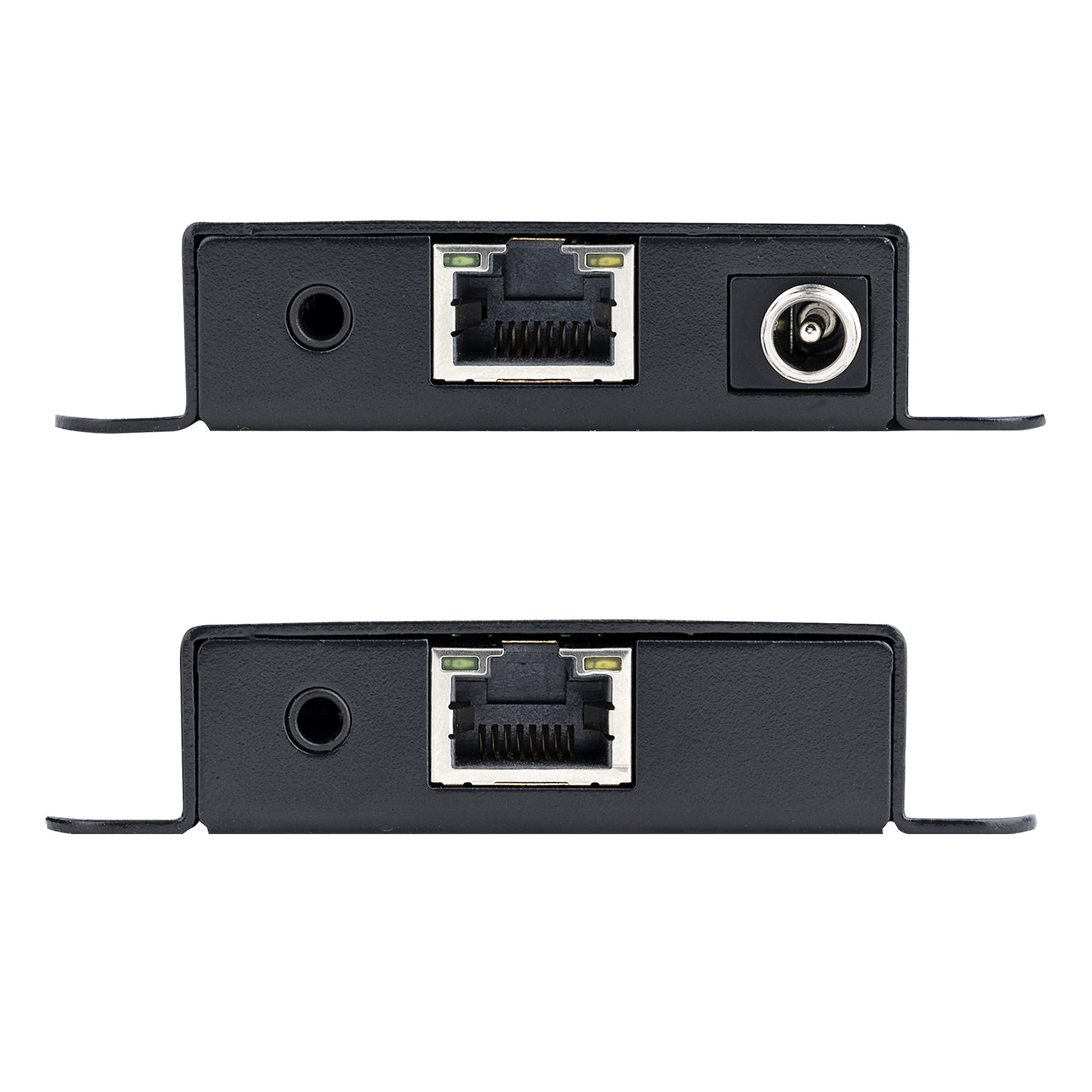

| Transmitter connectors | 2 × HDMI; 1 × RJ45; 1 × 3.5mm IR |
| Receiver connectors | 1 × HDMI; 1 × RJ45; 1 × 3.5mm IR |
| Daisy chain / local display | Yes, using the transmitter HDMI output |
| Power method | Power over Cable; one included AC adapter connects to transmitter |
| Power adapter output | 12V DC, 1A, centre-positive, plug type M |
| Software | OS independent; no drivers or IP configuration required |
| Indicators | Two power LEDs and two link LEDs across the kit |
| Environment | 0°C to 40°C operating; -20°C to 60°C storage; 2090% RH non-condensing |
| Housing and dimensions | Black metal; each unit approximately 80 × 71 × 17mm |
| Combined product weight | 212g |
| In the box | Transmitter, receiver, 1.5m IR blaster, 1.5m IR receiver, power adapter and quick-start guide |
| Warranty | 2-year StarTech.com manufacturer warranty |
| SKU | EXTEND-HDMI-4K40C6P1 |
| Barcode # | 065030895156 |
| Brand | STARTECH |
| Shipping Weight | 0.5400kg |
| Shipping Width | 0.008m |
| Shipping Height | 0.021m |
| Shipping Length | 0.011m |
