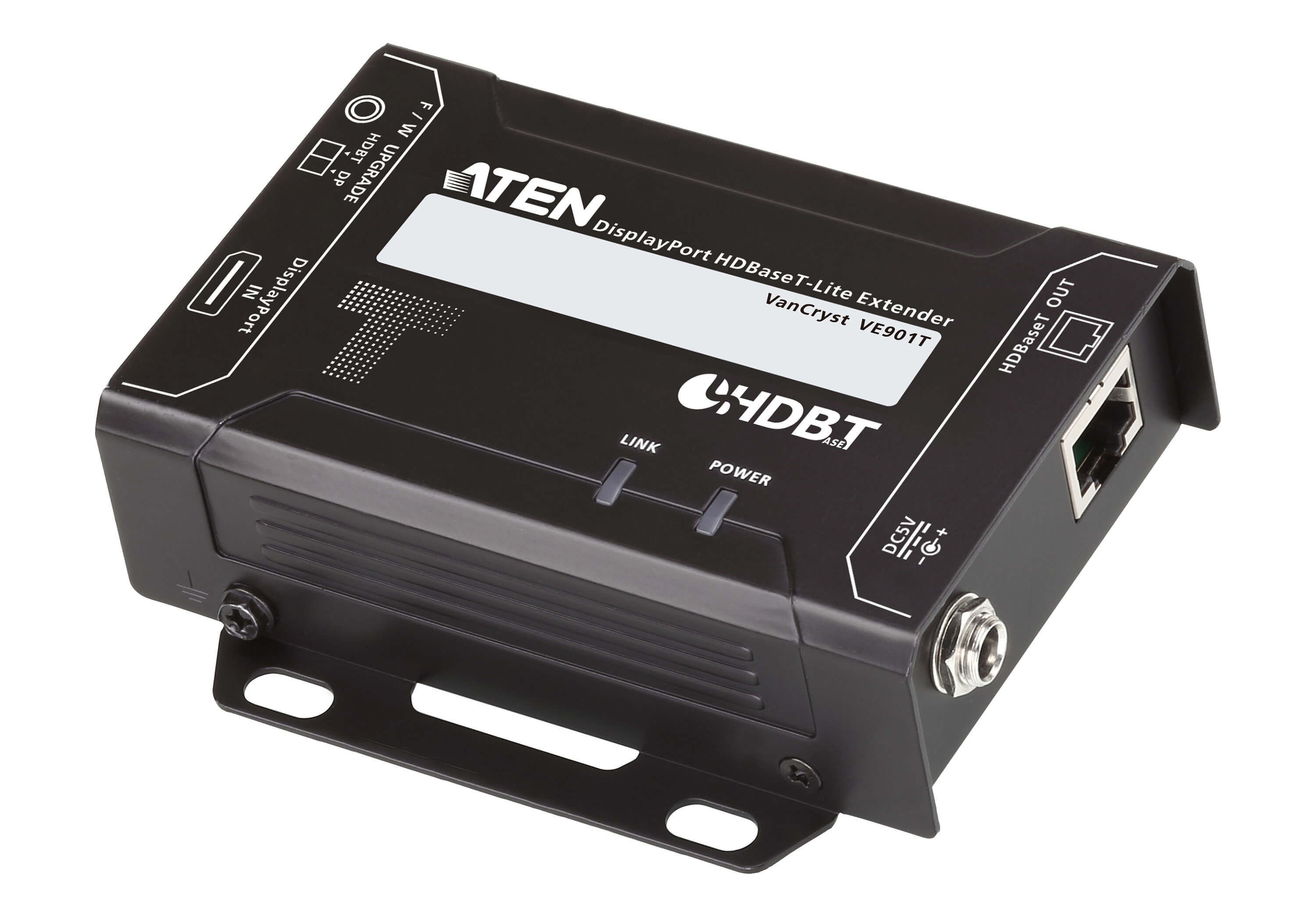

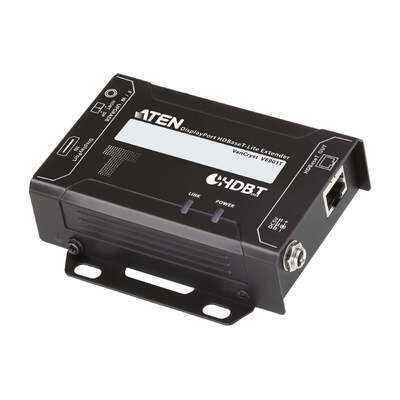

ATEN VE901T-AT-U DisplayPort HDBaseT-Lite Transmitter (4K@40m; 1080p@70m)
Model # VE901T-AT-U
-
SKU: VE901T-AT-U
- Pick Up Available
- Australian Warranty
- Checkout Securely
The VE901T DisplayPort HDBaseT-Lite Transmitter is able to extend a DisplayPort display up to 70 m using a Cat 6/6a/ATEN 2L-2910 Cat 6 cable. This combination of ATEN and HDBaseT™ technology supports sharing 4K media up to 40 m away, offering a simple, adaptable, and cost-effective solution for any professional A/V installation.
The VE901T DisplayPort HDBaseT-Lite Transmitter is the perfect choice for professional A/V installations that require video signal interference protection, such as in medical and military installations. With its lightweight and easy-to-mount design, and a slip-resistant DC Jack lock mechanism, the VE901T can be installed in a multitude of locations while ensuring peace of mind with its reliability.
Package Contents
- 1x VE901T DisplayPort HDBaseT-Lite Transmitter
- 1x Power Adapter
- 1x User Instructions
(VE901T-AT-U)
| Video Input | |

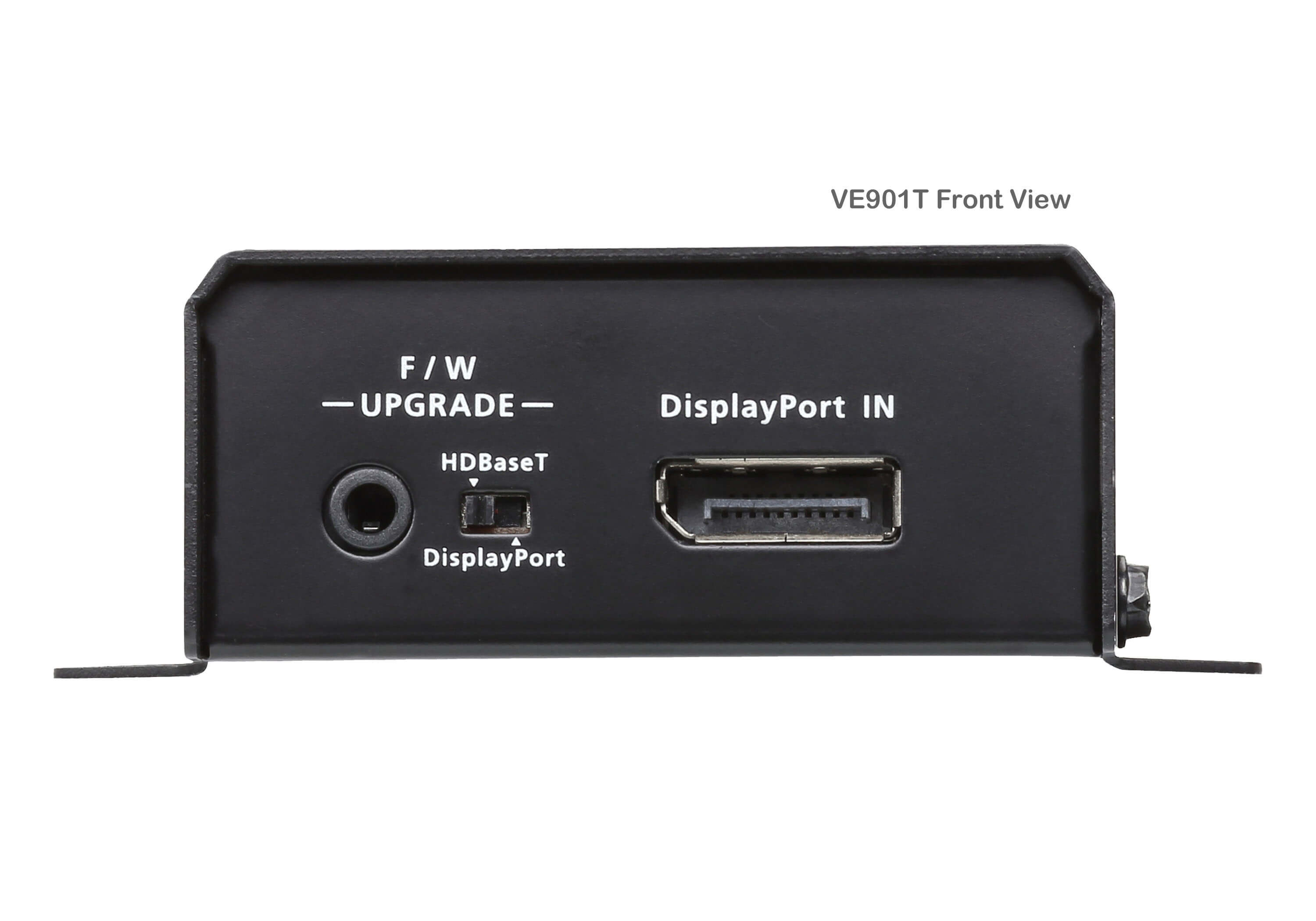

| Interfaces | 1 x DisplayPort Female (Black) |
| Impedance | 100 ? |
| Max. Distance | 1.5 m |
| Video | |
| Max. Data Rate | 10.2Gbps (3.4Gbps per lane) |
| Max. Pixel Clock | 297 MHz |
| Compliance | DisplayPort (Deep Color, 4K) HDCP Compatible |
| Max. Resolutions / Distance | Up to 4K@35m (Cat 5e/6) / 40m (Cat 6a/ATEN 2L-2910 Cat6); 1080p@60m (Cat 5e/6) / 70m (Cat 6a/ATEN 2L-2910 Cat6) *4K supported: 4096 x 2160 / 3840 x 2160 @ 30Hz (4:4:4) |
| Audio | |
| Output | N/A |
| Input | 1 x DisplayPort Female (Black) |
| Connectors | |

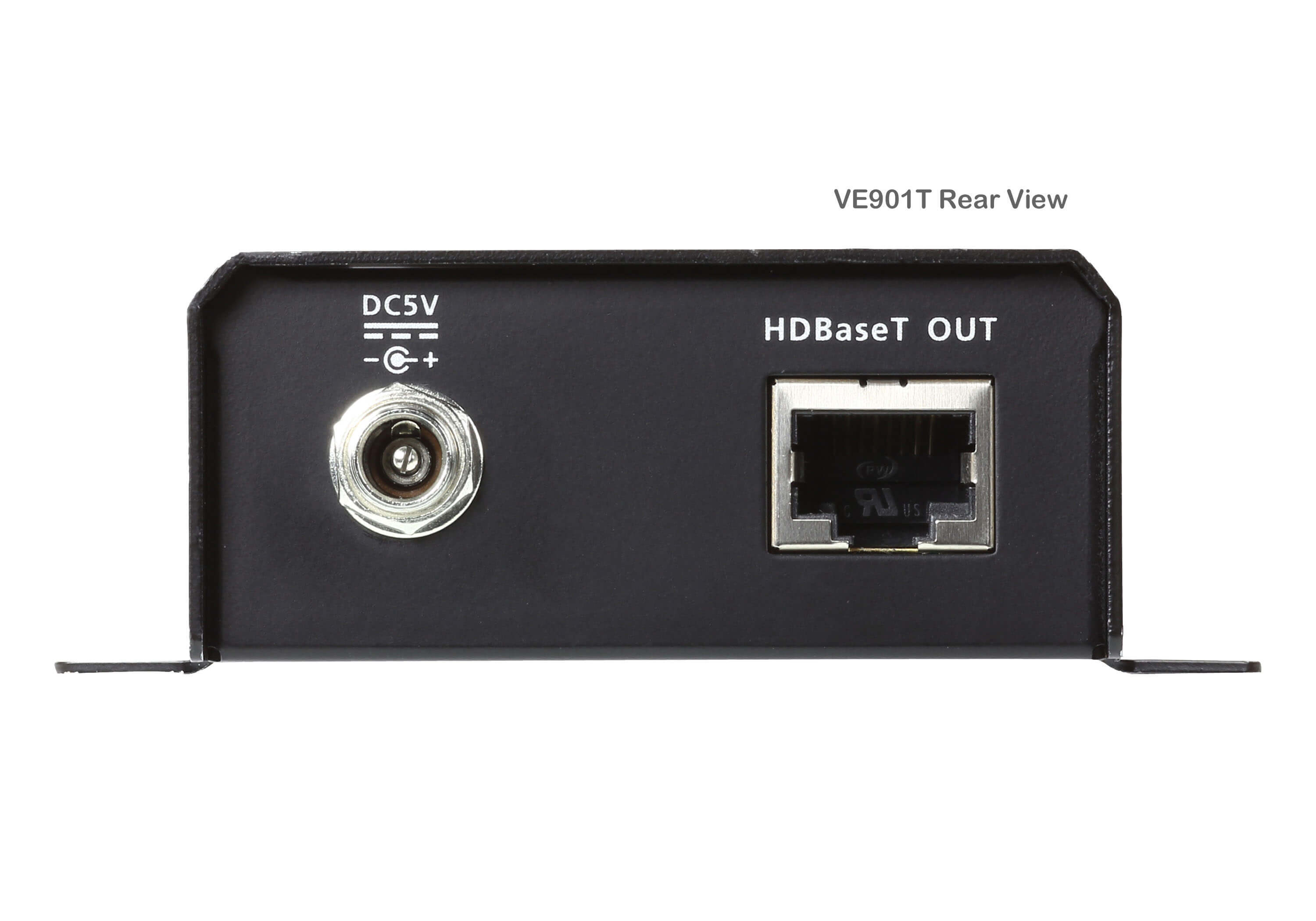

| Power | 1 x DC Jack (Black) with locking |
| Unit To Unit | 1 x RJ-45 Female |
| Power Consumption | DC5V:2.84W:13BTU |
| Environmental | |
| Operating Temperature | 0-40°C |
| Storage Temperature | -20 - 60°C |
| Humidity | 0 - 80% RH, Non-Condensing |
| Physical Properties | |
| Housing | Metal |
| Weight | 0.24 kg ( 0.53 lb ) |
| Dimensions (L x W x H) with bracket | 9.77 x 8.70 x 3.00 cm (3.85 x 3.43 x 1.18 in.) |
| Dimensions (L x W x H) without bracket | 9.42 x 6.60 x 2.90 cm (3.71 x 2.6 x 1.14 in.) |
| SKU | VE901T-AT-U |
| Barcode # | 4719264645211 |
| Brand | ATEN |
| Shipping Weight | 0.2400kg |
