StarTech.com · HDBOOST4K2

HDMI 2.0 Signal Booster, 4K 60Hz up to 14m

Amplify an HDMI 2.0 signal between two certified HDMI cables for 4K 60Hz transmission across a combined run of up to 14m.

4K 60Hz14m total run18GbpsHDCP 2.2

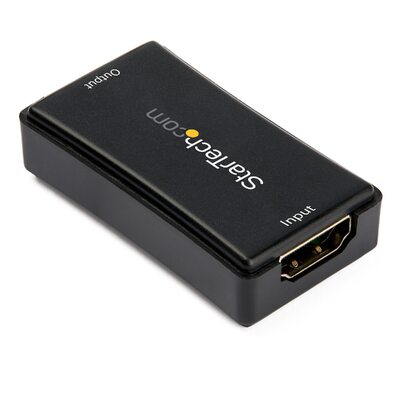

StarTech HDBOOST4K2 HDMI 2.0 Signal Booster, 4K 60Hz up to 14m

Built for dependable use

4K 60Hz extension

Supports a combined HDMI cable run up to 14m at 3840 × 2160 and 60Hz.

Balanced cable placement

Use up to 7m of certified HDMI cable on each side of the inline booster.

HDMI 2.0 bandwidth

Supports bandwidth up to 18Gbps with 4:4:4 chroma and HDCP 2.2.

Surround audio support

Carries compatible 7.1-channel HDMI audio.

What to know before you connect

4K 60Hz requires compatible HDMI 2.0 sources, displays and certified cables.
For 4K 60Hz, use no more than 7m of cable on either side.
Lower resolutions may support longer runs, depending on equipment and cabling.
The included Micro-USB cable provides supplemental power when needed.

Australian version with official warranty

Supplied by DeviceDeal and covered by the official StarTech.com 2 years manufacturer warranty in Australia. Keep your DeviceDeal tax invoice as proof of purchase; coverage is subject to StarTech.com terms, eligibility and product assessment.

Frequently asked questions

What does the StarTech HDBOOST4K2 do?

It boosts HDMI 2.0 between two cables to maintain compatible 4K 60Hz video over a longer total run.

What connections does the HDBOOST4K2 provide?

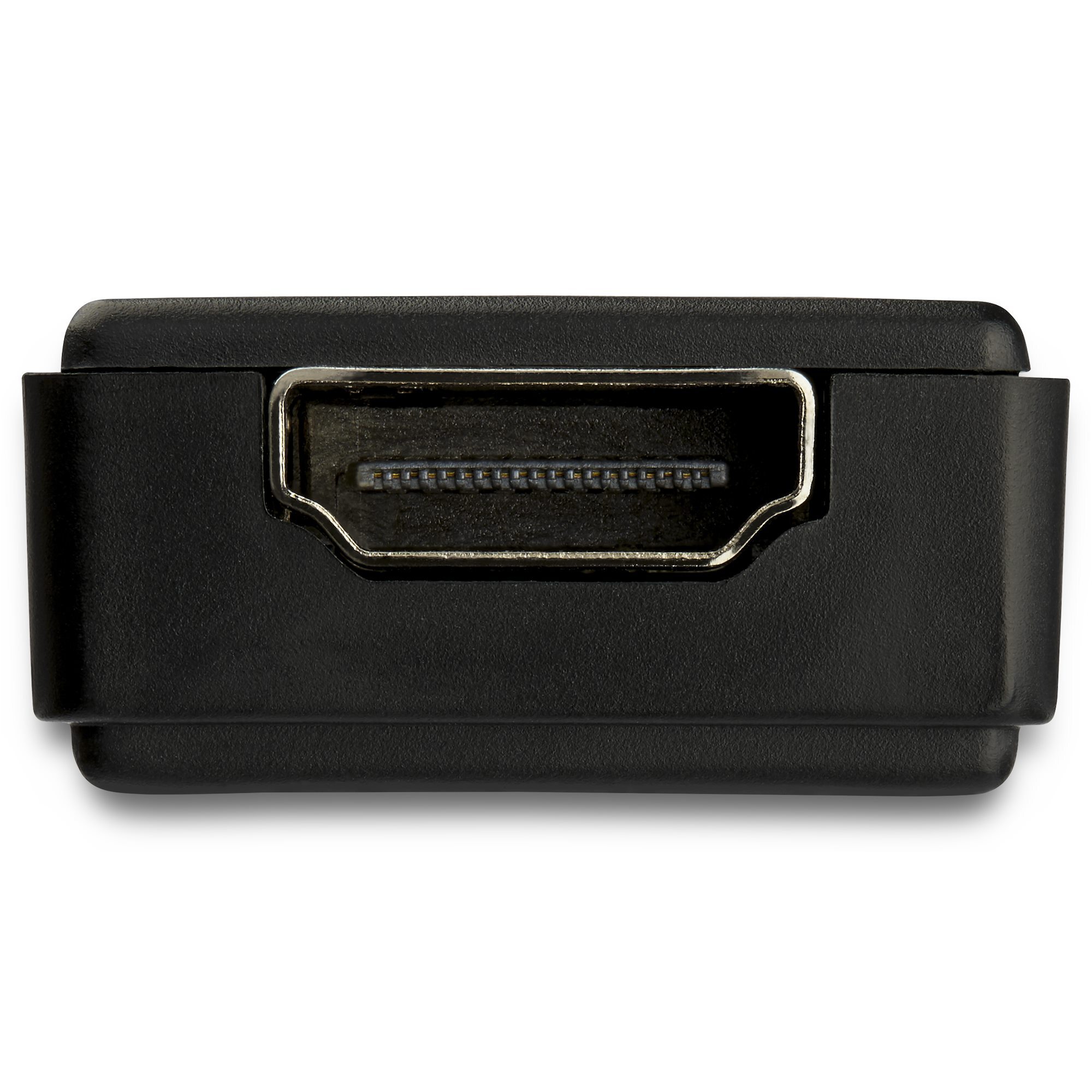

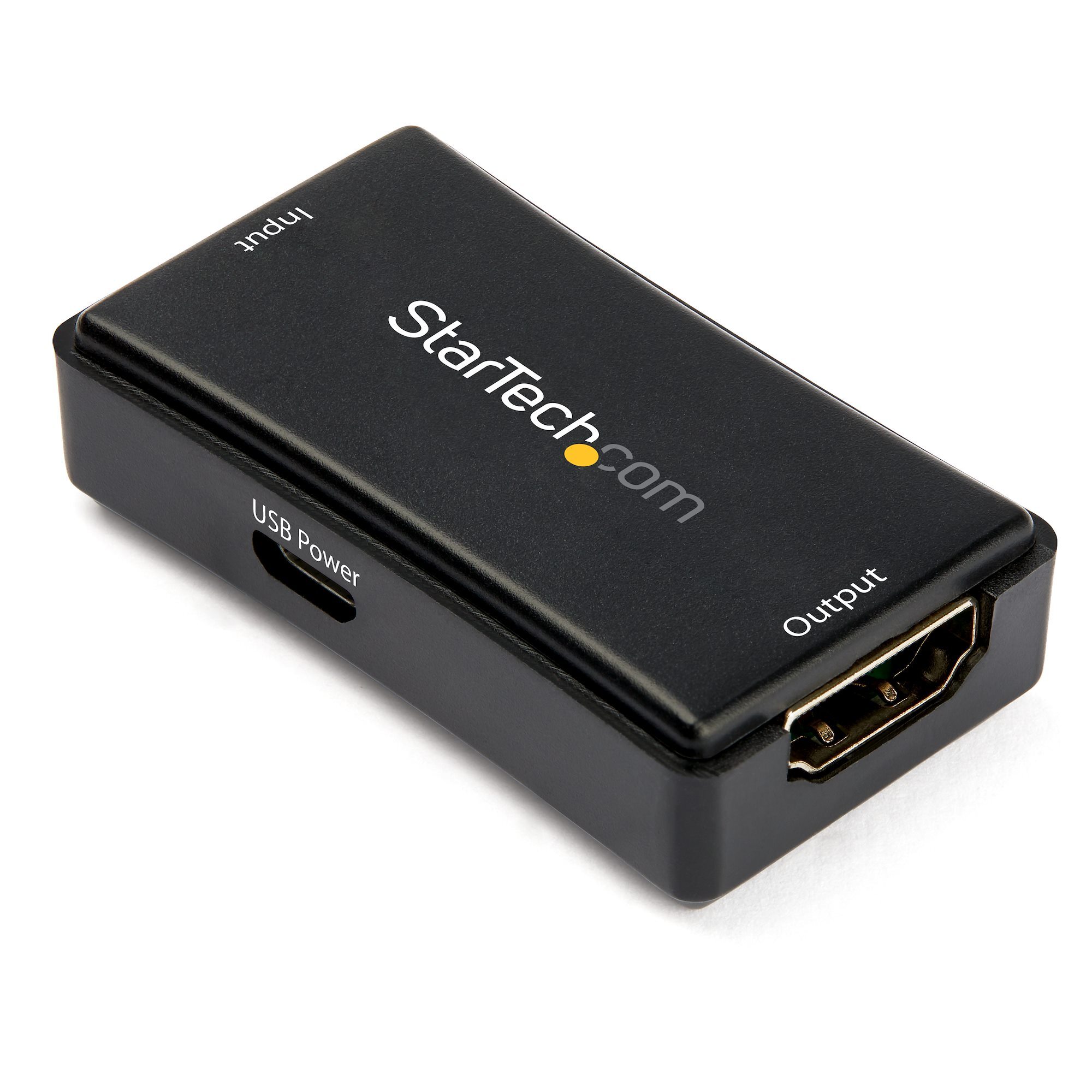

It provides one HDMI female input, one HDMI female output and a Micro-USB power input.

What is the maximum verified performance?

It supports 18Gbps and 4K 60Hz over a combined maximum HDMI cable run of 14m.

How is the HDBOOST4K2 powered?

External power is not required for standard applications; a 30cm Micro-USB cable is included when supplemental power is needed.

What compatibility should I check?

Use it with HDMI 2.0 sources, displays and certified HDMI cables for 4K 60Hz operation.

How long can each HDMI cable be at 4K 60Hz?

Use up to 7m from the source to the booster and up to 7m from the booster to the display.

What is included in the package?

The package includes the HDMI signal booster, a 30cm Micro-USB power cable and a quick-start guide.

What warranty applies in Australia?

The Australian-version HDBOOST4K2 supplied by DeviceDeal is covered by a 2 years official StarTech.com manufacturer warranty in Australia, subject to StarTech.com terms and assessment.

Not sure this is the right product for your setup? Visit the DeviceDeal Buying Guides.

(HDBOOST4K2)

Features and highlights

4K 60Hz extension

Supports a combined HDMI cable run up to 14m at 3840 × 2160 and 60Hz.

Balanced cable placement

Use up to 7m of certified HDMI cable on each side of the inline booster.

HDMI 2.0 bandwidth

Supports bandwidth up to 18Gbps with 4:4:4 chroma and HDCP 2.2.

Surround audio support

Carries compatible 7.1-channel HDMI audio.

Compact inline housing

The 28.5mm-long plastic booster is easy to position discreetly.

Key highlights

HDMI female input and output
Micro-USB power option
30cm USB cable included
No power required for standard applications

Official StarTech.com 2 years manufacturer warranty in Australia.

Technical specifications

StarTech HDBOOST4K2 · HDMI 2.0 Signal Booster, 4K 60Hz up to 14m

General

Maximum Operating Distance

30.48 m

Product Type

Signal Amplifier

Manufacturer Part Number

HDBOOST4K2

Manufacturer Website Address

http://www.StarTech/au

Manufacturer

StarTech

Product Name

Signal Amplifier

Brand Name

StarTech

Product Color

Black

USB

Yes

Number of HDMI Inputs

Number of HDMI Outputs

HDMI In

Yes

HDMI Out

Yes

Warranty Information

Warranty

2 Years

Official Hardware

AV Input

HDMI

AV Output

HDMI

Video Revision

HDMI 2.0

Audio

Yes, 7.1-channel

HDCP

HDCP 2.2

Cascadable

Official Performance

Maximum 4K 60Hz Distance

14m [45ft]

Maximum Cable per Side at 4K 60Hz

7m [22.5ft]

Bandwidth

18Gbps

Chroma

4:4:4

Power

Standard Applications

External power not required

Supplemental Input

5V DC Micro-USB

Power Consumption

Less than 2.5W

Official Physical Details

Material

Plastic

Dimensions

28.5 × 52 × 13.7mm

Weight

15g

Package Contents

Included

Quick-start guide

SKU	HDBOOST4K2
Barcode #	65030883795
Brand	Startech
Shipping Weight	0.1200kg
Shipping Width	0.003m
Shipping Height	0.017m
Shipping Length	0.014m

Australian warranty confidence

2 Years manufacturer warranty

This is the Australian version of StarTech HDBOOST4K2 supplied by DeviceDeal and covered by the official StarTech.com manufacturer warranty in Australia.

Please retain your DeviceDeal tax invoice as proof of purchase.

Warranty coverage and claims are subject to StarTech.com warranty terms, eligibility requirements and product assessment.
