ATEN VE810-AT-U HDMI/IR Cat 5 Extender (1080p@40m)
Model # VE810-AT-U
-
SKU: VE810-AT-U
- Pick Up Available
- Australian Warranty
- Checkout Securely

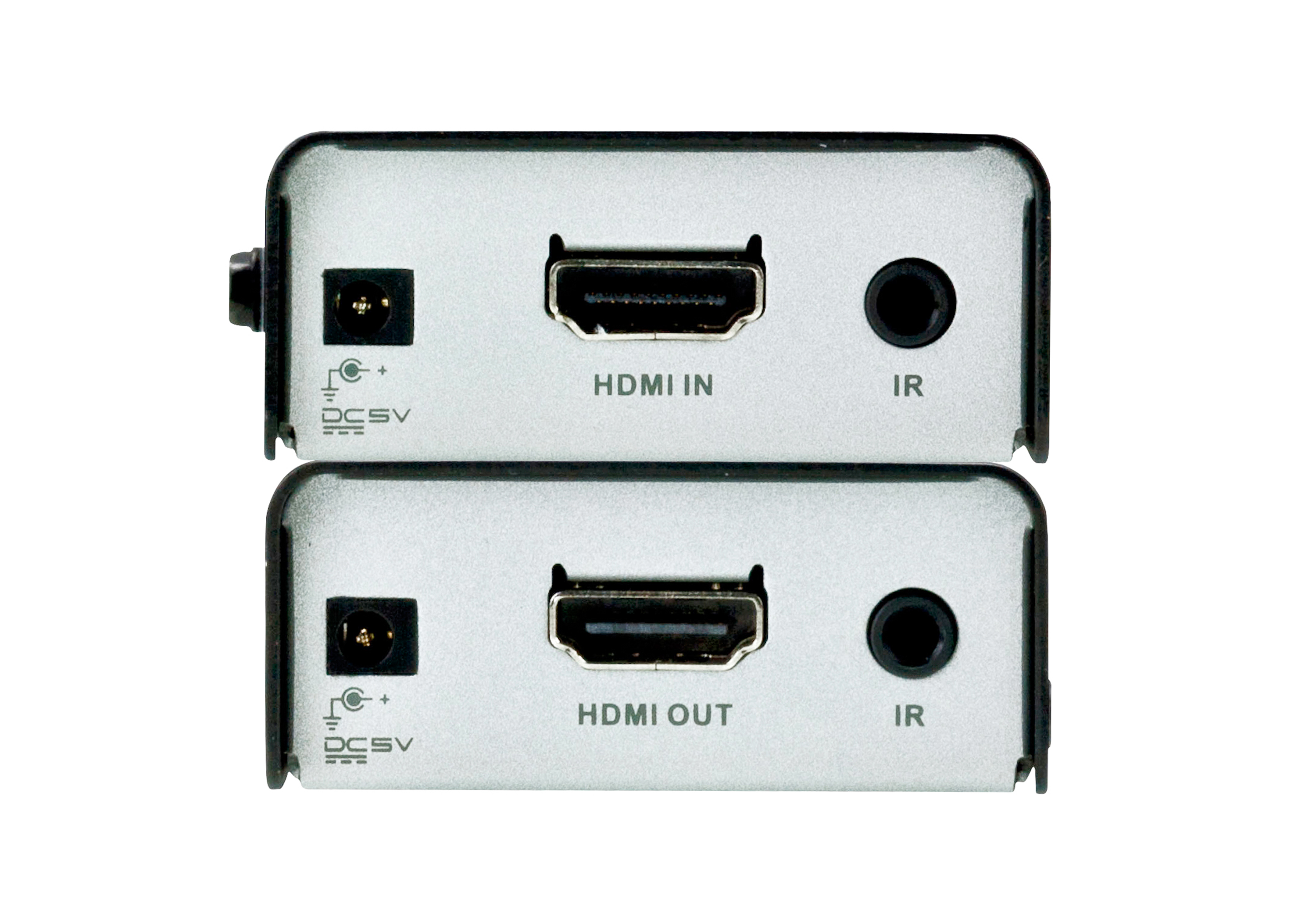

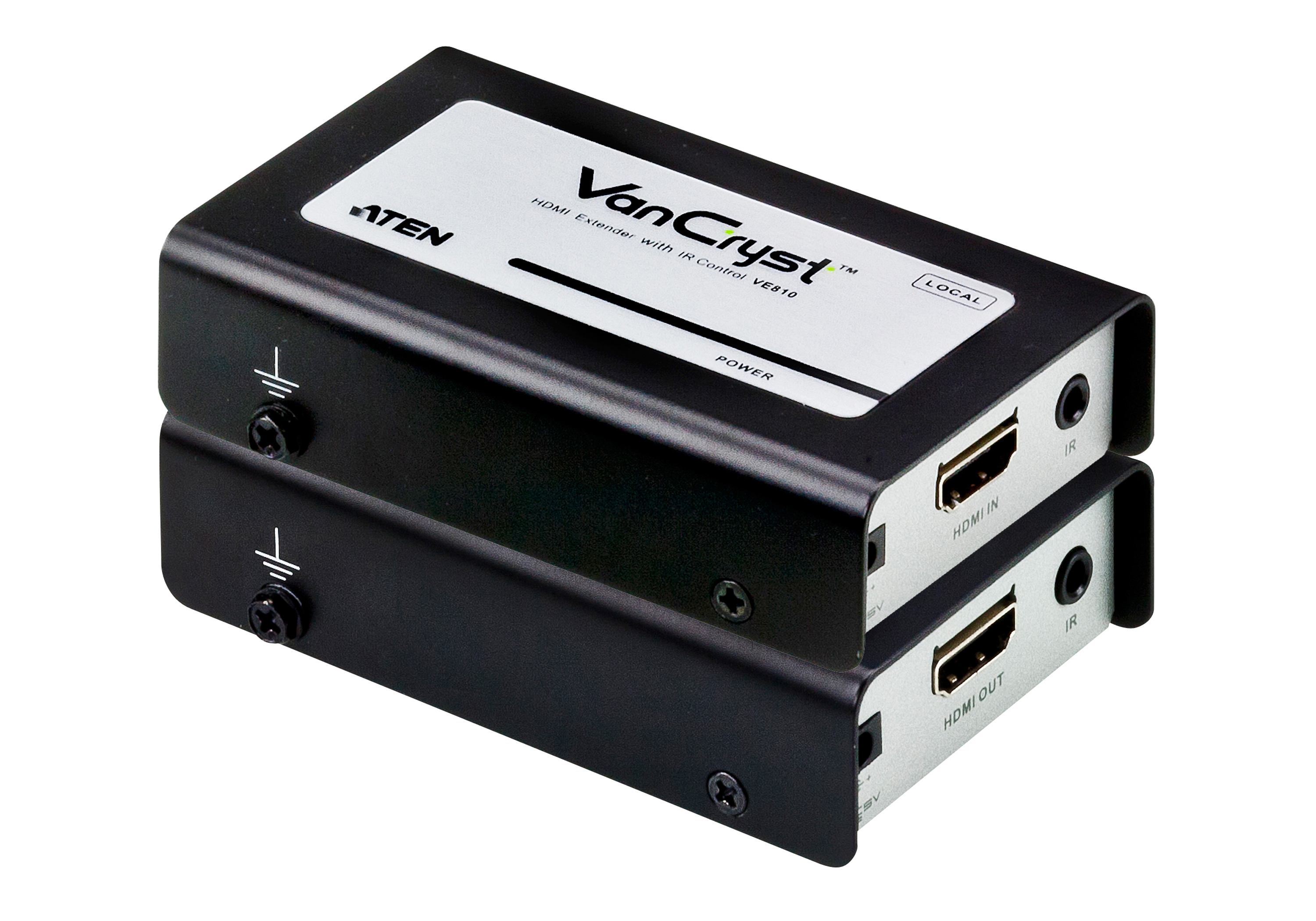

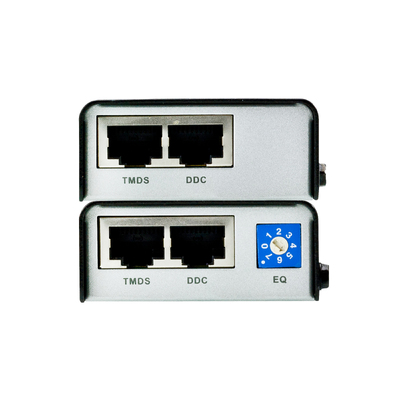

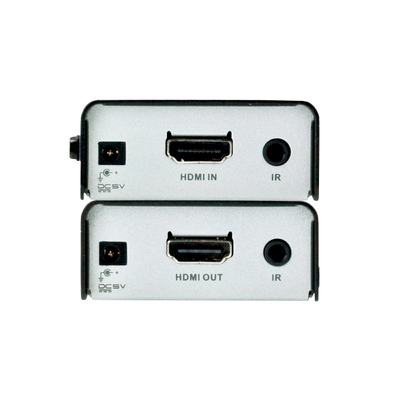

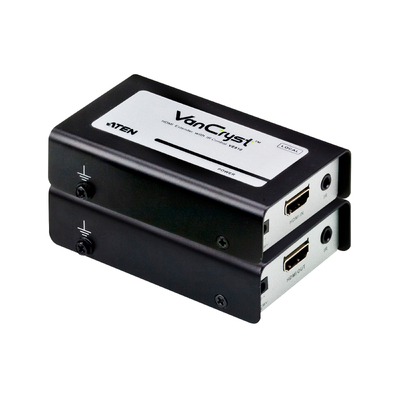

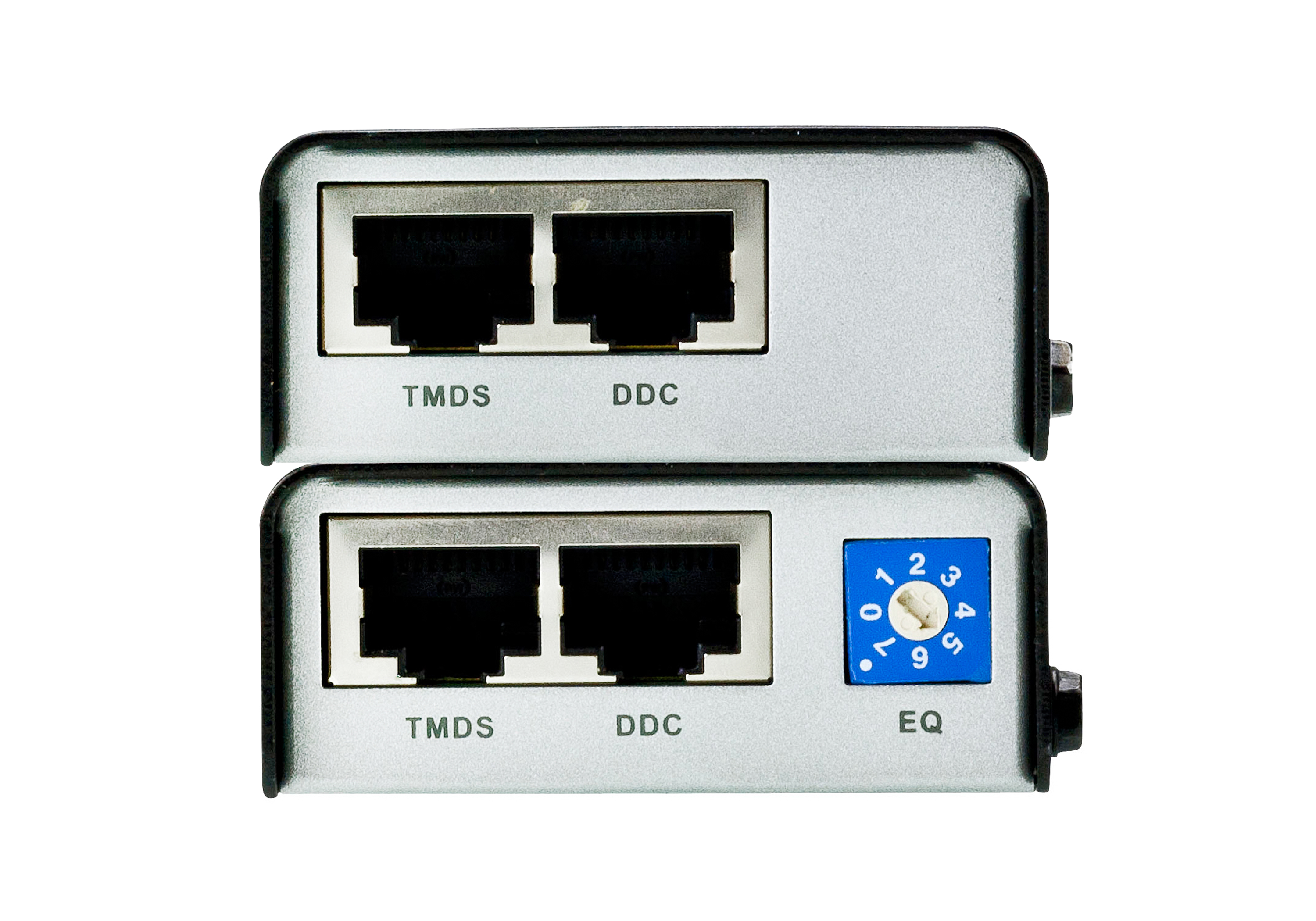

The VE810 HDMI Extender extends your HDMI display up to 60 m from your HDMI source device using two Cat 5e cables. In addition, VE810 is equipped with IR signaling pass-through which allows the IR channel to control from the remote to local unit, to control the HDMI source, or from the local to remote unit, to control the display device.
For flexibility and convenience, the VE810 setup requires only one power adapter for both units. The VE810R remote unit will function without the need of an additional power adapter because it will be powered by the VE810 local unit.
Package Contents
- 1x VE810L (Local Unit) HDMI Extender
- 1x VE810R (Remote Unit) HDMI Extender
- 1x Power Adapter (Local Unit)
- 1x Mounting Kit
- 1x User Instructions
- 1x IR Receiver
- 1x IR Transmitter
(VE810-AT-U)
| Function | VE810L | VE810R |
| Video Input | ||
| Interfaces | 1 x HDMI Type A Female (Black) | N/A |
| Impedance | 100 ? | N/A |
| Max. Distance | 3 m | N/A |
| Video Output | ||
| Interfaces | N/A | 1 x HDMI Type A Female (Black) |
| Impedance | N/A | 100 ? |
| Max. Distance | N/A | 3 m |
| Video | ||
| Max. Data Rate | 6.75 Gbps (2.25 Gbps Per Lane) | 6.75 Gbps (2.25 Gbps Per Lane) |
| Max. Pixel Clock | 225 MHz | 225 MHz |
| Compliance | HDMI (3D, Deep Color) HDCP Compatible | HDMI (3D, Deep Color) HDCP Compatible |
| Max. Resolutions / Distance | Up to 1080p@40m; 1080i@60m | Up to 1080p@40m; 1080i@60m |
| Audio | ||
| Input | 1 x HDMI Type A Female (Black) | N/A |
| Output | N/A | 1 x HDMI Type A Female (Black) |
| Control | ||
| IR | 1 x Mini Stereo Jack Female (Black) | 1 x Mini Stereo Jack Female (Black) |
| Connectors | ||
| Power | 1 x DC Jack | 1 x DC Jack |
| Power Consumption | DC5V:2.41W:11BTU | DC5V:1.06W:5BTU |
| Environmental | ||
| Operating Temperature | 0 - 50°C | 0 - 50°C |
| Storage Temperature | -20 - 60°C | -20 - 60°C |
| Humidity | 0 - 80% RH, Non-Condensing | 0 - 80% RH, Non-Condensing |
| Physical Properties | ||
| Housing | Metal | Metal |
| Weight | 0.16 kg ( 0.35 lb ) | 0.16 kg ( 0.35 lb ) |
| Dimensions (L x W x H) | 9.00 x 5.74 x 2.40 cm (3.54 x 2.26 x 0.94 in.) | 9.00 x 5.74 x 2.40 cm (3.54 x 2.26 x 0.94 in.) |
| Carton Lot | 20 pcs | 20 pcs |
| Note | For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format. | |
| SKU | VE810-AT-U |
| Barcode # | 4710423777729 |
| Brand | ATEN |
| Shipping Weight | 1.1000kg |
Manufacturer Warranty: 2 Years Manufacturer Warranty
