4K up to 100m
The supplied record lists 4K up to 70m on Cat5e/6 and up to 100m on Cat6a.
ATEN VE812R HDMI HDBaseT Receiver with 8KV/15KV ESD Protection - 4K at 100m
Model # VE812R-AT-U
-
SKU: VE812R-AT-U
- Pick Up Available
- Australian Warranty
- Checkout Securely
ATEN SKU VE812R-AT-U

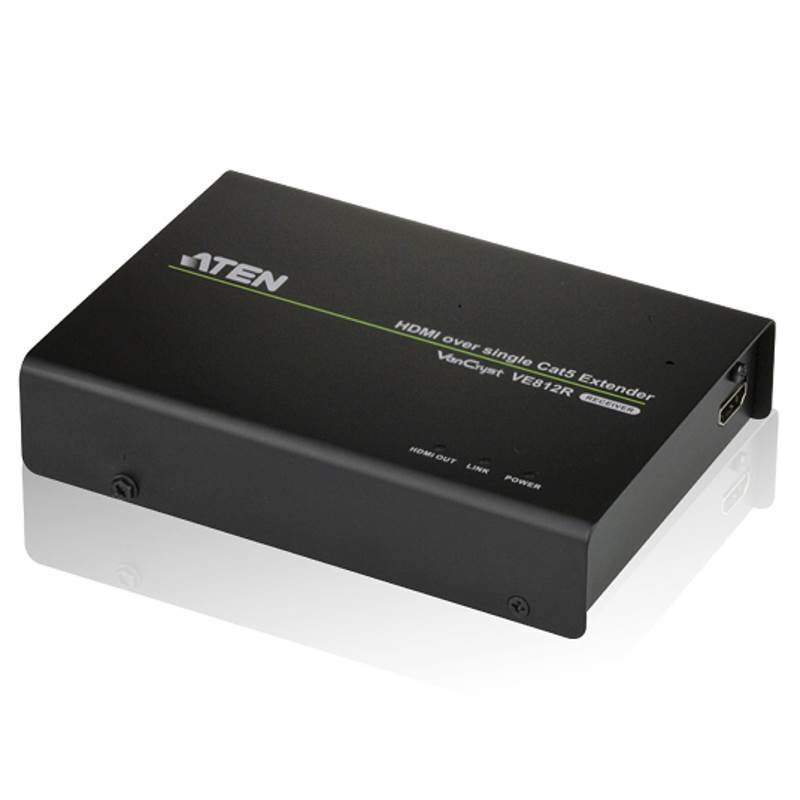

ATEN VE812R-AT-U HDMI HDBaseT Receiver for 4K up to 100m
The ATEN VE812R-AT-U is an HDMI HDBaseT receiver for extending compatible HDMI video and audio over one Cat5e, Cat6 or Cat6a cable.
The source lists 4K up to 70 metres on Cat5e/6 or 100 metres on Cat6a, 1080p up to 100 metres, 340MHz bandwidth and built-in 8kV contact and 15kV air ESD protection.
HDMI HDBaseT receiver4K up to 100m10.2Gbps8kV/15kV ESD protectionDeviceDeal authorised ATEN reseller
Product overview
HDBaseT signal protection
Anti-jamming operation and automatic optimum EDID selection are stated for stable video transmission.
Receiver-side output
One HDMI Type-A female output carries compatible video and HD audio to the display.
Source review: The supplied record embeds technical specifications in the description and does not provide a warranty duration. Its video-impedance unit is corrupted, so that unit is not inferred below.
Frequently asked questions
How far can the VE812R receive a 4K signal?
The source lists up to 70m over Cat5e/6 or 100m over Cat6a.
What 4K formats are stated?
4096 x 2160 or 3840 x 2160 at 60Hz 4:2:0 and at 30Hz 4:4:4 are listed.
Does it include ESD protection?
Yes. The source lists 8kV contact-discharge and 15kV air-discharge protection.
Is a transmitter included?
The supplied record identifies this product as a receiver; a compatible transmitter is required for an HDBaseT link.
What warranty applies?
The product is supplied under the applicable ATEN manufacturer warranty in Australia through DeviceDeal as an authorised ATEN reseller.
(VE812R-AT-U)
Features
ATEN VE812R-AT-U HDMI HDBaseT Receiver for 4K up to 100m
Video extension
- HDMI over HDBaseT
- 4K up to 70m on Cat5e/6
- 4K up to 100m on Cat6a
- 1080p up to 100m
Video and audio
- 10.2Gbps maximum data rate
- 340MHz maximum pixel clock
- HDCP 2.2 and CEC
- Dolby TrueHD and DTS-HD Master Audio
Protection and build
- 8kV contact ESD protection
- 15kV air ESD protection
- Metal housing
- Automatic EDID selection
A compatible HDBaseT transmitter and suitable category cable are required.
Technical specifications
ATEN VE812R-AT-U HDMI HDBaseT Receiver for 4K up to 100m
| Product details | |
|---|---|
| Brand | ATEN |
| Model / SKU | VE812R-AT-U |
| Product type | HDMI HDBaseT receiver |
| Video and audio | |
| Video / audio output | 1 x HDMI Type-A female, black |
| Maximum data rate | 10.2Gbps; 3.4Gbps per lane |
| Maximum pixel clock | 340MHz |
| 4K distance | Up to 70m on Cat5e/6; up to 100m on Cat6a |
| 1080p distance | Up to 100m |
| 4K formats stated | 4096 x 2160 / 3840 x 2160 at 60Hz 4:2:0; at 30Hz 4:4:4 |
| Compliance | HDMI 3D, Deep Color and 4K; HDCP 2.2; CEC |
| Power and physical | |
| Power | 1 x DC jack |
| Power consumption stated | DC5.3V, 5.06W, 24BTU |
| Housing | Metal |
| Weight | 0.41kg |
| Dimensions (L x W x H) | 14.17 x 10.30 x 3.00cm |
| Environment and protection | |
| Operating temperature | 050°C |
| Storage temperature | -2060°C |
| Humidity | 080% RH, non-condensing |
| ESD protection | 8kV contact; 15kV air |
| SKU | VE812R-AT-U |
| Barcode # | 4719264640285 |
| Brand | Aten |
| Shipping Weight | 0.4100kg |
| Shipping Width | 0.030m |
| Shipping Height | 0.150m |
| Shipping Length | 0.110m |
Warranty information
ATEN VE812R-AT-U HDMI HDBaseT Receiver for 4K up to 100m
ATEN Manufacturer Warranty
DeviceDeal is an authorised ATEN reseller. This product is supplied under the applicable ATEN manufacturer warranty in Australia. Please contact DeviceDeal to confirm the warranty period and conditions for SKU VE812R-AT-U.
