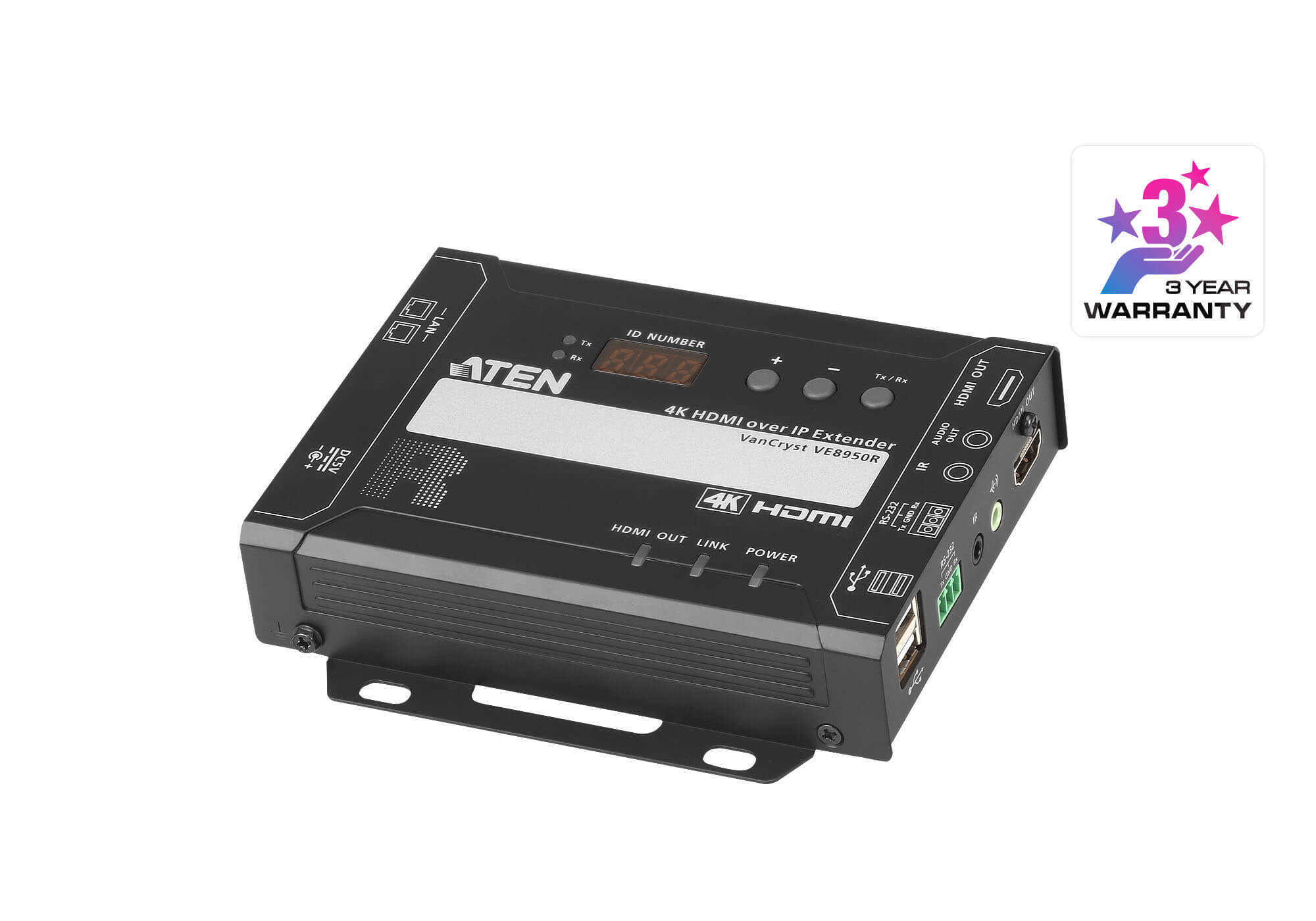

The ATEN VE8950R Video over IP Receiver delivers visually lossless 4K AV signals with low latency over long distance via a local network of standard Gigabit network switch*.


The VE8950R provides an effective, easy-to-use, and economical digital signage solution with the following features and advantages that directly address the challenges system integrators encounter when implementing AV over IP systems:

  • Limitless scalability and flexibility

  • No complicated IP setup

  • No additional server PCs or software required required

  • Go further for less with daisy chaining


Engineered to meet today’s demands of large scale, multi-display, 4K signal transmission, and designed to be easy to set up and operate, the VE8950R Video over IP Receiver is an ideal product for a wide range of environments, such as trade shows, airports, university campuses, conference centers, and shopping centers.

*Note: Regarding the detail information requirement of network switch, please refer to Implementation guide: https://assets.aten.com/product/manual/Implementation_Guide.pdf


Package Contents

  • 1x VE8950R 4K HDMI over IP Receiver
  • 1x RS-232 Terminal block
  • 1x 5V Power adapter
  • 1x User instructions

(VE8950R-AT-U)

Video Output
Interfaces1 x HDMI Type A Female (Black)
Impedance100 ?
Max. Distance3 m
Video
Max. Data RateAverage: 150 ~ 500Mbps
ComplianceHDMI
HDCP Compatible
Max. Resolutions / DistanceUp to 4K@100m (Cat 5e/6, point to point)

*4K supported:
4096 x 2160 / 3840 x 2160 @ 30Hz (4:4:4)
Audio
Output1 x HDMI Type A Female (Black)
1 x Mini Stereo Jack Female (Green)

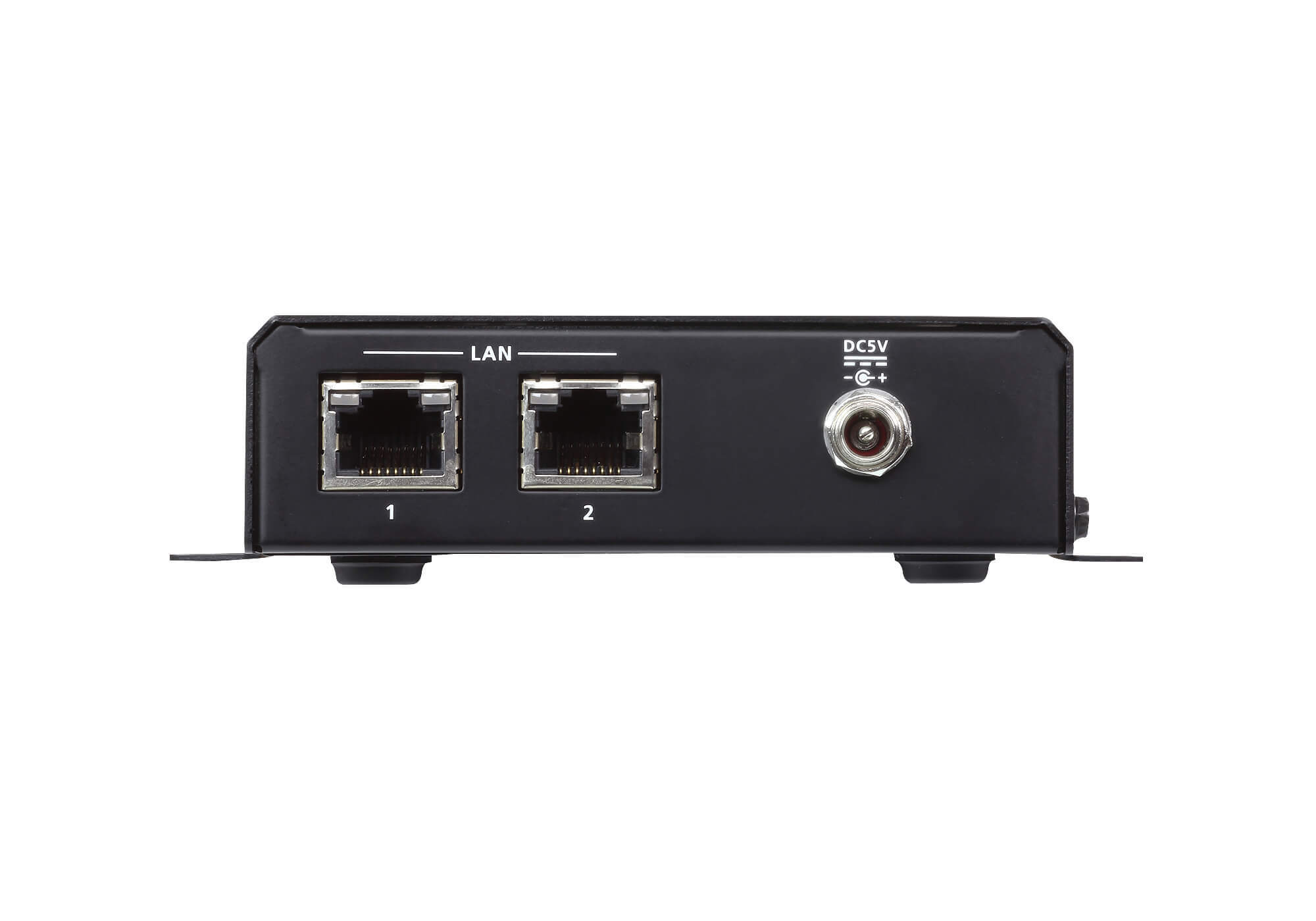

Connectors
Unit To Unit2 x RJ-45 Female
Power1 x DC Jack (Black) with locking

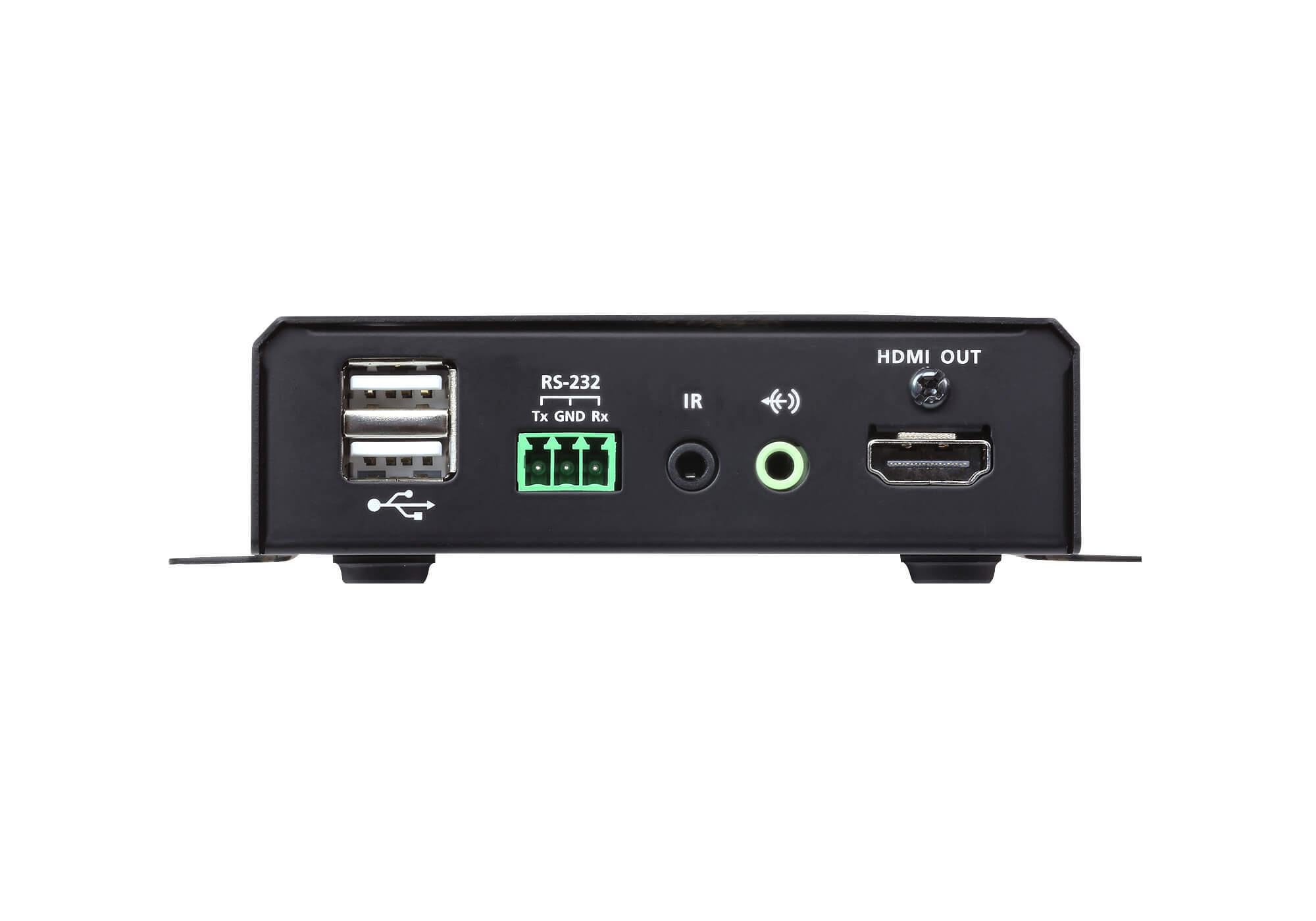

Control
IR1 x Mini Stereo Jack Female (Black)
RS-232Connector: 1 x Terminal Block, 3 pole
Baud Rate: 19200, Data Bits:8,
Stop Bits:1, no parity and flow control
USB2 x USB Type A Female (Black)
Pushbuttons
ID Number Selection3 x Push buttons
Power ConsumptionDC5V:4.53W:43BTU
Environmental
Operating Temperature0 - 40°C
Storage Temperature-20 - 60°C
Humidity0 - 80% RH, Non-Condensing
Physical Properties
HousingMetal
Weight0.49 kg ( 1.08 lb )
Dimensions (L x W x H) with bracket14.02 x 12.30 x 3.06 cm
(5.52 x 4.84 x 1.2 in.)
Dimensions (L x W x H) without bracket13.60 x 10.10 x 2.96 cm
(5.35 x 3.98 x 1.17 in.)

SKU VE8950R-AT-U
Barcode # 4719264645686
Brand ATEN
Shipping Weight 0.4900kg
Manufacturer Warranty: 2 Years Manufacturer Warranty
