StarTech.com · HDBOOST

HDMI Signal Booster, 1080p up to 35m

Place this adjustable inline booster between two HDMI cables to maintain video up to 1080p 60Hz across a total run of up to 35m.

Up to 35m1080p 60Hz10-level EQ7.1 audio

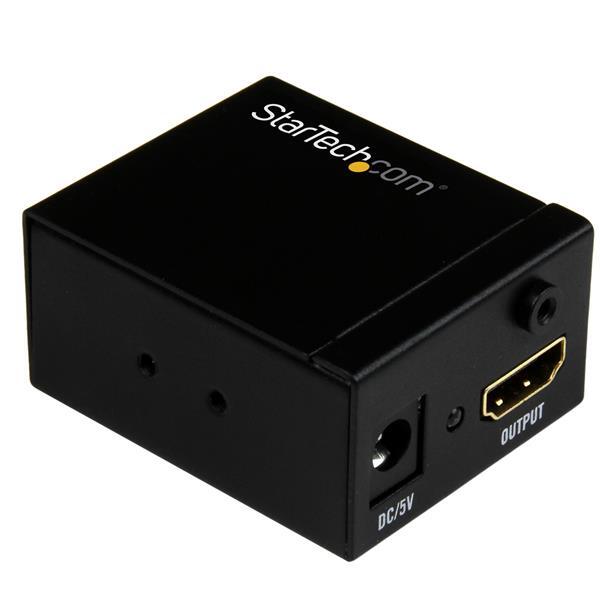

StarTech HDBOOST HDMI Signal Booster, 1080p up to 35m

Built for dependable use

Long HDMI extension

Boosts a standard HDMI cable run to a combined maximum distance of 35m at 1080p 60Hz.

Adjustable equalisation

A ten-level switch lets the installer tune amplification for the cable distance.

Defined cable layout

Supports up to 25m from source to booster and up to 10m from booster to display.

HDMI audio support

Carries compatible 7.1-channel surround audio with the video signal.

What to know before you connect

The source-side cable must be at least as long as the display-side cable.
The source-to-booster cable is limited to 25m and the booster-to-display cable to 10m.
An external power supply is not required for standard applications and is not included.
This model is specified for 1080p, not 4K output.

Australian version with official warranty

Supplied by DeviceDeal and covered by the official StarTech.com 2 years manufacturer warranty in Australia. Keep your DeviceDeal tax invoice as proof of purchase; coverage is subject to StarTech.com terms, eligibility and product assessment.

Frequently asked questions

What does the StarTech HDBOOST do?

It amplifies an HDMI signal between two standard HDMI cables for longer source-to-display runs.

What connections does the HDBOOST provide?

It provides one HDMI female input and one HDMI female output.

What is the maximum verified performance?

It supports up to 1920 × 1080 at 60Hz over a combined maximum cable distance of 35m.

How is the HDBOOST powered?

No external adapter is required for standard applications; an optional compatible 5V supply is not included.

What compatibility should I check?

It is designed for HDMI sources, displays and standard HDMI cables arranged according to the stated input/output length limits.

How should the two HDMI cable lengths be arranged?

Use up to 25m on the source side and up to 10m on the display side; the source cable must be at least as long as the display cable.

What is included in the package?

The package includes the booster, two mounting brackets, four mounting screws and a screwdriver.

What warranty applies in Australia?

The Australian-version HDBOOST supplied by DeviceDeal is covered by a 2 years official StarTech.com manufacturer warranty in Australia, subject to StarTech.com terms and assessment.

Not sure this is the right product for your setup? Visit the DeviceDeal Buying Guides.

(HDBOOST)

Features and highlights

Long HDMI extension

Boosts a standard HDMI cable run to a combined maximum distance of 35m at 1080p 60Hz.

Adjustable equalisation

A ten-level switch lets the installer tune amplification for the cable distance.

Defined cable layout

Supports up to 25m from source to booster and up to 10m from booster to display.

HDMI audio support

Carries compatible 7.1-channel surround audio with the video signal.

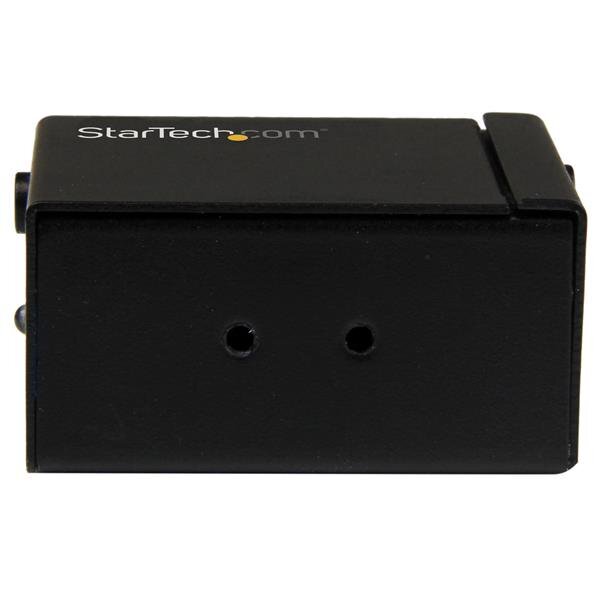

Mountable steel enclosure

Includes brackets, screws and a screwdriver for a secure installation.

Key highlights

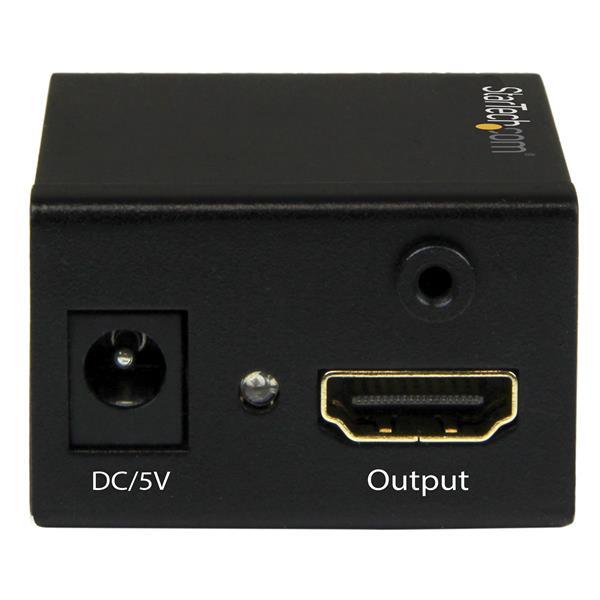

HDMI female input and output
1920 × 1080 at 60Hz
Two blue status LEDs
No adapter required for standard applications

Official StarTech.com 2 years manufacturer warranty in Australia.

Technical specifications

StarTech HDBOOST · HDMI Signal Booster, 1080p up to 35m

Warranty Information

Warranty

2 Years

Hardware

Audio

Yes

AV Input

HDMI

AV Output

HDMI

Cabling

HDMI

Daisy-Chain

Rack-Mountable

Yes

Performance

Audio Specifications

7.1 surround Sound

Max Distance

35 m / 115 ft

Maximum Cable Length

114.8 ft [35 m]

Maximum Digital Resolutions

1920 x 1080 at 60Hz

Supported Resolutions

1920 x 1080, 1680 x 1050, 1600 x 900, 1440 x 900, 1360 x 768, 1280 x 800, 1280 x 768, 1280 _ 720

Wide Screen Supported

Yes

Connector(s)

Connector A

1 - HDMI (19 pin) Female Input

Connector B

1 - HDMI (19 pin) Female Output

Special Notes / Requirements

System and Cable Requirements

The HDMI cable connected to your video source must be longer or equal to the length of the cable connected to your display.

Additional detail

The maximum supported display cable length is 33 ft. (10m).

Indicators

LED Indicators

1 - power LED (blue)

Additional detail

1 - video source LED (blue)

Power

Center Tip Polarity

Positive

Input Voltage

100 - 240 AC

Output Current

1 A

Output Voltage

5 DC

Plug Type

Power Source

Not Included (not required for standard applications)

Environmental

Humidity

5% to 90%

Operating Temperature

0°C to 70°C (32°F to 158°F)

Storage Temperature

-10°C to 80°C (14°F to 176°F)

Physical Characteristics

Product Height

1 in [2.6 cm]

Product Length

2.1 in [54.2 mm]

Product Width

1.7 in [42.2 mm]

Weight of Product

2.6 oz [74 g]

Packaging Information

Package Height

1.3 in [33 mm]

Package Length

5.7 in [14.4 cm]

Package Width

6.8 in [17.3 cm]

Shipping (Package) Weight

5.8 oz [163 g]

What's in the Box

Included in Package

1 - HDMI signal booster

Additional detail

1 - screwdriver

Official Performance

Maximum Distance

35m [115ft]

Maximum Resolution

1920 × 1080 at 60Hz

Source Cable Maximum

25m [82ft]

Display Cable Maximum

10m [33ft]

Audio

7.1-channel surround sound

Official Physical Details

Material

Steel

Dimensions

54.2 × 42 × 26mm

Weight

74g

SKU	HDBOOST
Barcode #	65030863209
Brand	STARTECH
Shipping Weight	0.1600kg
Shipping Width	0.100m
Shipping Height	0.050m
Shipping Length	0.170m
Shipping Cubic	0.000850000m3
